Rear Door Lower Latch Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door lower trim. (See REAR DOOR LOWER TRIM REMOVAL/INSTALLATION .)
  2. Remove the rear door upper trim. (See REAR DOOR UPPER TRIM REMOVAL/INSTALLATION .)
  3. Remove the front seat belt retractor. (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
  4. Remove the rear door release handle. (See REAR DOOR RELEASE HANDLE REMOVAL/INSTALLATION .)
  5. Detach the clip and disconnect the rear door lower latch switch connector.

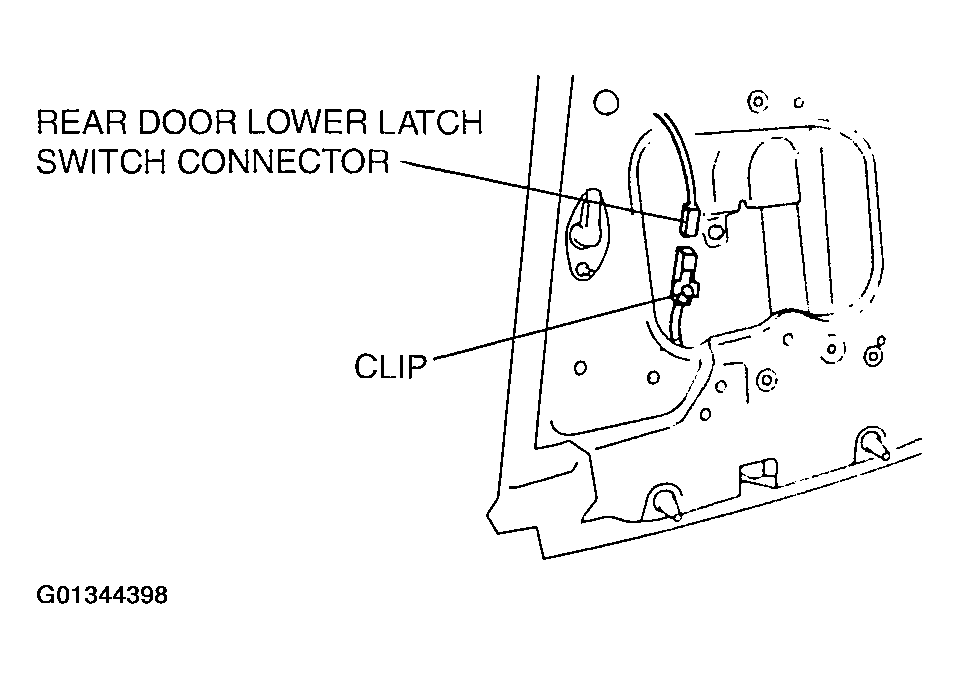

    Fig 1: Disconnecting Rear Door Lower Latch Switch Connector
    G01344398Courtesy of MAZDA MOTORS CORP.
  6. Remove bolt A.
  7. Remove bolts B, then remove the rear door lower latch.
  8. Install in the reverse order of removal.

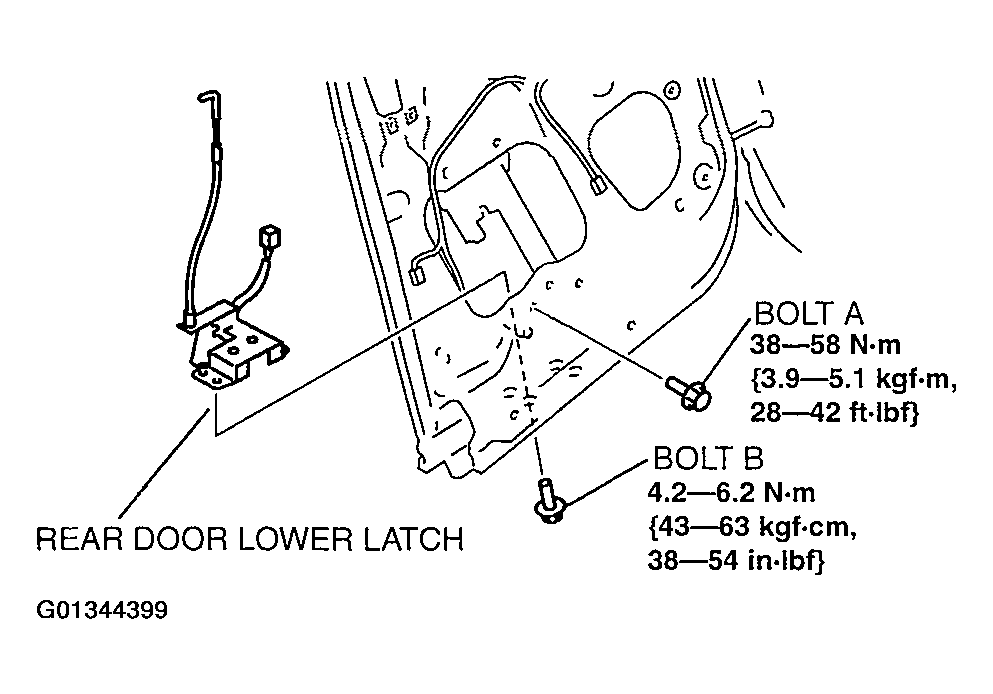

    Fig 2: Removing Rear Door Lower Latch
    G01344399Courtesy of MAZDA MOTORS CORP.
  9. Adjust the door. (See DOOR ADJUSTMENT .)
