Bumper Bracket Front Removal/Installation

  1. Remove the front bumper. See BUMPER FRONT REMOVAL/INSTALLATION .
  2. Remove the bumper corner support bolts (1).
  3. Remove the bumper corner support (2).

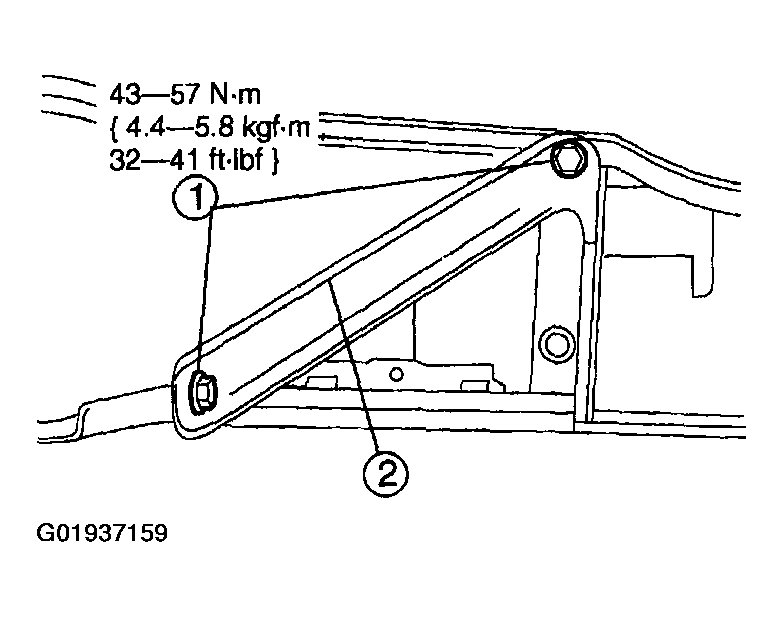

    Fig 1: Removing Bumper Corner Support Bolts
    G01937159Courtesy of MAZDA MOTORS CORP.
  4. Remove the bumper bracket bolts (1).
  5. Remove the nuts (2).
  6. Remove the bumper bracket (3).

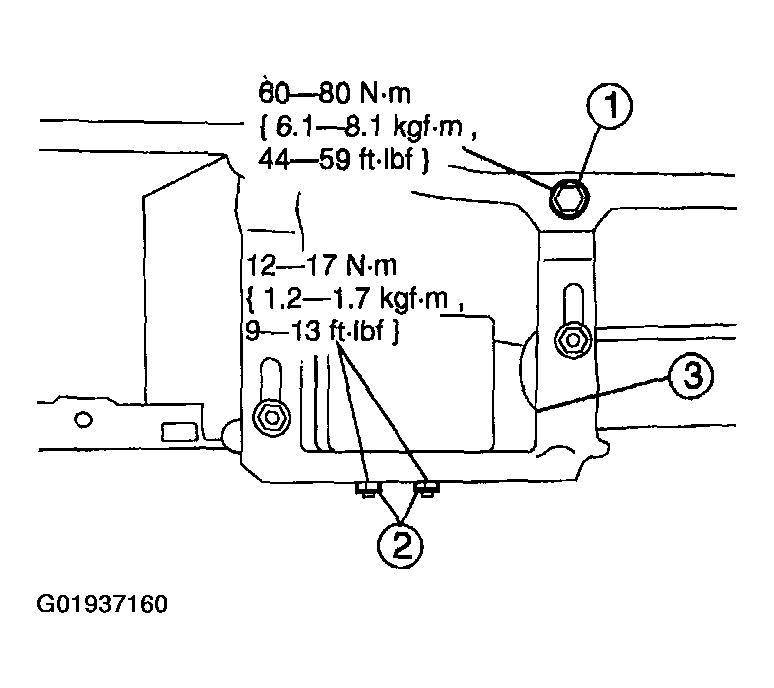

    Fig 2: Removing Bumper Bracket Bolts
    G01937160Courtesy of MAZDA MOTORS CORP.
  7. Install in reverse order of removal.
