Bumper Front Removal/Installation

NOTE:

The front bumper is unique for the 1999 model year and must not be substituted with bumpers from prior model years.

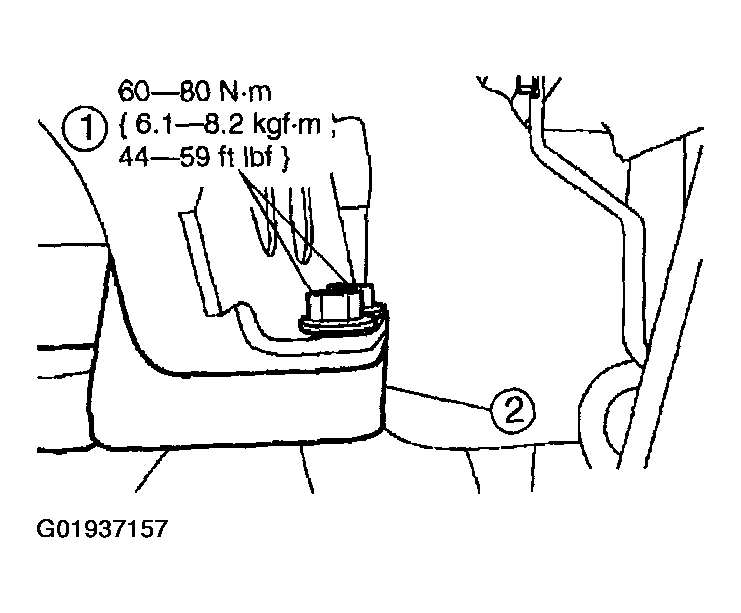

If equipped, remove the six tow hook bolts (1) and tow hooks (2).

Fig 1: Locating Tow Hook & Bolts
Courtesy of MAZDA MOTORS CORP.
If equipped, disconnect the fog lamp electrical connectors.
If equipped, disconnect the engine block heater plug and position aside.

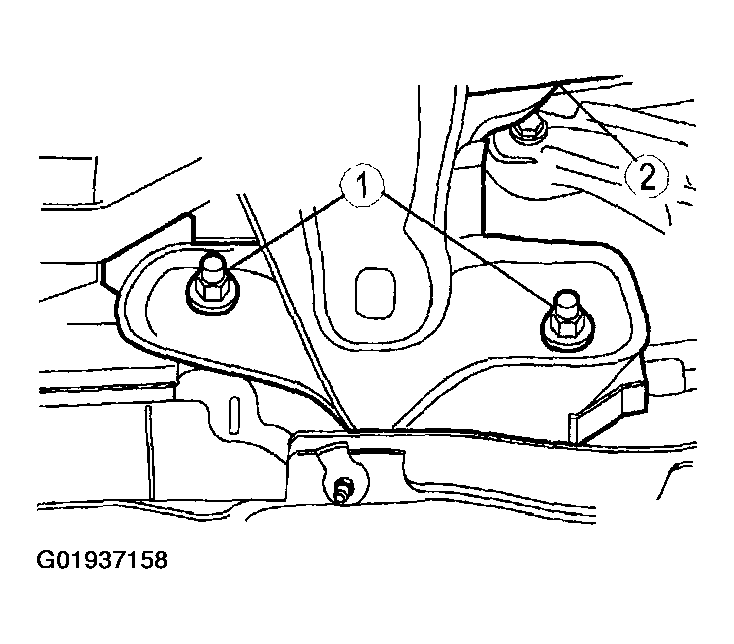

Remove the front bumper bracket to frame nuts (1).
Remove the bumper (2).

Fig 2: Locating Frame Nuts
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
1. Tightening torque
  1. 60-80 N.m (6.1-8.2 kgf.m, 44-59 ft.lbf).
