Trunk Lid Striker Removal/Installation

  1. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  2. Remove the bolts, then remove the trunk lid striker.

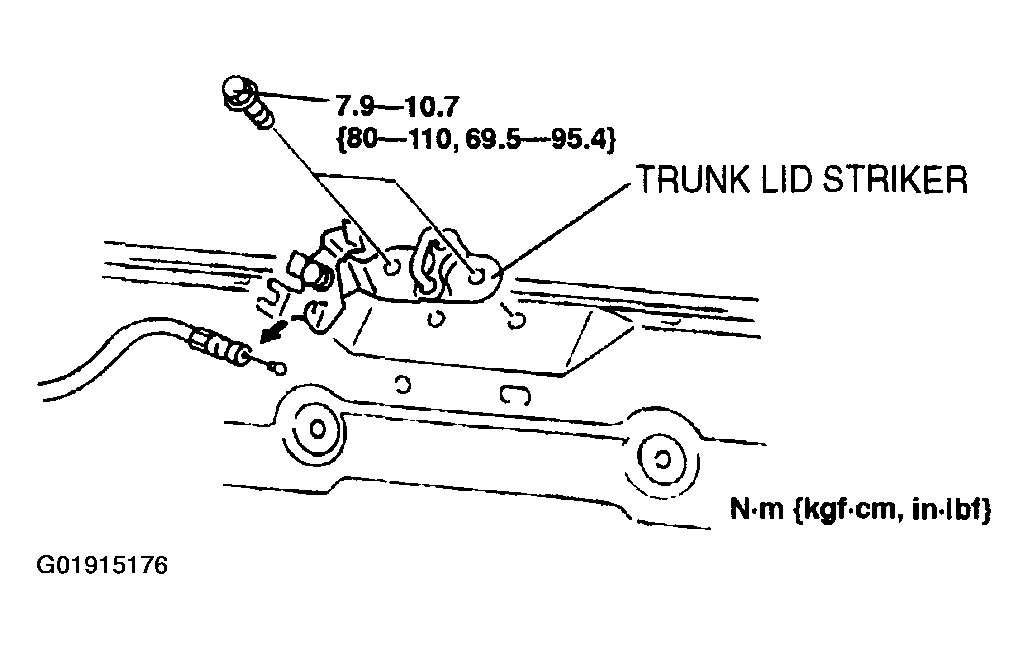

    Fig 1: Removing Trunk Lid Striker
    G01915176Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
  4. Adjust the trunk lid opener cable. (See TRUNK LID OPENER CABLE ADJUSTMENT  .)
