Trunk Lid Opener Cable Adjustment

  1. Install the trunk lid striker to one of the three places (A, B, and C) so that the play of the trunk lid opener cable is within the specified clearance.
    • If not as specified, move to the next location.

      Clearance

      a: 0.3-4.5 mm (0.02-0.17 in)

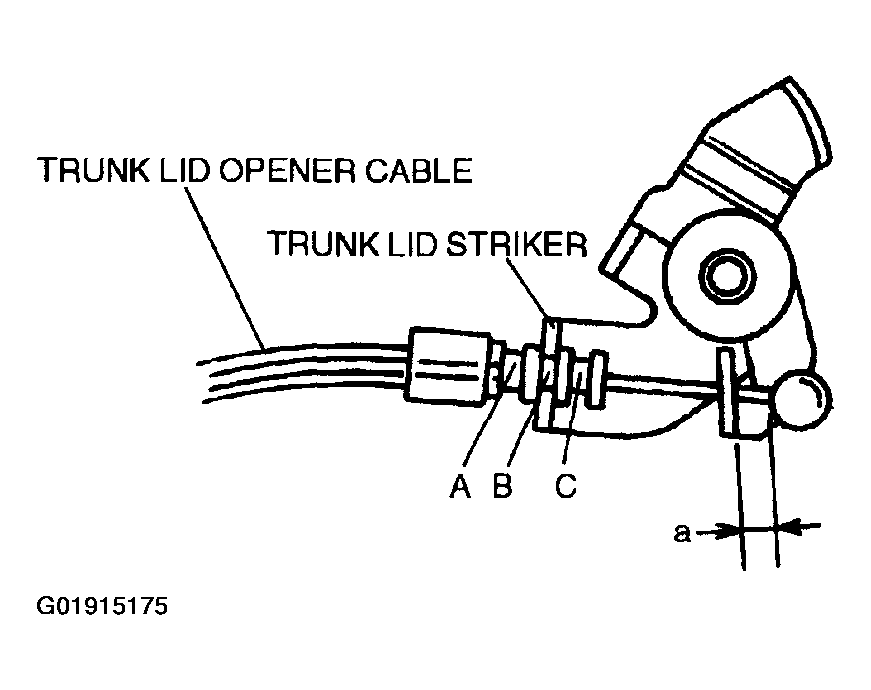

    Fig 1: Adjusting Trunk Lid Opener Cable
    G01915175Courtesy of MAZDA MOTORS CORP.
