Transaxle Range (Tr) Switch Removal/Installation

Disconnect the negative battery cable.
Remove the battery carrier, battery tray, and battery.
Remove the air cleaner component. (See INTAKE AIR SYSTEM .)
CAUTION:
- Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.
Disconnect the TR switch connector.
Remove the spring and disconnect the selector cable.

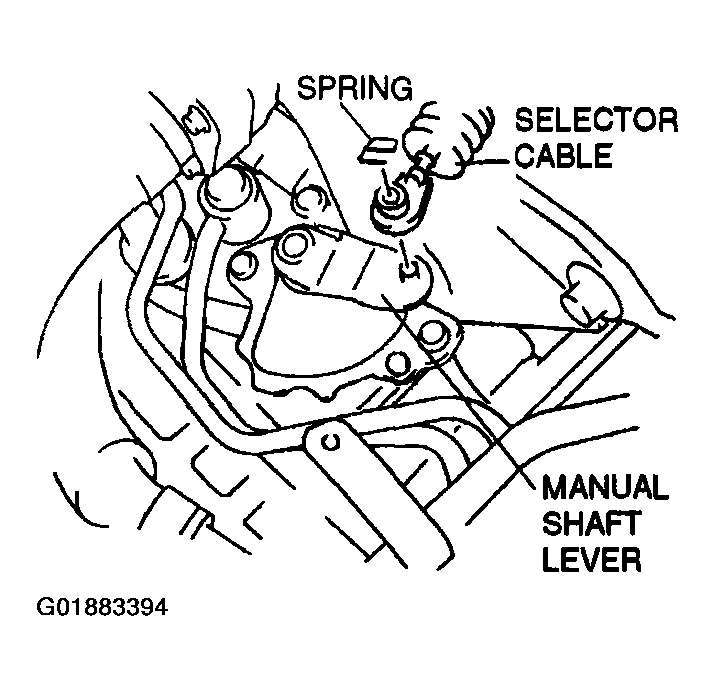

Fig 1: Removing Spring And Disconnecting Selector Cable
Courtesy of MAZDA MOTORS CORP.
Rotate the manual shaft to the N position.
CAUTION:
- Do not use an impact wrench. Hold the manual shaft lever when removing the manual shaft nut, or the transaxle may be damaged.
Set the adjustable wrench to hold the manual shaft lever.

Fig 2: Holding Manual Shaft Lever
Courtesy of MAZDA MOTORS CORP.
Remove the manual shaft nut and washer.
Remove the manual shaft lever.
Remove the TR switch.
Rotate the manual shaft to the right fully, them return 2 notches to set the N position.

Fig 3: Identifying Manual Shaft Positions
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Improper adjustment of the TR switch will cause abnormal operation of the automatic transaxle. Be sure to use the SST to adjust the TR switch correctly.
Using the SST and by turning the TR switch, adjust the positions of the manual shaft and the TR switch neutral hole.

Fig 4: Adjusting Manual Shaft And TR Switch Neutral Hole Using SST
Courtesy of MAZDA MOTORS CORP.
Tighten the TR switch mounting bolts.
Tightening torque

4.9-6.9 N.m

{50.0-70.4 kgf.cm, 43.4-61.1 in.lbf}
Inspect for continuity at the TR switch between terminals C and D.
Remove the SST.
Install the manual shaft lever and washer.

Fig 5: Identifying TR Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not use an impact wrench. Hold the manual shaft lever when tightening the manual shaft nut, or the transaxle may be damaged.
Set the adjustable wrench as shown in Fig 2 to hold the manual shaft lever.
Tighten the manual shaft nut using a torque wrench.
Tightening torque

31-46 N.m {3.2-4.7 kgf.m, 23-34 ft.lbf}

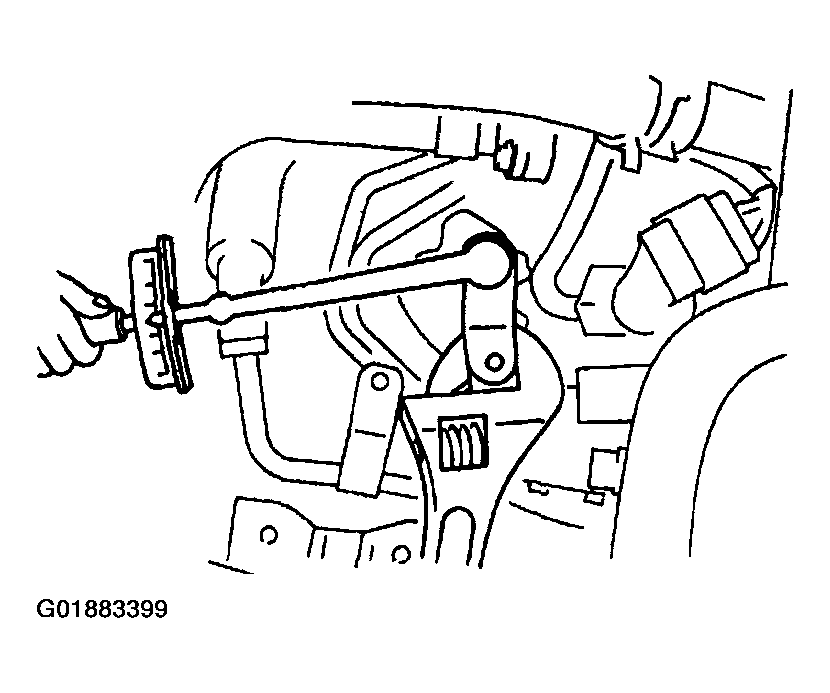

Fig 6: Tightening Manual Shaft Nut
Courtesy of MAZDA MOTORS CORP.
Install the spring as shown in Fig 7 .
- If it is bend, replace a new spring.

  Fig 7: Installing Spring
  Courtesy of MAZDA MOTORS CORP.
Verify that the selector lever range position and TR switch are aligned, then connect the selector cable.

Fig 8: Connecting Selector Cable
Courtesy of MAZDA MOTORS CORP.
Inspect for continuity at the TR switch. (See INSPECTION OF CONTINUITY .)
Connect the TR switch connector.
Install the air cleaner component. (See INTAKE AIR SYSTEM .)
Install the battery carrier, battery tray, and battery.
Connect the negative battery cable.
Inspect operation of the TR switch. (See INSPECTION OF OPERATION .)
