Inspection of Continuity

Disconnect the TR switch connector.
Inspect for continuity at the TR switch.
- If not as specified, adjust the TR switch, then reinspect the TR switch. (See TRANSAXLE RANGE (TR) SWITCH ADJUSTMENT .)

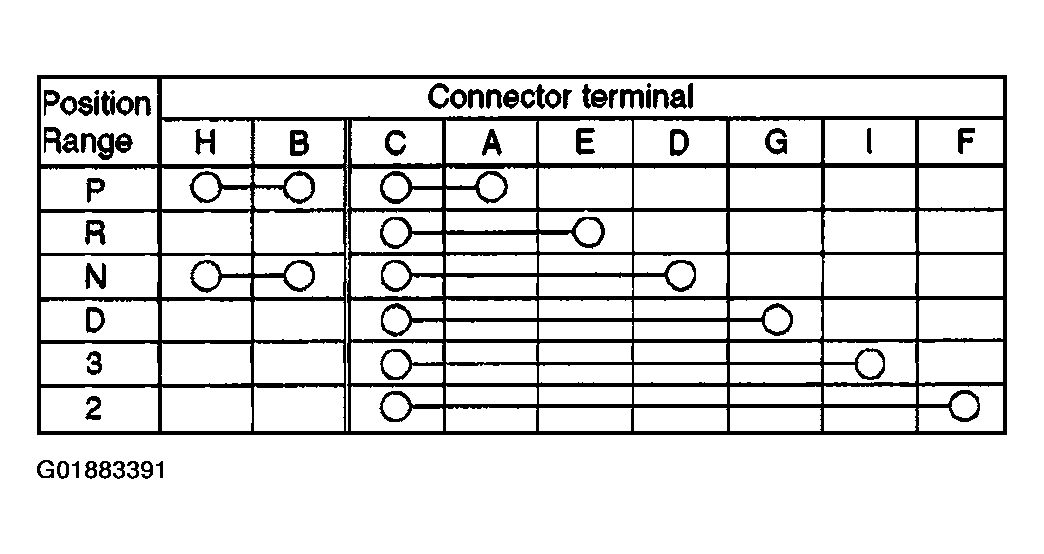

  Fig 1: TR Switch Continuity Chart
  Courtesy of MAZDA MOTORS CORP.

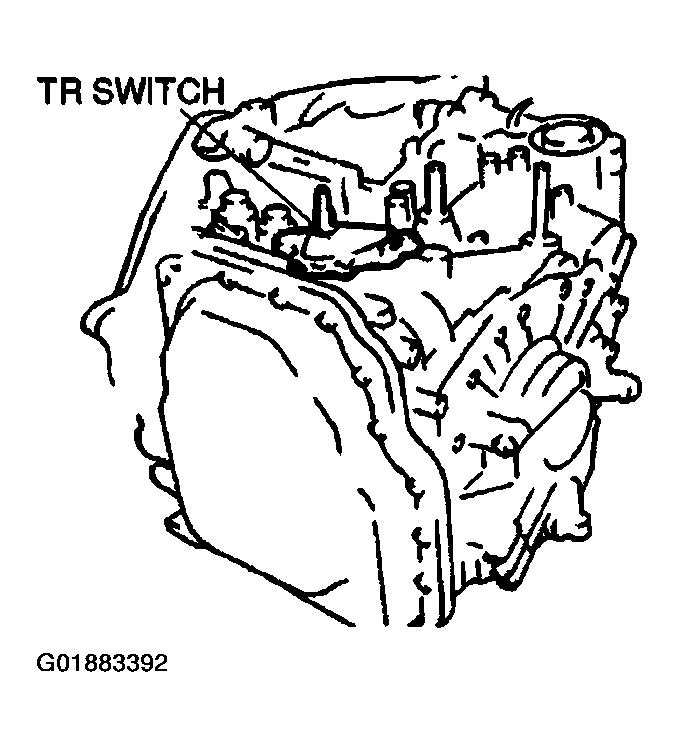

  Fig 2: Locating TR Switch
  Courtesy of MAZDA MOTORS CORP.
Connect the TR switch connector.

Fig 3: Identifying TR Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
