Sunroof Unit Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION .)
  3. Remove the glass panel. (See GLASS PANEL REMOVAL/INSTALLATION  .)
  4. Disconnect the front and rear drain hose from the sunroof frame.
  5. Remove the roof harness from the sunroof frame.

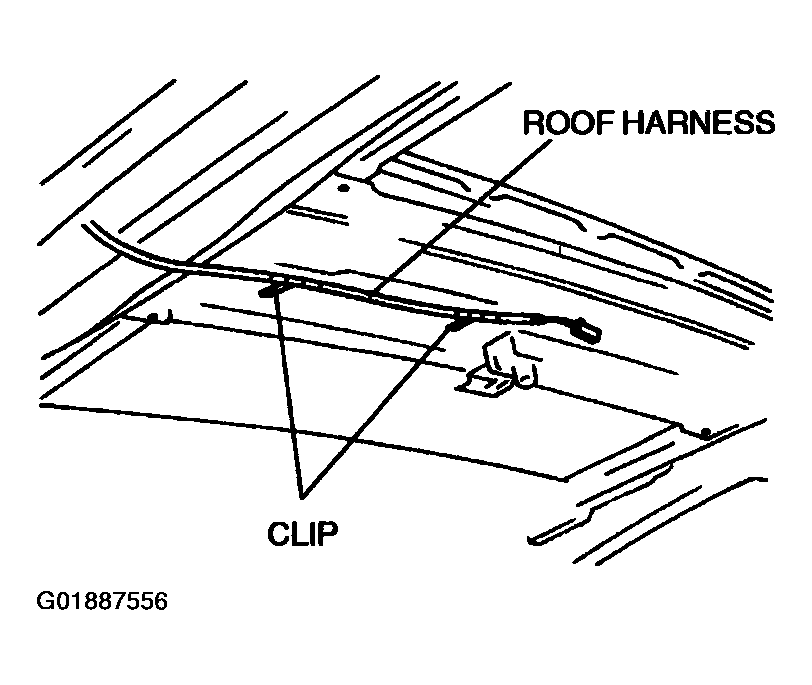

    Fig 1: Removing Roof Harness From Sunroof Frame
    G01887556Courtesy of MAZDA MOTORS CORP.
  6. Remove the bolts and nuts, and then remove the sunroof unit.

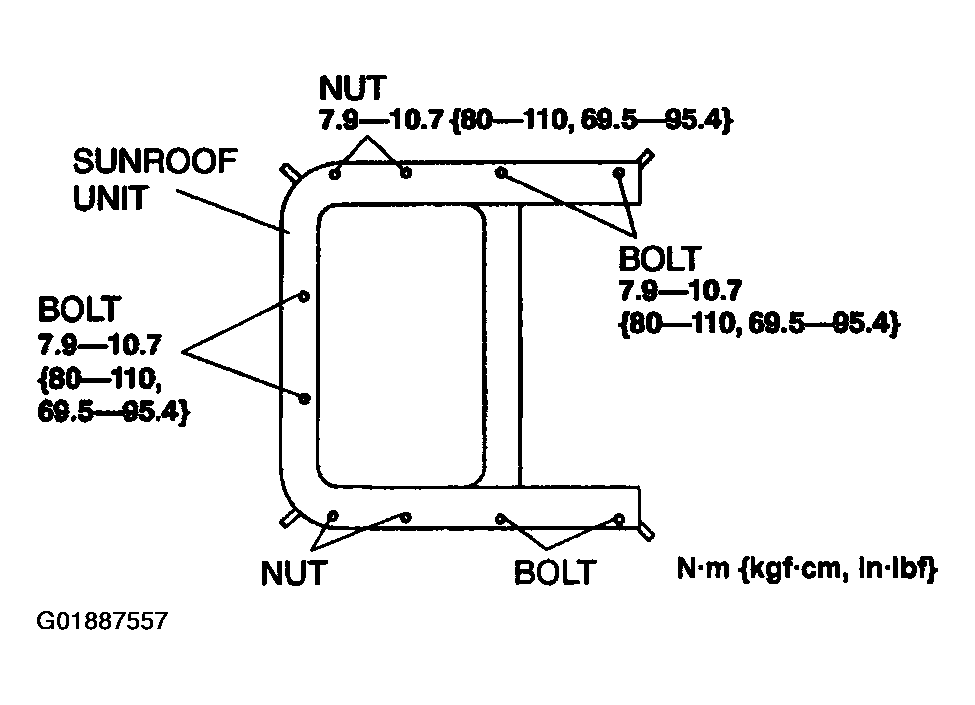

    Fig 2: Removing Bolts And Nuts, And Sunroof Unit
    G01887557Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
  8. Adjust the glass panel. (See GLASS PANEL ADJUSTMENT  .)
