Glass Panel Removal/Installation

Fully close the glass panel.
Fully open the sunshade.
Remove the screws, and then remove the glass panel.

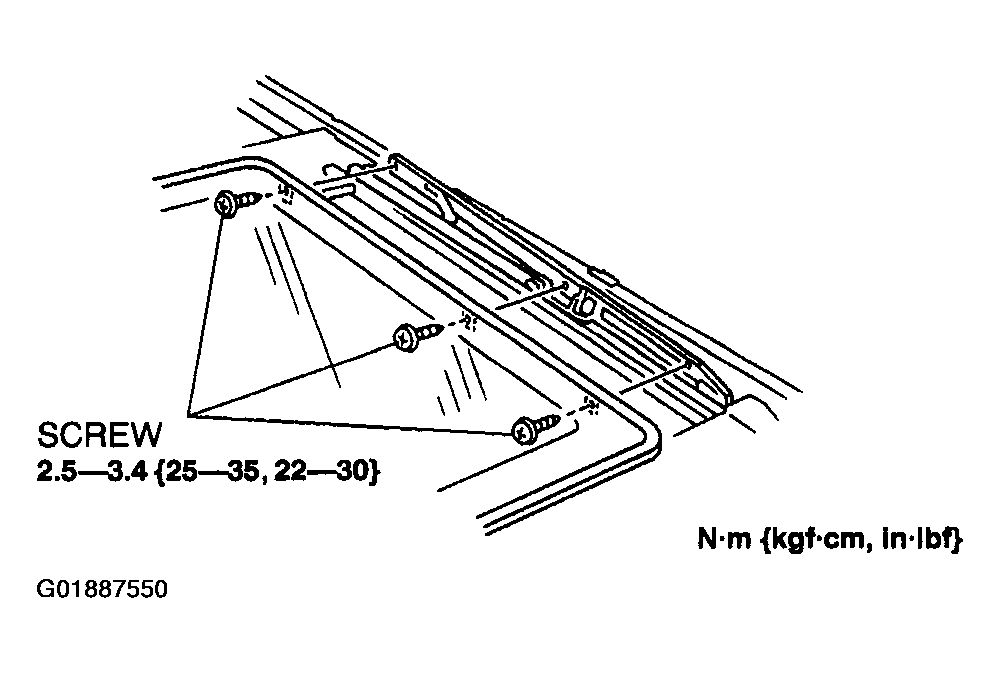

Fig 1: Identifying Screw
Courtesy of MAZDA MOTORS CORP.
Peel the weatherstrip off the glass panel.
Install in the reverse order of removal.
Adjust the glass panel. (See GLASS PANEL ADJUSTMENT .)

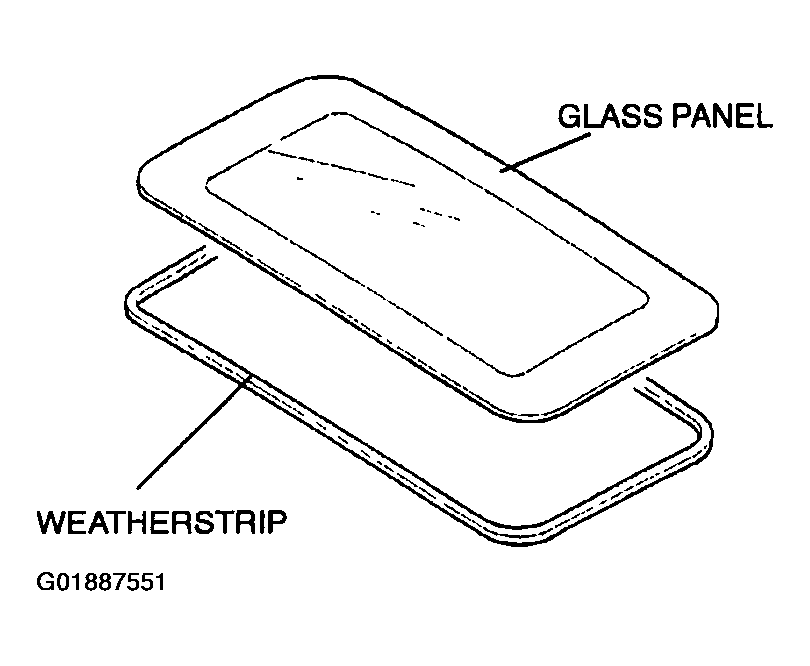

Fig 2: Identifying Weatherstrip Off Glass Panel
Courtesy of MAZDA MOTORS CORP.
