Sliding Door Lock Actuator Removal/Installation

  1. Close the rear door glass completely.
  2. Disconnect the negative battery cable.
  3. Remove the door screen. (See SLIDING DOOR LOCK AND OPENER REMOVAL/INSTALLATION  .)
  4. Disconnect the sliding door lock actuator connector.
  5. Disconnect the rods and the cables.
  6. Remove the bolts, and remove the sliding door remote controller.
  7. Remove the screws, and remove the sliding door lock actuator from the sliding door remote controller.
  8. Install in the reverse order of removal.

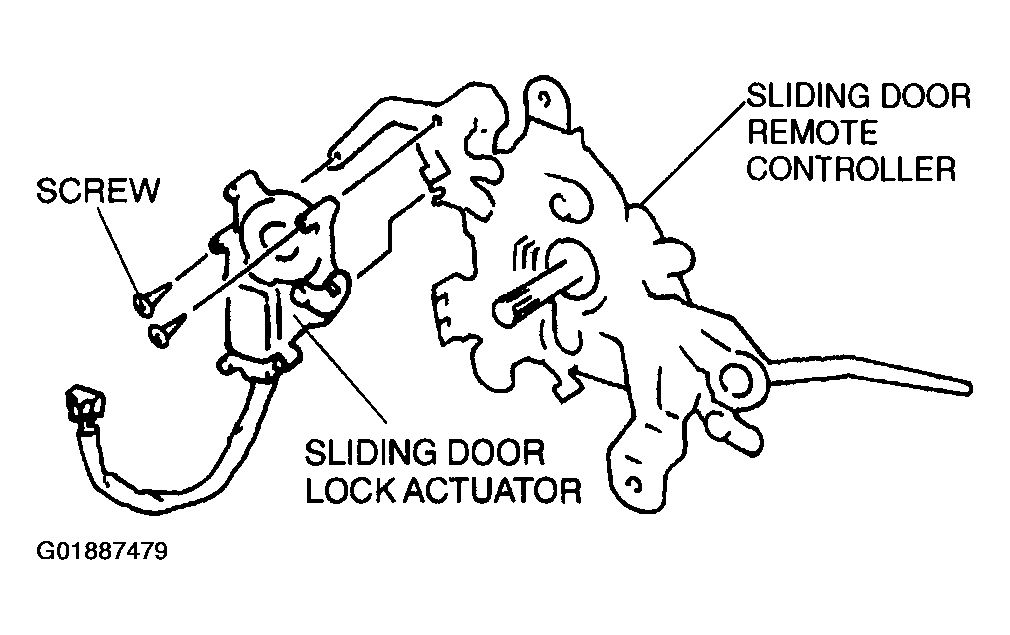

    Fig 1: Removing Sliding Door Lock Actuator From Sliding Door Remote Controller
    G01887479Courtesy of MAZDA MOTORS CORP.
