Sliding Door Lock And Opener Removal/Installation

  1. Close the rear door glass completely.
  2. Disconnect the negative battery cable.
  3. Remove the sliding door trim. (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the figure below.
    Fig 1: Sliding Door Lock And Opener Component Table
    G01887477Courtesy of MAZDA MOTORS CORP.

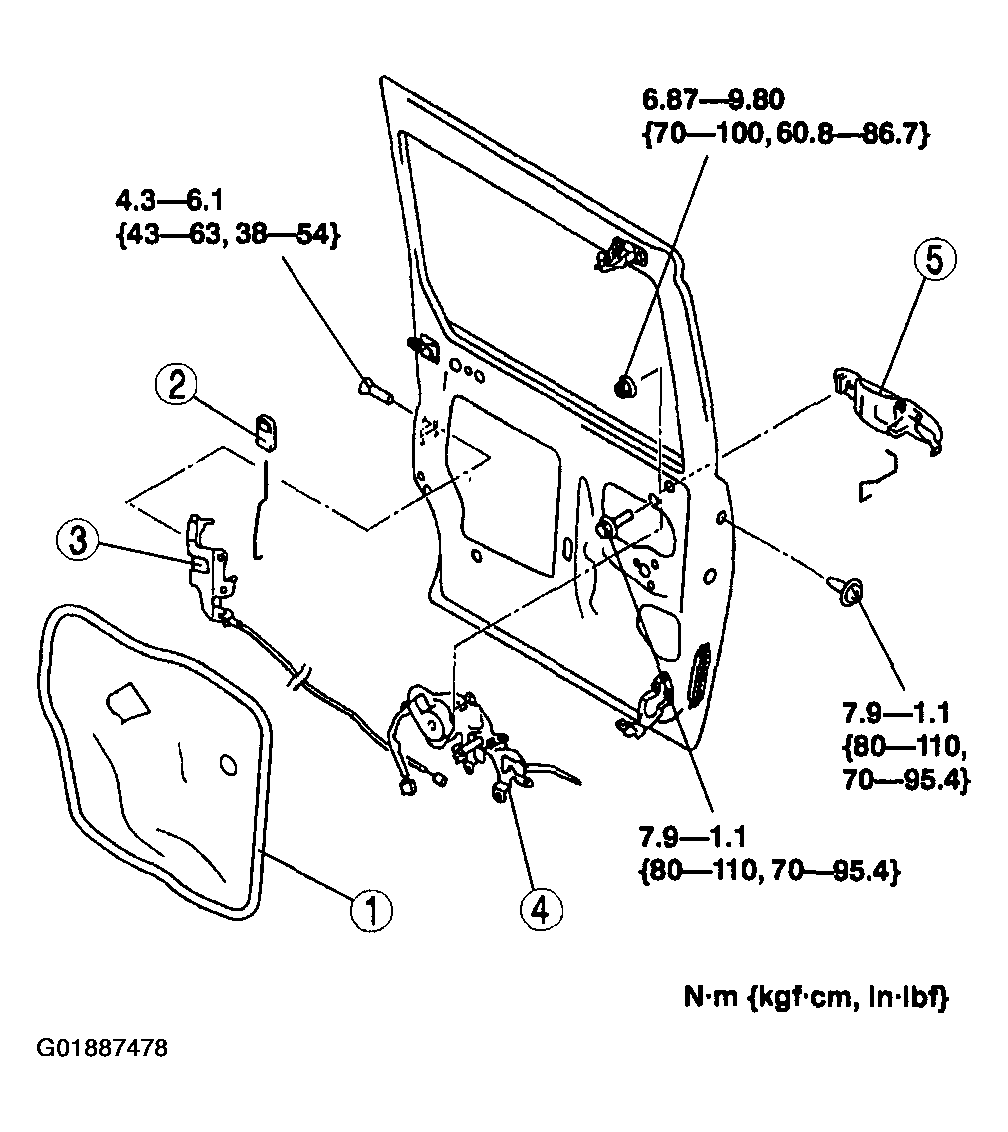

    Fig 2: Exploded View Of Sliding Door Lock And Opener
    G01887478Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
