Home >> Mazda >> 2002 >> 626 ES, Automatic >> Repair and Diagnosis >> Body & Frame >> Power Windows >> Removal & Installation >> Rear Power Window Regulator

Rear Power Window Regulator

  1. Remove the rear door glass. See REAR DOOR GLASS AND GUIDE  .
  2. Disconnect the negative battery cable.
  3. Remove in the order indicated in the illustration.

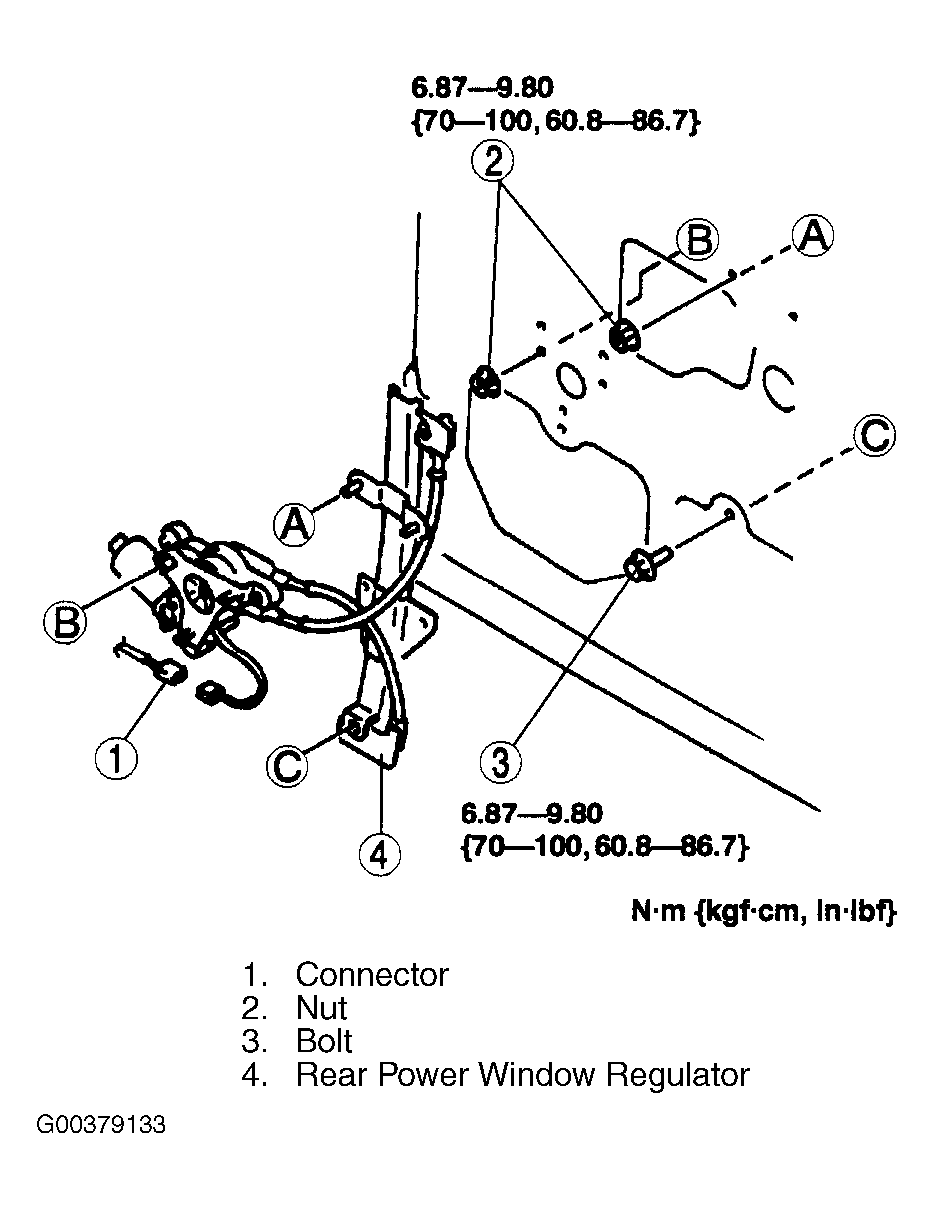

    Fig 1: Removing Rear Power Window Regulator
    G00379133Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
