Rear Door Glass And Guide
- Lower the rear door glass fully.
- Remove the rear door screen. See REAR DOOR LOCK AND OPENER
.
- Remove the rear beltline molding. See REAR BELTLINE MOLDING
.

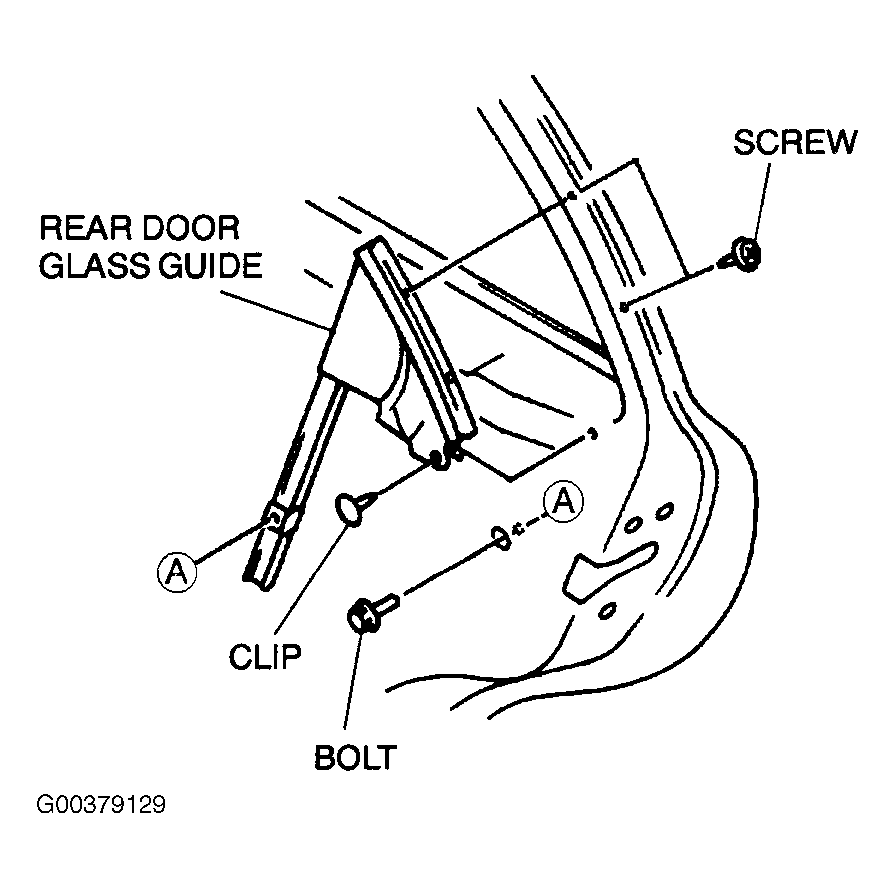

- Remove the screws, bolt and clip.
- Remove the rear door glass guide.
Courtesy of MAZDA MOTORS CORP.

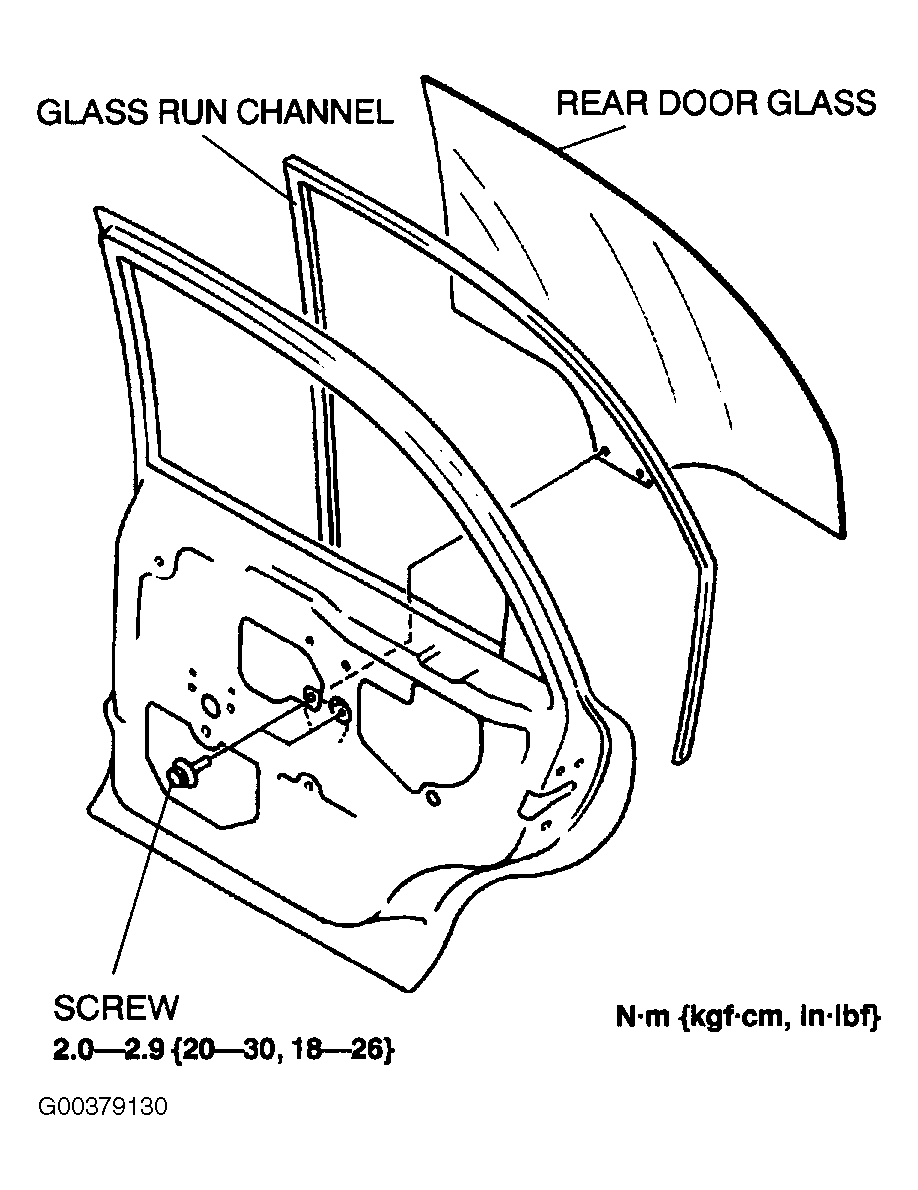

- Raise the rear edge of the rear door glass about 3.5" (90 mm) from the fully lowered position.
- Remove the screws.
- Remove the rear door glass.
Courtesy of MAZDA MOTORS CORP.
- Remove the glass run channel.
- Install in the reverse order of removal.
