Front Door Glass And Guide

  1. Raise the rear edge of the front door glass about 3.5" (90 mm) from the fully lowered position.
  2. Remove the front door screen. See FRONT DOOR LOCK AND OPENER  .
  3. Remove the screws.

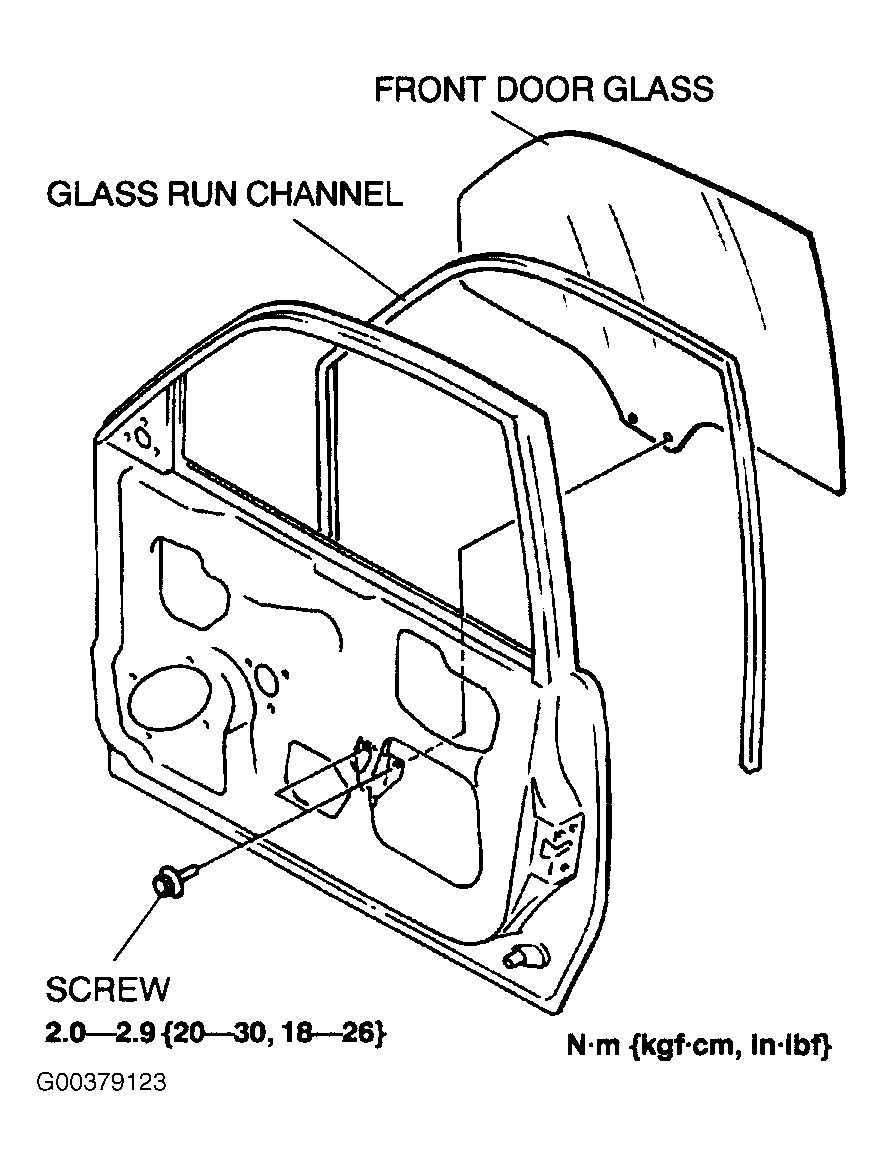

    Fig 1: Removing Front Door Glass & Glide
    G00379123Courtesy of MAZDA MOTORS CORP.
  4. Remove the front door glass.
  5. Remove the glass run channel.
  6. Install in the reverse order of removal.
