Front Door Lock And Opener

  1. Raise the front door glass fully.
  2. Disconnect the negative battery cable.
  3. Remove the front door trim. See FRONT DOOR TRIM  .
  4. Remove in the order indicated in the illustration.

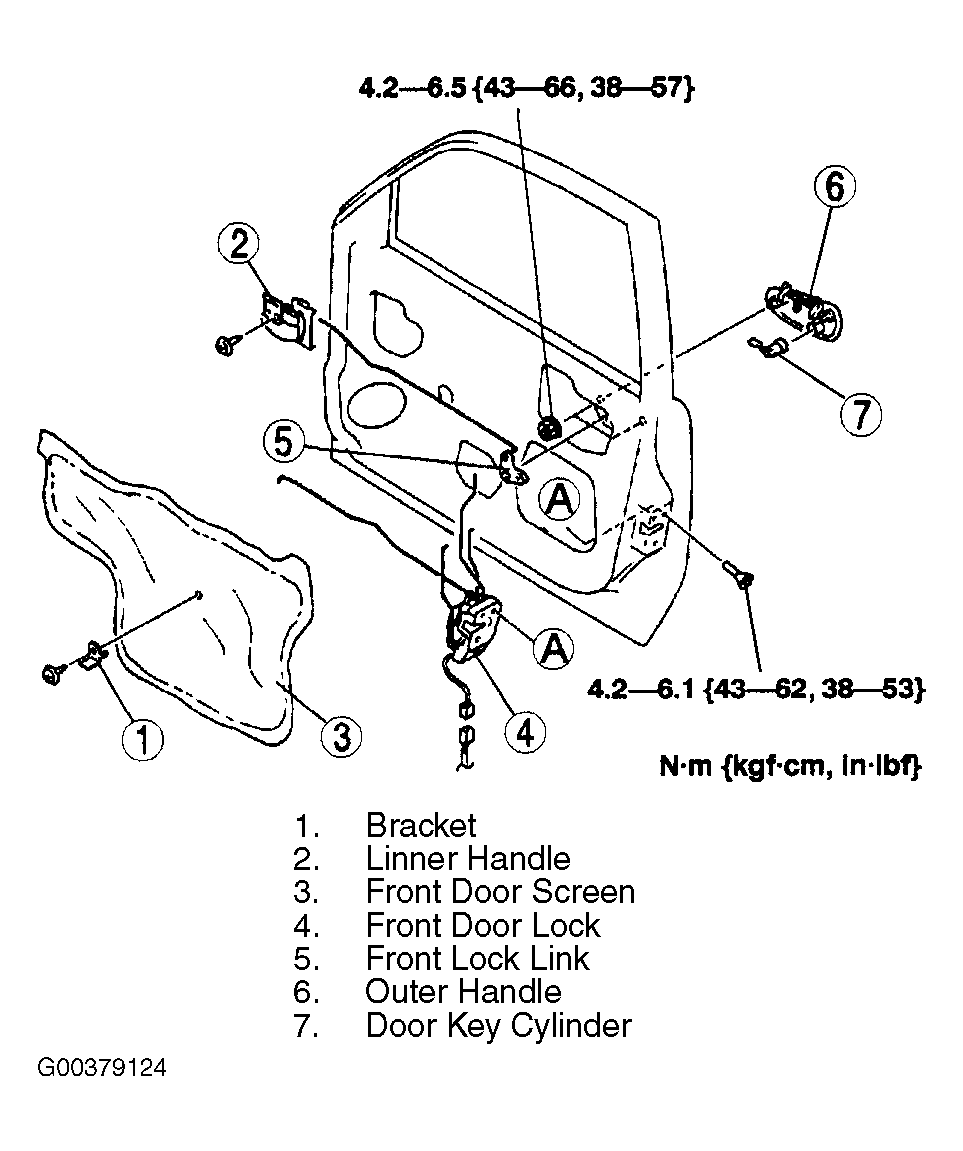

    Fig 1: Removing Front Door Lock
    G00379124Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
