Sunroof Control Module Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the headliner. See HEADLINER REMOVAL/INSTALLATION .
  3. Slide the sunroof control module, and disengage hooks from the sunroof frame.
  4. Disconnect the connectors, and remove the sunroof control module.
  5. Install in the reverse order of removal.

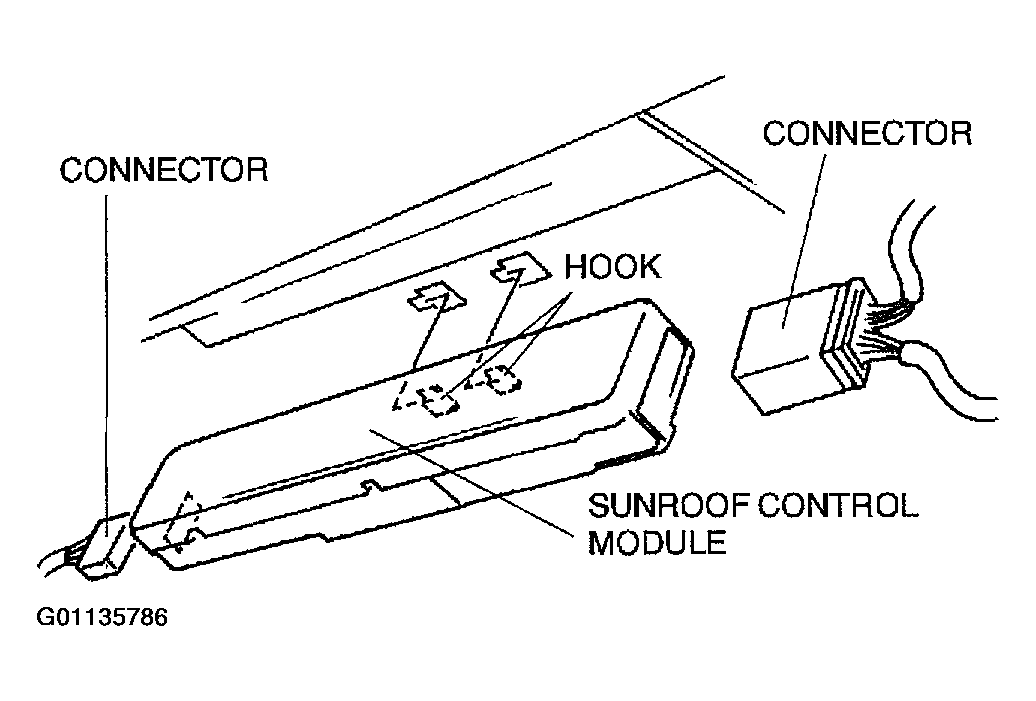

    Fig 1: Removing/Installing Sunroof Control Module
    G01135786Courtesy of MAZDA MOTORS CORP.
