Cylinder Block

WARNING: This page is about a different variant/trim than selected.

Check cylinder bore out-of-round, taper, ridge and piston-to-cylinder bore clearance. Check head gasket surface for warpage. If warpage is not within specification, machine or replace cylinder block as necessary. See CYLINDER BLOCK table under ENGINE SPECIFICATIONS. Remove, clean and install oil jets for piston oil spraying.

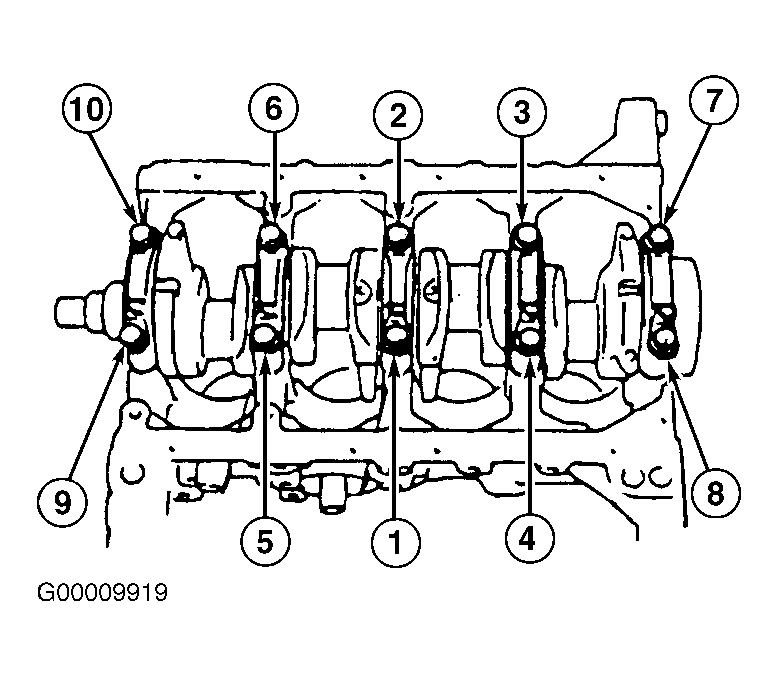

Fig 1: Main Bearing Cap Bolt Removal Sequence

Courtesy of MAZDA MOTOR CORP.

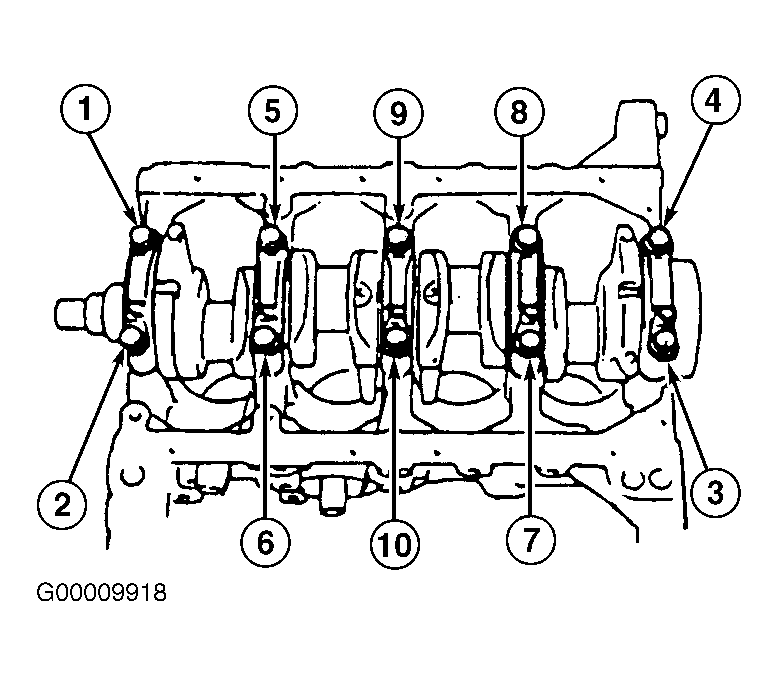

Fig 2: Main Bearing Cap Bolt Tightening Sequence

Courtesy of MAZDA MOTOR CORP.
