Anti-Lock Brake System (ABS) Module: Notes

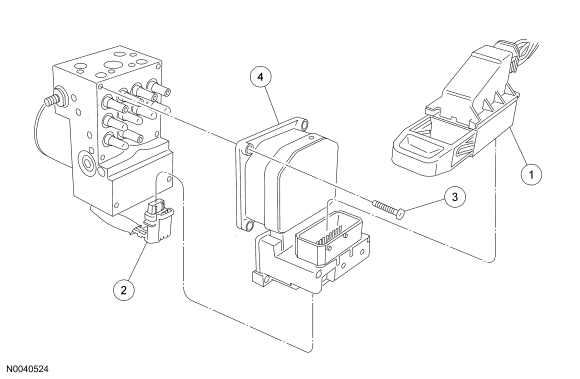

Fig 1: Exploded View Of Anti-Lock Brake System (ABS) Module
GF0018769Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Anti-lock brake system (ABS) module electrical connector
2 - Hydraulic control unit (HCU) pump motor electrical connector
3 2C331 ABS module screw (6 required)
4 2C219 ABS module
