Direct Clutch

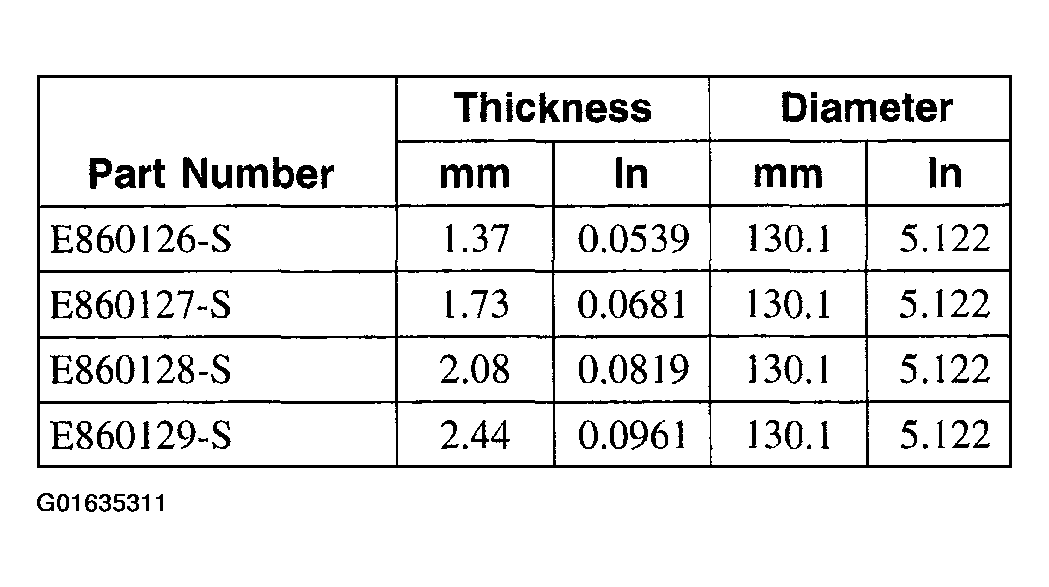

Fig 1: Direct Clutch Chart

G01635311

Courtesy of FORD MOTOR CO.

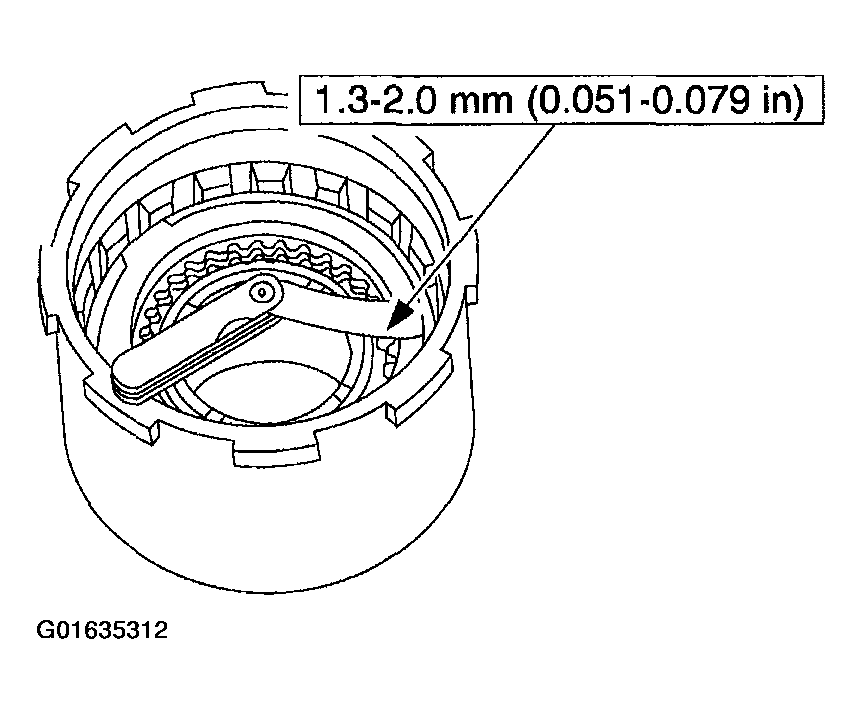

Fig 2: Checking Gap Between Direct Clutch Retaining Ring And Direct Clutch Pressure Plate

G01635312

Courtesy of FORD MOTOR CO.
