Home >> Lincoln >> 1990 >> Mark VII LSC >> Repair and Diagnosis >> Engine Performance >> Remove, Overhaul & Install >> Engine Controls - Remove/Install/Overhaul >> Cold Enrichment Rod & Control Vacuum Regulator - 5.8L MCU >> CER Run Position Adjustment

CER Run Position Adjustment

Install stator cap and rotate clockwise to index position. Dial indicator reading should be 0.125" (3.18 mm) at 75°F (24°C). See Fig 1 . Adjust reading by turning choke adjustment nut clockwise to increase reading, or counterclockwise to decrease.

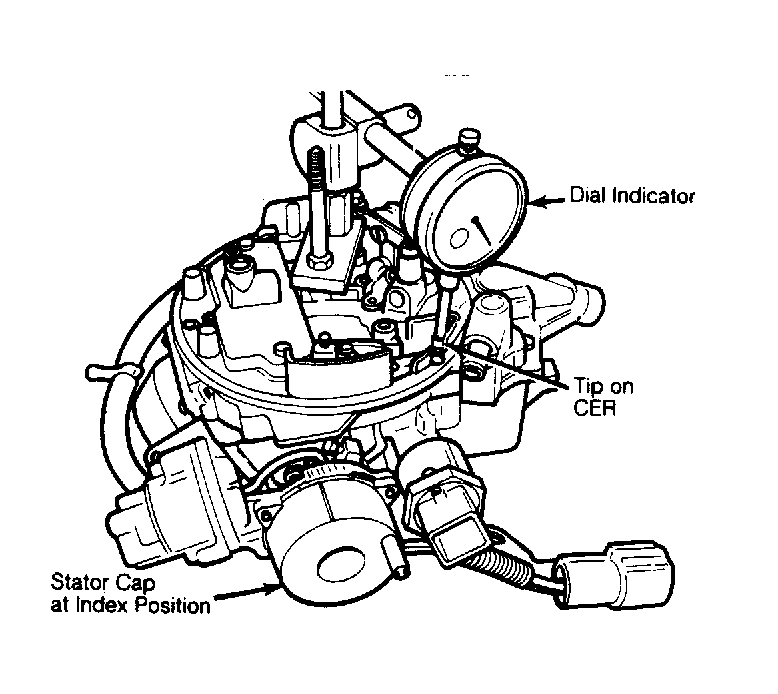

Fig 1: CER Run Position (75°F) Adjustment
G1523Courtesy of FORD MOTOR CO.
