Removal [09/2014 - ]: Procedure

  1. INSTALL ENGINE TO ENGINE STAND
    1. Install the engine assembly to an engine stand with the bolts.
  2. REMOVE ENGINE HANGER
    1. Remove the 2 bolts and 2 No. 1 engine hangers.
  3. REMOVE ENGINE WIRE
    1. Remove the engine wire from the engine assembly.

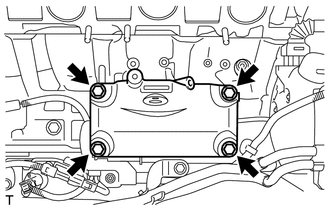

  4. REMOVE FRONT NO. 1 ENGINE MOUNTING BRACKET LH
    1. Remove the 4 bolts and front No. 1 engine mounting bracket LH.
      GTY496469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

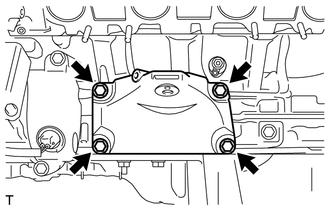

  5. REMOVE FRONT NO. 1 ENGINE MOUNTING BRACKET RH
    1. Remove the 4 bolts and front No. 1 engine mounting bracket RH.
      GTY496466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

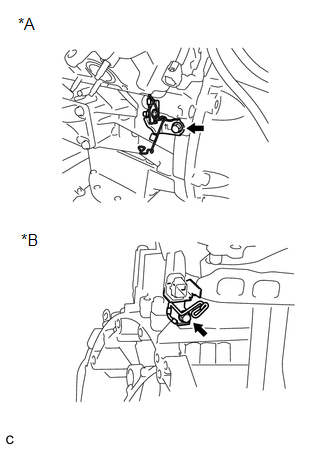

  6. REMOVE WIRE HARNESS CLAMP BRACKET
    1. Remove the 2 bolts and 2 wire harness clamp brackets.
      GTY519791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for LH Side
      *B for RH Side
  7. REMOVE TRANSMISSION BREATHER ASSEMBLY

    Refer to PROCEDURE - Step 15 [09/2014 - 03/2019] , or refer to PROCEDURE - Step 15 [03/2019 - ]

  8. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 7

  9. REMOVE INJECTOR DRIVER

    Refer to PROCEDURE - Step 4

  10. REMOVE INJECTOR DRIVER BRACKET

    Refer to PROCEDURE - Step 17

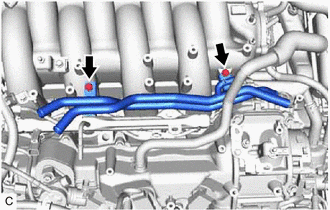

  11. REMOVE WATER BY-PASS PIPE SUB-ASSEMBLY
    1. Slide the clip and disconnect the No. 3 water by-pass hose from the water by-pass pipe sub-assembly.
    2. Slide the clip and disconnect the water by-pass hose from the water by-pass pipe sub-assembly.
    3. Slide the clip and disconnect the No. 5 water by-pass hose from the water by-pass pipe sub-assembly.
    4. Remove the 2 bolts and water by-pass pipe sub-assembly from the intake air surge tank assembly.
      GTY499978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE PURGE VALVE (PURGE VSV)

    Refer to PROCEDURE - Step 2

  13. DISCONNECT VENTILATION HOSE

    Refer to PROCEDURE - Step 16

  14. REMOVE FUEL TUBE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14

  15. REMOVE NO. 2 FUEL DELIVERY PIPE SUB-ASSEMBLY (for Port Injection)

    Refer to PROCEDURE - Step 15

  16. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY (for Port Injection)

    Refer to PROCEDURE - Step 16

  17. REMOVE NO. 1 DELIVERY PIPE SPACER

    Refer to PROCEDURE - Step 17

  18. REMOVE INJECTOR VIBRATION INSULATOR

    Refer to PROCEDURE - Step 18

  19. REMOVE FUEL INJECTOR ASSEMBLY (for Port Injection)

    Refer to PROCEDURE - Step 19

  20. DISCONNECT NO. 1 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 27

  21. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to PROCEDURE - Step 28

  22. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  23. REMOVE NO. 3 COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  24. REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  25. REMOVE NO. 3 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  26. REMOVE NO. 2 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12

  27. REMOVE FUEL PUMP WITH SEAL SUB-ASSEMBLY (for Bank 1)

    Refer to PROCEDURE - Step 13

  28. REMOVE FUEL PUMP WITH SEAL SUB-ASSEMBLY (for Bank 2)

    Refer to PROCEDURE - Step 14

  29. REMOVE NO. 2 ENGINE COVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  30. REMOVE NO. 4 FUEL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  31. REMOVE CASE SEPARATOR
    1. Disconnect the fuel pressure sensor connector.
    2. Remove the 4 bolts and case separator from the cylinder head.
      GTY512895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE FUEL DELIVERY PIPE LH

    Refer to PROCEDURE - Step 5

  33. REMOVE FUEL DELIVERY PIPE RH

    Refer to PROCEDURE - Step 6

  34. REMOVE FUEL INJECTOR ASSEMBLY (for Direct Injection)

    Refer to PROCEDURE - Step 7

  35. REMOVE FUEL INJECTOR SEAL

    Refer to PROCEDURE - Step 8

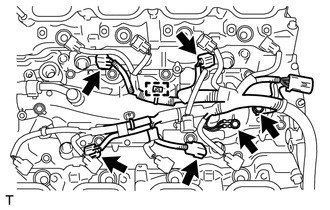

  36. REMOVE NO. 5 ENGINE WIRE
    1. Disconnect the 4 knock sensor connectors.
      GTY517271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Remove the 2 bolts and No. 5 engine wire.

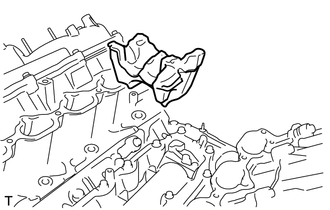

  37. REMOVE NO. 4 ENGINE COVER SUB-ASSEMBLY
    1. Remove the No. 4 engine cover sub-assembly.
      GTY496464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

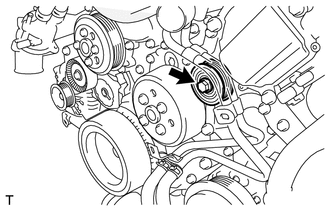

  38. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY
    1. Remove the bolt and No. 2 idler pulley sub-assembly.
      GTY496465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

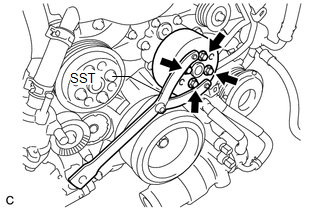

  39. REMOVE OIL PUMP DRIVE SHAFT PULLEY
    1. Using SST, hold the oil pump drive shaft pulley.
      • SST: 09960-10010
      GTY515593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and oil pump drive shaft pulley.
  40. REMOVE WATER PUMP PULLEY

    Refer to PROCEDURE - Step 11

  41. REMOVE WATER INLET HOUSING
    1. Slide the clip and disconnect the water inlet hose from the water inlet housing.
      GTY505090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts, water inlet housing and gasket.
      GTY512208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 3

  43. REMOVE ENGINE OIL TEMPERATURE SENSOR

    Refer to PROCEDURE - Step 9

  44. REMOVE ENGINE OIL LEVEL SENSOR

    Refer to PROCEDURE - Step 8

  45. REMOVE NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY
    1. Slide the 3 clips and disconnect the No. 2 water by-pass pipe sub-assembly from the oil cooler and heat exchanger assembly.
      GTY496779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and No. 2 water by-pass pipe sub-assembly.
  46. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

    Refer to PROCEDURE - Step 5

  47. REMOVE KNOCK CONTROL SENSOR

    Refer to PROCEDURE - Step 6

  48. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 7

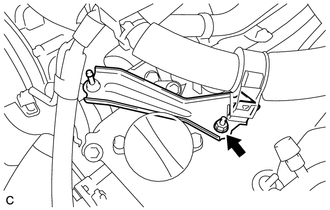

  49. REMOVE NO. 4 V-BANK COVER BRACKET SUB-ASSEMBLY
    1. Remove the nut and No. 4 V-bank cover bracket sub-assembly.
      GTY518354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

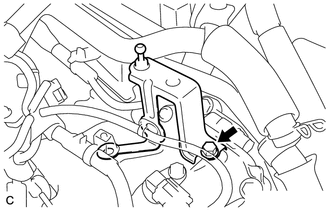

  50. REMOVE NO. 3 V-BANK COVER BRACKET SUB-ASSEMBLY
    1. Remove the bolt and No. 3 V-bank cover bracket sub-assembly.
      GTY501381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
