Removal [09/2014 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2 [09/2014 - 05/2018] , or refer to PROCEDURE - Step 2 [05/2018 - 03/2019] , or refer to PROCEDURE - Step 2 [03/2019 - ]

  2. REMOVE PURGE VALVE (PURGE VSV)
    1. Slide the clip and disconnect the fuel vapor feed hose from the purge valve (purge VSV).

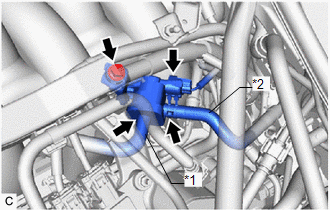

      GTY496841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Fuel Vapor Feed Hose
      *2 No. 1 Fuel Vapor Feed Hose
    2. Slide the clip and disconnect the No. 1 fuel vapor feed hose from the purge valve (purge VSV).
    3. Disconnect the purge valve (purge VSV) connector.
    4. Remove the bolt and purge valve (purge VSV) from the intake air surge tank assembly.
