Instrument Panel Junction Block Assembly Instrument Panel Reinforcement: Overview

For additional information, refer to Figure.

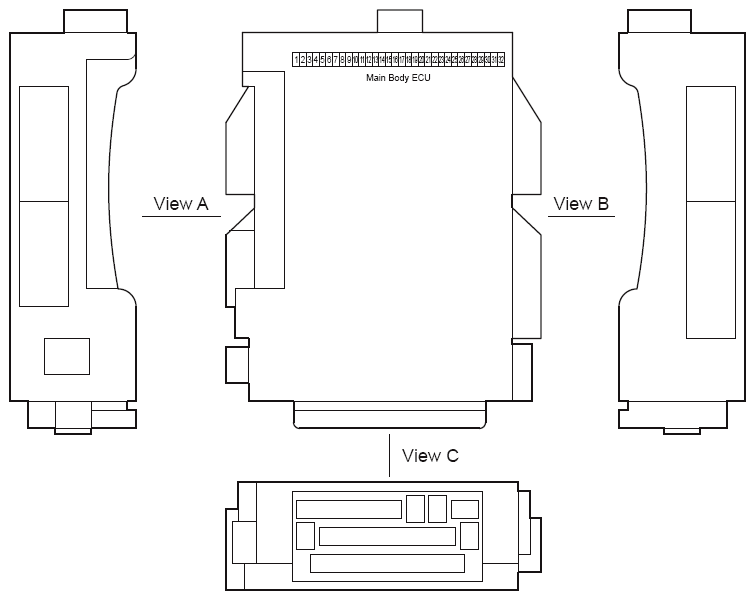

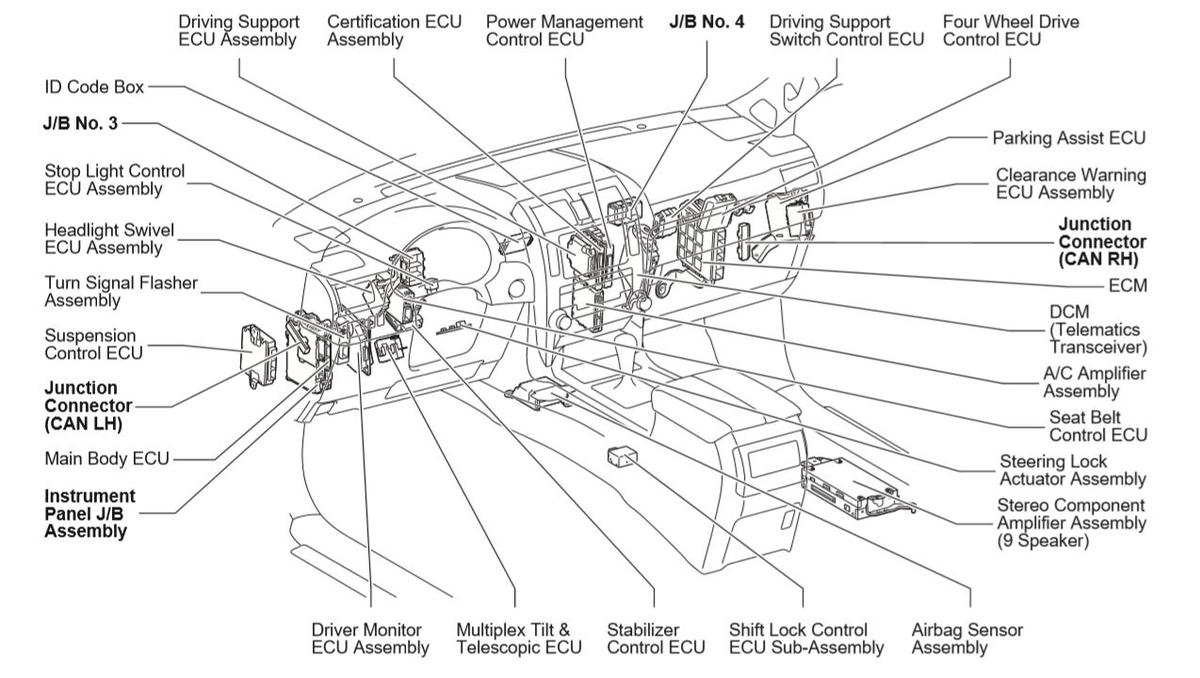

Fig 1: View of Instrument Panel J/B Assembly
G09114416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

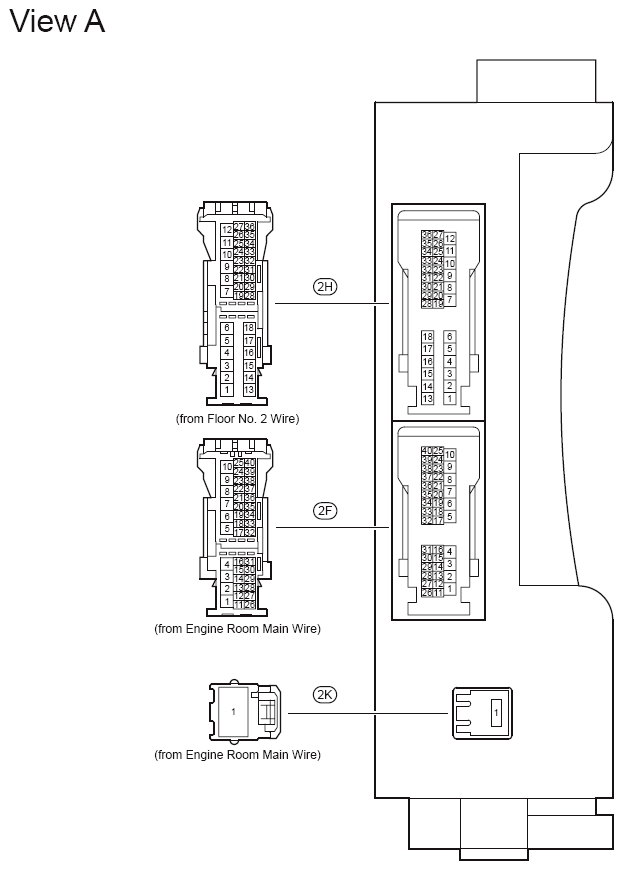

Fig 2: Instrument Panel J/B Assembly (View A) Connector Locations
G09114417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
