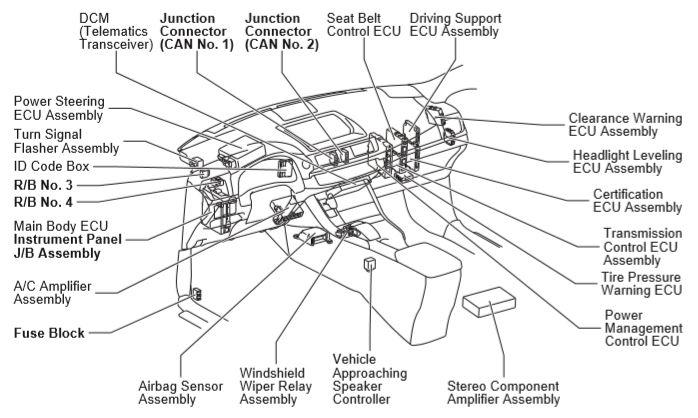

Instrument Panel Junction Block Assembly Instrument Panel Reinforcement: Notes
For additional information, refer to Figure.

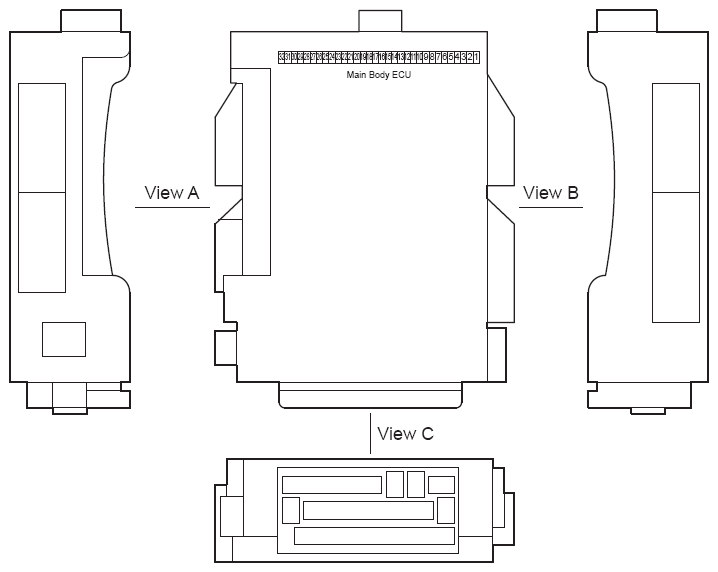

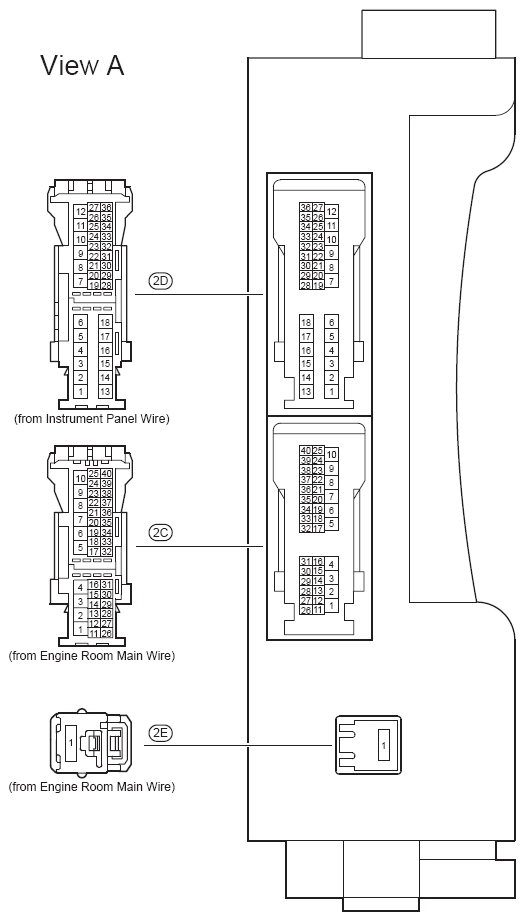

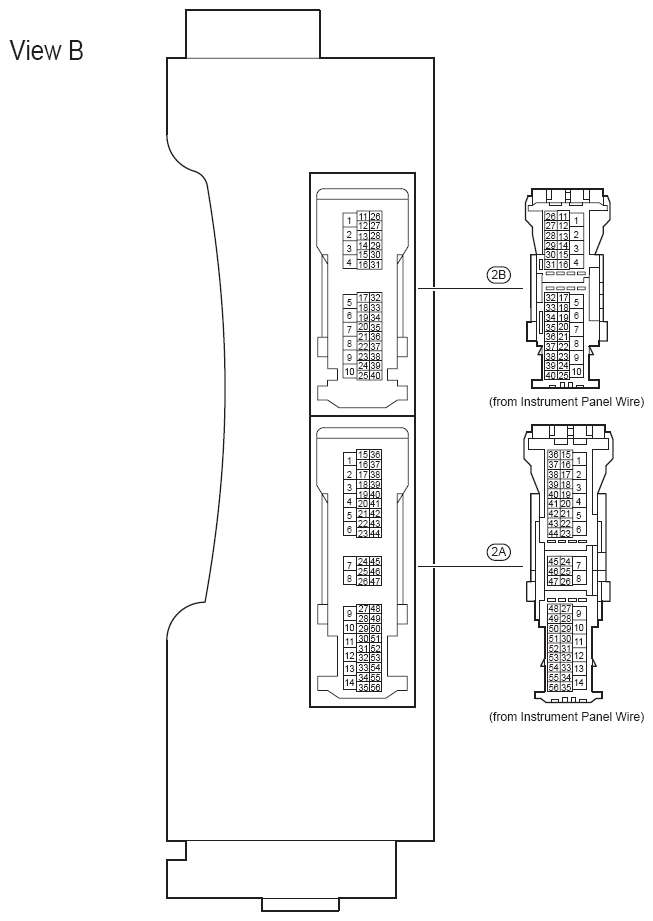

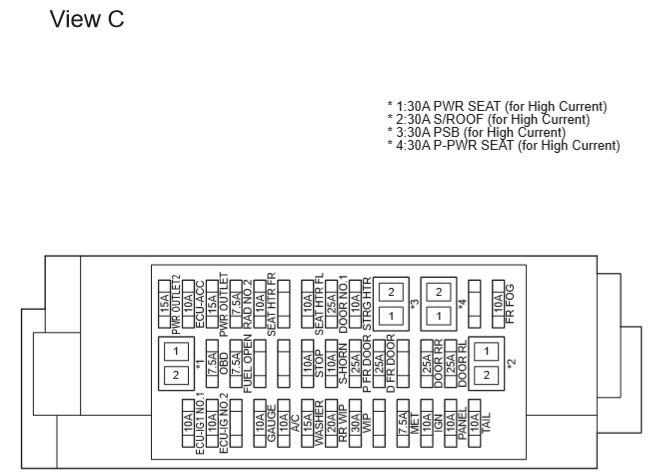

INSTRUMENT PANEL J/B FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 7.5A | FUEL OPEN | Fuel Lid Opener |
| 7.5A | MET | ABS, Hill-Start Assist Control, TRAC and VSC |
| Air Conditioning | ||
| Audio System (w/LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Back Guide Monitor or Rear View Monitor w/LEXUS Navigation System) | ||
| Audio System (w/o LEXUS Navigation System w/Stereo Component Amplifier) | ||
| Audio System (w/o LEXUS Navigation System w/o Stereo Component Amplifier) | ||
| Back Door Opener, Engine Immobilizer System, Smart Access System with Push-Button Start, Starting and Wireless Door Lock Control | ||
| Combination Meter | ||
| Cruise Control, Dynamic Radar Cruise Control, Engine Control, Hybrid System and Shift Control System | ||
| EPS | ||
| Front Fog Light | ||
| Front Wiper and Washer (w/Auto Wiper System) | ||
| Headlight | ||
| Headlight Beam Level Control (Automatic) | ||
| Illumination and Taillight | ||
| LEXUS ENFORM or Safety Connect | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Pre-Collision System | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| SRS | ||
| Tire Pressure Warning System | ||
| Vehicle Proximity Notification System | ||
| 7.5A | OBD | Data Link Connector 3 |
| 7.5A | RAD NO. 2 | Audio System (w/LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Back Guide Monitor or Rear View Monitor w/LEXUS Navigation System) |
| Audio System (w/o LEXUS Navigation System w/Stereo Component Amplifier) | ||
| Audio System (w/o LEXUS Navigation System w/o Stereo Component Amplifier) | ||
| Illumination and Taillight | ||
| LEXUS ENFORM or Safety Connect | ||
| 10A | A/C | Air Conditioning |
| Front Window Deicer | ||
| Mirror Heater and Rear Window Defogger | ||
| 10A | ECU-ACC | ABS, Hill-Start Assist Control, TRAC and VSC |
| Air Conditioning | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Back Door Opener, Engine Immobilizer System, Smart Access System with Push-Button Start, Starting and Wireless Door Lock Control | ||
| Combination Meter | ||
| Door Lock Control | ||
| Front Fog Light | ||
| Headlight | ||
| Headlight Beam Level Control (Automatic) | ||
| Headlight Cleaner | ||
| Illumination and Taillight | ||
| Interior Light | ||
| Mirror Heater and Rear Window Defogger | ||
| Power Seat (Driver's Seat w/Seat Position Memory) | ||
| Power Window | ||
| Remote Control Mirror (w/Seat Position Memory) | ||
| Remote Control Mirror (w/o Seat Position Memory) | ||
| Sliding Roof | ||
| Theft Deterrent | ||
| 10A | ECU-IG NO. 2 | ABS, Hill-Start Assist Control, TRAC and VSC |
| Audio System (w/LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Back Guide Monitor or Rear View Monitor w/LEXUS Navigation System) | ||
| Automatic Glare-Resistant EC Mirror with Compass, Garage Door Opener and Parking Assist (Rear View Monitor w/o LEXUS Navigation System) | ||
| Back Door Opener, Engine Immobilizer System, Smart Access System with Push-Button Start, Starting and Wireless Door Lock Control | ||
| Cruise Control, Dynamic Radar Cruise Control, Engine Control, Hybrid System and Shift Control System | ||
| Electric Tension Reducer | ||
| EPS | ||
| Front Wiper and Washer (w/Auto Wiper System) | ||
| Headlight Cleaner | ||
| Heated Steering Wheel System | ||
| Illumination and Taillight | ||
| Interior Light | ||
| Mirror Heater and Rear Window Defogger | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Seat (Driver's Seat w/Seat Position Memory) | ||
| Pre-Collision System | ||
| Remote Control Mirror (w/Seat Position Memory) | ||
| Seat Heater | ||
| Sliding Roof | ||
| SRS | ||
| Tire Pressure Warning System | ||
| Turn Signal and Hazard Warning Light | ||
| Vehicle Proximity Notification System | ||
| 10A | ECU-IG1 NO. 1 | ABS, Hill-Start Assist Control, TRAC and VSC |
| Air Conditioning | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Back Door Opener, Engine Immobilizer System, Smart Access System with Push-Button Start, Starting and Wireless Door Lock Control | ||
| Combination Meter | ||
| Door Lock Control | ||
| Front Fog Light | ||
| Headlight | ||
| Headlight Beam Level Control (Automatic) | ||
| Headlight Cleaner | ||
| Illumination and Taillight | ||
| Interior Light | ||
| Power Seat (Driver's Seat w/Seat Position Memory) | ||
| Power Window | ||
| Remote Control Mirror (w/Seat Position Memory) | ||
| Sliding Roof | ||
| Theft Deterrent | ||
| 10A | GAUGE | Air Conditioning |
| Automatic Glare-Resistant EC Mirror with Compass, Garage Door Opener and Parking Assist (Rear View Monitor w/o LEXUS Navigation System) | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Back-Up Light | ||
| Cruise Control, Dynamic Radar Cruise Control, Engine Control, Hybrid System and Shift Control System | ||
| Front Window Deicer | ||
| Headlight | ||
| Headlight Beam Level Control (Automatic) | ||
| Headlight Cleaner | ||
| Horn | ||
| Mirror Heater and Rear Window Defogger | ||
| Theft Deterrent | ||
| 10A | IGN | ABS, Hill-Start Assist Control, TRAC and VSC |
| Back Door Opener, Engine Immobilizer System, Smart Access System with Push-Button Start, Starting and Wireless Door Lock Control | ||
| Cruise Control, Dynamic Radar Cruise Control, Engine Control, Hybrid System and Shift Control System | ||
| LEXUS ENFORM or Safety Connect | ||
| Pre-Collision System | ||
| Seat Belt Warning | ||
| SRS | ||
| Theft Deterrent | ||
| 10A | PANEL | Illumination and Taillight |
| 10A | SEAT HTR FL | Seat Heater |
| 10A | SEAT HTR FR | Seat Heater |
| 10A | STOP | ABS, Hill-Start Assist Control, TRAC and VSC |
| Back Door Opener, Engine Immobilizer System, Smart Access System with Push-Button Start, Starting and Wireless Door Lock Control | ||
| Cruise Control, Dynamic Radar Cruise Control, Engine Control, Hybrid System and Shift Control System | ||
| Pre-Collision System | ||
| Stop Light | ||
| Vehicle Proximity Notification System | ||
| 10A | STRG HTR | Heated Steering Wheel System |
| 10A | TAIL | Front Fog Light |
| Headlight Beam Level Control (Manual) | ||
| Illumination and Taillight | ||
| 15A | FR FOG | Front Fog Light |
| 15A | PWR OUTLET | Power Outlet |
| 15A | PWR OUTLET2 | Power Outlet |
| 15A | WASHER | Front Wiper and Washer (w/Auto Wiper System) |
| Front Wiper and Washer (w/o Auto Wiper System) | ||
| 20A | RR WIP | Rear Wiper and Washer |
| 25A | D FR DOOR | Back Door Opener, Engine Immobilizer System, Smart Access System with Push-Button Start, Starting and Wireless Door Lock Control |
| Door Lock Control | ||
| Interior Light | ||
| Mirror Heater and Rear Window Defogger | ||
| Power Seat (Driver's Seat w/Seat Position Memory) | ||
| Power Window | ||
| Remote Control Mirror (w/Seat Position Memory) | ||
| Theft Deterrent | ||
| 25A | DOOR NO. 1 | ABS, Hill-Start Assist Control, TRAC and VSC |
| Air Conditioning | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Back Door Opener, Engine Immobilizer System, Smart Access System with Push-Button Start, Starting and Wireless Door Lock Control | ||
| Combination Meter | ||
| Door Lock Control | ||
| Front Fog Light | ||
| Headlight | ||
| Headlight Beam Level Control (Automatic) | ||
| Headlight Cleaner | ||
| Illumination and Taillight | ||
| Interior Light | ||
| Power Seat (Driver's Seat w/Seat Position Memory) | ||
| Power Window | ||
| Remote Control Mirror (w/Seat Position Memory) | ||
| Sliding Roof | ||
| Theft Deterrent | ||
| 25A | DOOR RL | Power Window |
| 25A | DOOR RR | Power Window |
| 25A | P FR DOOR | Back Door Opener, Engine Immobilizer System, Smart Access System with Push-Button Start, Starting and Wireless Door Lock Control |
| Interior Light | ||
| Mirror Heater and Rear Window Defogger | ||
| Power Window | ||
| Remote Control Mirror (w/Seat Position Memory) | ||
| 30A | P-PWR SEAT | Power Seat (Passenger's Seat) |
| 30A | PSB | Pre-Collision System |
| 30A | PWR SEAT | Power Seat (Driver's Seat w/Seat Position Memory) |
| Power Seat (Driver's Seat w/o Seat Position Memory) | ||
| 30A | S/ROOF | Sliding Roof |
| 30A | WIP | Cruise Control, Dynamic Radar Cruise Control, Engine Control, Hybrid System and Shift Control System |
| Front Wiper and Washer (w/Auto Wiper System) | ||
| Front Wiper and Washer (w/o Auto Wiper System) | ||
