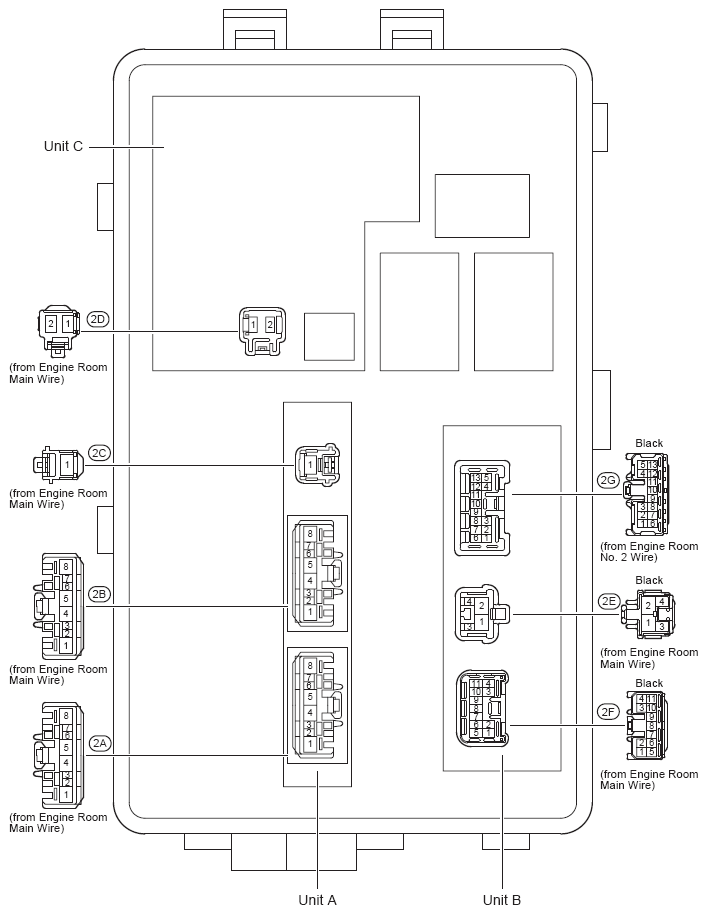

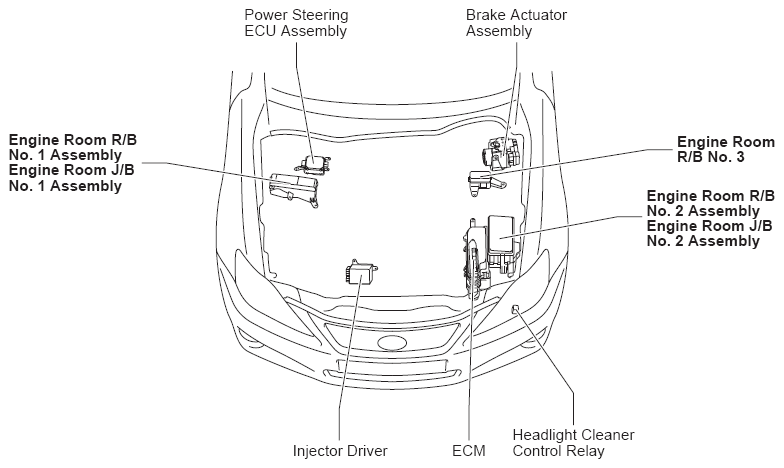

Engine Room Relay Block No. 2 Assembly And Engine Room Junction Block No. 2 Assembly - Left Engine Compartment: Notes
For additional information, refer to Figure.

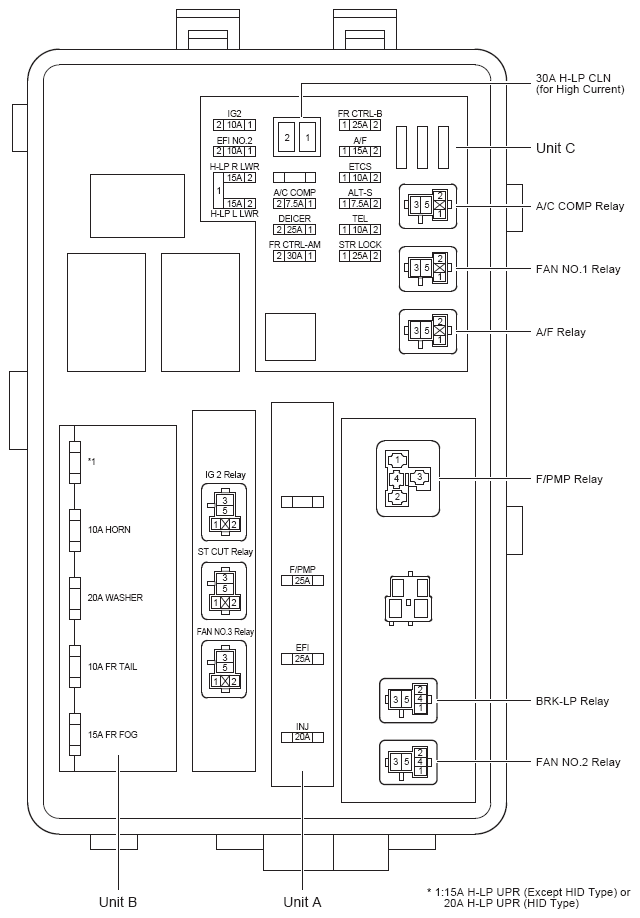

ENGINE ROOM R/B AND J/B NO. 2 RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| A/C COMP Relay |
| Fan No. 1 Relay |
| A/F Relay |
| F/PMP Relay |
| BRK-LP Relay |
| Fan No. 2 Relay |
ENGINE ROOM R/B AND J/B NO. 2 FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 7.5A | A/C COMP | Air Conditioning |
| 7.5A | ALT-S | Charging |
| 10A | EFI NO. 2 | Electronically Controlled Transmission and A/T Indicator (2GR-FSE) |
| Electronically Controlled Transmission and A/T Indicator (4GR-FSE) | ||
| Engine Control (2GR-FSE) | ||
| Engine Control (4GR-FSE) | ||
| 10A | ETCS | Cruise Control (2GR-FSE) |
| Cruise Control (4GR-FSE) | ||
| Dynamic Radar Cruise Control (2GR-FSE) | ||
| Dynamic Radar Cruise Control (4GR-FSE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FSE) | ||
| Electronically Controlled Transmission and A/T Indicator (4GR-FSE) | ||
| Engine Control (2GR-FSE) | ||
| Engine Control (4GR-FSE) | ||
| 10A | FR TAIL | Automatic Light Control |
| Headlight | ||
| Light Auto Turn Off System | ||
| Taillight | ||
| Theft Deterrent | ||
| 10A | HORN | Engine Immobiliser System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control |
| Horn | ||
| Theft Deterrent | ||
| 10A | IG2 | Engine Control (2GR-FSE) |
| Engine Control (4GR-FSE) | ||
| Ignition (2GR-FSE) | ||
| Ignition (4GR-FSE) | ||
| 10A | TEL | LEXUS ENFORM or Safety Connect |
| 15A | A/F | Engine Control (2GR-FSE) |
| Engine Control (4GR-FSE) | ||
| 15A | FR FOG | Front Fog Light |
| 15A | H-LP L LWR | Headlight |
| 15A | H-LP R LWR | Headlight |
| 15A | H-LP UPR (Except HID Type) | Headlight |
| Headlight Beam Level Control | ||
| 20A | H-LP UPR (HID Type) | Headlight |
| Headlight Beam Level Control | ||
| 20A | INJ | Engine Control (2GR-FSE) |
| Engine Control (4GR-FSE) | ||
| 20A | WASHER | Front Wiper and Washer |
| Headlight Cleaner | ||
| 25A | DEICER | Front Window Deicer |
| 25A | EFI | Cruise Control (2GR-FSE) |
| Cruise Control (4GR-FSE) | ||
| Dynamic Radar Cruise Control (2GR-FSE) | ||
| Dynamic Radar Cruise Control (4GR-FSE) | ||
| Electronically Controlled Transmission and A/T Indicator (2GR-FSE) | ||
| Electronically Controlled Transmission and A/T Indicator (4GR-FSE) | ||
| Engine Control (2GR-FSE) | ||
| Engine Control (4GR-FSE) | ||
| 25A | F/PMP | Engine Control (2GR-FSE) |
| Engine Control (4GR-FSE) | ||
| 25A | STR LOCK | Engine Immobiliser System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control |
| 30A | H-LP CLN | Headlight Cleaner |
