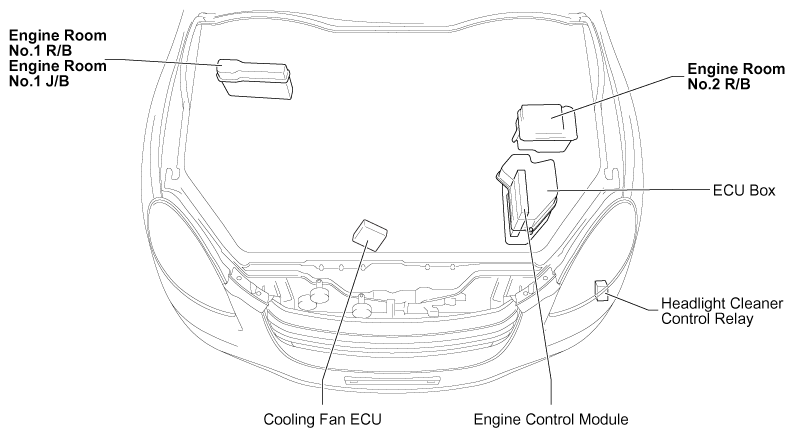

Engine Compartment Left (See Figure)

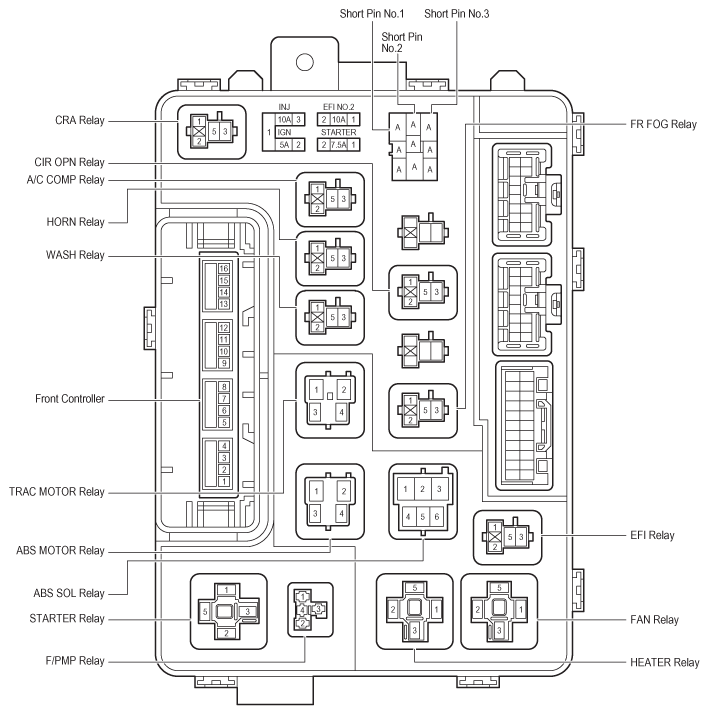

ENGINE ROOM NO.2 R/B RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| F/PMP Relay |
| Starter Relay |
| ABS SOL Relay |
| ABS Motor Relay |
| TRAC Motor Relay |
| Wash Relay |
| Horn Relay |
| A/C COMP Relay |
| CIR OPN Relay |
| CRA Relay |
| FR Fog Relay |
| EFI Relay |
| Fan Relay |
| Heater Relay |
Engine Room No. 2 R/B Fuse Identification Legend
| Fuse | System | |
|---|---|---|
| 5A | IGN | ABS, TRAC, VSC and PPS |
| Cruise Control | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| Engine Immobiliser System | ||
| 7.5A | STARTER | Electronically Controlled Transmission and A/T Indicator |
| Engine Control | ||
| LEXUS Navigation System | ||
| Starting and Ignition | ||
| 10A | EFI NO. 2 | Engine Control |
| 10A | INJ | Engine Control |
| Starting and Ignition | ||
