Inspection Procedure

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK HEADLIGHT
    1. Turn the power switch ON (READY)
    2. Check that the headlights (Lo/Hi) turn on

      OK: Headlights turn on normally.

      HINT:

      If the near infrared ray filter is stuck in the activated position, the headlights will seem as if they are not in Hi beam mode (only a dim, red light will be emitted). If this occurs, it is necessary to replace the headlight assembly.

      Result

      RESULT CHART

      Result Proceed to
      OK A
      NG (for HID headlight) B
      NG (for LED headlight) C

      B: REPAIR OR REPLACE HEADLIGHT  (see REMOVAL )

      C: REPAIR OR REPLACE HEADLIGHT  (see REMOVAL )

      A: Go to next step

  2. CHECK HARNESS AND CONNECTOR (OBJECT RECOGNITION ECU - HEADLIGHT)
    1. Disconnect the R25 ECU connector.
    2. for LH:
      1. Disconnect the B1 headlight connector.
      2. Measure the resistance according to the value (s) in the table below.

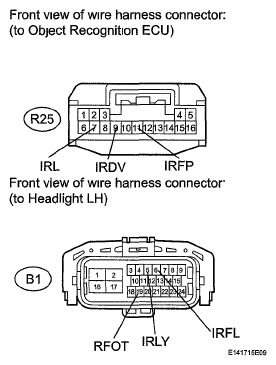

      Fig 1: Identifying Object Recognition ECU And LH Headlight Connector Terminals
      G05775749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      R25-7 (IRL) - B1-6 (IRFL) Always Below 1 Ω
      R25-9 (IRDV) - B1-5 (IRLY) Always Below 1 Ω
      R25-11 (IRFP) - B1-19 (RFOT) Always Below 1 Ω
      R25-7 (IRL) - Body ground Always 10 kΩ or higher
      R25-9 (IRDV) - Body ground Always 10 kΩ or higher
      R25-11 (IRFP) - Body ground Always 10 kΩ or higher
    3. for RH-
      1. Disconnect the B11 headlight connector
      2. Measure the resistance according to the value (s) in the table below.

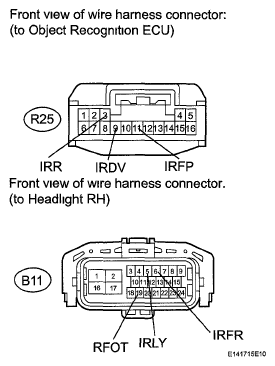

    Fig 2: Identifying Object Recognition ECU And RH Headlight Connector Terminals
    G05775750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard resistance

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Condition Specified Condition
    R25-3 (IRR) - B11-6 (IRFR) Always Below 1 Ω
    R25-9 (IRDV) - B11-5 (IRLY) Always Below 1 Ω
    R25-11 (IRFP) - B11-19 (RFOT) Always Below 1 Ω
    R25-3 (IRR) - Body ground Always 10 kΩ or higher
    R25-9 (IRDV) - Body ground Always 10 kΩ or higher
    R25-11 (IRFP) - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  3. PERFORM ACTIVE TEST USING Intelligent tester OR TECHSTREAM (NEAR INFRARED RAY FILTER)
    1. Using the Intelligent tester or Techstream, enter the following menus
      1. Intelligent tester - Select DIAGNOSIS / OBD/MOBD / PRE-COLLISION 2 / ACTIVE TEST

        PRE-COLLISION 2

        ACTIVE TEST CHART

        Tester Display Test Part Control Range Diagnostic Note
        INFRARED SIGNAL Near infrared ray filter operates ON/OFF -
      2. Techstream - Select' Body Electrical / Pre-Collision 2 / Active Test.

      Pre-Collision 2

      ACTIVE TEST CHART

      Tester Display Test Part Control Range Diagnostic Note
      Infrared Signal Status Near infrared ray filter operates ON / OFF -

      OK: Near infrared ray filter operates normally.

      HINT:

      When the near infrared ray filter is operated, the headlights illuminate in a faint red color.

      Result

      RESULT CHART

      Result Proceed to
      OK A
      NG (for HID headlight) B
      NG (for LED headlight) C

      B: REPLACE HEADLIGHT  (see REMOVAL )

      C: REPLACE HEADLIGHT  (see REMOVAL )

      A: Go to next step

  4. CHECK OBJECT RECOGNITION ECU
    1. Reconnect the R25 ECU connector.
    2. Disconnect the B1*1 and B11*2 headlight connectors.

      HINT

      *1. for LH

      *2: for RH

    3. Measure the resistance according to the value (s) in the table below.
    Fig 3: Identifying Object Recognition ECU Connector Terminals
    G05775751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard resistance

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Condition Specified Condition
    R25-3 (IRR) - Body ground Always 10 kΩ or higher
    R25-7 (IRL) - Body ground Always 10 kΩ or higher

    NG: REPLACE OBJECT RECOGNITION ECU  (See REMOVAL )

    OK: Go to next step

  5. CHECK HEADLIGHT (NEAR INFRARED RAY FILTER SIGNAL)
    1. Reconnect the B1*1 and B11*2 headlight connectors

      HINT:

      *1 for LH

      *2. for RH

      Fig 4: Identifying Object Recognition ECU Connector Terminals
      G05775751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using the Intelligent tester or Techstream, enter the following menus.
      1. Intelligent tester - Select DIAGNOSIS/OBD/MOBD / PRE-COLLISION 2 / ACTIVE TEST.
      2. Techstream - Select. Body Electrical / Pre-Collision 2 / Active Test.
    3. Select "INFRARED SIGNAL*3" or "Infrared Signal Status*4", and perform the ACTIVE TEST.

      HINT

      *3. for Intelligent tester

      *4. for Techstream

    4. Measure the voltage according to the value (s) in the table below

    Standard voltage

    TESTER CONNECTION SPECIFIED CONDITION

    Tester Connection Condition Specified Condition
    R25-3 (IRR) - Body ground ACTIVE TEST is performed 5.5 V or higher
    R25-3 (IRR) - Body ground ACTIVE TEST is not performed Below 1 V
    R25-7 (IRL) - Body ground ACTIVE TEST is performed 5.5 V or higher
    R25-7 (IRL) - Body ground ACTIVE TEST is not performed Below 1 V

    Result

    RESULT CHART

    Result Proceed to
    OK A
    NG (for HID headlight) B
    NG (for LED headlight) C

    B: REPLACE HEADLIGHT  (see REMOVAL )

    C: REPLACE HEADLIGHT  (see REMOVAL )

    A: Go to next step

  6. REPLACE OBJECT RECOGNITION ECU
    1. Replace the object recognition ECU (see REMOVAL ).
  7. CHECK FOR DTC
    1. Using the Intelligent tester or Techstream, enter the following menus:
      1. Intelligent tester - Select. DIAGNOSIS/OBD/MOBD / PRE-COLLISION 2 / DTC INFO.
      2. Techstream - Select: Body Electrical / Pre-Collision 2 / Trouble Code.
    2. Select "CLEAR" and clear the data.
    3. Recheck for DTC

    OK: DTC C1A6A is not output

    NG: REPLACE DRIVING SUPPORT ECU  (See REMOVAL )

    OK: END
