Amplifier Antenna: Removal

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY  (See REMOVAL )
  2. REMOVE BATTERY SERVICE HOLE COVER LH  (See REMOVAL )
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:
    • After the power switch is turned OFF, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the power switch OFF, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
    • When disconnecting the cable some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
  4. REMOVE REAR SEAT ASSEMBLY
    1. for Power Seat

      Remove the rear seat assembly (see REMOVAL ).

    2. for Ottoman:

      Remove the rear seat assembly (See REMOVAL ).

    3. for Fixed Seat:

      Remove the rear seat assembly (See REMOVAL ).

  5. REMOVE REAR DOOR SCUFF PLATE LH  (See REMOVAL )
  6. REMOVE REAR DOOR SCUFF PLATE RH  (See REMOVAL )
  7. REMOVE REAR SEAT SIDE GARNISH LH  (See REMOVAL )
  8. REMOVE REAR SEAT SIDE GARNISH RH  (See REMOVAL )
  9. REMOVE INNER ROOF SIDE GARNISH LH  (See REMOVAL )
  10. REMOVE INNER ROOF SIDE GARNISH RH  (See REMOVAL )
  11. REMOVE SPOT LIGHT LENS  (See REMOVAL )
  12. REMOVE ROOF CONSOLE BOX ASSEMBLY (w/ Rear Seat Entertainment System)  (See REMOVAL )
  13. REMOVE SPOT LIGHT ASSEMBLY  (See REMOVAL )
  14. REMOVE REAR VANITY LIGHT ASSEMBLY  (See REMOVAL )
  15. REMOVE COAT HOOK  (See REMOVAL )
  16. REMOVE ROOF SIDE REGISTER BEZEL LH (w/ Rear Cooler)  (See REMOVAL )
  17. REMOVE ROOF SIDE REGISTER BEZEL RH (w/ Rear Cooler)  (See REMOVAL )
  18. REMOVE ASSIST GRIP SUB-ASSEMBLY  (See REMOVAL )
  19. REMOVE AMPLIFIER ANTENNA ASSEMBLY
    1. Partially remove the roof headlining.

      HINT:

      It is not necessary to completely remove the roof headlining Slightly lower the rear section of the roof headlining so that the amplifier antenna can be removed. Refer to the following procedures (see REMOVAL )

    2. Disconnect the antenna connectors.

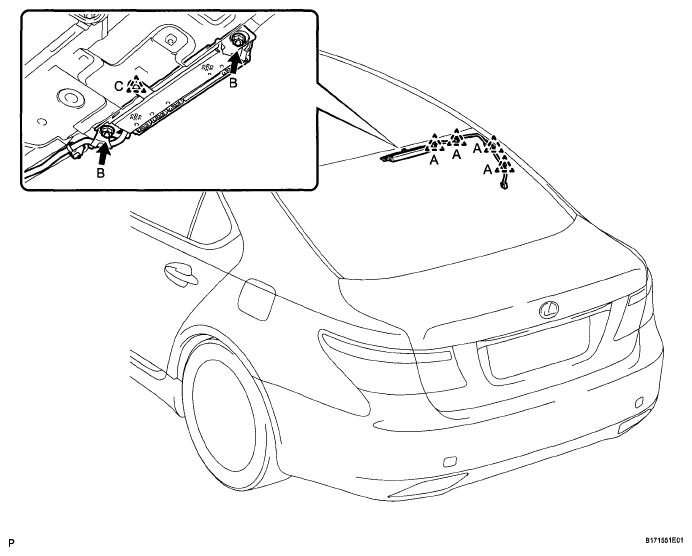

    3. Detach the 4 clips labeled A and remove the 2 nuts labeled B.
    4. Detach the clip labeled C and remove the amplifier antenna.
      Fig 1: Identifying Clip Labeled C And Amplifier Antenna
      G05783846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
