Roof Headlining: Removal

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY  (See REMOVAL )
  2. REMOVE BATTERY SERVICE HOLE COVER LH  (See REMOVAL )
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
    NOTE:
    • After the power switch is turned OFF, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the power switch OFF, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
    • When Disconnecting the cable, some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
  4. REMOVE FRONT SEAT ASSEMBLY
    1. Remove the front seat (see REMOVAL ).
  5. REMOVE REAR SEAT ASSEMBLY (for Fixed Type)
    1. Remove the rear seat (see REMOVAL )
  6. REMOVE REAR SEAT ASSEMBLY (for Power Seat)
    1. Remove the rear seat (see REMOVAL )
  7. REMOVE REAR SEAT ASSEMBLY (for Ottoman)
    1. Remove the rear seat (see REMOVAL )
  8. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Put protective tape around the front door scuff plate.
    2. Using a molding remover, detach the 4 clips.
      Fig 1: Identifying Front Door Scuff Plate Screw
      G05786864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the 7 claws and remove the front door scuff plate.
  9. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side

    Fig 2: Identifying Front Door Scuff Plate And Screws
    G04946700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE COWL SIDE TRIM BOARD LH
    1. Detach the 3 claws and remove the cowl side trim board
  11. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedures described for the LH side

    Fig 3: Identifying Cowl Side Trim Board And Screws
    G04946762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT PILLAR GARNISH LH
    1. Detach the 2 clips.
    2. Cut off clip A.
    3. Detach the claw and remove the front pillar garnish LH.
    4. Remove clip A from the vehicle body.
      Fig 4: Removing Front Pillar Garnish LH
      G05786867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Protect the curtain shield airbag assembly.
      1. Thoroughly cover the airbag with a cloth or nylon sheet and fix the ends of the cover with adhesive tape, as shown in the illustration.
      NOTE: Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.
  13. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 5: Identifying Curtain Shield Airbag Assembly
    G05786868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE REAR DOOR SCUFF PLATE LH
    1. Put protective tape around the rear door scuff plate.
    2. Using a molding remover, detach the 4 clips.
      Fig 6: Identifying Rear Door Scuff Plate LH
      G05786869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the 7 claws and remove the rear door scuff plate.
  15. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 7: Identifying Rear Door Scuff Plate And Claws
    G04946787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE CENTER LOWER PILLAR GARNISH LH
    1. Detach the 2 claws and 6 clips, and remove the center lower pillar garnish.
  17. REMOVE CENTER LOWER PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 8: Identifying Center Lower Pillar Garnish Claws And Clips
    G04946706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE CENTER UPPER PILLAR GARNISH LH
    1. Remove the 2 screws.
    2. Detach the claw.
    3. Pass the front seat outer belt floor anchor through the center upper pillar garnish, and remove the center upper pillar garnish.
  19. REMOVE CENTER UPPER PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side

    Fig 9: Removing Center Upper Pillar Garnish RH
    G04946707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE SHOULDER BELT ANCHOR COVER LH
    1. Detach the 6 claws of the cover, and slide the cover in the direction of the arrow to remove it
  21. REMOVE SHOULDER BELT ANCHOR COVER RH

    HINT:

    Use the same procedures described for the LH side

    Fig 10: Removing Shoulder Belt Anchor Cover LH
    G04946708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE REAR SEAT SIDE GARNISH LH
    1. Detach the 6 claws and remove the rear seat side garnish
  23. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedures described for the LH side

    Fig 11: Identifying Rear Seat Side Garnish And Claws
    G05786874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE INNER ROOF SIDE GARNISH LH
    1. Pull the garnish away from the body and detach the 4 clips (do not detach clip A)
    2. Detach the 2 claws of the guide, and remove the inner roof side garnish toward the front of the vehicle (in the direction of the arrow)

      HINT:

      Clip A remains attached to the body.

    3. Remove clip A from the vehicle body
  25. REMOVE INNER ROOF SIDE GARNISH RH

    HINT:

    Use the same procedures described for the LH side

    Fig 12: Removing Inner Roof Side Garnish LH
    G05786875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

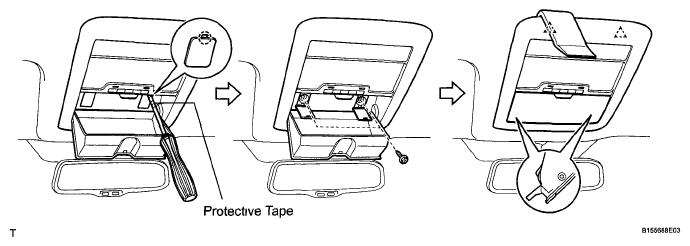

  26. REMOVE MAP LIGHT ASSEMBLY
    1. Using a screwdriver, detach the 2 claws and open the 2 covers.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the 2 screws.
    3. Using a molding remover, detach the 2 clips.
    4. Disconnect the 2 connectors and then remove the map light.
      Fig 13: Removing Map Light Assembly
      G05786876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. w/ Sliding Roof

      Disconnect the drive gear connector

    Fig 14: Locating Drive Gear Connector
    G04946712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE SPOT LIGHT LENS (w/ Rear Seat Entertainment System)
    1. Detach the 4 claws and remove the spot light lens
    Fig 15: Identifying Spot Light Lens And Claws
    G04950826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE ROOF CONSOLE BOX ASSEMBLY (w/ Rear Seat Entertainment System)
    1. Remove the 2 screws
    2. Detach the 6 clips and 2 claws.
    3. w/o Infrared Rays Sensor

      Disconnect the connector and then remove the roof console box.

    4. w/ Infrared Rays Sensor

      Disconnect the 2 connectors and then remove the roof console box

    Fig 16: Identifying Roof Console Box And Screws
    G04950827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE SPOT LIGHT ASSEMBLY (w/o Rear Seat Entertainment System)
    1. Using a molding remover, detach the 4 claws.
    2. Disconnect the connector and then remove the spot light.

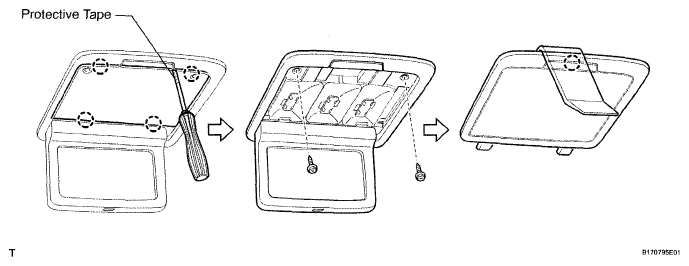

  30. REMOVE REAR VANITY LIGHT ASSEMBLY

    HINT:

    Use the same procedures to remove the vanity light on the other side.

    Fig 17: Identifying Spot Light Assembly And Claws
    G04946713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver, detach the 4 claws and remove the lens.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the 2 screws.
    3. Using a molding remover, detach the claw.
    4. Disconnect the connector and then remove the vanity light.
    Fig 18: Removing Vanity Light
    G04946714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE COAT HOOK

    HINT:

    Use the same procedures to remove the hook on the other side

    1. Remove the screw and coat hook
    Fig 19: Identifying Coat Hook And Screw
    G04946748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE ROOF SIDE REGISTER BEZEL LH (w/ Rear Cooler)
    1. Remove the screw
    2. Detach the claw and remove the roof side register
  33. REMOVE ROOF SIDE REGISTER BEZEL RH (w/ Rear Cooler)

    HINT:

    Use the same procedures described for the LH side

    Fig 20: Identifying Roof Side Register And Screw
    G04946716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE ASSIST GRIP SUB-ASSEMBLY

    HINT:

    Use the same procedures for the other 3 assist grips

    1. Using a screwdriver, detach the 4 claws and remove the 2 assist grip covers.

      HINT:

      Tape the screwdriver tip before use

    2. Detach the 2 clips and remove the assist grip
    Fig 21: Locating Claws And Assist Grip Covers
    G05786884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE VISOR BRACKET COVER

    HINT:

    Use the same procedures to remove the cover on the other side.

    (a) Using a molding remover, detach the 4 claws and remove the visor bracket cover.

    Fig 22: Identifying Visor Bracket Cover And Claws
    G04946718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE VISOR ASSEMBLY LH
    1. Remove the 2 screws and visor
  37. REMOVE VISOR ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side

    Fig 23: Identifying Visor And Screws
    G04946719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

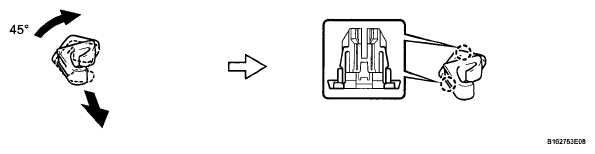

  38. REMOVE VISOR HOLDER

    HINT:

    Use the same procedures to remove the holder on the other side

    1. Turn the visor holder approximately 45° and pull it out as shown in the illustration
    2. Detach the 2 claws and remove the visor holder.
    Fig 24: Identifying Visor Holder Removal
    G05786887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE FRONT WIPER ARM LH  (See REMOVAL )
  40. REMOVE FRONT WIPER ARM RH  (See REMOVAL )
  41. REMOVE HOOD TO COWL TOP SEAL  (See REMOVAL )
  42. REMOVE COWL TOP VENTILATOR LOUVER RH  (See REMOVAL )
  43. REMOVE FRONT FENDER TO COWL SIDE SEAL LH  (See REMOVAL )
  44. REMOVE FRONT FENDER TO COWL SIDE SEAL RH  (See REMOVAL )
  45. REMOVE COWL TOP VENTILATOR LOUVER PROTECTOR LH  (See REMOVAL )
  46. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY  (See REMOVAL )
  47. REMOVE CENTER ROOF DRIP SIDE FINISH MOLDING LH
    1. Remove the center roof drip side finish molding (see REMOVAL )
  48. REMOVE CENTER ROOF DRIP SIDE FINISH MOLDING RH
    1. Remove the center roof drip side finish molding (see REMOVAL )
  49. REMOVE RAIN SENSOR COVER
    1. w/o Driver Monitor Camera.

      Remove the rain sensor cover (see REMOVAL )

    2. w/ Driver Monitor Camera

      Remove the ram sensor cover (see REMOVAL )

  50. DISCONNECT RAIN SENSOR CONNECTOR
  51. REMOVE INNER REAR VIEW MIRROR ASSEMBLY  (see REMOVAL )
  52. REMOVE OBJECT RECOGNITION CAMERA (w/ Driver Monitor Camera)  (See REMOVAL )
  53. REMOVE UPPER WINDSHIELD OUTSIDE MOLDING  (See REMOVAL )
  54. REMOVE WINDSHIELD GLASS  (See REMOVAL )
  55. REMOVE NO. 2 WINDSHIELD GLASS STOPPER  (See REMOVAL )
  56. REMOVE WINDSHIELD GLASS RETAINER  (See REMOVAL )
  57. REMOVE WINDSHIELD GLASS ADHESIVE DAM  (See REMOVAL )
  58. REMOVE WINDSHIELD GLASS SEAL  (See REMOVAL )
  59. CLEAN WINDSHIELD GLASS  (See REMOVAL )
  60. REMOVE NO. 1 WINDSHIELD GLASS STOPPER  (See REMOVAL )
  61. CLEAN VEHICLE BODY  (See REMOVAL )
  62. REMOVE ROOF HEADLINING ASSEMBLY
    1. Disconnect the roof wire connectors and detach each clamp from the front pillar.
      Fig 25: Locating Roof Wire Connectors
      G05786888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

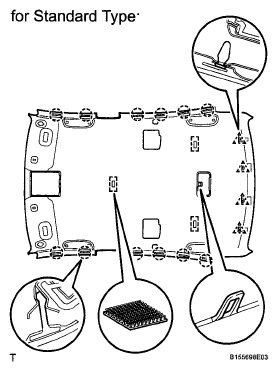

    2. for Standard Type.

      Detach the hook, 12 claws, 3 fasteners and 4 clips

      Fig 26: Identifying Roof Headlining Assembly - For Standard Type
      G05786889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

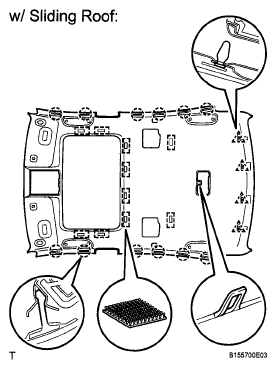

    3. w/ Sliding Roof:

      Detach the hook, 12 claws, 10 fasteners and 4 clips

      Fig 27: Identifying Roof Headlining Assembly - W/ Sliding Roof
      G05786890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

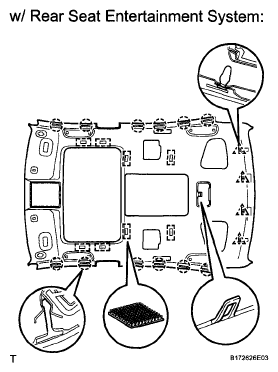

    4. w/ Rear Seat Entertainment System.

      Detach the hook, 12 claws, 8 fasteners and 4 clips

      Fig 28: Identifying Roof Headlining Assembly - W/ Rear Seat Entertainment System
      G05786891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the roof headlining through the front of the vehicle
  63. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  64. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  65. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
  66. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
    Fig 29: Removing Roof Headlining Front Of Vehicle
    G04946724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
