INSTALL AMPLIFIER ANTENNA ASSEMBLY
1. Use non-residue solvent to clean the area on the glass where the antenna will be installed.
  NOTE: Do not use non-residue solvent to clean the antenna's contact points. Doing so may cause improper contact between the antenna and glass.
2. Install the antenna with the 2 nuts labeled B.
  Torque: 14 N*m (143 kgf*cm, 10 ft.*lbf)
  NOTE:
  - Just before installing the antenna to the glass, remove the protective cover of the antenna's contact points.
  - When removing the protective cover of the antenna's contact points, make sure the cover does not touch the contact points.
  - Never touch the contact points after removing the protective cover.
  - Clip A will break when removing the amplifier antenna. Therefore, remove it and do not reuse it.
3. Attach the 4 clips labeled C.
4. Connect the antenna connectors.

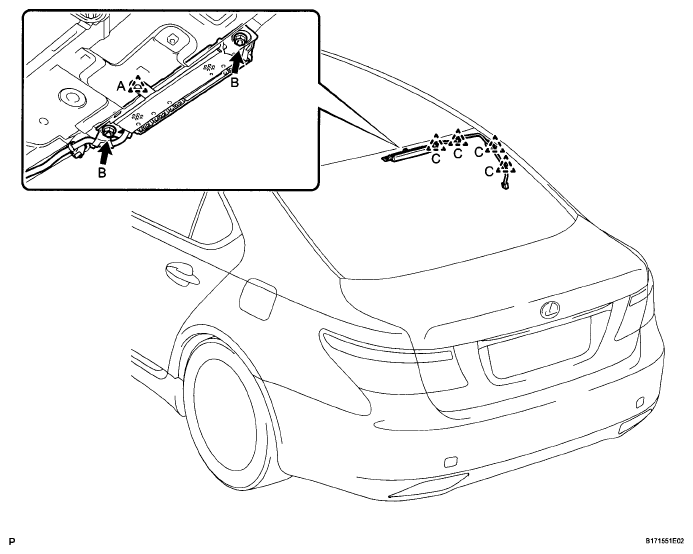

  Fig 1: Identifying Clips Labeled C
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Return the roof headlining to its original position. Refer to the following procedures (see INSTALLATION )
INSTALL ASSIST GRIP SUB-ASSEMBLY (See INSTALLATION )
INSTALL ROOF SIDE REGISTER BEZEL RH (w/ Rear Cooler) (See INSTALLATION )
INSTALL ROOF SIDE REGISTER BEZEL LH (w/ Rear Cooler) (See INSTALLATION )
INSTALL COAT HOOK (See INSTALLATION )
INSTALL REAR VANITY LIGHT ASSEMBLY (See INSTALLATION )
INSTALL SPOT LIGHT ASSEMBLY (See INSTALLATION )
INSTALL ROOF CONSOLE BOX ASSEMBLY (w/ Rear Seat Entertainment System) (See INSTALLATION )
INSTALL SPOT LIGHT LENS (See INSTALLATION )
INSTALL INNER ROOF SIDE GARNISH RH (See INSTALLATION )
INSTALL INNER ROOF SIDE GARNISH LH (See INSTALLATION )
INSTALL REAR SEAT SIDE GARNISH RH (See INSTALLATION )
INSTALL REAR SEAT SIDE GARNISH LH (See INSTALLATION )
INSTALL REAR DOOR SCUFF PLATE RH (See INSTALLATION )
INSTALL REAR DOOR SCUFF PLATE LH (See INSTALLATION )
INSTALL REAR SEAT ASSEMBLY
1. for Power Seat.
  Install the rear seat assembly (see INSTALLATION )
2. for Ottoman
  Install the rear seat assembly (see INSTALLATION ).
3. for Fixed Seat
  Install the rear seat assembly (See INSTALLATION ).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
INSTALL BATTERY SERVICE HOLE COVER LH (See INSTALLATION )
INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY (See INSTALLATION )
CHECK SRS WARNING LIGHT
1. Check SRS warning light (see DIAGNOSIS SYSTEM ).
