Roof Headlining: Installation

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

Fig 1: Identifying Roof Silencer Pad - W/ Rear Seat Entertainment System
G05786907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. Install the front door opening trim weatherstrip as shown in the illustration.
  2. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 2: Identifying Front Door Opening Trim Weatherstrip
    G05786908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
    1. Install the rear door opening trim weatherstrip as shown in the illustration
  4. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 3: Identifying Rear Door Opening Trim Weatherstrip
    G05786909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. TEMPORARILY INSTALL ROOF HEADLINING ASSEMBLY
    1. Place the roof headlining into the vehicle through the front side

      HINT:

      Temporarily install the roof headlining so that the windshield can be installed.

  6. INSTALL NO. 1 WINDSHIELD GLASS STOPPER  (See INSTALLATION )
    Fig 4: Installing Roof Headlining Assembly
    G05786910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 2 WINDSHIELD GLASS STOPPER  (See INSTALLATION )
  8. INSTALL UPPER WINDSHIELD OUTSIDE MOLDING  (See INSTALLATION )
  9. INSTALL WINDSHIELD GLASS RETAINER  (See INSTALLATION )
  10. INSTALL WINDSHIELD GLASS ADHESIVE DAM  (See INSTALLATION )
  11. INSTALL WINDSHIELD GLASS SEAL  (See INSTALLATION )
  12. INSTALL WINDSHIELD GLASS  (See INSTALLATION )
  13. CHECK FOR LEAK AND REPAIR  (See INSTALLATION )
  14. INSTALL OBJECT RECOGNITION CAMERA (w/ Driver Monitor Camera)  (See INSTALLATION )
  15. INSTALL INNER REAR VIEW MIRROR ASSEMBLY  (See INSTALLATION )
  16. CONNECT RAIN SENSOR CONNECTOR
  17. INSTALL RAIN SENSOR COVER
    1. w/o Driver Monitor Camera

      Install the rain sensor cover (see INSTALLATION ).

    2. w/ Driver Monitor Camera.

      Install the rain sensor cover (see INSTALLATION )

  18. INSTALL CENTER ROOF DRIP SIDE FINISH MOLDING LH
    1. Install the center roof drip side finish molding (see INSTALLATION )
  19. INSTALL CENTER ROOF DRIP SIDE FINISH MOLDING RH
    1. Install the center drip side finish molding (see INSTALLATION )
  20. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY  (See INSTALLATION )
  21. INSTALL COWL TOP VENTILATOR LOUVER PROTECTOR LH  (See INSTALLATION )
  22. INSTALL FRONT FENDER TO COWL SIDE SEAL LH  (See INSTALLATION )
  23. INSTALL FRONT FENDER TO COWL SIDE SEAL RH  (See INSTALLATION )
  24. INSTALL COWL TOP VENTILATOR LOUVER RH  (See INSTALLATION )
  25. INSTALL HOOD TO COWL TOP SEAL  (See INSTALLATION )
  26. INSTALL FRONT WIPER ARM LH  (See INSTALLATION )
  27. INSTALL FRONT WIPER ARM RH  (See INSTALLATION )
  28. INSTALL ROOF HEADLINING ASSEMBLY

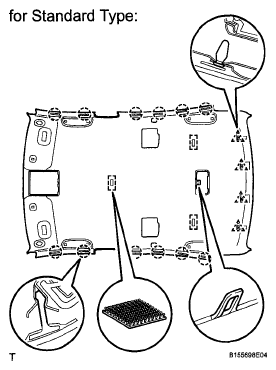

    1. for Standard Type.

      Attach the hook, 12 claws, 3 fasteners and 4 clips to install the roof headlining

      Fig 5: Identifying Roof Headlining Assembly - For Standard Type
      G05786911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

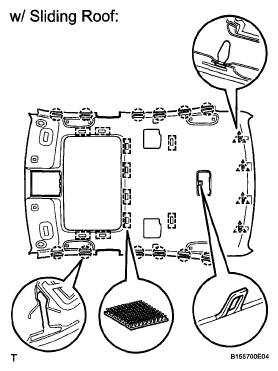

    2. w/ Sliding Roof.

      Attach the hook, 12 claws, 10 fasteners and 4 clips to install the roof headlining.

      Fig 6: Identifying Roof Headlining Assembly - W/ Sliding Roof
      G05786912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

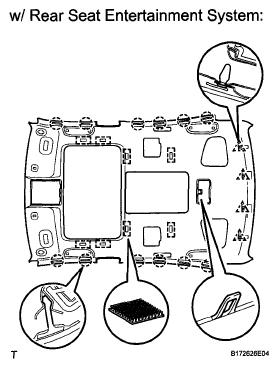

    3. w/ Rear Seat Entertainment System*

      Attach the hook, 12 claws, 8 fasteners and 4 clips to install the roof headlining.

      Fig 7: Identifying Roof Headlining Assembly - W/ Rear Seat Entertainment System
      G05786913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the roof wire connectors and attach each clamp.
    Fig 8: Locating Roof Wire Connectors Clamp
    G05786888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL VISOR HOLDER

    HINT:

    Use the same procedures to install the holder on the other side.

    1. Push in the visor holder and turn it approximately 45° as shown in the illustration.
    2. Push in the visor holder as shown in the illustration
    Fig 9: Pushing Visor Holder
    G05786915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL VISOR ASSEMBLY LH
    1. Install the visor with the 2 screws
    Fig 10: Identifying Visor And Claws
    G04946719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL VISOR ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side

  32. INSTALL VISOR BRACKET COVER

    HINT:

    Use the same procedures to install the cover on the other side

    1. Attach the 4 claws to install the visor bracket cover
    Fig 11: Identifying Visor Bracket Cover And Claws
    G05786917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL ASSIST GRIP SUB-ASSEMBLY

    HINT:

    Use the same procedures for the other 3 assist grips.

    1. Assemble the assist grip, 2 clips and 2 covers as shown in the illustration
    2. Install the assist grip
    Fig 12: Identifying Assist Grip Sub-Assembly
    G04946747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL COAT HOOK

    HINT:

    Use the same procedures to install the hook on the other side

    1. Install the coat hook with the screw
    Fig 13: Identifying Coat Hook And Screw
    G04946748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. INSTALL ROOF SIDE REGISTER BEZEL LH (w/ Rear Cooler)
    1. Attach the claw to install the roof side register bezel
    2. Install the screw.
    Fig 14: Identifying Roof Side Register And Screw
    G04946716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL ROOF SIDE REGISTER BEZEL RH (w/ Rear Cooler)

    HINT:

    Use the same procedures described for the LH side

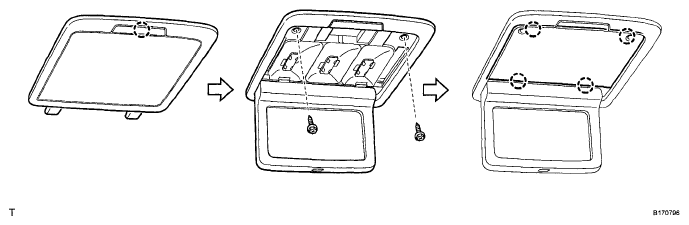

  37. INSTALL REAR VANITY LIGHT ASSEMBLY

    HINT:

    Use the same procedures to install the vanity light on the other side.

    1. Connect the connector
    2. Attach the claw to install the vanity light
    3. Install the 2 screws
    4. Attach the 4 claws to install the lens
    Fig 15: Identifying Rear Vanity Light Assembly
    G05786921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL SPOT LIGHT ASSEMBLY (w/o Rear Seat Entertainment System)
    1. Connect the connector
    2. Attach the 4 claws to install the spot light.
    Fig 16: Identifying Spot Light Assembly And Claws
    G04946751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. INSTALL ROOF CONSOLE BOX ASSEMBLY (w/ Rear Seat Entertainment System)
    1. w/o Infrared Rays Sensor:

      Connect the connector, then attach the 6 clips and 2 claws to install the roof console box.

    2. w/ Infrared Rays Sensor

      Connect the 2 connectors, then attach the 6 clips and 2 claws to install the roof console box.

    3. Install the 2 screws
    Fig 17: Identifying Spot Light Assembly And Claws
    G05786923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. INSTALL SPOT LIGHT LENS (w/ Rear Seat Entertainment System)
    1. Attach the 4 claws to install the spot light lens.
    Fig 18: Identifying Spot Light Lens And Claws
    G05786924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

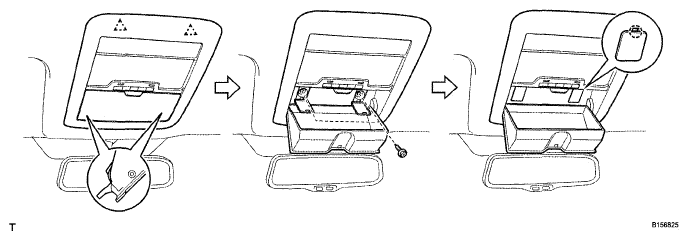

  41. INSTALL MAP LIGHT ASSEMBLY
    1. w/ Sliding Roof.

      Connect the drive gear connector.

      Fig 19: Locating Drive Gear Connector
      G04946712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 map light connectors
    3. Attach the 2 clips to install the map light
    4. Install the 2 screws.
    5. Attach the 2 claws to close the 2 covers.
    Fig 20: Identifying Map Light Assembly
    G04946753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. INSTALL INNER ROOF SIDE GARNISH LH
    1. Install a new clip A on the inner roof side garnish.
    2. Attach the 5 clips and 2 claws to install the inner roof side garnish.
  43. INSTALL INNER ROOF SIDE GARNISH RH

    HINT:

    Use the same procedures described for the LH side

    Fig 21: Identifying Inner Roof Side Garnish And Clip
    G05786927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. INSTALL REAR SEAT SIDE GARNISH LH
    1. Attach the 6 claws to install the rear seat side garnish
  45. INSTALL REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedures described for the LH side

    Fig 22: Identifying Rear Seat Side Garnish And Clip
    G04946709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. INSTALL SHOULDER BELT ANCHOR COVER LH
    1. Slide the cover in the direction shown in the illustration and attach the 6 claws to install the cover
  47. INSTALL SHOULDER BELT ANCHOR COVER RH

    HINT:

    Use the same procedures described for the LH side

    Fig 23: Installing Shoulder Belt Anchor Cover LH
    G04946756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. INSTALL CENTER UPPER PILLAR GARNISH LH
    1. Pass the front seat outer belt floor anchor through the center upper pillar garnish
    2. Attach the claw to install the center upper pillar garnish
    3. Install the 2 screws
  49. INSTALL CENTER UPPER PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side

    Fig 24: Installing Center Upper Pillar Garnish RH
    G05786930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. INSTALL CENTER LOWER PILLAR GARNISH LH
    1. Attach the 2 claws and 6 clips to install the center lower pillar garnish
  51. INSTALL CENTER LOWER PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side

    Fig 25: Identifying Center Lower Pillar Garnish And Clip
    G04946758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. INSTALL REAR DOOR SCUFF PLATE LH
    1. Attach the 4 clips.
      Fig 26: Identifying Rear Door Scuff Plate And Clips (LH Side)
      G04946849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 7 claws to install the rear door scuff plate
  53. INSTALL REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side

    Fig 27: Identifying Rear Door Scuff Plate And Clips (RH Side)
    G05786933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  54. INSTALL FRONT PILLAR GARNISH LH
    1. Install a new clip A on the front pillar garnish.
    2. Attach the claw and 2 clips to install the front pillar garnish.
  55. INSTALL FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 28: Identifying Front Pillar Garnish And Claws (LH Side)
    G05786934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  56. INSTALL COWL SIDE TRIM BOARD LH
    1. Attach the 3 claws to install the cowl side trim board.
  57. INSTALL COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 29: Identifying Front Cowl Side Trim Board (RH Side)
    G04946762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  58. INSTALL FRONT DOOR SCUFF PLATE LH
    1. Attach the 4 clips
      Fig 30: Identifying Front Door Scuff Plate And Clips
      G04946763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 7 claws to install the front door scuff plate
  59. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side

    Fig 31: Identifying Front Door Scuff Plate And Screws
    G04946700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  60. INSTALL REAR SEAT ASSEMBLY (for Fixed Type)
    1. Install the rear seat (see INSTALLATION )
  61. INSTALL REAR SEAT ASSEMBLY (for Power Seat)
    1. Install the rear seat (see INSTALLATION )
  62. INSTALL REAR SEAT ASSEMBLY (for Ottoman)
    1. Install the rear seat (see INSTALLATION )
  63. INSTALL FRONT SEAT ASSEMBLY
    1. Install the front seat (see INSTALLATION )
  64. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
  65. INSTALL BATTERY SERVICE HOLE COVER LH  (See INSTALLATION )
  66. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY  (See INSTALLATION )
  67. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
  68. ADJUST OBJECT RECOGNITION CAMERA (w/ Driver Monitor Camera)
    1. Adjust the object recognition camera (see ADJUSTMENT )
