Roof Panel Link: Removal

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. HALF OPEN ROOF PANEL
    1. Half open the roof panel (see MANUAL OPEN OPERATION  ).
      Fig 1: Opening Roof Panel
      G05294259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY RH (See  REMOVAL   )
  4. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY LH (See  REMOVAL   )
  5. REMOVE REMOVABLE ROOF HEADLINING ASSEMBLY (See  REMOVAL   )
  6. REMOVE REMOVABLE ROOF PANEL SUB-ASSEMBLY (See  REMOVAL   )
  7. REMOVE ROOF SIDE GARNISH INNER RH (See  REMOVAL   )
  8. REMOVE ROOF SIDE GARNISH INNER LH (See  REMOVAL   )
  9. REMOVE REAR ROOF HEADLINING ASSEMBLY (See  REMOVAL   )
  10. REMOVE BACK WINDOW FRAME SUB-ASSEMBLY UPPER (See  REMOVAL   )
  11. REMOVE REAR SEAT CUSHION ASSEMBLY (See  REMOVAL  )
  12. REMOVE REAR SEAT HEADREST PLATE COVER (See  REMOVAL  )
  13. REMOVE WIND DEFLECTOR BOARD ASSEMBLY (See  REMOVAL  )
  14. REMOVE REAR SEAT HEADREST PLATE (See  REMOVAL  )
  15. REMOVE REAR SEAT HEADREST ASSEMBLY (See  REMOVAL  )
  16. REMOVE REAR SEATBACK ASSEMBLY (See  DISASSEMBLY  )
  17. REMOVE REAR SEATBACK BOARD (See  REMOVAL  )
  18. REMOVE DOOR SCUFF PLATE ASSEMBLY RH (See  REMOVAL   )
  19. REMOVE DOOR SCUFF PLATE ASSEMBLY LH (See  REMOVAL   )
  20. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY RH (See  REMOVAL   )
  21. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH (See  REMOVAL   )
  22. RAISE PACKAGE TRAY TRIM ASSEMBLY (See  REMOVAL   )
  23. REMOVE PACKAGE TRAY TRIM ASSEMBLY (See  REMOVAL   )
  24. REMOVE REAR FLOOR FINISH PLATE
    1. Using a screwdriver, detach the 4 clips and remove the finish plate.
      Fig 2: Identifying Clips And Finish Plate
      G05294260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

  25. REMOVE SPARE WHEEL COVER ASSEMBLY
  26. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
  27. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH
    1. Using a clip remover, remove the 3 clips and trim cover.
      Fig 3: Identifying Clips And Trim Cover
      G05294261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH

    HINT:

    Use the same procedures described for the RH side.

  29. REMOVE TOOL BOX COVER
  30. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY
    1. Remove the 2 bolts and strikers.
      Fig 4: Identifying Bolts And Strikers
      G05294262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER SUB-ASSEMBLY
    1. Using a clip remover, remove the 4 clips and trim cover.
      Fig 5: Identifying Clips And Trim Cover
      G05294263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE TONNEAU COVER STOPPER SUB-ASSEMBLY RH
    1. Remove the guide rail stopper.
    2. Using a screwdriver, remove the 2 covers.

      HINT:

      Tape the screwdriver tip before use.

    3. Using a T40 "TORX" socket wrench, remove the screw.
    4. Remove the 2 bolts.
    5. Remove the tonneau cover stopper.
      Fig 6: Identifying Tonneau Cover Stopper And Cover
      G05294264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE TONNEAU COVER STOPPER SUB-ASSEMBLY LH

    HINT:

    Use the same procedures described for the RH side.

  34. REMOVE TONNEAU COVER ASSEMBLY
    1. Using a screwdriver, remove the 2 covers, 2 nuts and tonneau cover.

      HINT:

      Tape the screwdriver tip before use.

      Fig 7: Identifying Covers, Nuts And Tonneau Cover
      G05294265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LOWER
    1. Using a clip remover, remove the 6 clips and trim cover.
      Fig 8: Identifying Clips And Trim Cover
      G05294266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER
    1. Using a clip remover, remove the 4 clips.

      HINT:

      Use the same procedures described for the other side.

      Fig 9: Identifying Clips And Front Luggage Compartment Trim Cover
      G05294267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a clip remover, remove the 4 clips.
    3. Remove the front luggage compartment trim cover.
      Fig 10: Identifying Front Luggage Compartment Trim Cover And Clips
      G05294268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE REAR FLOOR FINISH SIDE PLATE RH
    1. Using a screwdriver, detach the 2 claws and remove the side plate.
      Fig 11: Identifying Claws And Side Plate
      G05294269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

  38. REMOVE REAR FLOOR FINISH SIDE PLATE LH

    HINT:

    Use the same procedures described for the RH side.

  39. REMOVE NO. 1 LUGGAGE COMPARTMENT ROOM LIGHT ASSEMBLY
    1. Using a screwdriver, detach the 2 claws and remove the cover.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the luggage compartment light and disconnect the connector.
      Fig 12: Removing Claws And Cover
      G05294270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE RH
    1. Using a clip remover, remove the 4 clips.
    2. Using a screwdriver, detach the claw labeled A and claw labeled B, and remove the trim cover.

      HINT;

      Tape the screwdriver tip before use.

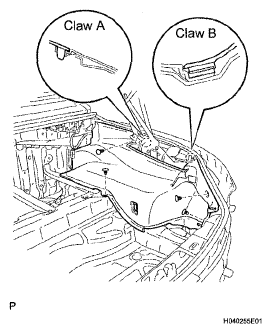

      Fig 13: Identifying Claw Labeled A And Claw Labeled B
      G05294271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE DOOR INSIDE HANDLE BEZEL
    1. Using a screwdriver, detach the 4 claws and remove the bezel.
      Fig 14: Identifying Claws And Bezel
      G05294272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • Tape the screwdriver tip before use.
      • Hold down the area around the service hole, and detach the claw fitting.
  42. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE LH

    HINT:

    Use the same procedures described for the RH side.

  43. REMOVE REAR ROOF SIDE RAIL GARNISH RH

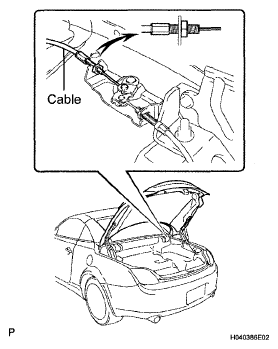

    1. Loosen the nut and disconnect the cable.
      Fig 15: Identifying Nut And Cable
      G05294273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 screws.
    3. Using a screwdriver, detach the claw and remove the garnish.

      HINT:

      Tape the screwdriver tip before use.

      Fig 16: Identifying Claw And Garnish
      G05294274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE ROOF PANEL LINK SUB-ASSEMBLY RH
    1. Disconnect the connector.
    2. Using a T40 "TORX" wrench, remove the 2 screws and nut.
    3. Remove the roof panel link and shims.

      HINT:

      Keep the roof panel link's type A and B shims separate from other part's shims (see ROOF PANEL LINK  )

      Fig 17: Identifying Roof Panel Link And Shims
      G05294275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE SLIDING ROOF DRIVE GEAR ASSEMBLY RH
    1. Remove the 3 bolts and drive gear.
      Fig 18: Identifying Bolts And Drive Gear
      G05294276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE SLIDE ROOF LIMIT SWITCH
    1. Remove the 2 screws and limit switch.
      Fig 19: Identifying Screws And Limit Switch
      G05294277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
