Package Tray Trim: Removal

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. HALF OPEN ROOF PANEL
    1. Half open roof panel (see MANUAL OPEN OPERATION  ).
      Fig 1: Opening Roof Panel
      G05294308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR SEAT CUSHION ASSEMBLY (See  REMOVAL  )
  4. REMOVE REAR SEAT HEADREST PLATE COVER (See  REMOVAL  )
  5. REMOVE WIND DEFLECTOR BOARD ASSEMBLY (See  REMOVAL  )
  6. REMOVE REAR SEAT HEADREST PLATE (See  REMOVAL  )
  7. REMOVE REAR SEAT HEADREST ASSEMBLY (See  REMOVAL  )
  8. REMOVE REAR SEATBACK ASSEMBLY (See  DISASSEMBLY  )
  9. REMOVE REAR SEATBACK BOARD (See  REMOVAL  )
  10. REMOVE DOOR SCUFF PLATE ASSEMBLY RH
    1. Using a screwdriver, detach the claw and 5 clips, and remove the scuff plate.
      Fig 2: Identifying Claw, Clips And Scuff Plate
      G05294309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

  11. REMOVE DOOR SCUFF PLATE ASSEMBLY LH

    HINT:

    Use the same procedures described for the RH side.

  12. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY RH
    1. Using a screwdriver, detach the 4 claws and remove the belt garnish.

      HINT:

      Tape the screwdriver tip before use.

      Fig 3: Identifying Claws And Belt Garnish
      G05294310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 screws and clip labeled A.
    3. Using a screwdriver, detach the 4 clips labeled B and remove the trim panel.
      Fig 4: Identifying Clips Labeled A And Clips Labeled B
      G05294311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

  13. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH

    HINT:

    Use the same procedures described for the RH side.

  14. RAISE PACKAGE TRAY TRIM ASSEMBLY
    1. Place both hands under the rear part of the package tray in positions close to both ends. Raise the package tray trim gradually to 30° to 45°.
      CAUTION: Do not place your hands on the edges of main board.
      NOTE: Do not apply direct force to the side board as it is operated in connection with the main board.

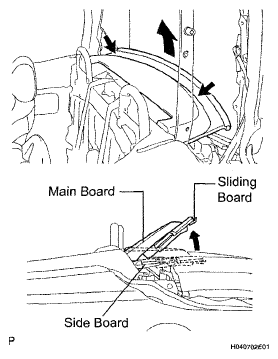

      Fig 5: Raising Package Tray Trim Assembly
      G05294312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the joints of the cables from the package tray trim gear box.
      CAUTION: Take care not to injure your hands when disconnecting the joints.
      NOTE:
      • As the cable is coated with grease, prevent it from contacting the seat, seat belt or other parts.
      • Make sure the removed cable is not pressed against the package tray trim gear box.
        Fig 6: Disconnecting Joints Of Cables
        G05294313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Raise the package tray trim gradually until it stops.
      NOTE: Do not apply direct force to the side board as it is operated in connection with the main board.
      Fig 7: Raising Package Tray Trim
      G05294314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE PACKAGE TRAY TRIM ASSEMBLY
    1. Disconnect the limit switch connectors.
    2. Remove the 3 bolts.
      NOTE:
      • Depending on the angle of the package trim, the side board may interfere with the bolt. In this case, adjust the angle to move the side board so that the bolt can be seen.
      • Do not move the side board directly. Be sure to move the main board for adjustment.
      • The main board is operated in connection with the side board.

      HINT:

      Use the same procedures described for the other side.

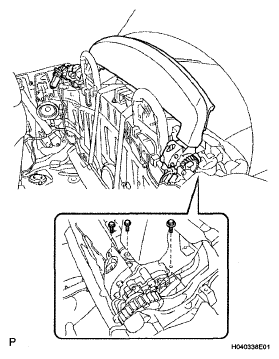

      Fig 8: Disconnecting Limit Switch Connectors
      G05294315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the trim as shown in the illustration.

      HINT:

      Keep the package tray trim's right and left shims separate from other part's shims.

      Fig 9: Removing Trim
      G05294316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY
    1. As shown in the illustration, mark the nut positions on the arm of the bracket.
      Fig 10: Identifying Matchmarks
      G05294317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      When replacing the bracket with a new one, mark the arm position on the side board.

    2. Remove the 2 nuts and trim panel.
  17. REMOVE NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY
    1. Mark the nut positions on the arm of the bracket.

      HINT:

      When replacing the bracket with a new one, mark the arm position on the side board.

    2. Remove the 2 nuts and trim panel No. 2.
  18. REMOVE PACKAGE TRAY TRIM UNDER COVER
    1. Remove the 9 screws and cover.
      Fig 11: Identifying Screws And Cover
      G05294318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE PACKAGE TRAY PANEL ASSEMBLY CENTER
    1. As shown in the illustration, mark the nut positions on the bracket.

      HINT:

      When replacing the bracket with a new one, mark the bracket position on the panel assembly side.

    2. Remove the 4 nuts and panel.
      Fig 12: Identifying Matchmarks
      G05294319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE SLIDE ROOF LIMIT SWITCH
    1. Remove the bolt and protector.
    2. Remove the 2 screws and limit switch.
      Fig 13: Identifying Screws And Limit Switch
      G05294320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE SLIDE ROOF LIMIT SWITCH
    1. Remove the bolt and protector.
    2. Remove the 2 screws and limit switch.
      Fig 14: Identifying Screws And Limit Switch
      G05294321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE BACK WINDOW GLASS WEATHERSTRIP RH
    1. Remove the weatherstrip from the package tray panel.
      Fig 15: Identifying Weatherstrip And Package Tray Panel
      G05294322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE BACK WINDOW GLASS WEATHERSTRIP LH

    HINT:

    Use the same procedures described for the RH side.

  24. REMOVE BACK WINDOW GLASS WEATHERSTRIP CENTER
    1. Remove the weatherstrip from the package tray trim panel.
      Fig 16: Identifying Weatherstrip
      G05294323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE PACKAGE TRAY TRIM BRACKET
    1. Remove the 2 bolts and bracket.
  26. REMOVE PACKAGE TRAY TRIM LINK MOTOR ASSEMBLY LH
    1. Using a clip remover, detach the 2 clips of the drive cable.
    2. Remove the 2 drive cables.

      HINT:

      Turn the attachment on the drive cable end and remove the drive cable from the motor.

    3. Disconnect the connector, then remove the 2 bolts and motor.
      Fig 17: Identifying Bolts And Motor
      G05294324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
