Oil Cooler: Removal

REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH (See REMOVAL )
REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH (See REMOVAL )
REMOVE NO. 2 ENGINE UNDER COVER (See REMOVAL )
REMOVE NO. 1 ENGINE UNDER COVER (See REMOVAL )
REMOVE FRONT BUMPER ASSEMBLY (w/ Air Cooled Transmission Oil Cooler)
1. Remove the front bumper (See REMOVAL ).
REMOVE FRONT FENDER APRON SEAL FRONT RH (See REMOVAL )
REMOVE FRONT FENDER APRON SEAL REAR RH (See REMOVAL )
DISCONNECT TRANSMISSION OIL COOLER HOSE
1. Remove the bolt and move the water by-pass pipe so that the 2 transmission oil cooler hoses can be disconnected.
2. Disconnect the 2 transmission oil cooler hoses.

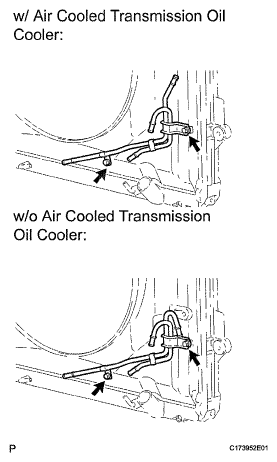

Fig 1: Locating Transmission Oil Cooler Hoses
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT INLET NO. 1 OIL COOLER HOSE AND OUTLET NO. 1 OIL COOLER HOSE
1. w/ Air Cooled Transmission Oil Cooler:
  1. Detach the claw to open the flexible hose clamp.
  2. Disconnect the inlet and outlet oil cooler hoses.
2. w/o Air Cooled Transmission Oil Cooler:
  1. Disconnect the inlet and outlet oil cooler hoses.

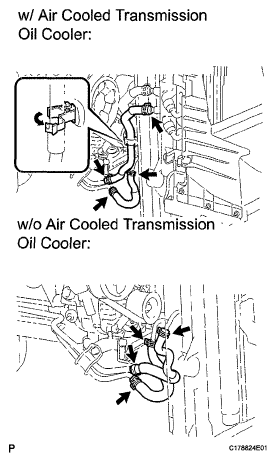

Fig 2: Disconnecting Inlet No. 1 Oil Cooler Hose And Outlet No. 1 Oil Cooler Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT INLET NO. 2 OIL COOLER HOSE AND INLET NO. 3 OIL COOLER HOSE
1. Disconnect the 2 inlet oil cooler hoses.

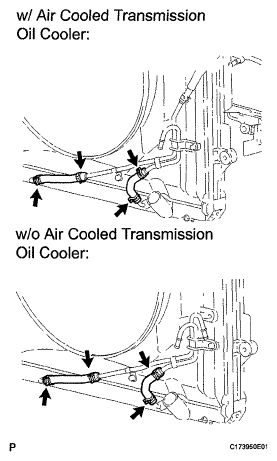

Fig 3: Disconnecting Inlet No. 2 Oil Cooler Hose And Inlet No. 3 Oil Cooler Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT INLET NO. 4 OIL COOLER HOSE (w/ Air Cooled Transmission Oil Cooler)

Fig 4: Disconnecting Inlet No. 4 Oil Cooler Hose (W/ Air Cooled Transmission Oil Cooler)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OIL COOLER TUBE
1. Remove the 2 bolts and oil cooler tube.
Fig 5: Removing Oil Cooler Tube
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION OIL COOLER AIR DUCT (w/ Air Cooled Transmission Oil Cooler)
1. Remove the 4 bolts and transmission oil cooler air duct.
Fig 6: Locating Bolts For Transmission Oil Cooler Air Duct
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OIL COOLER ASSEMBLY (w/ Air Cooled Transmission Oil Cooler)
1. Remove the 4 bolts and oil cooler.

  Fig 7: Locating Bolts And Oil Cooler
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 5 bolts and rear transmission oil cooler air duct.

  Fig 8: Locating Bolts And Rear Transmission Oil Cooler Air Duct
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the oil cooler inlet hose and outlet hose and remove the tube.
Fig 9: Locating Oil Cooler Inlet Hose And Outlet Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
