Stereo Component Amplifier: Installation

  1. INSTALL NO. 2 AMPLIFIER BRACKET
    1. Set the aligning protrusions of the bracket, labeled A, into the holes of the amplifier.
      Fig 1: Locating No. 2 Amplifier Bracket Screws
      G05763081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the bracket with the 2 screws labeled B.

      Torque: 3.0 N*m (30 kgf*cm, 26 in.*lbf)

  2. INSTALL NO. 1 AMPLIFIER BRACKET
    1. Set the aligning protrusions of the bracket, labeled A, into the holes of the amplifier.
      Fig 2: Locating No. 1 Amplifier Bracket Screws
      G05763082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the bracket with the 2 screws labeled B.

      Torque: 3.0 N*m (30 kgf*cm, 26 in.*lbf)

  3. INSTALL AMPLIFIER COVER (for 9 Speakers)
    1. Attach the 3 clips to install the cover.
    2. Fig 3: Locating Amplifier Cover Clips (For 9 Speakers)
      G05630476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET
    1. Install the amplifier with the 3 bolts.

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

    2. for 19 Speakers: Connect the 6 connectors.
    3. for 9 Speakers:

      Connect the 3 connectors.

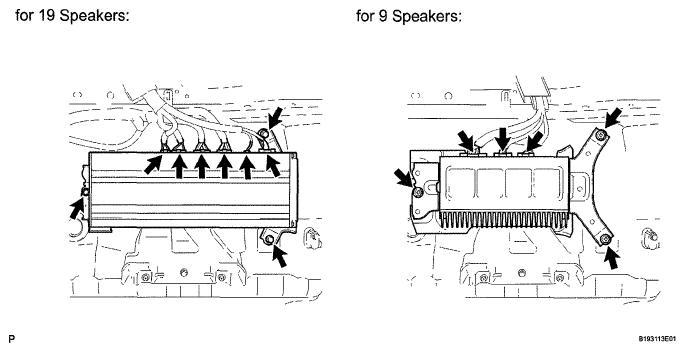

      Fig 4: Locating Stereo Component Amplifier Assembly With Bracket Connectors
      G05763077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL FRONT FLOOR CARPET ASSEMBLY
    1. Open the tail gate and back door, insert the carpet into the cabin from the rear, and install it to the floor.
      Fig 5: Inserting Carpet Into Cabin From Rear
      G05763085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 2 clips and 8 claws.

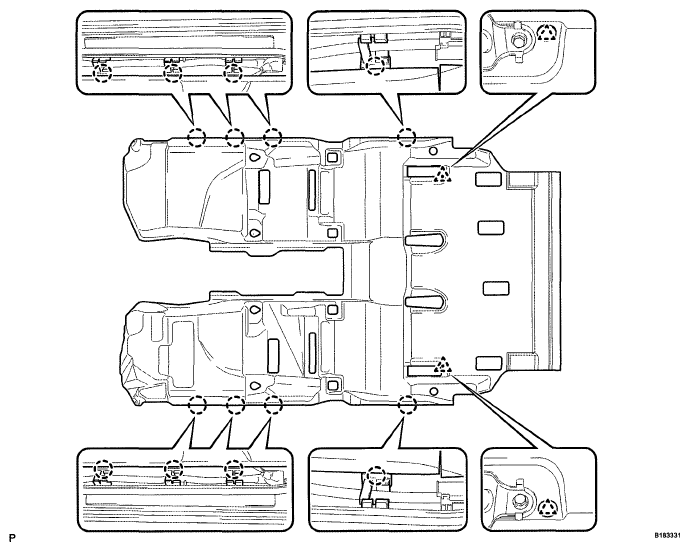

      Fig 6: Identifying Carpet Clips And Claws
      G05630473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY (w/ o Cool Box)
    1. Install the rear console box (See INSTALLATION ).
  7. INSTALL COOLING BOX ASSEMBLY (w/ Cool Box)
    1. Install the cooling box (See INSTALLATION ).
  8. INSTALL REAR NO. 2 SEAT PROTECTOR
    1. Attach the 4 clips and claw to install the protector.

      HINT:

      Use the same procedures to install the protector on the other side.

      Fig 7: Identifying Rear No. 2 Seat Protector Clips And Claw
      G05763074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL REAR NO. 1 SEAT PROTECTOR
    1. Attach the 4 clips and claw to install the protector.

      HINT:

      Use the same procedures to install the protector on the other side.

      Fig 8: Identifying Rear No. 1 Seat Protector Clips And Claw
      G05763073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL REAR AIR DUCT GUIDE

    HINT:

    Use the same procedures for both sides.

    1. Attach the claw to install the guide.
    2. Install the screw.
      Fig 9: Identifying Rear Air Duct Guide Screw
      G05630470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL AIR DUCT PLUG
    1. Attach the 2 claws to install the plug.

      HINT:

      Use the same procedures for both sides.

      Fig 10: Identifying Air Duct Plug Claws
      G05630469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL AIR HEATER GUIDE
    1. Install the guide with the 2 screws.

      HINT:

      Use the same procedures for both sides.

      Fig 11: Locating Air Heater Guide Screws
      G05630468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL NO. 2 AIR DUCT PLUG
    1. Attach the 4 claws to install the 2 plugs.

      HINT:

      Use the same procedures for both sides.

      Fig 12: Identifying No. 2 Air Duct Plug Claws
      G05630467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL REAR DOOR SCUFF PLATE RH  (See INSTALLATION )
  15. INSTALL REAR DOOR SCUFF PLATE LH  (See INSTALLATION )
  16. INSTALL REAR STEP COVER  (See INSTALLATION )
  17. INSTALL COWL SIDE TRIM BOARD RH  (See INSTALLATION )
  18. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  (See INSTALLATION )
  19. INSTALL COWL SIDE TRIM BOARD LH  (See INSTALLATION )
  20. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  (See INSTALLATION )
  21. INSTALL FRONT DOOR SCUFF PLATE RH  (See INSTALLATION )
  22. INSTALL FRONT DOOR SCUFF PLATE LH  (See INSTALLATION )
  23. INSTALL INSTRUMENT SIDE PANEL RH  (See INSTALLATION )
  24. INSTALL INSTRUMENT SIDE PANEL LH  (See INSTALLATION )
  25. INSTALL REAR NO. 1 SEAT ASSEMBLY RH  (See INSTALLATION )
  26. INSTALL REAR NO. 3 SEAT CUSHION HINGE COVER  (See INSTALLATION )
  27. INSTALL REAR NO. 1 SEAT CUSHION HINGE COVER  (See INSTALLATION )
  28. INSTALL REAR NO. 4 SEAT CUSHION HINGE COVER  (See INSTALLATION )
  29. INSTALL REAR NO. 2 SEAT CUSHION HINGE COVER  (See INSTALLATION )
  30. INSTALL REAR NO. 1 SEAT ASSEMBLY LH  (See INSTALLATION )
  31. INSTALL REAR NO. 4 SEAT CUSHION HINGE COVER  (See INSTALLATION )
  32. INSTALL REAR NO. 2 SEAT CUSHION HINGE COVER  (See INSTALLATION )
  33. INSTALL REAR NO. 5 SEAT CUSHION HINGE COVER  (See INSTALLATION )
  34. INSTALL REAR NO. 3 SEAT CUSHION HINGE COVER  (See INSTALLATION )
  35. INSTALL FRONT SEAT ASSEMBLY RH
    1. Install the front seat assembly RH (See INSTALLATION ).
  36. INSTALL FRONT SEAT ASSEMBLY LH
    1. Install the front seat assembly LH (See INSTALLATION ).
  37. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
  38. INSTALL ENGINE ROOM SIDE COVER LH  (See INSTALLATION )
  39. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (See AIRBAG SYSTEM ).
