Roof Headlining: Installation

HINT:

A bolt without a torque specification is shown in the standard bolt chart (See SPECIFIED TORQUE FOR STANDARD BOLTS ).

  1. INSTALL NO. 2 MULTIPLEX NETWORK BODY ECU
    1. Install the multiplex network body ECU with the bolt.
    2. Connect the 2 connectors.
    Fig 1: Locating No. 2 Multiplex Network Body ECU Connectors And Bolt
    G05767303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL SIDE TRIM BOX (w/o Woofer)
    1. Install the side trim box with the 9 screws.
      2. Fig 2: Identifying Side Trim Box Screws (W/O Woofer)
      G05767304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL SIDE TRIM BOX COVER (w/o Woofer)
    1. Install the side trim box cover.
  4. INSTALL QUARTER TRIM LID SUB-ASSEMBLY RH
    1. Install the quarter trim lid.
  5. INSTALL QUARTER TRIM COVER LH (for Rear No. 2 Seat with Automatic Folding-up Function)
    1. Attach the 6 clips to install the quarter trim cover
    Fig 3: Identifying Quarter Trim Cover LH Clips
    G05767305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FOLD SEAT SWITCH ASSEMBLY (for Rear No. 2 Seat with Automatic Folding-up Function)
    1. Attach the 6 clips to install the fold seat switch
    Fig 4: Identifying Fold Seat Switch Assembly Clips
    G05767306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL REAR NO. 2 SEAT COVER BEZEL (for Rear No. 2 Seat with Manual Folding-up Function)
    1. Attach the 6 clips to install the No. 2 seat cover bezel.
      2. Fig 5: Identifying Rear No. 2 Seat Cover Bezel Clips
      G05767307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL REAR NO. 1 SEAT COVER BEZEL (for Rear No. 2 Seat with Manual Folding-up Function)

    HINT:

    Use the same procedures described for the LH side.

  9. INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY LH (for Rear No. 2 Seat with Manual Folding-up Function)  (See INSTALLATION )
  10. INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY RH (for Rear No. 2 Seat with Manual Folding-up Function)

    HINT:

    Use the same procedures described for the LH side.

  11. INSTALL NO. 2 SIDE TRIM BASE COVER LH
    1. Attach the 4 claws to install the cover.
      2. Fig 6: Identifying No. 2 Side Trim Base Cover LH Claws
      G05767308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL NO. 2 SIDE TRIM BASE COVER RH

    HINT:

    Use the same procedures described for the LH side.

  13. INSTALL NO. 1 SIDE TRIM BASE COVER LH
    1. Attach the 4 claws to install the cover.
    Fig 7: Identifying No. 1 Side Trim Base Cover LH Claws
    G05767309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL NO. 1 SIDE TRIM BASE COVER RH
    1. Attach the 4 claws to install the cover.
      Fig 8: Identifying No. 1 Side Trim Base Cover RH Claws
      G05767310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the duct with the 6 screws.
    Fig 9: Identifying No. 1 Side Trim Base Cover RH Screws And Duct
    G05767311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

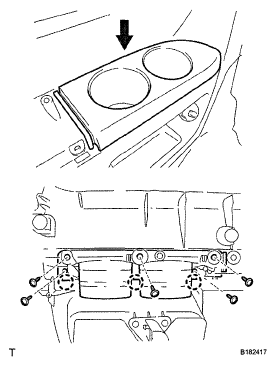

  15. INSTALL NO. 2 CUP HOLDER
    1. Attach the 3 claws to install the cup holder.
    2. Install the 5 screws
    Fig 10: Identifying No. 2 Cup Holder Screws And Claws
    G05767312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL NO. 1 CUP HOLDER
    1. Attach the 3 claws to install the cup holder
    2. Install the 5 screws.

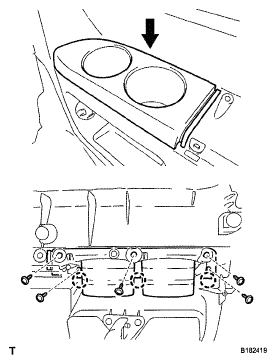

    Fig 11: Identifying No. 1 Cup Holder Screws And Claws
    G05767313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

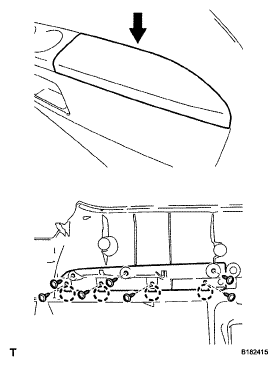

  17. INSTALL QUARTER TRIM COVER SUB-ASSEMBLY LH
    1. Attach the 4 claws to install the quarter trim cover.
    2. Install the 7 screws.
      Fig 12: Identifying Quarter Trim Cover Sub-Assembly LH Claws And Screws
      G05767314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the duct with the 8 screws.
    Fig 13: Identifying Duct With Screws
    G05767315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

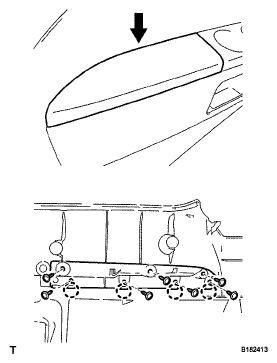

  18. INSTALL QUARTER TRIM COVER SUB-ASSEMBLY RH
    1. Attach the 4 claws to install the quarter trim cover.
    2. Install the 7 screws.
    Fig 14: Identifying Quarter Trim Cover Sub-Assembly RH Claws And Screws
    G05767316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL REAR NO. 2 SEAT SHOULDER BELT HANGER LH
    1. Install the hanger with new 2 spring nuts.
      2. Fig 15: Identifying Rear No. 2 Seat Shoulder Belt Hanger LH Nut
      G05767317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL REAR NO. 2 SEAT SHOULDER BELT HANGER RH

    HINT:

    Use the same procedures described for the LH side

  21. INSTALL REAR NO. 1 SEAT SHOULDER BELT HANGER

    HINT:

    Use the same procedure to install the hanger on the other side.

    1. Install the hanger with new 2 spring nuts.
    Fig 16: Identifying Rear No. 1 Seat Shoulder Belt Hanger Nut
    G05767318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL ROOF SIDE INNER GARNISH COVER LH
    1. Attach the 7 claws to install the cover.
  23. INSTALL ROOF SIDE INNER GARNISH COVER RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 17: Identifying Roof Side Inner Garnish Cover RH Claws
    G05767319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL REAR SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY LH
    1. Attach the 6 claws to install the plate.
  25. INSTALL REAR SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side

    Fig 18: Identifying Rear Shoulder Belt Anchor Plate Sub-Assembly RH Claws
    G05767320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY LH
    1. Slide the plate in the direction shown in the illustration and attach the 6 claws to install the plate.
      2. Fig 19: Sliding Plate
      G05767321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL FRONT SHOULDER BELT ANCHOR PLATE SUB-ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  28. INSTALL REAR DOOR SCUFF PLATE OUTSIDE LH
    1. Attach the 3 clips to install the rear door scuff plate outside.
      2. Fig 20: Identifying Rear Door Scuff Plate Outside LH Clips
      G05767322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL REAR DOOR SCUFF PLATE OUTSIDE RH

    HINT:

    Use the same procedures described for the LH side.

  30. INSTALL FRONT DOOR SCUFF PLATE OUTSIDE LH
    1. Attach the 4 clips to install the front door scuff plate outside.
  31. INSTALL FRONT DOOR SCUFF PLATE OUTSIDE RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 21: Identifying Front Door Scuff Plate Outside RH Clips
    G05767323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL BACK DOOR WEATHERSTRIP
    1. Install the back door weatherstrip as shown in the illustration.
    Fig 22: Locating Back Door Weatherstrip
    G05767324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
    1. Install the rear door opening trim weatherstrip as shown in the illustration.
  34. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT

    Use the same procedures described for the LH side.

    Fig 23: Locating Rear Door Opening Trim Weatherstrip
    G05767325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. Install the front door opening trim weatherstrip as shown in the illustration.
  36. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 24: Locating Front Door Opening Trim Weatherstrip
    G05767326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSTALL ROOF HEADLINING ASSEMBLY

    HINT:

    • When installing the roof headlining, connect the cable to the negative (-) battery terminal and move the front seats and No. 1 rear seat to the position shown in the illustration
    • After moving the seats, disconnect the cable from the negative (-) battery terminal.
    Fig 25: Identifying Front And No. 1 Rear Seat Position
    G05767327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Place the headlining in the cabin from the rear of the vehicle as shown in the illustration.
      NOTE: Be careful not to damage the roof headlining when placing it in the cabin.
      Fig 26: Placing Headlining In Cabin From Rear Of Vehicle
      G05767328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

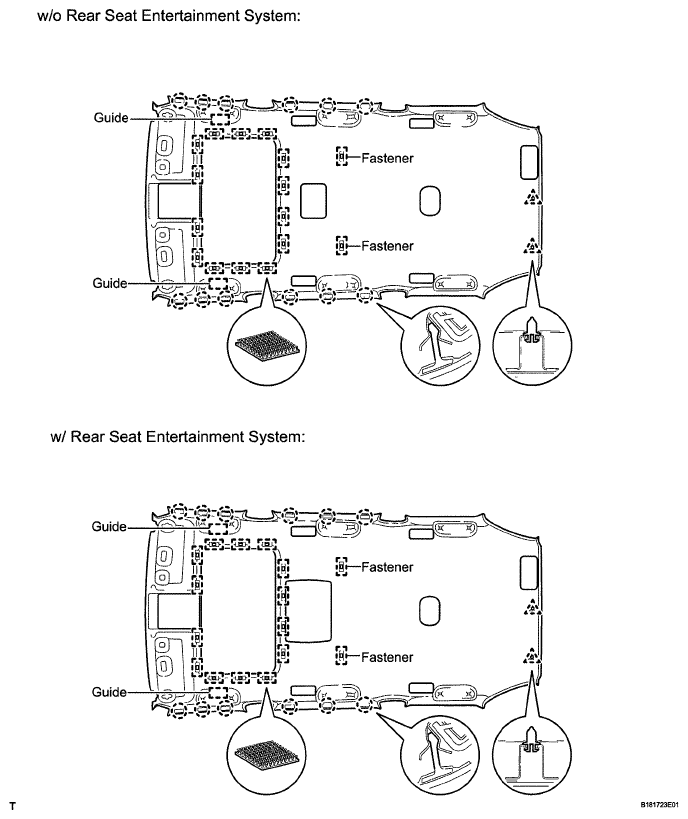

    2. Attach the 2 guides, 12 claws, 2 clips and 16 fasteners to install the headlining.
      Fig 27: Identifying Rear Seat Entertainment System Claws, Clips, Guides And Fasteners
      G05767329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the washer hose.
      Fig 28: Locating Washer Hose
      G05767330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the antenna cord connector.
      Fig 29: Locating Antenna Cord Connector
      G05767331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the antenna cord connector and attach the 2 clamps.
    6. Install the bolt.
      Fig 30: Locating Bolt And Antenna Cord Connector
      G05767332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Connect the 3 roof wire connectors and washer hose.
    8. Attach the 4 clamps.
      Fig 31: Locating Roof Wire Connectors And Washer Hose
      G05767333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Connect the drive gear connector.
      Fig 32: Locating Drive Gear Connector
      G05767334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Connect the rain sensor connector.
      Fig 33: Locating Rain Sensor Connector
      G05767335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. Connect the inner mirror connector.
    Fig 34: Locating Inner Mirror Connector
    G05767336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL FRONT ROOF SIDE RAIL GARNISH LH
    1. Install 3 new clips to the roof side rail garnish.
    2. Attach the 3 clips to install the roof side rail garnish.
  39. INSTALL FRONT ROOF SIDE RAIL GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 35: Identifying Front Roof Side Rail Garnish LH Clips
    G05767337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. INSTALL 3RD SEAT ASSIST GRIP ASSEMBLY

    HINT:

    Use the same procedure to install the 3rd seat assist grip on the other side.

    1. Assemble the assist grip, 2 clips and 2 covers as shown in the illustration.
    2. Install the assist grip.
    Fig 36: Assembling 3Rd Seat Assist Grip, Clips And Covers
    G05767338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. INSTALL NO. 2 ASSIST GRIP ASSEMBLY LH
    1. Assemble the assist grip, 2 clips and 2 covers as shown in the illustration.
    2. Install the assist grip.
  42. INSTALL NO. 2 ASSIST GRIP ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side

    Fig 37: Assembling NO. 2 Assist Grip, Clips And Covers
    G05767339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. INSTALL ASSIST GRIP ASSEMBLY

    HINT

    Use the same procedure to install the assist grip on the other side.

    1. Assemble the assist grip, 2 clips and 2 covers as shown in the illustration.
    2. Install the assist grip.
    Fig 38: Assembling Assist Grip, Clips And Covers
    G05767340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. INSTALL SEAT BELT ANCHOR COVER
    1. Attach the 4 guides and 4 clips to install the seat belt anchor cover.
      2. Fig 39: Identifying Seat Belt Anchor Cover Clips And Guides
      G05767341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. INSTALL RAIN SENSOR COVER  (See INSTALLATION )
  46. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER  (See INSTALLATION )
  47. INSTALL CENTER VISOR ASSEMBLY LH
    1. Attach the 2 clips to install the center visor.
  48. INSTALL CENTER VISOR ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 40: Identifying Center Visor Assembly RH Clips
    G05767342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

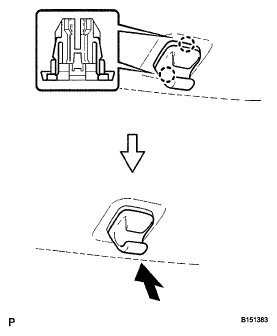

  49. INSTALL VISOR HOLDER

    HINT:

    Use the same procedures to install the visor holder on the other side.

    1. Attach the 2 claws.
    2. Push in the visor holder to install it.
    Fig 41: Installing Visor Holder
    G05767343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. INSTALL VISOR ASSEMBLY LH
    1. Install the visor with the 2 screws.
      2. Fig 42: Identifying Visor Assembly LH Screws
      G05767344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  51. INSTALL VISOR ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  52. INSTALL VISOR BRACKET COVER

    HINT:

    Use the same procedure to install the visor bracket cover on the other side.

    1. Attach the 4 claws to install the visor bracket cover.
    Fig 43: Identifying Visor Bracket Cover Claws
    G05767345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  53. INSTALL NO. 3 ROOM LIGHT ASSEMBLY
    1. Install the 2 covers.
      Fig 44: Identifying No. 3 Room Light Covers
      G05767346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 4 claws to install the room light lens.
      Fig 45: Identifying Room Light Lens Claws
      G05767347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the 4 claws to install the room light to the room light switch base.
      Fig 46: Identifying Room Light Switch Base Claws
      G05767348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Attach the 4 claws to install the room light.

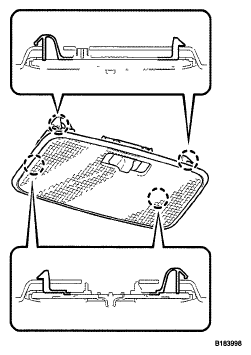

    Fig 47: Identifying Room Light Claws
    G05767349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  54. INSTALL NO. 1 ROOM LIGHT ASSEMBLY (w/o Rear Seat Entertainment System)
    1. Connect the connector.
    2. Attach the 4 clips to install the room light.
    Fig 48: Identifying No. 1 Room Light Assembly Clips (W/O Rear Seat Entertainment System)
    G05767350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  55. INSTALL ROOF CONSOLE BOX ASSEMBLY (w/ Rear Seat Entertainment System)
    1. Connect the connector.
    2. Attach the 4 clips and 2 claws to install the roof console box.
    3. Install the 2 bolts.
    Fig 49: Identifying Roof Console Box Assembly Bolts, Clips And Claws (W/ Rear Seat Entertainment System)
    G05767351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  56. INSTALL NO. 1 ROOF LINING TRIM COVER (w/ Rear Seat Entertainment System)
    1. Attach the 4 claws to install the cover.
    Fig 50: Identifying No. 1 Roof Lining Trim Cover Claws (W/ Rear Seat Entertainment System)
    G05767352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  57. INSTALL NO. 2 ROOF LINING TRIM COVER (w/ Rear Seat Entertainment System)
    1. Attach the 4 claws to install the cover.
      2. Fig 51: Identifying No. 2 Roof Lining Trim Cover Claws (W/ Rear Seat Entertainment System)
      G05767353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  58. INSTALL MAP LIGHT ASSEMBLY
    1. Connect the 2 connectors.
    2. Attach the 2 clips and 2 guides to install the map light.
    3. Install the 2 screws.
    4. Attach the 2 claws to close the 2 covers.

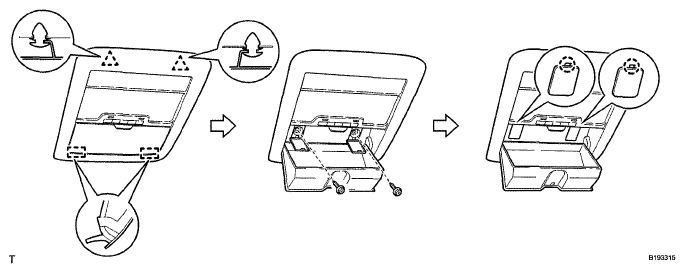

    Fig 52: Identifying Map Light Clips, Guides, Connectors, Screws And Cover
    G05767354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  59. INSTALL REAR UPPER PILLAR GARNISH LH
    1. Attach the 5 clips to install the rear upper pillar garnish.
      Fig 53: Identifying Rear Upper Pillar Garnish Clips
      G05767355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the seat belt shoulder anchor with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      Fig 54: Identifying Seat Belt Shoulder Anchor Bolt
      G05632271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the 2 claws to close the seat belt shoulder anchor cover.
    Fig 55: Identifying Seat Belt Shoulder Anchor Cover Claws
    G05767357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  60. INSTALL REAR UPPER PILLAR GARNISH RH
    1. w/o Power Back Door:
      1. Attach the 5 clips to install the rear upper pillar garnish.
      Fig 56: Identifying Rear Upper Pillar Garnish Clips (W/O Power Back Door)
      G05767235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Power Back Door
      1. Pass the power back door rod through the rear upper pillar garnish.
      2. Attach the 5 clips to install the rear upper pillar garnish.
      Fig 57: Identifying Rear Upper Pillar Garnish Clips (W/ Power Back Door)
      G05767359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the seat belt shoulder anchor with the bolt

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      Fig 58: Identifying Seat Belt Shoulder Anchor With Bolt
      G05767360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Attach the 2 claws to close the seat belt shoulder anchor cover.
    Fig 59: Identifying Seat Belt Shoulder Anchor Cover Claws
    G05767361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  61. INSTALL BACK DOOR SERVICE HOLE COVER RH (w/ Power Back Door)  (See REASSEMBLY )
  62. INSTALL BACK DOOR SIDE GARNISH RH (w/ Power Back Door)  (See REASSEMBLY )
  63. INSTALL CENTER BACK DOOR GARNISH (w/ Power Back Door)  (See REASSEMBLY )
  64. INSTALL REAR FRONT QUARTER TRIM GARNISH LH
    1. Pass the seat belt anchor through the quarter trim garnish.
    2. Attach the clip and 2 guides to install the quarter trim garnish.
    3. Install the screw.
    Fig 60: Identifying Rear Front Quarter Trim Garnish LH Screw, Clip And Guides
    G05636136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  65. INSTALL REAR FRONT QUARTER TRIM GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  66. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY LH

    HINT:

    When installing the front quarter trim panel, operate the reclining adjuster release handle and move the No. 1 rear seat to the position shown in the illustration.

    Fig 61: Moving No. 1 Rear Seat
    G05632225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. for Rear No. 2 Seat with Manual Folding-up

      Function:

      1. Connect the thermistor connector, power outlet socket connector and rear seat lock control lever cable.
      2. Attach the 19 clips and 2 claws to install the quarter trim panel.
      3. Install the screw, clip and bolt.

      Torque: for bolt

      12 N*m (122 kgf*cm, 9 ft.*lbf)

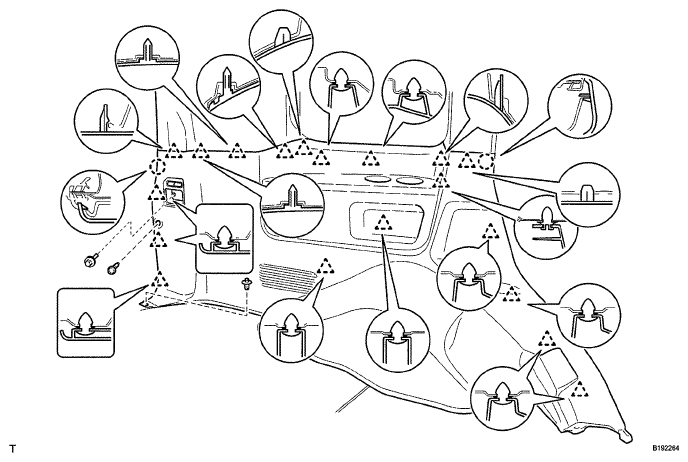

      Fig 62: Identifying Rear No. 2 Seat With Manual Folding-Up Screw, Bolt, Clips And Claws
      G05766422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Rear No. 2 Seat with Automatic Folding-up Function:
      1. Connect the thermistor connector and power outlet socket connector.
      2. Attach the 19 clips and 2 claws to install the quarter trim panel.
      3. Install the screw and clip.

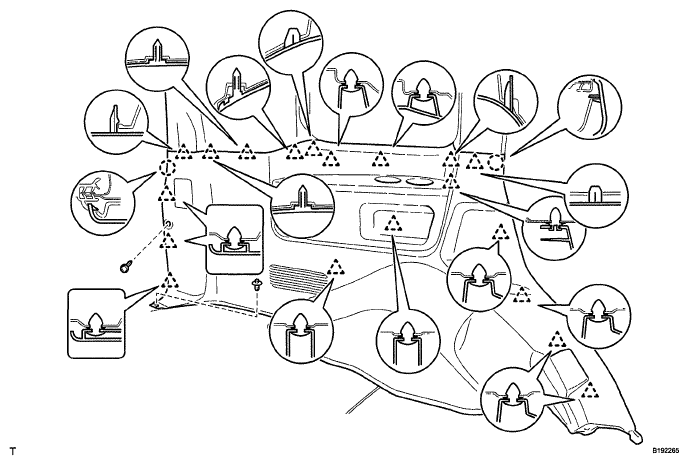

      Fig 63: Identifying Rear No. 2 Seat With Automatic Folding-Up Screw, Clips And Claws
      G05766423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the rear No. 2 seat belt anchor with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      NOTE: Do not overlap the anchor part of the seat belt and protruding parts of the vehicle body.
      Fig 64: Identifying Rear No. 2 Seat Belt Anchor Bolt
      G05636254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the rear No. 1 seat belt anchor with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      Fig 65: Identifying Rear No. 1 Seat Belt Anchor Bolt
      G05632227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Attach the 3 claws to install the cover.
    Fig 66: Identifying Cover Claws
    G05632226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  67. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY RH

    HINT:

    When installing the front quarter trim panel, operate the reclining adjuster release handle and move the No. 1 rear seat to the position shown in the illustration.

    Fig 67: Moving No. 1 Rear Seat
    G05631853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. for Rear No. 2 Seat with Manual Folding-up Function:
      1. Connect the thermistor connector and rear seat lock control lever cable.
      2. Attach the 17 clips and 2 claws to install the quarter trim panel.
      3. Install the screw, clip and bolt.

      Torque: for bolt

      12 N*m (122 kgf*cm, 9 ft.*lbf)

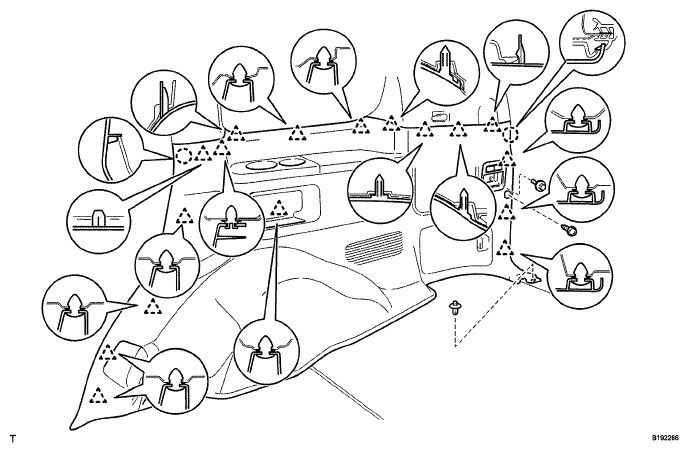

      Fig 68: Identifying Rear No. 2 Seat With Manual Folding-Up Screw, Bolt, Clips And Claws
      G05767370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Rear No. 2 Seat with Automatic Folding-up Function:
      1. Connect the thermistor connector.
      2. Attach the 17 clips and 2 claws to install the quarter trim panel.
      3. Install the screw and clip.

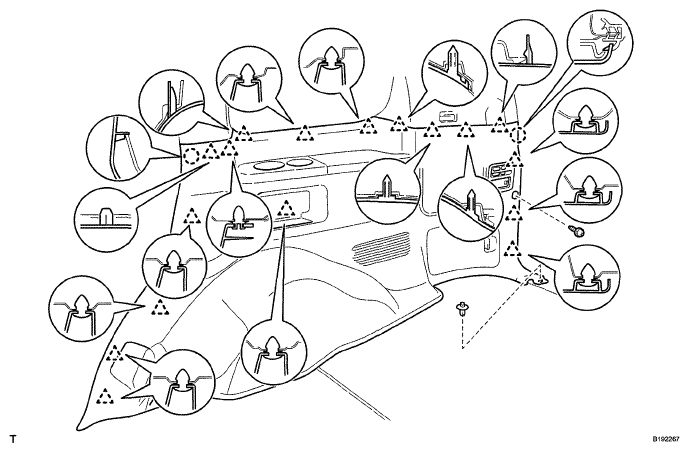

      Fig 69: Identifying Rear No. 2 Seat With Automatic Folding-Up Screw, Clips And Claws
      G05767228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the rear No. 2 seat belt anchor with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      Fig 70: Identifying Rear No. 2 Seat Belt Anchor With Bolt
      G05632230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Attach the 3 claws to install the cover.
      Fig 71: Identifying Cover Claws
      G05632229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the rear No. 1 seat belt anchor with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      Fig 72: Identifying Rear No. 1 Seat Belt Anchor With Bolt
      G05767374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Attach the 3 claws to install the cover.
    Fig 73: Identifying Cover Claws
    G05636131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  68. INSTALL REAR SEAT COVER CAP (for Rear No. 2 Seat with Manual Folding-up Function)

    HINT:

    Use the same procedures to install the rear seat cover cap on the other side.

    1. Attach the 3 claws to install the rear seat cover cap.
    Fig 74: Identifying Rear Seat Cover Cap Claws
    G05767376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  69. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    HINT:

    Use the same procedure to install the luggage compartment trim hook on the other side.

    1. Install the luggage compartment trim hook by turning it clockwise.
    Fig 75: Turning No. 1 Luggage Compartment Trim Hook
    G05767377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  70. INSTALL CENTER PILLAR GARNISH LH
    1. Pass the seat belt anchor through the center pillar garnish.
    2. Attach the 2 clips and 2 guides to install the center pillar garnish.
    3. Install the bolt.
      4. Fig 76: Identifying Center Pillar Garnish LH Bolt, Clips And Guides
      G05636122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  71. INSTALL CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  72. INSTALL REAR ASSIST GRIP ASSEMBLY

    HINT:

    Use the same procedure to install the rear assist grip on the other side.

    1. Attach the 2 claws to install the rear assist grip.
    2. Install the 2 bolts.
      Fig 77: Identifying Rear Assist Grip Bolts And Claws
      G05636121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the 4 claws to install the 2 assist grip plugs.
    Fig 78: Identifying Rear Assist Grip Claws
    G05636120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  73. INSTALL CENTER LOWER PILLAR GARNISH LH

    HINT:

    • When installing the center lower pillar garnish, connect the cable to the negative (-) battery terminal and operate the power seat switch to move the front seat and seatback to the foremost upright position.
    • After moving the front seat, disconnect the cable from the negative (-) battery terminal.
    1. Attach the 2 claws and 7 clips to install the center lower pillar garnish
      Fig 79: Identifying Center Lower Pillar Garnish Claws And Clips
      G05632176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the seat belt anchor with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      Fig 80: Identifying Seat Belt Anchor With Bolt
      G05632174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  74. INSTALL CENTER LOWER PILLAR GARNISH RH

    HINT:

    • When installing the center lower pillar garnish, connect the cable to the negative (-) battery terminal and operate the power seat switch to move the front seat and seatback to the foremost upright position.
    • After moving the front seat, disconnect the cable from the negative (-) battery terminal.
    1. Attach the 2 claws and 7 clips to install the center lower pillar garnish.
      Fig 81: Identifying Center Lower Pillar Garnish Claws And Clips
      G05636119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the seat belt anchor with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

    3. Connect the connector.
  75. INSTALL CENTER PILLAR GARNISH COVER LH

    HINT:

    • When installing the center pillar garnish cover, connect the cable to the negative (-) battery terminal and operate the power seat switch to move the front seat and seatback to the foremost upright position.
    • After moving the front seat, disconnect the cable from the negative (-) battery terminal.
    Fig 82: Identifying Seat Belt Anchor Bolt And Connector
    G05632175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Attach the 2 clips and 2 guides to install the cover.
  76. INSTALL CENTER PILLAR GARNISH COVER RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 83: Identifying Center Lower Pillar Garnish Cover Claws And Clips
    G05767385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  77. INSTALL FRONT PILLAR GARNISH LH
    1. Connect the speaker connector.
    2. Attach the clip and 3 guides to install the front pillar garnish.
      3. Fig 84: Identifying Front Pillar Garnish LH Clip And Guides
      G05767204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  78. INSTALL FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  79. INSTALL FRONT ASSIST GRIP SUB-ASSEMBLY

    HINT:

    Use the same procedure to install the front assist grip on the other side.

    1. Attach the 2 claws to install the front assist grip.
    2. Install the 2 bolts.
      Fig 85: Identifying Front Assist Grip Bolts And Claws
      G05636112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the 4 claws to install the 2 assist grip plugs.
    Fig 86: Identifying Front Assist Grip Claws
    G05636111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  80. INSTALL REAR FLOOR MAT REAR SUPPORT PLATE
    1. Attach the 6 clips and 4 claws to install the support plate.
    Fig 87: Identifying Rear Floor Mat Rear Support Plate Clips And Claws
    G05767201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  81. INSTALL REAR DOOR SCUFF PLATE LH
    1. w/o Illumination Type Front Door Scuff Plate:
      1. Attach the 3 claws and 4 clips to install the scuff plate.
      2. Install the screw.
      Fig 88: Identifying Rear Door Scuff Plate LH Claws And Clips (W/O Illumination Type Front Door Scuff Plate)
      G05636109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Illumination Type Front Door Scuff Plate:
      3. Fig 89: Identifying Rear Door Scuff Plate LH Claws And Clips (W/ Illumination Type Front Door Scuff Plate)
      G05767391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Attach the 3 claws and 4 clips to install the scuff plate.
    2. Install the screw.
  82. INSTALL REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side.

  83. INSTALL REAR STEP COVER

    HINT:

    Use the same procedure to install the step cover on the other side.

    1. w/o Illumination Type Front Door Scuff Plate: Attach the 2 claws to install the step cover.
      Fig 90: Identifying Step Cover Claws (W/O Illumination Type Front Door Scuff Plate)
      G05636108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Illumination Type Front Door Scuff Plate-Attach the 4 claws to install the step cover.
    Fig 91: Identifying Step Cover Claws (W/ Illumination Type Front Door Scuff Plate)
    G05767198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  84. INSTALL FRONT DOOR SCUFF PLATE LH
    1. w/o Illumination:
      1. Attach the 7 claws and 4 clips to install the scuff plate.
      Fig 92: Identifying Front Door Scuff Plate LH Claws And Clips (W/O Illumination)
      G05636107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Illumination:
    1. Connect the connector
    2. Attach the 7 claws and 4 clips to install the scuff plate.
      3. Fig 93: Identifying Front Door Scuff Plate LH Claws And Clips (W/ Illumination)
      G05767196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  85. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side.

  86. INSTALL REAR NO. 2 SEAT ASSEMBLY LH
    1. w/ Manual Folding-up Function:

      Install the rear No. 2 seat assembly LH (See INSTALLATION ).

    2. w/ Automatic Folding-up Function:

    Install the rear No. 2 seat assembly LH (See INSTALLATION ).

  87. INSTALL REAR NO. 2 SEAT ASSEMBLY RH

    HINT

    Use the same procedures described for the LH side.

  88. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
  89. INSTALL ENGINE ROOM SIDE COVER LH  (See INSTALLATION )
scientia non olet · About LEMON Manuals
