Front Bumper: Disassembly

1. Disengage the 2 claws and remove the front bumper hole cover.
   Fig 1: Identifying Front Bumper Hole Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 screws and front bumper extension mounting bracket.
   Fig 2: Identifying Front Bumper Extension Mounting Bracket Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disengage the 17 clips and remove the radiator grille seal.
   Fig 3: Identifying Radiator Grille Seal Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 screws and 2 clips.
   Fig 4: Identifying Radiator Grille Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

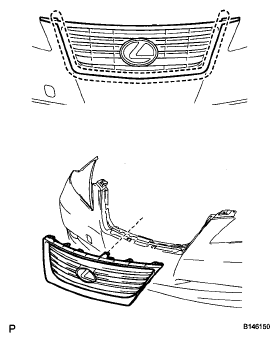

2. Disengage each claw and remove the radiator grille and radiator grille molding.
   Fig 5: Removing Radiator Grille

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 clips.
2. Disengage each claw and remove the radiator grille molding.
Fig 6: Identifying Radiator Grille Molding Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When removing the emblem, heat the radiator grille and emblem using a heat light.

Heating temperature

1. Put protective tape around the radiator grille emblem.
2. Insert a piano wire between the radiator grille and radiator grille emblem.
3. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
4. Pull the piano wire and scrape off the double-sided tape that holds the molding to the radiator grille.
   Fig 7: Putting Protective Tape Around Radiator Grille Emblem

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • If reusing the radiator grille emblem, take care not to damage the radiator grille emblem.
   • Be careful not to damage the radiator grille.
5. Remove the radiator grille emblem.

1. Remove the 2 spring nuts.
2. Disengage the claw and remove the radiator grille emblem.

Fig 8: Identifying Radiator Grille Emblem Spring Nuts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disengage the claw and remove the fog light bracket LH.

Fig 9: Locating Fog Light Bracket LH Claws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disengage the 2 claws and radiator grille garnish.

   HINT:

   Use the same procedures for the RH side and LH side.

   Fig 10: Identifying Radiator Grille Garnish Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disengage the 2 claws and No. 2 radiator grille garnish.

   HINT:

   Use the same procedures for the RH side and LH side.

   Fig 11: Identifying No. 2 Radiator Grille Garnish Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 4 No. 3 radiator grille garnishes.
   Fig 12: Identifying 4 No. 3 Radiator Grille Garnishes

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the front bumper energy absorber from the front bumper reinforcement.
   Fig 13: Identifying Front Bumper Energy Absorber

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disengage each clamp.
2. Remove the bolt and separate the cooler bracket.
   Fig 14: Identifying Cooler Bracket Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 6 bolts and front bumper reinforcement.
   Fig 15: Identifying Front Bumper Reinforcement Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the screw.
2. Disengage the 2 claws and remove the front bumper stay LH.

Fig 16: Identifying Front Bumper Stay LH Screw

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
