Inspection Procedure

1. Delete the DTCs (See DTC CHECK / CLEAR  ).
2. Turn the engine switch off.
3. Turn the engine switch on (IG).
4. Recheck for DTCs (See DTC CHECK / CLEAR  ).

   Result

   RESULT REFERENCE CHART



   Result	Proceed to
   DTCs C1AE1, C1AE4 and C1AEC are output	A
   No DTCs are output	B

B: USE SIMULATION METHOD TO CHECK

A: Go to next step.

1. Disconnect the M2 ECU connector.
2. Disconnect the A45 sensor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   M2-9 (BOF) - A45-1 (BI)	Always	Below 1 Ω
   M2-8(SOF) - A45-3(SI)
   M2-24(E1) - A45-5(EI)
   M2-9 (BOF) - Body ground		10 Ω or higher
   M2-8 (SOF) - Body ground
   M2-24(E1) - Body ground

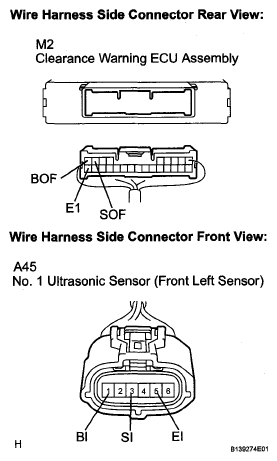

Fig 1: Identifying A45 Ultrasonic Sensor Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step.

1. Reconnect the M2 ECU connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   M2-24(E1)-Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   M2-9 (BOF) - Body ground	Engine switch on (IG)	7 to 9V

Fig 2: Identifying M2 Clearance Warning ECU Assembly Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE CLEARANCE WARNING ECU ASSEMBLY (See  REMOVAL   )

OK: Go to next step.

1. Replace the ultrasonic sensor (See REMOVAL  ) with a normally functioning sensor.
   Fig 3: Identifying Ultrasonic Sensor (Front Left Sensor)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Delete the DTCs (See DTC CHECK / CLEAR  ).
2. Recheck for DTCs (See DTC CHECK / CLEAR  ).

   Result

   RESULT REFERENCE CHART



   Result	Proceed to
   DTCs C1AE1, C1AE4 and C1AEC are output	A
   No DTCs are output	B

B: END

A: Go to next step.

1. Disconnect the A45 and A46 sensor connectors.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   A45-2 (BO) - A46-1 (BI)	Always	Below 1 Ω
   A45-4 (SO) - A46-3 (SI)
   A45-6 (EO) - A46-5 (El)
   A45-2 (BO) - Body ground		10 Ω or higher
   A45-4 (SO) - Body ground
   A45-6 (EO) - Body ground

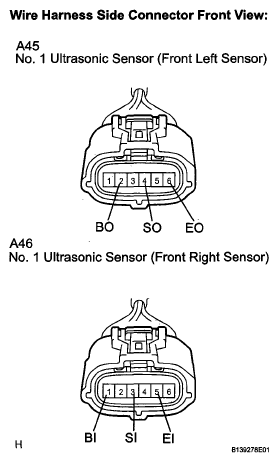

Fig 4: Identifying A45 And A46 Ultrasonic Sensor Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step.

1. Replace the ultrasonic sensor (See REMOVAL  ) with a normally functioning sensor.
   Fig 5: Identifying Ultrasonic Sensor (Front Right Sensor)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Delete the DTCs (See DTC CHECK / CLEAR  ).
2. Recheck for DTCs (See DTC CHECK / CLEAR  ).

   Result

   RESULT REFERENCE CHART



   Result	Proceed to
   DTCs C1AE1, C1AE4 and C1AEC are output	A
   No DTCs are output	B

B: END

A: REPLACE CLEARANCE WARNING ECU ASSEMBLY (See  REMOVAL   )
