High Intensity Discharge Headlight Bulb: Installation

INSTALL DISCHARGE HEADLIGHT BULB
1. Lock the set spring and install the discharge headlight bulb.
  NOTE: Do not touch the glass part of the bulb.
2. Turn the headlight control ECU in the direction indicated by the arrow and install the socket.
3. Turn the back cover in the direction indicated by the arrow and install it.

  Fig 1: Turning Back Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FENDER LINER LH
1. Install the front fender liner LH with the 7 screws and 5 clips.

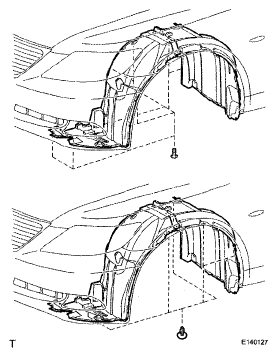

  Fig 2: Identifying Front Fender Liner
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT WHEEL OPENING EXTENSION PAD LH (See INSTALLATION )
INSTALL FRONT FENDER WHEEL OPENING MOULDING LH (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSTALL COWL TOP VENTILATOR LOUVER RH (See INSTALLATION )
PERFORM INITIALIZATION
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
