Roof Headlining: Installation

  1. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. Install the front door opening trim weatherstrip LH.

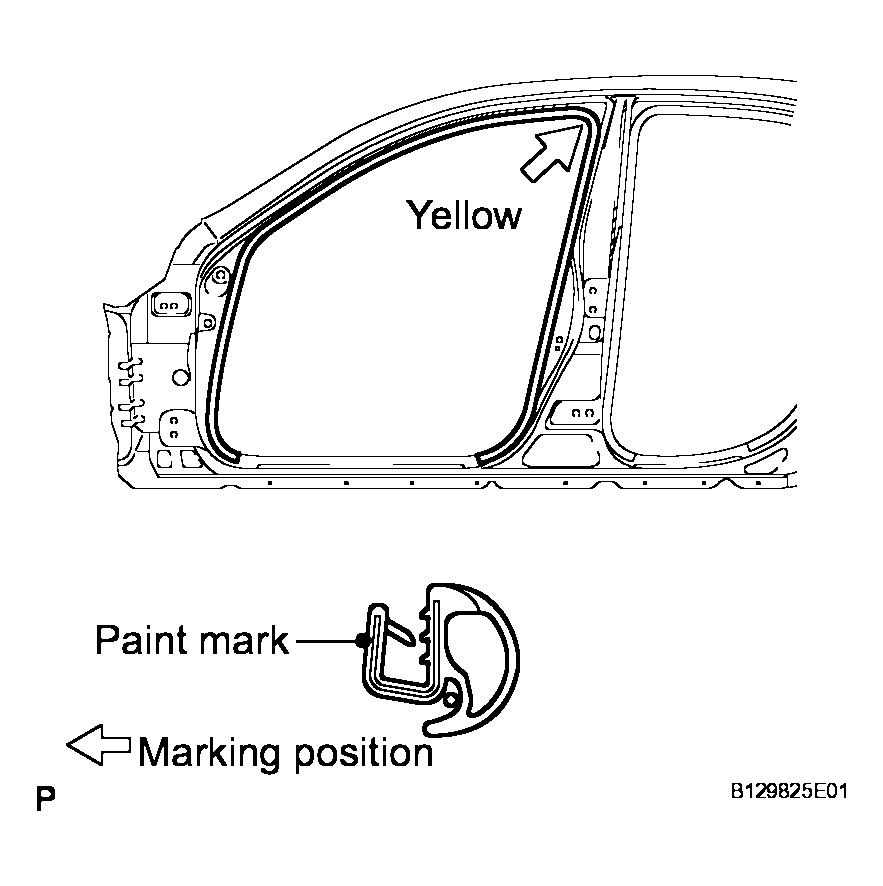

    Fig 1: Installing Front Door Opening Trim Weatherstrip LH
    G04051709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    1. Install the front door opening trim weatherstrip RH.

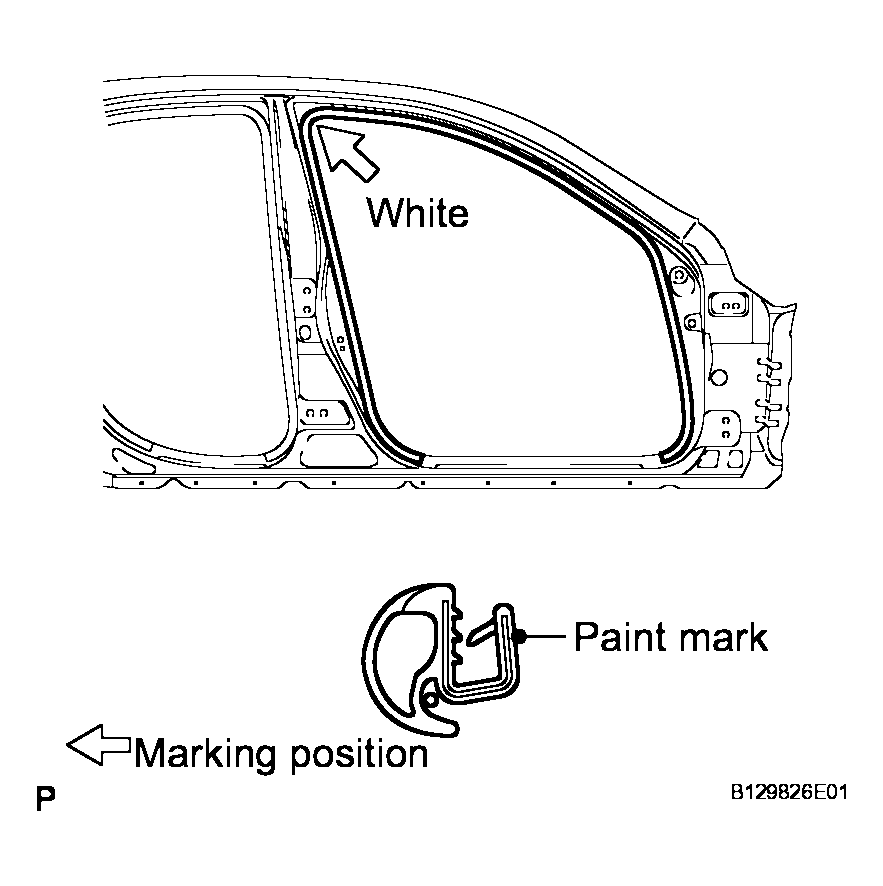

    Fig 2: Installing Front Door Opening Trim Weatherstrip RH
    G04051710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
    1. Install the rear door opening trim weatherstrip LH.

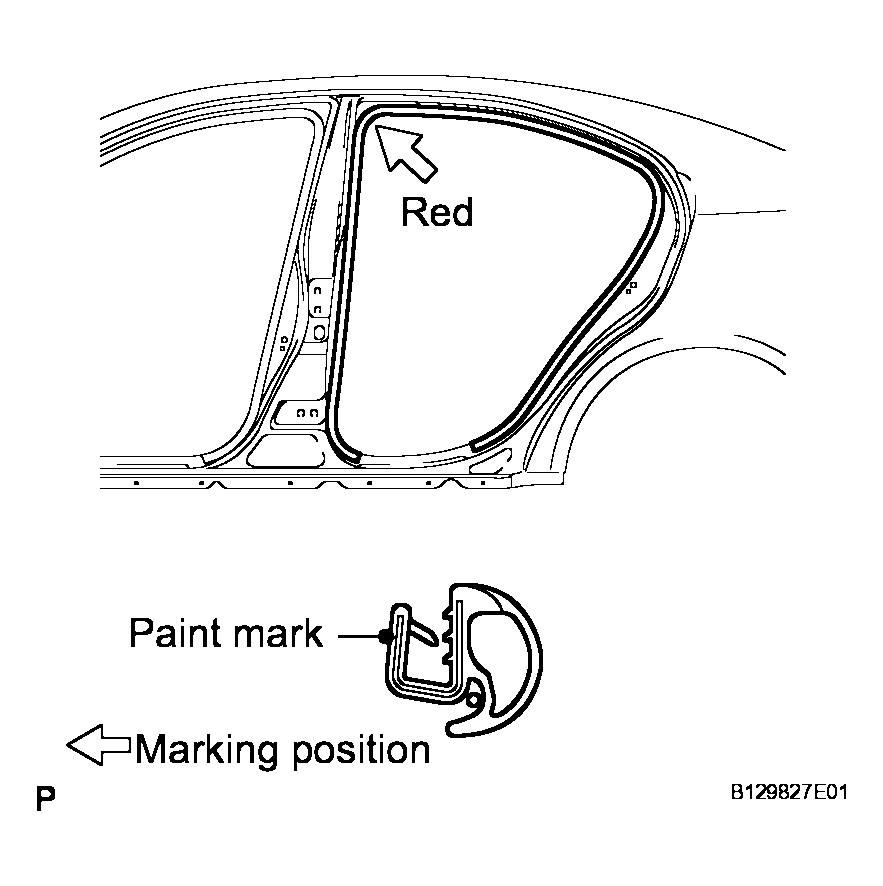

    Fig 3: Installing Rear Door Opening Trim Weatherstrip LH
    G04051711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
    1. Install the rear door opening trim weatherstrip RH.

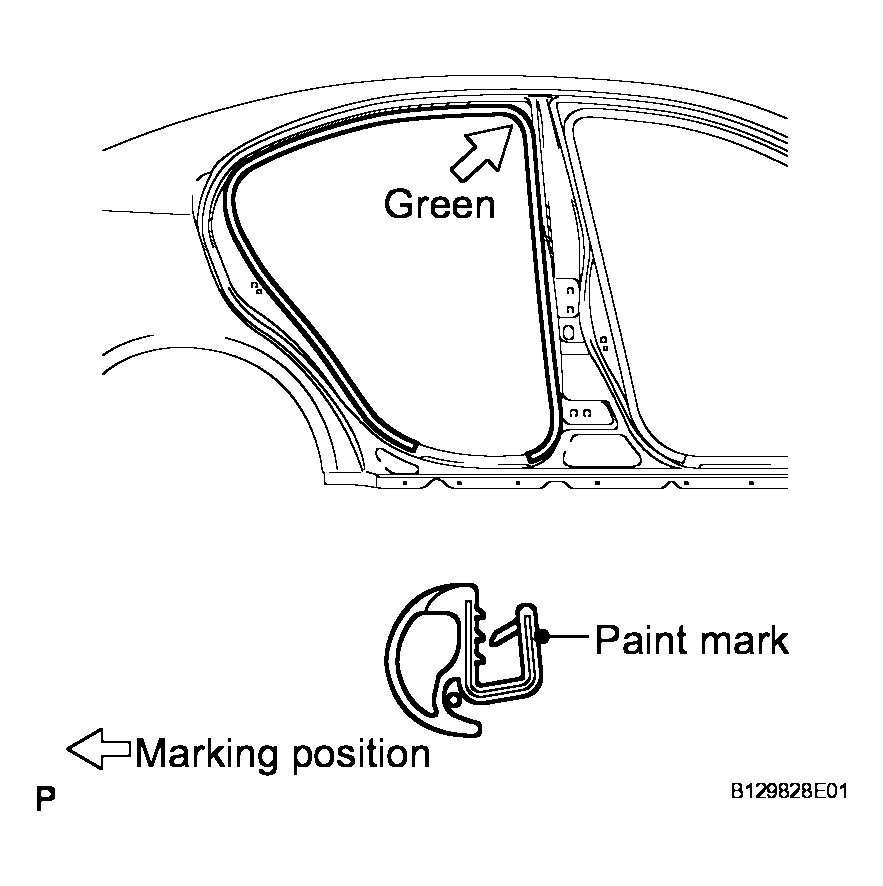

    Fig 4: Installing Rear Door Opening Trim Weatherstrip RH
    G04051712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 1 ROOF WIRE (w/o Sliding Roof)
    1. Install the roof wire.

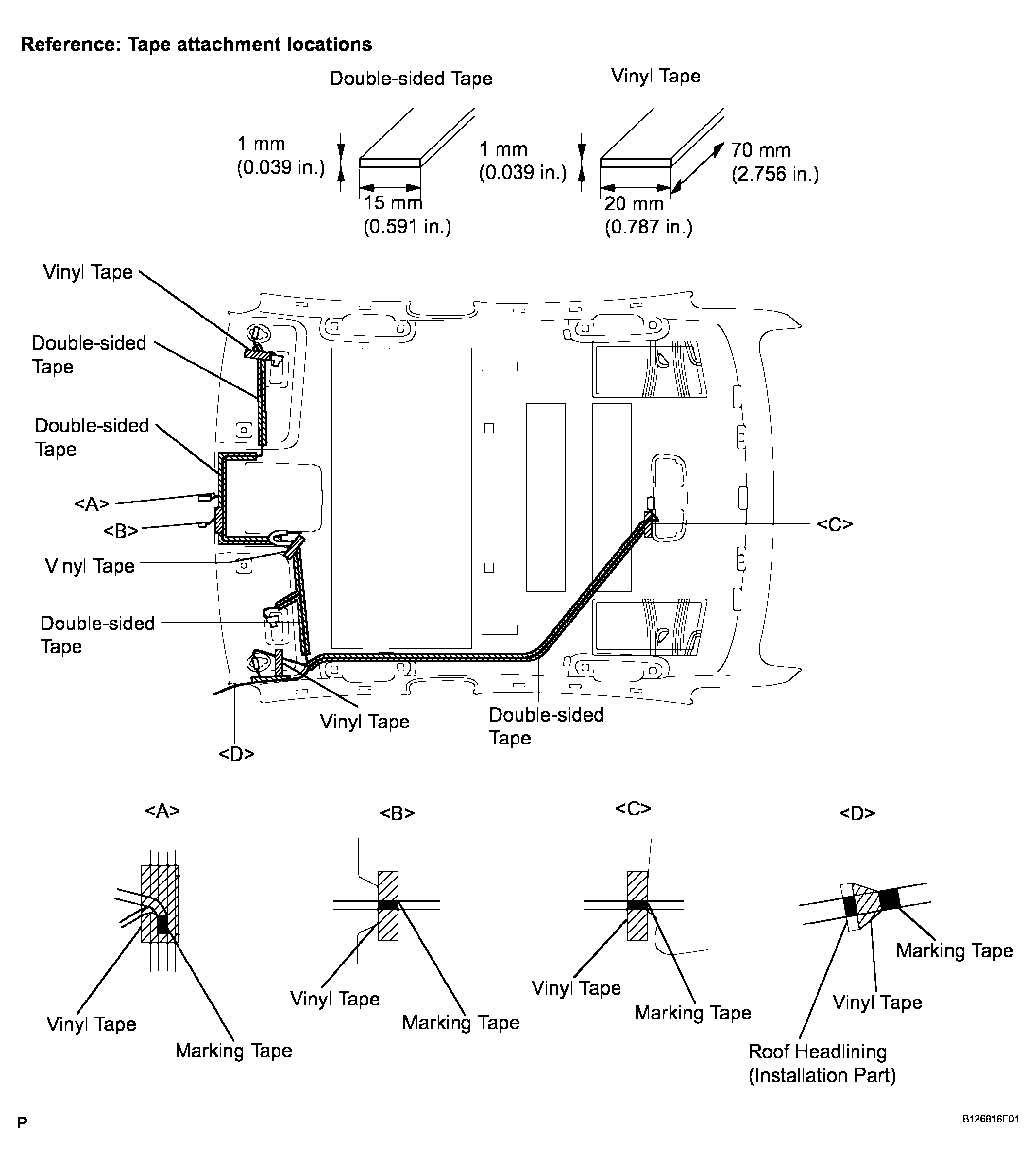

      Fig 5: Installing No. 1 Roof Wire (Without Sliding Roof)
      G04051713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the peeling paper from one side of double-sided tape.
      2. Attach double-sided tape to the marks on the roof headlining, as shown in Fig 5 above.
      3. Remove peeling paper from the other side of double-sided tape.
      4. Align the wire harness to double-sided tape. Also, align the marking tape areas of the wire harness to the marks on the roof headlining. Temporarily attach the wire harness to the roof headlining. Vinyl tape around the wire harness and installation part.
      5. Align the marking tape area of the wire harness to the roof headlining installation part, as shown in Fig 5 above. Vinyl tape around the wire harness and installation part.
      6. Attach the claw of the vanity light to install it.
        NOTE: Securely install the No. 1 roof wire. If the wire is not secure, noise will occur.
  6. INSTALL NO. 1 ROOF WIRE (w/ Sliding Roof)
    1. Install the roof wire.

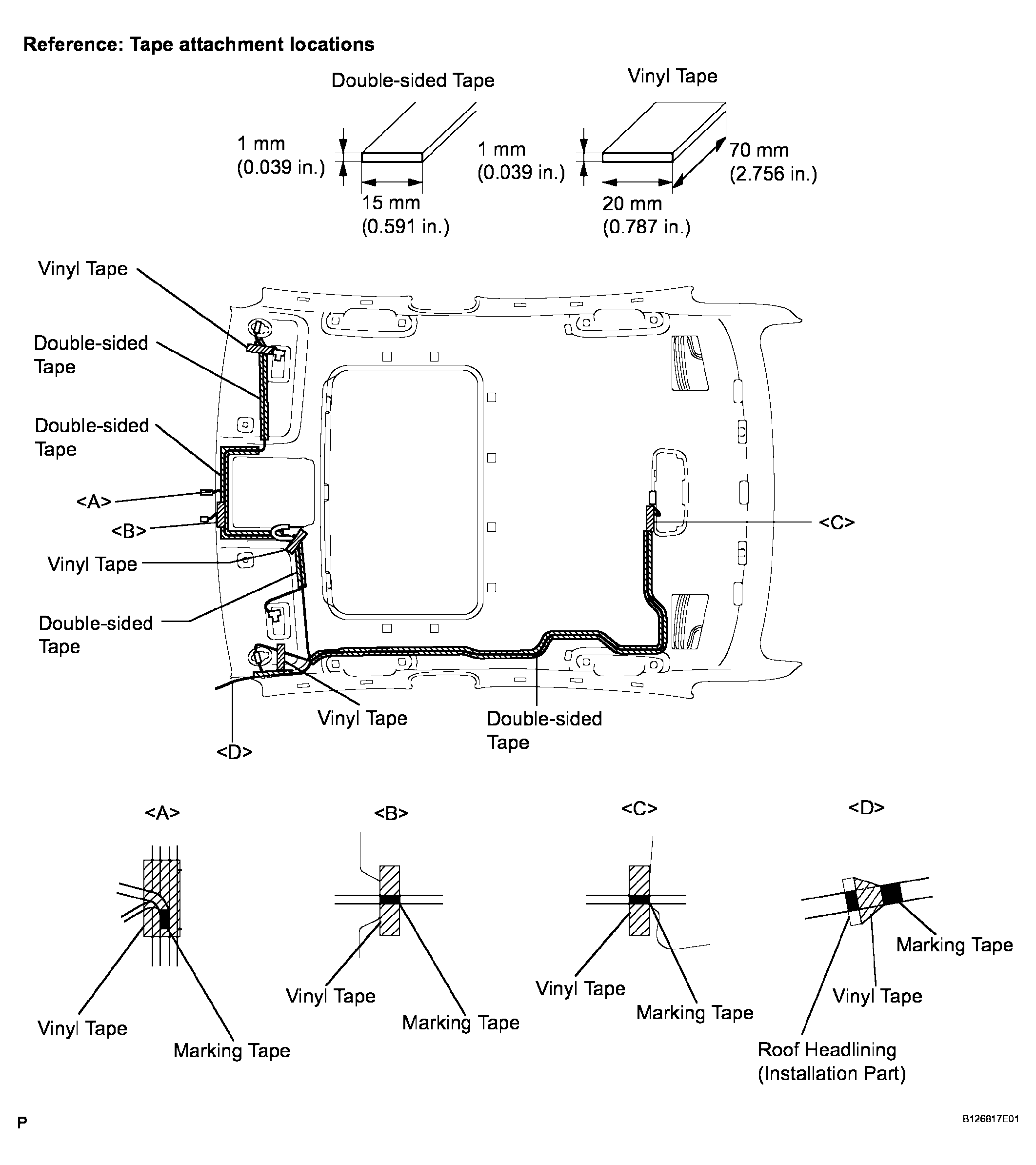

      Fig 6: Installing No. 1 Roof Wire (With Sliding Roof)
      G04051714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the peeling paper from one side of double-sided tape.
      2. Attach double-sided tape to the marks on the roof headlining, as shown in Fig 6 above.
      3. Remove peeling paper from the other side of double-sided tape.
      4. Align the wire harness to double-sided tape. Also, align the marking tape areas of the wire harness to the marks on the roof headlining. Temporarily attach the wire harness to the roof headlining. Vinyl tape around the wire harness and installation part.
      5. Align the marking tape area of the wire harness to the roof headlining installation part, as shown in Fig 6 above. Vinyl tape around the wire harness and installation part.
      6. Attach the claw of the vanity light to install it.
        NOTE: Securely install the No. 1 roof wire. If the wire is not secure, noise will occur.
  7. INSTALL VANITY LIGHT ASSEMBLY
    1. Engage the 3 claws and install the vanity light assembly.

      HINT:

      Use the same procedure to install the light on the other side.

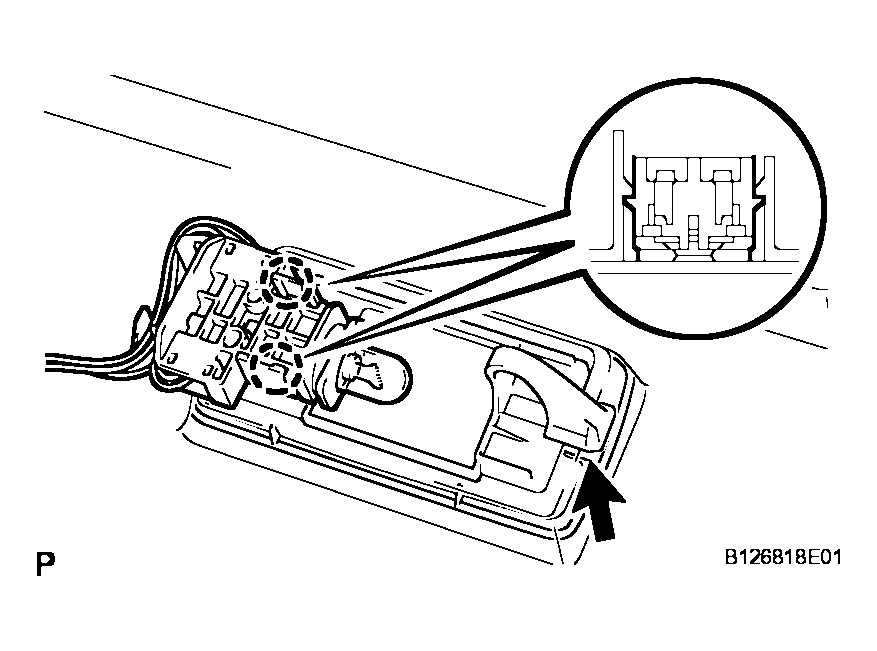

    Fig 7: Engaging Claws & Installing Vanity Light Assembly
    G04051715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL ROOF SILENCER PAD (w/o Sliding Roof)
    1. Align the markings on the roof headlining assembly with the roof silencer pads and install the pads using double-sided tape.
    Fig 8: Installing Pads Using Double-Sided Tape
    G04051716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL SIDE RAIL SPACER (w/o Sliding Roof)
    1. Align the markings on the roof headlining assembly with the side rail spacer and install the spacers using double-sided tape.
    Fig 9: Installing Spacers Using Double-Sided Tape
    G04051717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL ROOF HEADLINING PAD (w/o Sliding Roof)
    1. Align the markings on the roof headlining assembly with the roof headlining pad and install the pads using double-sided tape.
    Fig 10: Installing Pads Using Double-Sided Tape
    G04051718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL REAR SIDE RAIL SPACER (w/ Sliding Roof)
    1. Align the markings on the roof headlining assembly with the rear side rail spacer and install the spacers using double-sided tape.
    Fig 11: Installing Spacers Using Double-Sided Tape
    G04051719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL ROOF HEADLINING ASSEMBLY (w/o Sliding Roof)
    1. Place the roof headlining to the vehicle from the front right door.

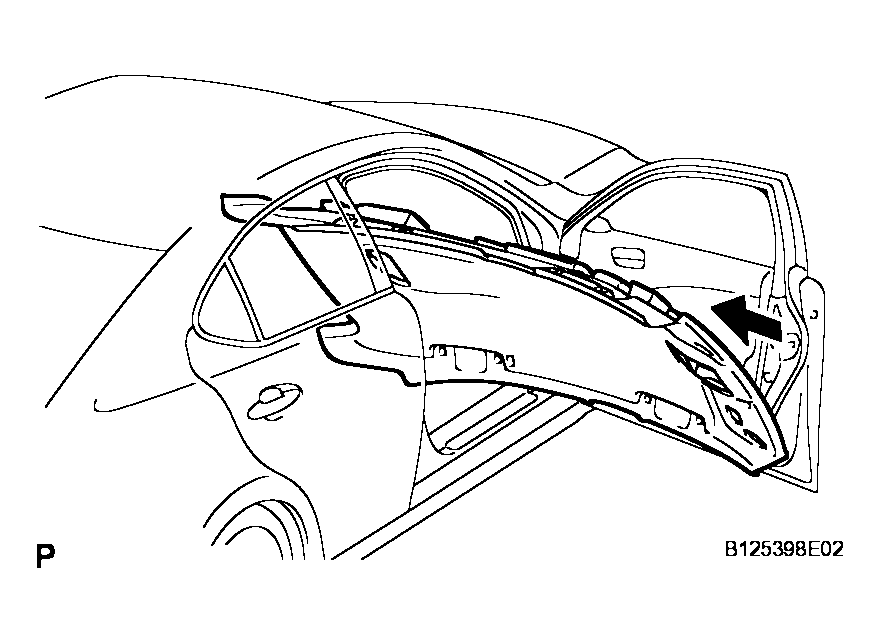

      Fig 12: Placing Roof Headlining To Vehicle From Front Right Door
      G04051720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the hook, 10 claws and 2 clips, and install the roof headlining assembly.

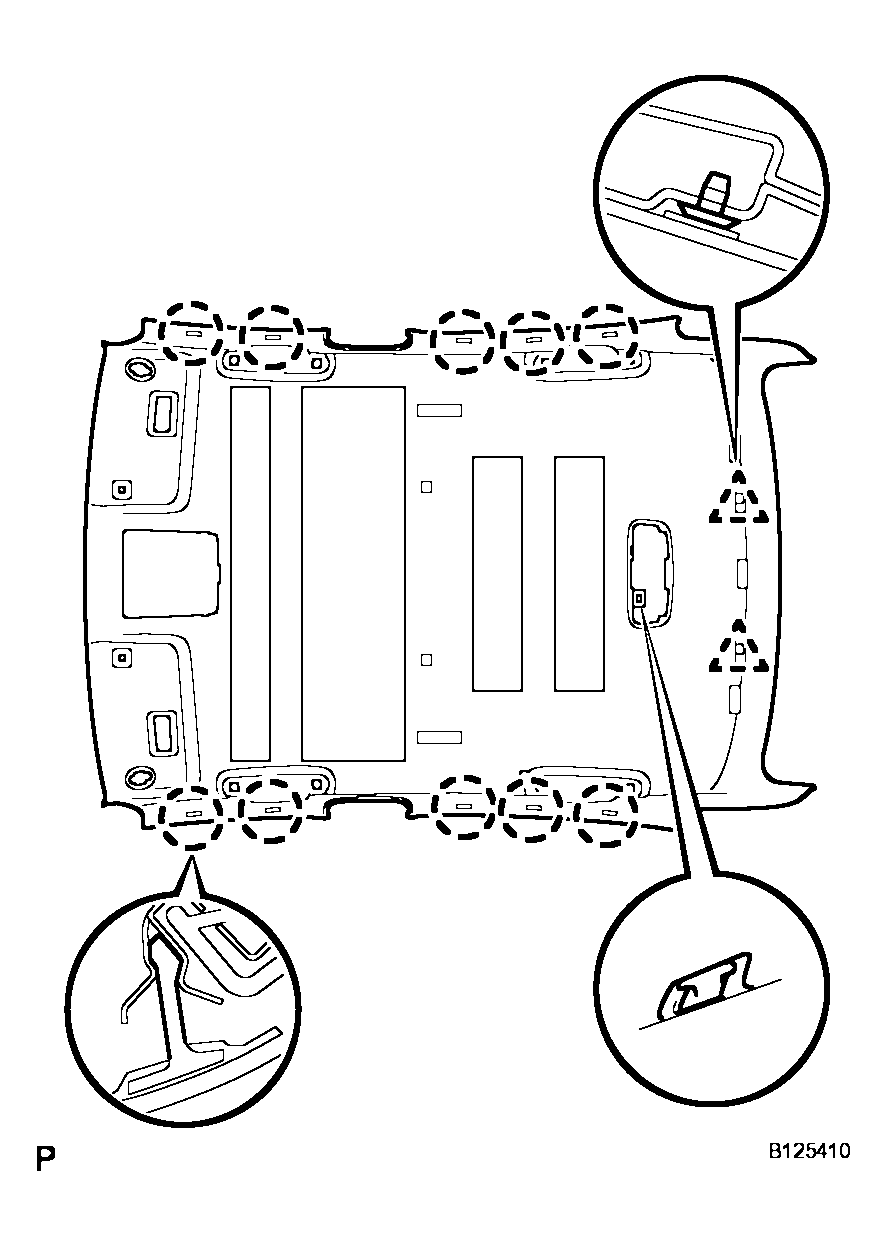

      Fig 13: Engaging Hook, Claws & Clips
      G04051721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the roof wire connector and engage each clamp.
    4. Connect each connector to the map light assembly.

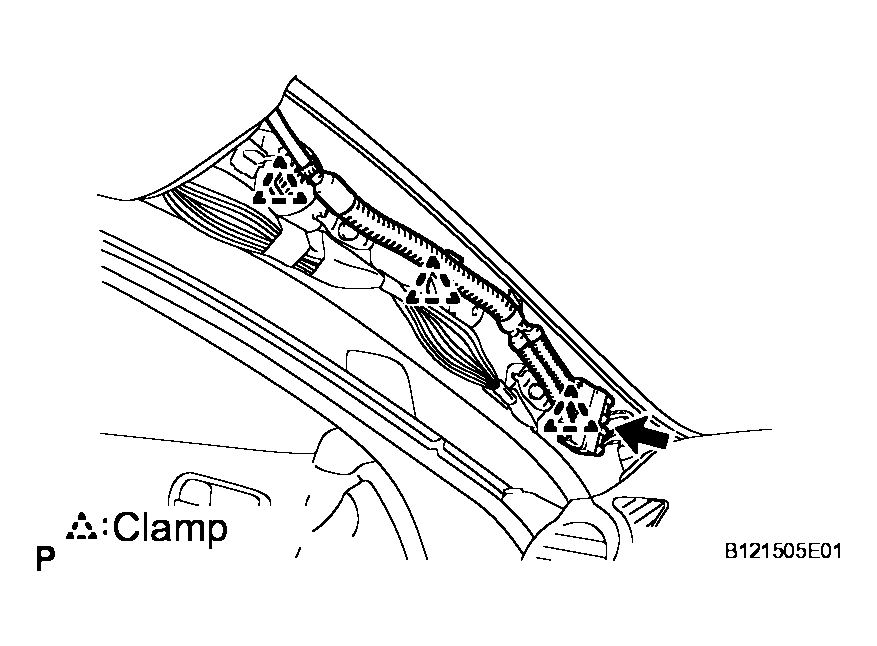

    Fig 14: Locating Harness Clamps
    G04051725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL ROOF HEADLINING ASSEMBLY (w/ Sliding Roof)
    1. Place the roof headlining to the vehicle from the front right door.

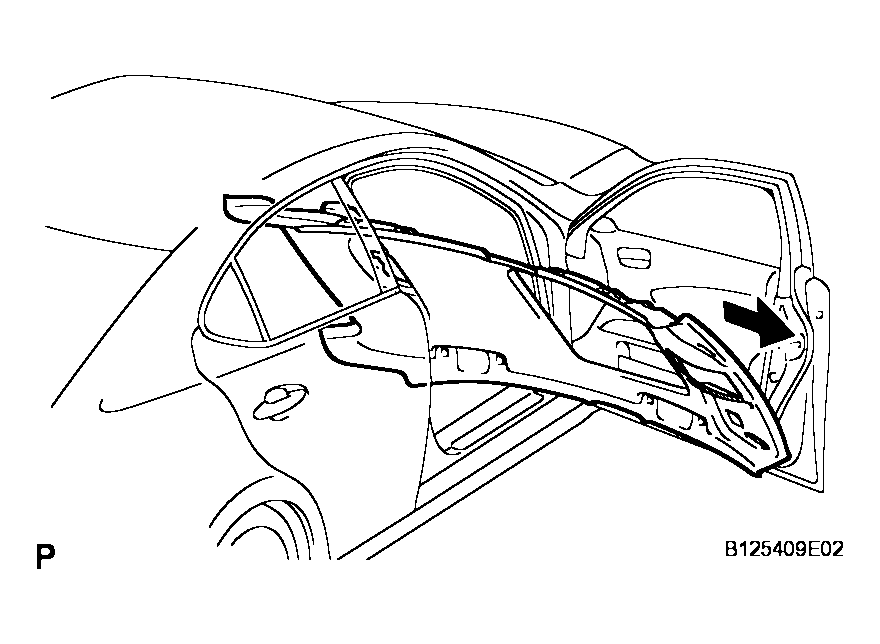

      Fig 15: Placing Roof Headlining To Vehicle From Front Right Door
      G04051723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the hook, 10 claws, 8 fasteners and 2 clips, and install the roof headlining assembly.

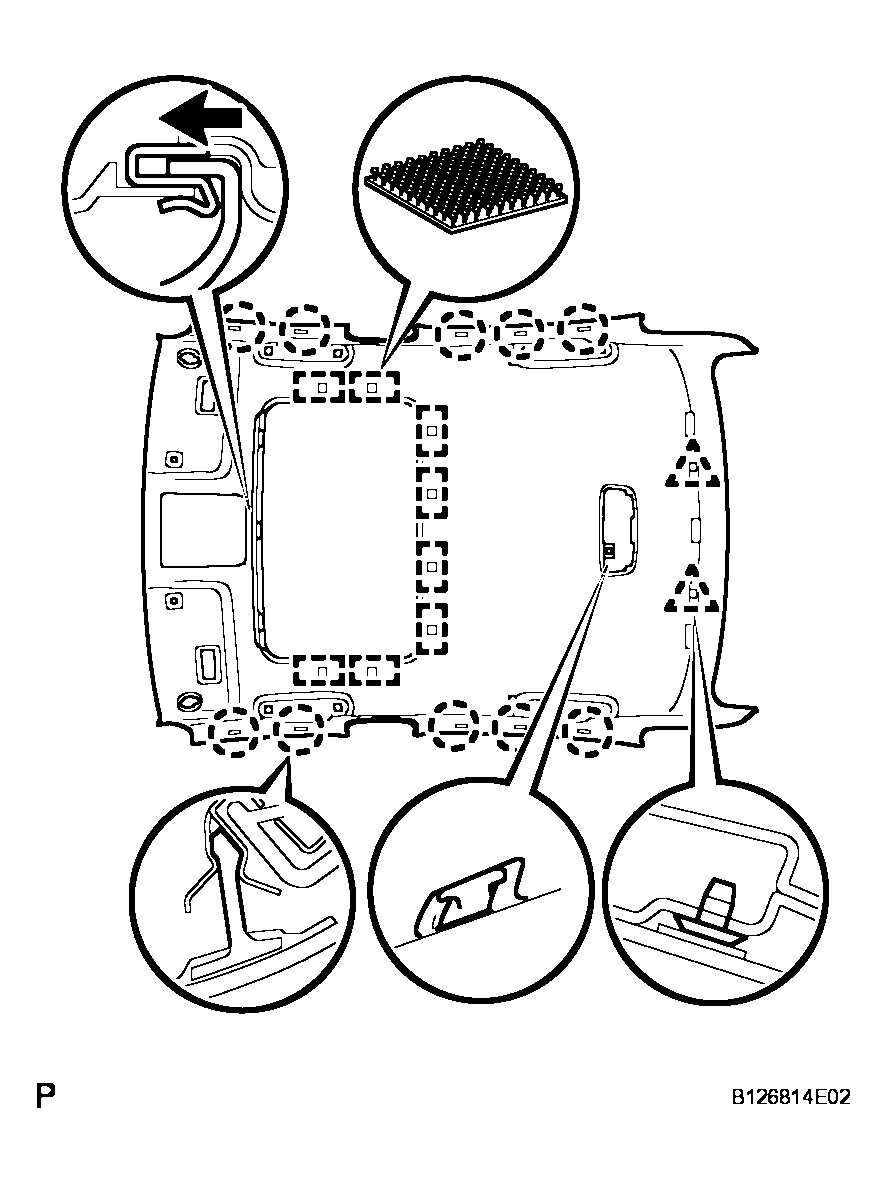

      Fig 16: Engaging Hook, Claws, Fasteners & Clips
      G04051724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the roof wire connector and engage each clamp.
    4. Connect each connector to the map light assembly.
    Fig 17: Locating Harness Clamps
    G04051725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL VISOR HOLDER
    1. Set the claws of the visor holder.
    2. Engage the claws and install the visor holder.

      HINT:

      Use the same procedure to install the holder on the other side.

    Fig 18: Installing Visor Holder
    G04051726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL VISOR ASSEMBLY LH
    1. Install the visor assembly LH with the 2 screws.
  16. INSTALL VISOR ASSEMBLY RH
    Fig 19: Installing Visor Assembly LH With Screws
    G04051727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL VISOR BRACKET COVER
    1. Engage the 4 claws and install the visor bracket cover.

      HINT:

      Use the same procedure to install the cover on the other side.

    Fig 20: Installing Visor Bracket Cover
    G04051728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL ASSIST GRIP SUB-ASSEMBLY
    1. Put an assist grip sub-assembly together.
    2. Install the assist grip sub-assembly.

      HINT:

      Use the same procedure for the other 3 assist grips.

    Fig 21: Installing Assist Grip Sub-Assembly
    G04051729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL COAT HOOK
    1. Install the coat hook with the screw.

      HINT:

      Use the same procedure to install the hook on the other side.

    Fig 22: Installing Coat Hook With Screw
    G04051730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL SPOT LIGHT ASSEMBLY
    1. Connect the connector.
    2. Engage the 2 clips and install the spot light assembly.
    Fig 23: Engaging Clips & Installing Spot Light Assembly
    G04051731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL MAP LIGHT ASSEMBLY (w/o Sliding Roof)
    1. Connect the connector.

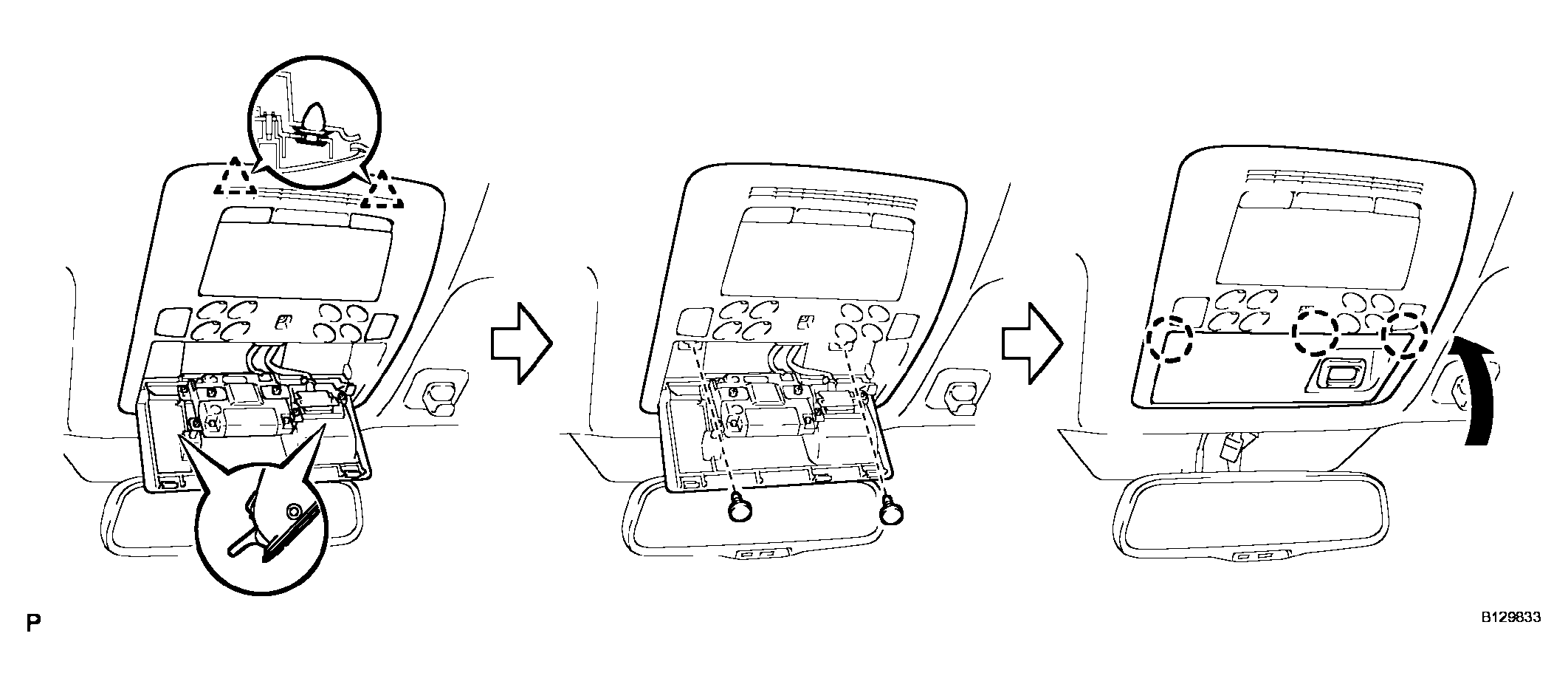

      Fig 24: Identifying Connector
      G04051732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 clips and install the map light assembly.
    3. Install the 2 screws.
    4. Engage the 3 claws and close the cover.
  22. INSTALL MAP LIGHT ASSEMBLY (w/ Sliding Roof)
    1. Connect the connector.

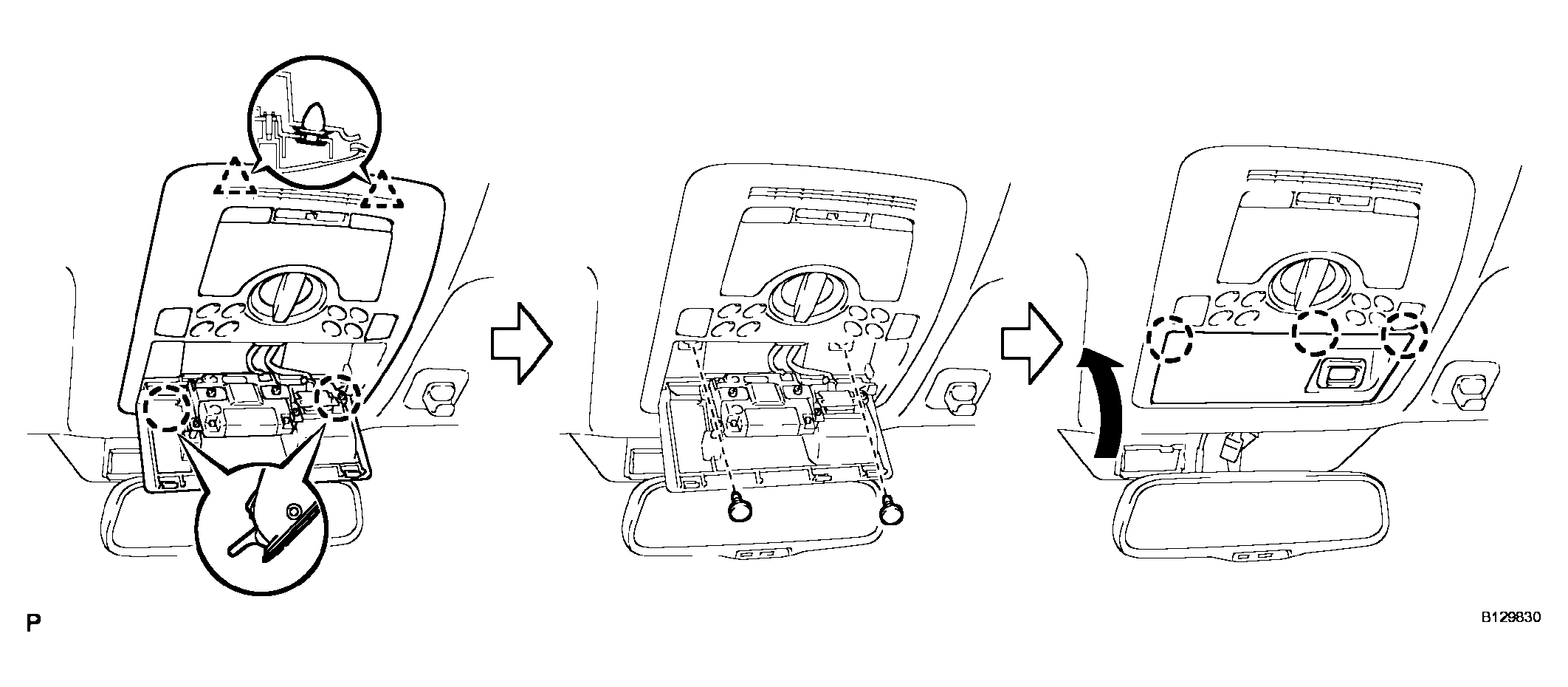

      Fig 25: Connecting Connector
      G04051733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 clips and install the map light assembly.
    3. Install the 2 screws.
    4. Engage the 3 claws and close the cover.
  23. INSTALL RAIN SENSOR TAPE (See  INSTALLATION  )
  24. INSTALL RAIN SENSOR (See Step 2 in  INSTALLATION  )
  25. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER (See Step 2 in  INSTALLATION  )
  26. INSTALL ROOF SIDE INNER GARNISH LH
    1. Engage the claw and 4 clips, and install the roof side garnish inner LH.
  27. INSTALL ROOF SIDE INNER GARNISH RH

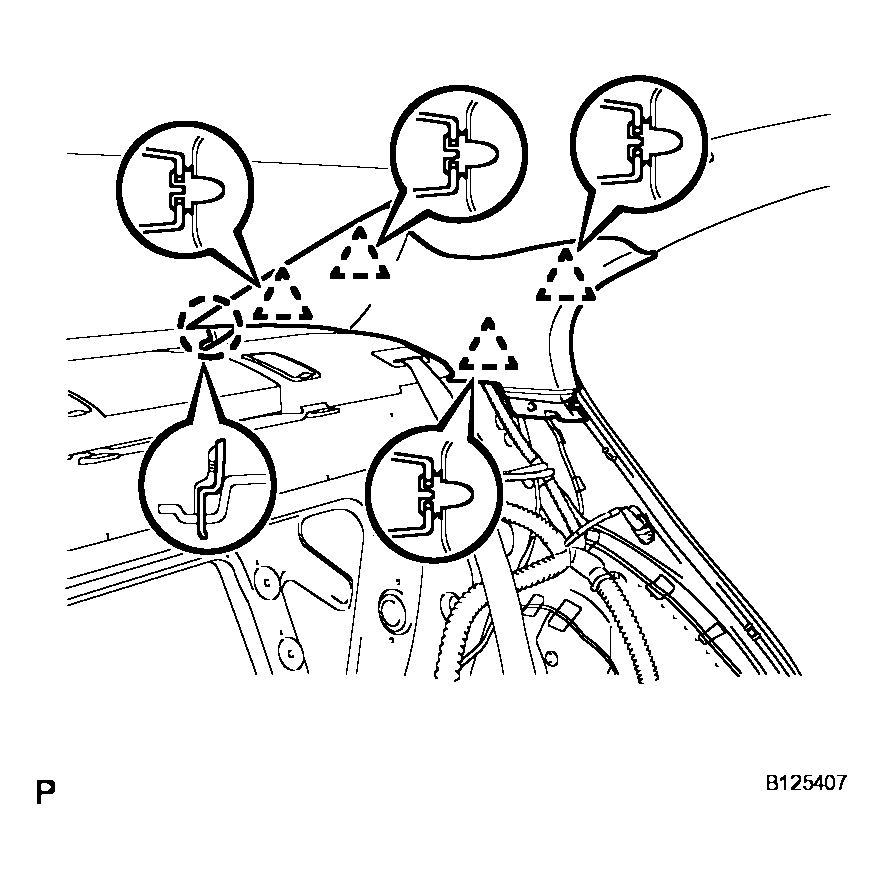

    Fig 26: Engaging Claw & Clips
    G04051734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL REAR SEAT SIDE GARNISH LH
    1. Engage the 5 claws and install the rear seat side garnish LH.
  29. INSTALL REAR SEAT SIDE GARNISH RH

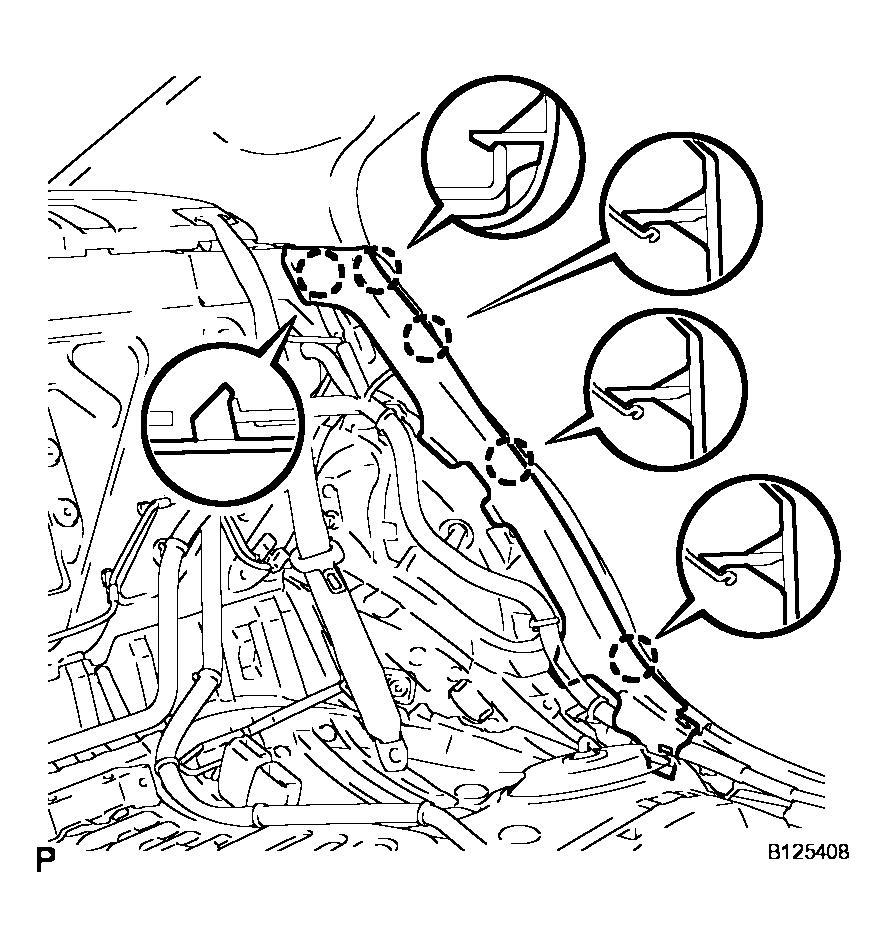

    Fig 27: Engaging Claws & Installing Rear Seat Side Garnish LH
    G04051735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL CENTER PILLAR GARNISH LH
    1. Engage the 3 claws and install the center pillar garnish LH.
    2. Install the 2 screws.
  31. INSTALL CENTER PILLAR GARNISH RH

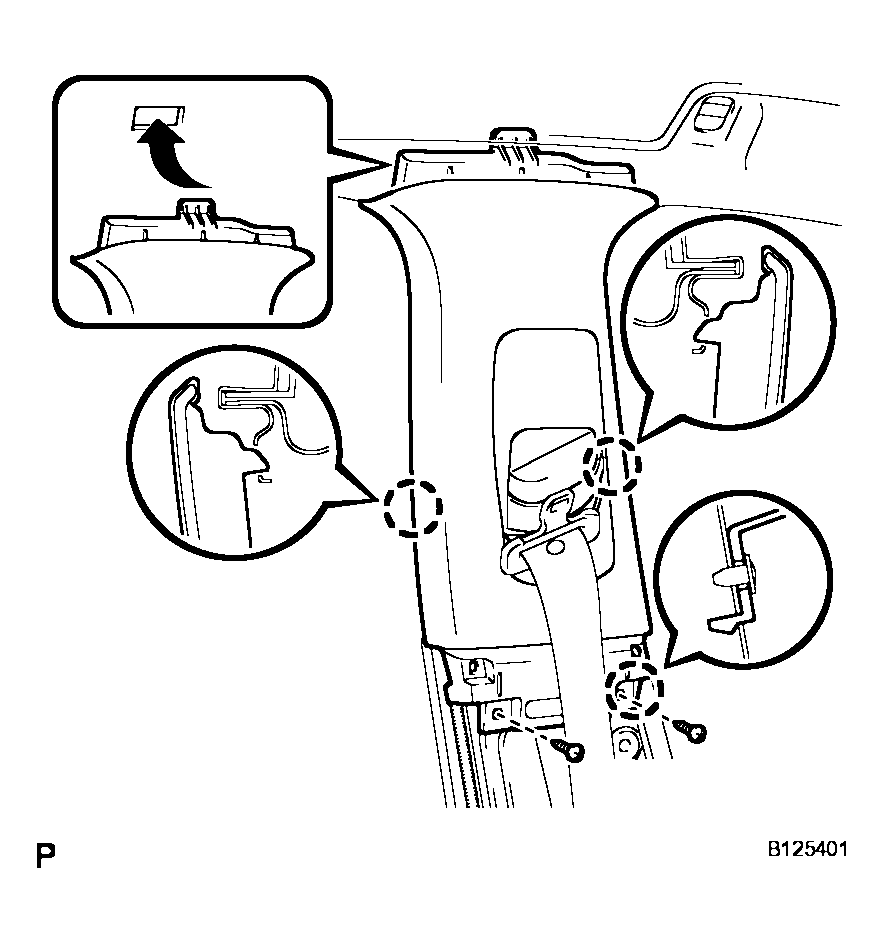

    Fig 28: Installing Center Pillar Garnish LH
    G04051736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL LOWER CENTER PILLAR GARNISH LH
    1. Engage the 5 clips and 3 claws, and install the lower center pillar garnish LH.
  33. INSTALL LOWER CENTER PILLAR GARNISH RH

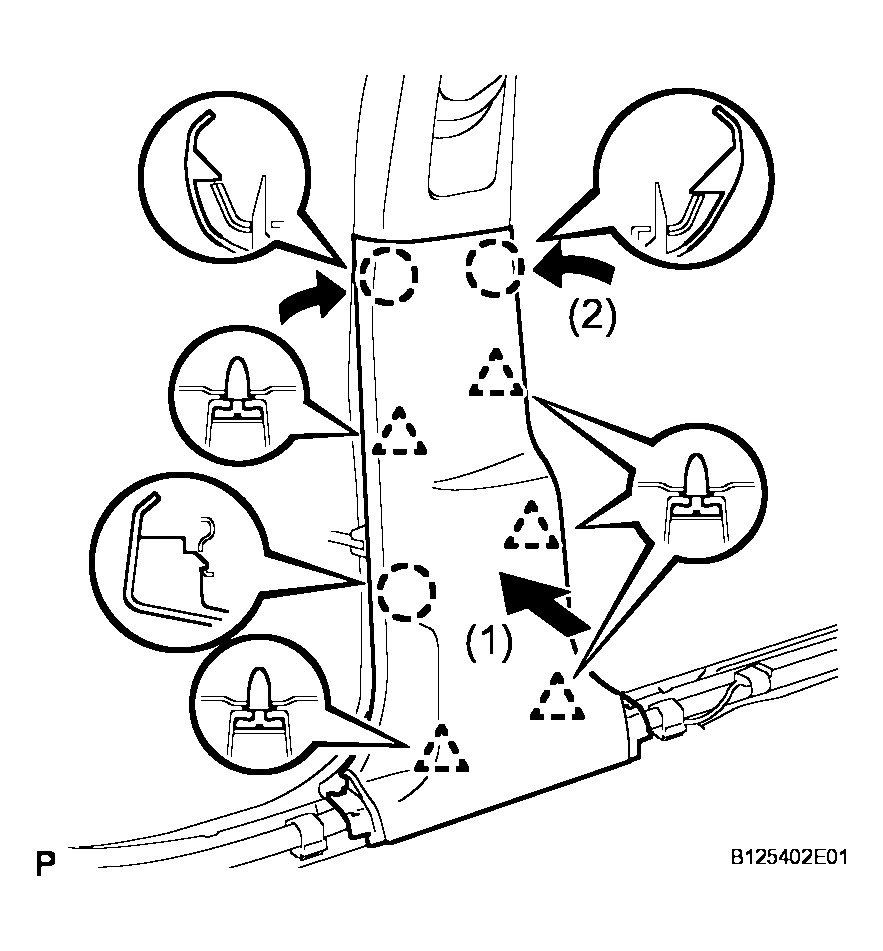

    Fig 29: Installing Lower Center Pillar Garnish LH
    G04051737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH
    1. Install the front seat outer belt assembly LH with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  35. INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH
    Fig 30: Installing Front Seat Outer Belt Assembly LH With Bolt
    G04051738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL LAP BELT OUTER ANCHOR COVER
    1. Engage the 2 claws and install the lap belt outer anchor cover.

      HINT:

      Use the same procedure to install the cover on the other side.

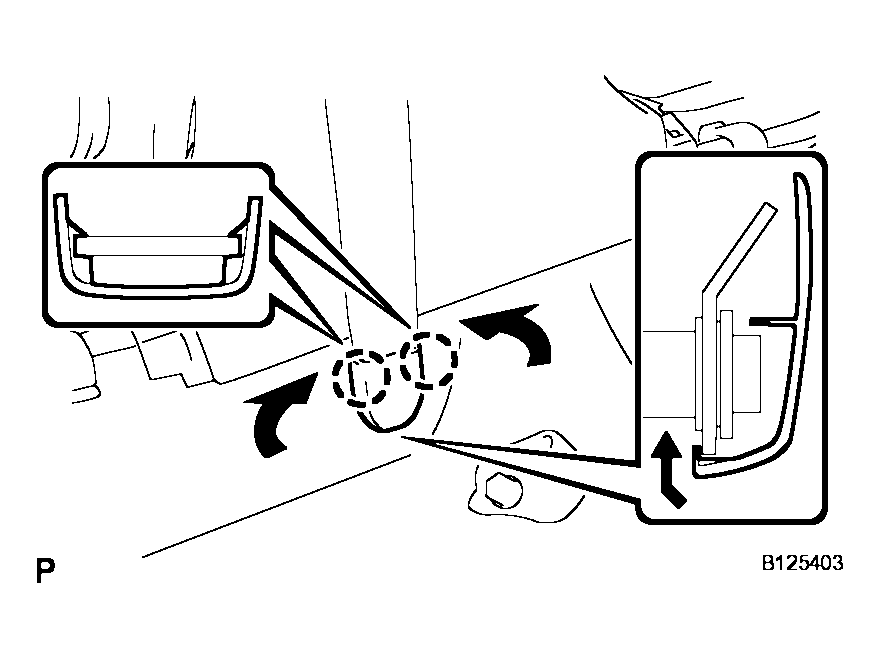

    Fig 31: Installing Lap Belt Outer Anchor Cover
    G04051739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSTALL REAR DOOR SCUFF PLATE LH
    1. Engage the 2 clips.
      Fig 32: Engaging Clips
      G04051740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 5 claws and install the rear door scuff plate LH.
  38. INSTALL REAR DOOR SCUFF PLATE RH
  39. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY (for 2GR-FSE) (See  INSTALLATION  )
  40. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for 2GR-FSE) (See Step 2 in  INSTALLATION  )
  41. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR (for 2GR-FSE) (See Step 5 in  INSTALLATION  )
  42. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 2GR-FSE) (See Step 4 in  INSTALLATION  )
  43. INSTALL HEATED OXYGEN SENSOR (for 2GR-FSE) (See Step 5 in  INSTALLATION  )
  44. INSTALL FRONT CENTER FLOOR BRACE (for 2GR-FSE) (See Step 6 in  INSTALLATION  )
  45. INSTALL REAR NO. 1 FLOOR PANEL BRACE (for 2GR-FSE) (See Step 7 in  INSTALLATION  )

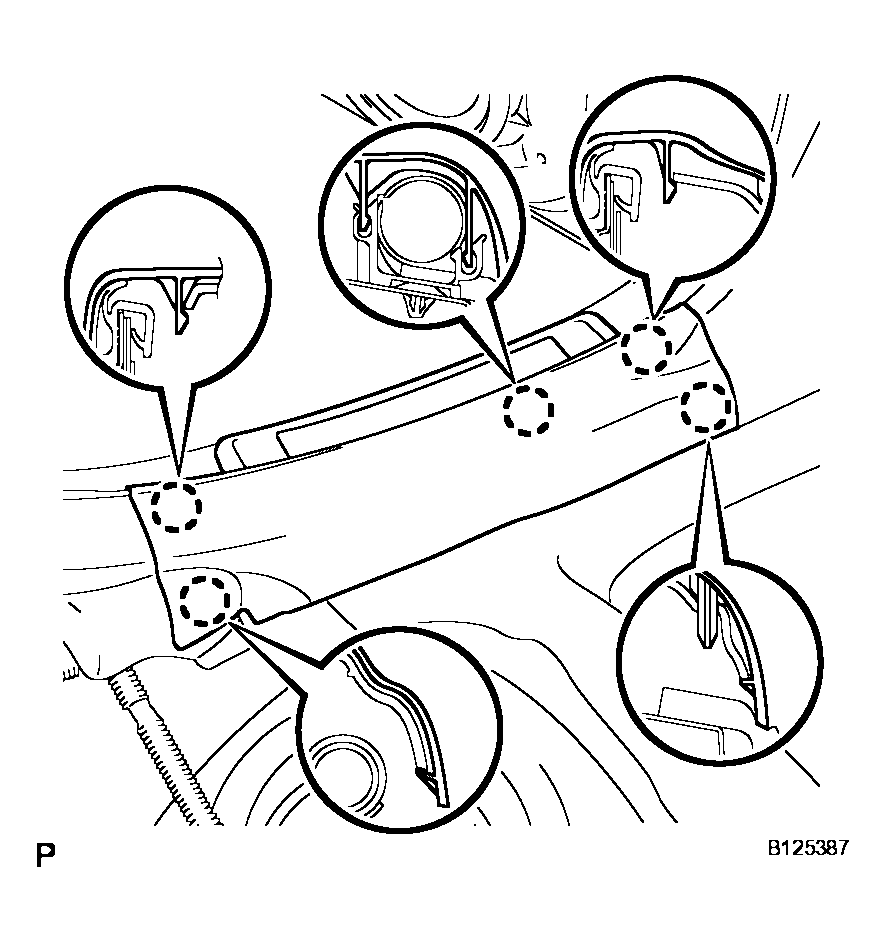

    Fig 33: Engaging Claws & Installing Rear Door Scuff Plate LH
    G04051741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY (for 4GR-FSE 2WD) (See  INSTALLATION  )
  47. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for 4GR-FSE 2WD) (See Step 2 in  INSTALLATION  )
  48. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR (for 4GR-FSE 2WD) (See Step 3 in  INSTALLATION  )
  49. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 4GR-FSE 2WD) (See Step 4 in  INSTALLATION  )
  50. INSTALL OXYGEN SENSOR (for 4GR-FSE 2WD) (See Step 5 in  INSTALLATION  )
  51. INSTALL FRONT CENTER FLOOR BRACE (for 4GR-FSE 2WD) (See Step 7 in  INSTALLATION  )
  52. INSTALL REAR NO. 1 FLOOR PANEL BRACE (for 4GR-FSE 2WD) (See Step 8 in  INSTALLATION  )
  53. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY (for 4GR-FSE 4WD) (See  INSTALLATION  )
  54. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for 4GR-FSE 4WD) (See Step 2 in  INSTALLATION  )
  55. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR (for 4GR-FSE 4WD) (See Step 3 in  INSTALLATION  )
  56. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 4GR-FSE 4WD) (See Step 4 in  INSTALLATION  )
  57. INSTALL OXYGEN SENSOR (for 4GR-FSE 4WD) (See Step 6 in  INSTALLATION  )
  58. INSTALL FRONT CENTER FLOOR BRACE (for 4GR-FSE 4WD) (See Step 7 in  INSTALLATION  )
  59. INSTALL REAR NO. 1 FLOOR PANEL BRACE (for 4GR-FSE 4WD) (See Step 8 in  INSTALLATION  )
  60. INSTALL FLOOR SHIFT LEVER ASSEMBLY (for Manual Transmission) (See Step 8 in  INSTALLATION  )
  61. INSTALL SHIFT LEVER CAP (for Manual Transmission) (See Step 29 in  INSTALLATION  )
  62. INSTALL NO. 1 SHIFT AND SELECT LEVER BOOT (for Manual Transmission) (See Step 30 in  INSTALLATION  )
  63. INSTALL INSTRUMENT PANEL STAY (See  INSTALLATION  )
  64. INSTALL INSTRUMENT PANEL CLIP (See Step 2 in  INSTALLATION  )
  65. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY (See Step 3 in  INSTALLATION  )
  66. CONNECT PASSENGER AIRBAG CONNECTOR (See  INSTALLATION  )
  67. INSTALL NO. 2 CONSOLE BOX DUCT (for Manual Transmission) (See Step 5 in  INSTALLATION  )
  68. INSTALL NO. 1 CONSOLE BOX DUCT (for Automatic Transmission) (See Step 6 in  INSTALLATION  )
  69. INSTALL NO. 2 CONSOLE BOX DUCT (for Automatic Transmission) (See Step 7 in  INSTALLATION  )
  70. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker) (See  INSTALLATION  )
  71. INSTALL NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (See Step 9 in  INSTALLATION  )
  72. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY (See Step 10 in  INSTALLATION  )
  73. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY (See Step 11 in  INSTALLATION  )
  74. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See Step 13 in  INSTALLATION  )
  75. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY (See  INSTALLATION  )
  76. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See Step 16 in  INSTALLATION  )
  77. INSTALL SIDE INSTRUMENT PANEL RH (See Step 17 in  INSTALLATION  )
  78. INSTALL COMBINATION METER ASSEMBLY (See Step 21 in  INSTALLATION  )
  79. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See Step 22 in  INSTALLATION  )
  80. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY (See  INSTALLATION  )
  81. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See Step 24 in  INSTALLATION  )
  82. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See Step 25 in  INSTALLATION  )
  83. INSTALL SIDE INSTRUMENT PANEL LH (See Step 26 in  INSTALLATION  )
  84. INSTALL FRONT PILLAR GARNISH LH
    1. Install a new clip <A> on the front pillar garnish LH.
    2. Engage the claw and 2 clips, and install the front pillar garnish LH.

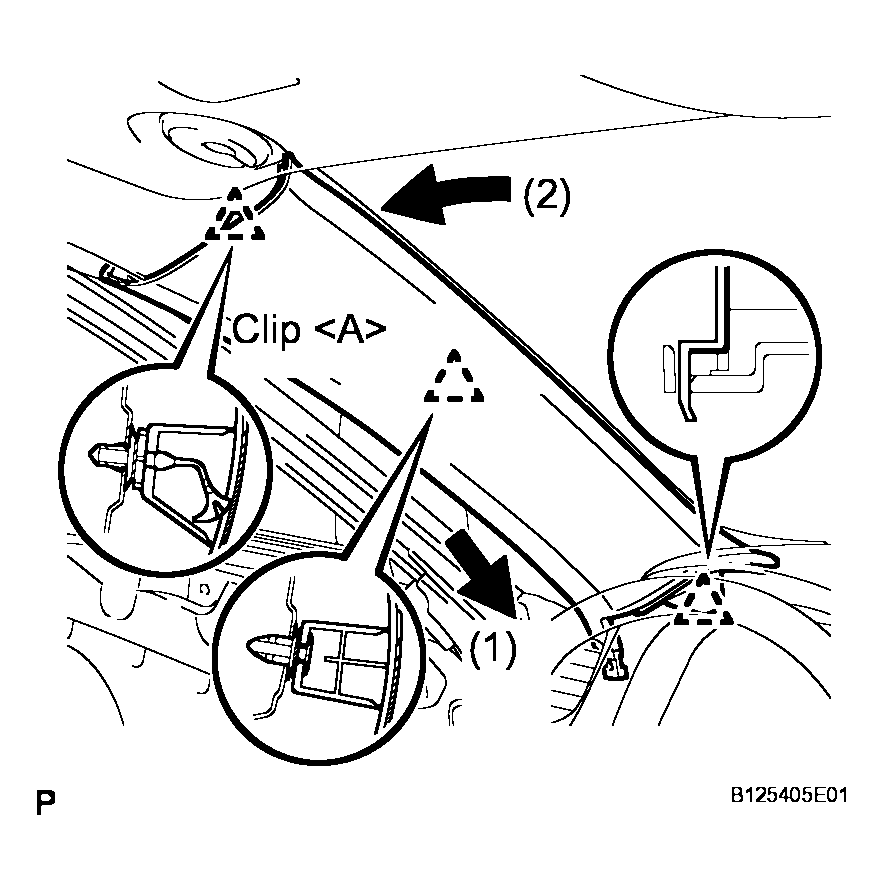

    Fig 34: Engaging Claw & Clips
    G04051742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  85. INSTALL FRONT PILLAR GARNISH RH
  86. INSTALL FRONT DOOR OPENING TRIM COVER LH
    1. Engage the 4 claws and install the front door opening trim cover LH.
  87. INSTALL FRONT DOOR OPENING TRIM COVER RH

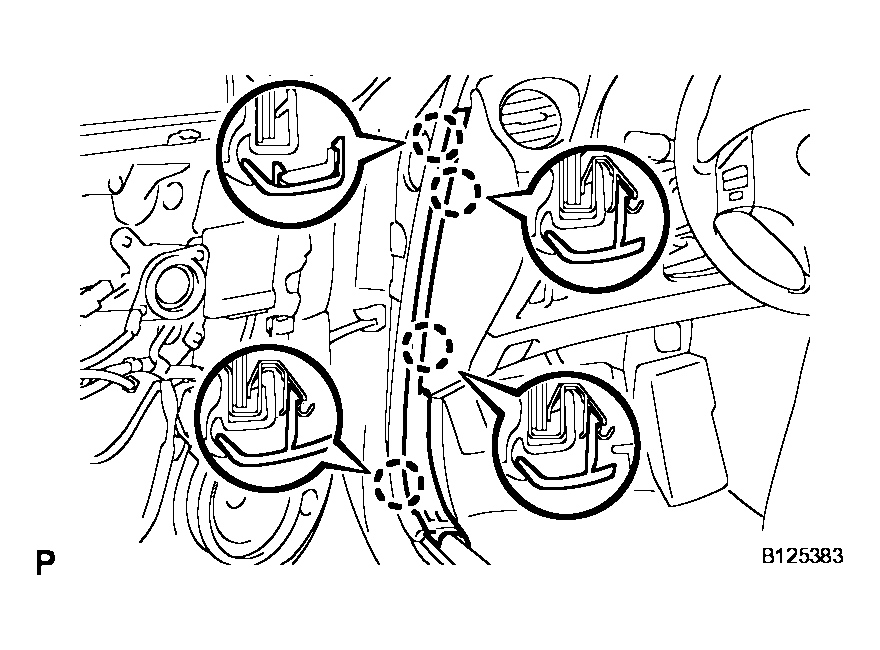

    Fig 35: Engaging Claws & Installing Front Door Opening Trim Cover LH
    G04051743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  88. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination)
    1. Engage the 4 clips.
      Fig 36: Engaging Clips
      G04051744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 7 claws, and install the front door scuff plate LH.
  89. INSTALL FRONT DOOR SCUFF PLATE RH (w/o Illumination)
  90. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination)
    1. Connect the connector.

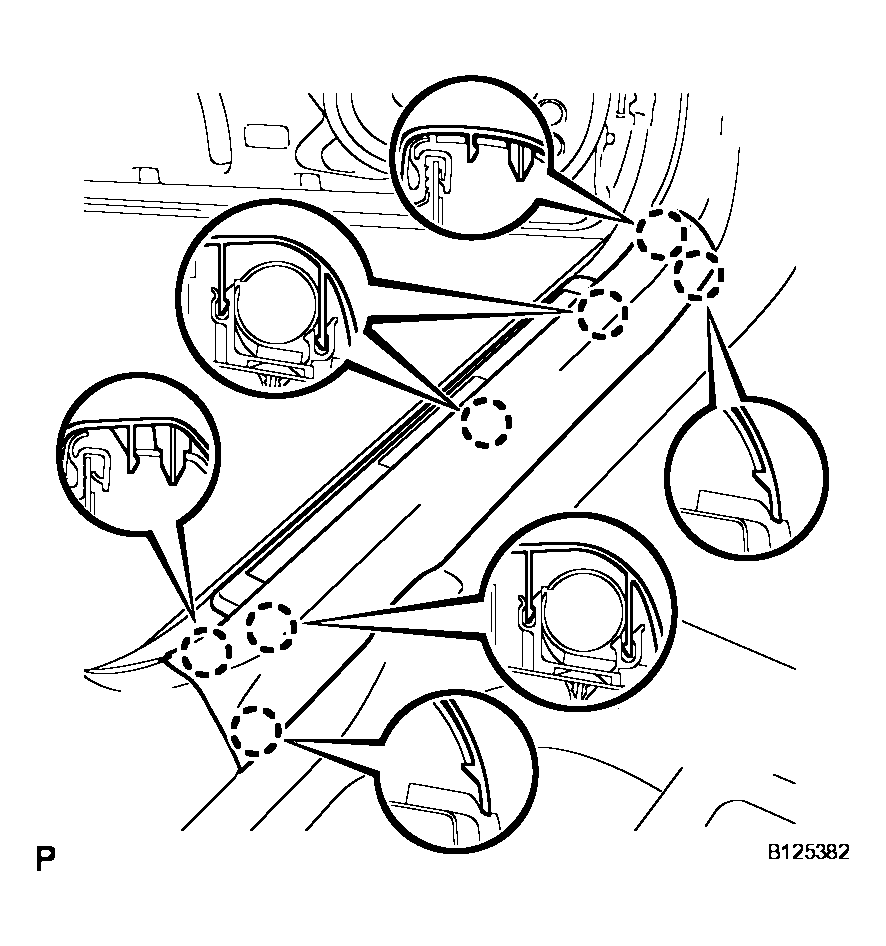

      Fig 37: Identifying Claws For Front Door Scuff Plate
      G04051747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 4 clips.
      Fig 38: Engaging Clips
      G04051746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 7 claws, and install the front door scuff plate LH.
  91. INSTALL FRONT DOOR SCUFF PLATE RH (w/ Illumination)
  92. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY (See Step 6 in  INSTALLATION  )
  93. INSTALL STEERING COLUMN COVER (for Manual Tilt and Telescopic) (See Step 7 in  INSTALLATION  )
  94. INSTALL STEERING COLUMN COVER (for Power Tilt and Power Telescopic) (See Step 8 in  INSTALLATION  )
  95. ADJUST SPIRAL CABLE SUB-ASSEMBLY (See Step 4 in  INSTALLATION  )
    Fig 39: Identifying Claws For Front Door Scuff Plate
    G04051747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  96. INSTALL STEERING WHEEL ASSEMBLY (See Step 9 in  INSTALLATION  )
  97. INSTALL STEERING PAD (See  INSTALLATION  )
  98. INSTALL LOWER NO. 3 STEERING WHEEL COVER (See Step 2 in  INSTALLATION  )
  99. INSTALL LOWER NO. 2 STEERING WHEEL COVER (See Step 3 in  INSTALLATION  )
  100. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System) (See Step 4 in  INSTALLATION  )
  101. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System) (See Step 8 in  INSTALLATION  )
  102. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL (See Step 40 in  INSTALLATION  )
  103. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (See Step 41 in  INSTALLATION  )
  104. INSTALL CONSOLE BOX (See Step 42 in  INSTALLATION  )
  105. INSTALL CONSOLE BOX REGISTER ASSEMBLY (See Step 43 in  INSTALLATION  )
  106. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY (See Step 44 in  INSTALLATION  )
  107. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See Step 45 in  INSTALLATION  )
  108. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See Step 46 in  INSTALLATION  )
  109. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) (See Step 47 in  INSTALLATION  )
  110. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) (See Step 48 in  INSTALLATION  )
  111. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) (See Step 49 in  INSTALLATION  )
  112. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
  113. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
  114. INSTALL FRONT SEAT ASSEMBLY LH (for Power Seat) (See Step 1 in  INSTALLATION  )
  115. INSTALL REAR INNER SEAT TRACK COVER LH (for Power Seat)
  116. INSTALL REAR OUTER SEAT TRACK COVER LH (for Power Seat)
  117. INSTALL FRONT INNER SEAT TRACK BRACKET COVER LH (for Power Seat)
  118. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER LH (for Power Seat)
  119. INSTALL FRONT SEAT ASSEMBLY RH (for Power Seat)
  120. INSTALL REAR INNER SEAT TRACK COVER RH (for Power Seat)
  121. INSTALL REAR OUTER SEAT TRACK COVER RH (for Power Seat)
  122. INSTALL FRONT INNER SEAT TRACK BRACKET COVER RH (for Power Seat)
  123. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER RH (for Power Seat)
  124. INSTALL FRONT SEAT HEADREST ASSEMBLY (for Power Seat)
  125. INSTALL FRONT SEAT ASSEMBLY LH (for Manual Seat) (See  INSTALLATION  )
  126. INSTALL REAR INNER SEAT TRACK COVER LH (for Manual Seat) (See Step 2 in  INSTALLATION  )
  127. INSTALL REAR OUTER SEAT TRACK COVER LH (for Manual Seat) (See Step 3 in  INSTALLATION  )
  128. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER LH (for Manual Seat) (See Step 4 in  INSTALLATION  )
  129. INSTALL FRONT INNER SEAT TRACK BRACKET COVER LH (for Manual Seat) (See Step 5 in  INSTALLATION  )
  130. INSTALL FRONT SEAT ASSEMBLY RH (for Manual Seat)
  131. INSTALL REAR INNER SEAT TRACK COVER RH (for Manual Seat)
  132. INSTALL REAR OUTER SEAT TRACK COVER RH (for Manual Seat)
  133. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER RH (for Manual Seat)
  134. INSTALL FRONT INNER SEAT TRACK BRACKET COVER RH (for Manual Seat)
  135. INSTALL FRONT SEAT HEADREST ASSEMBLY (for Manual Seat)
  136. INSTALL REAR SEATBACK ASSEMBLY (See  INSTALLATION  )
  137. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
  138. INSTALL REAR SEAT HEADREST ASSEMBLY
  139. INSTALL REAR SEAT CUSHION ASSEMBLY (See Step 4 in  INSTALLATION  )
  140. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  141. PERFORM INITIALIZATION
    NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal (See INITIALIZATION ).
  142. CHECK SRS WARNING LIGHT

    (See DIAGNOSIS SYSTEM )

  143. CHECK FOR EXHAUST GAS LEAKS

    If exhaust gas is leaking, tighten the related parts to stop the leak. Replace damaged parts as necessary.

  144. INSPECT FRONT SEAT ASSEMBLY (for Power Seat) (See Step 9 in  INSTALLATION  )
  145. INSPECT SLIDE ADJUSTER LOCK (for Manual Seat)
  146. ADJUST SHIFT LEVER POSITION (for 2GR-FSE) (See  ADJUSTMENT  )
  147. INSPECT SHIFT LEVER POSITION (for 2GR-FSE) (See  ON-VEHICLE INSPECTION  )
  148. ADJUST SHIFT LEVER POSITION (for 4GR-FSE 2WD) (See  ADJUSTMENT  )
  149. INSPECT SHIFT LEVER POSITION (for 4GR-FSE 2WD) (See  ON-VEHICLE INSPECTION  )
  150. ADJUST SHIFT LEVER POSITION (for 4GR-FSE 4WD) (See  ADJUSTMENT  )
  151. INSPECT SHIFT LEVER POSITION (for 4GR-FSE 4WD) (See  ON-VEHICLE INSPECTION  )
scientia non olet · About LEMON Manuals
