Shift Lever Assembly: Installation

INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY
1. Install the floor shift assembly with the 4 bolts.
  Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)
2. Connect the connector to the floor shift assembly.

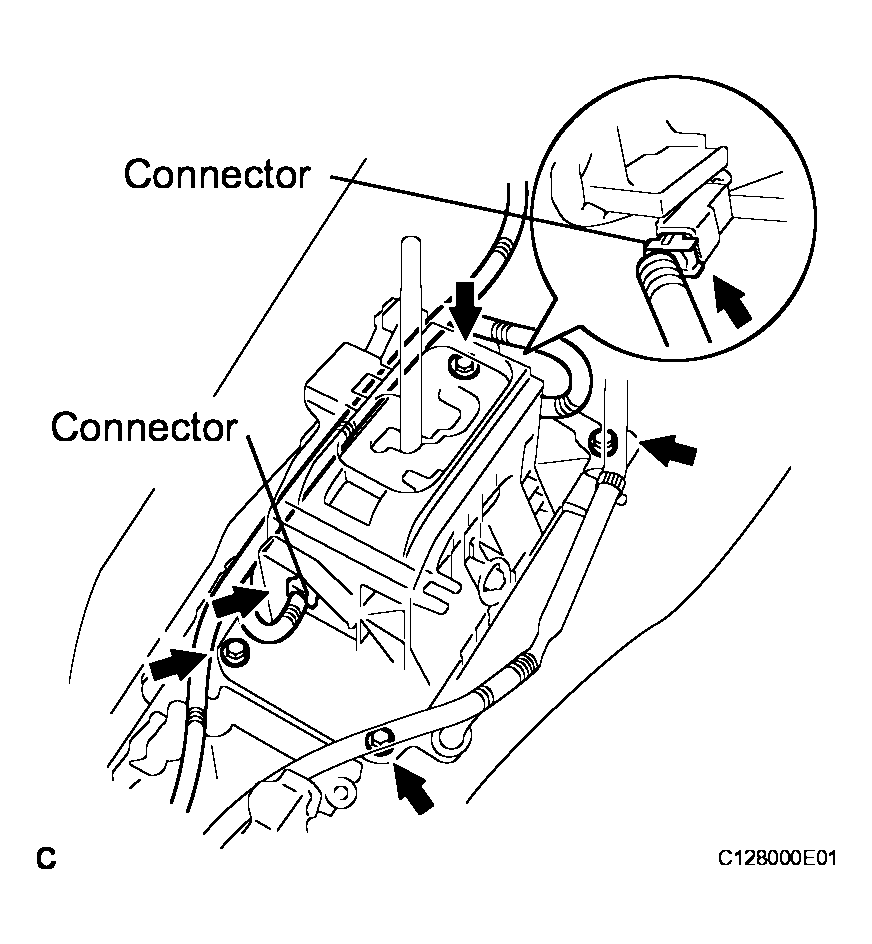

Fig 1: Connecting Connector To Floor Shift Assembly
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
1. Install the floor shift gear shifting rod sub-assembly with the nut.
Torque: 13 N*m (133 kgf*cm, 9 ft.*lbf)

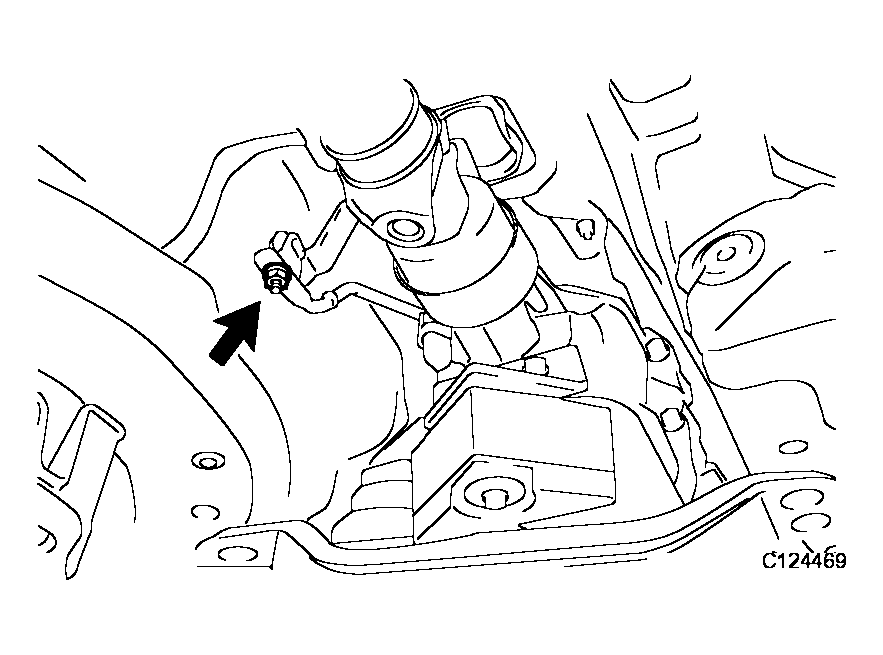

Fig 2: Installing Floor Shift Gear Shifting Rod Sub-Assembly With Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSTALL FRONT FLOOR NO. 1 HEAT INSULATOR (See step 3 in INSTALLATION )
INSTALL EXHAUST PIPE ASSEMBLY FRONT (See step 4 in INSTALLATION )
INSTALL OXYGEN SENSOR (See INSTALLATION )
INSTALL FRONT CENTER FLOOR BRACE (See step 7 in INSTALLATION )
INSTALL NO. 1 REAR FLOOR PANEL BRACE (See step 8 in INSTALLATION )
INSTALL NO. 2 CONSOLE BOX DUCT (See step 7 in INSTALLATION )
INSTALL CONSOLE BOX (See step 42 in INSTALLATION )
INSTALL CONSOLE BOX REGISTER ASSEMBLY (See step 43 in INSTALLATION )
INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY (See step 44 in INSTALLATION )
INSTALL CONSOLE PANEL SUB-ASSEMBLY (See step 47 in INSTALLATION )
INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (See step 48 in INSTALLATION )
INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (See step 49 in INSTALLATION )
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
ADJUST SHIFT LEVER POSITION (See ADJUSTMENT )
INSPECT SHIFT LEVER POSITION (See ON-VEHICLE INSPECTION )
CHECK FOR EXHAUST GAS LEAKS (See step 9 in INSTALLATION )
