Rocker Panel Moulding: Installation

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. INSTALL ROCKER PANEL MOULDING

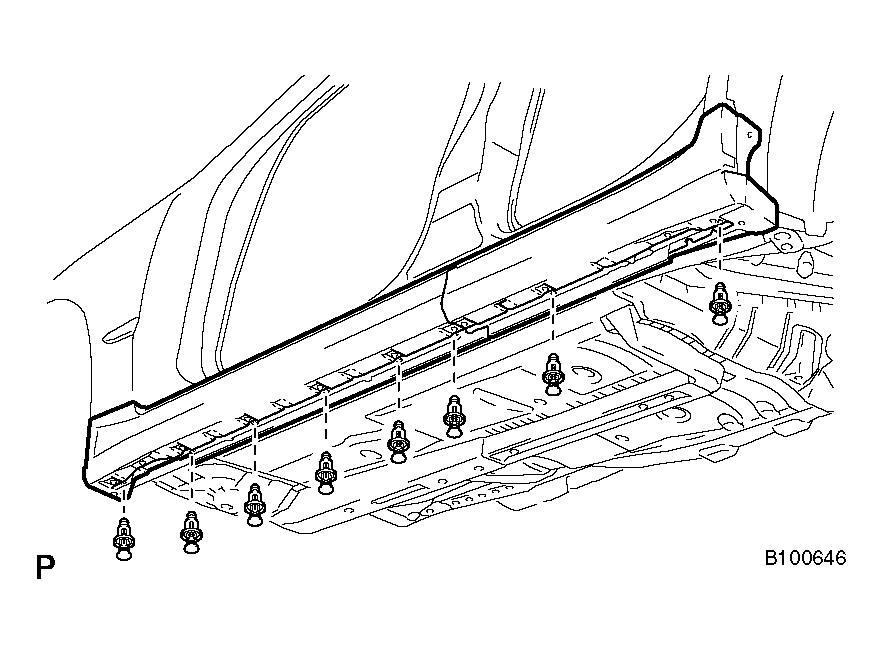

   1. Attach the 9 clips to install the moulding.
      Fig 1: Attaching 9 Clips To Install Moulding

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

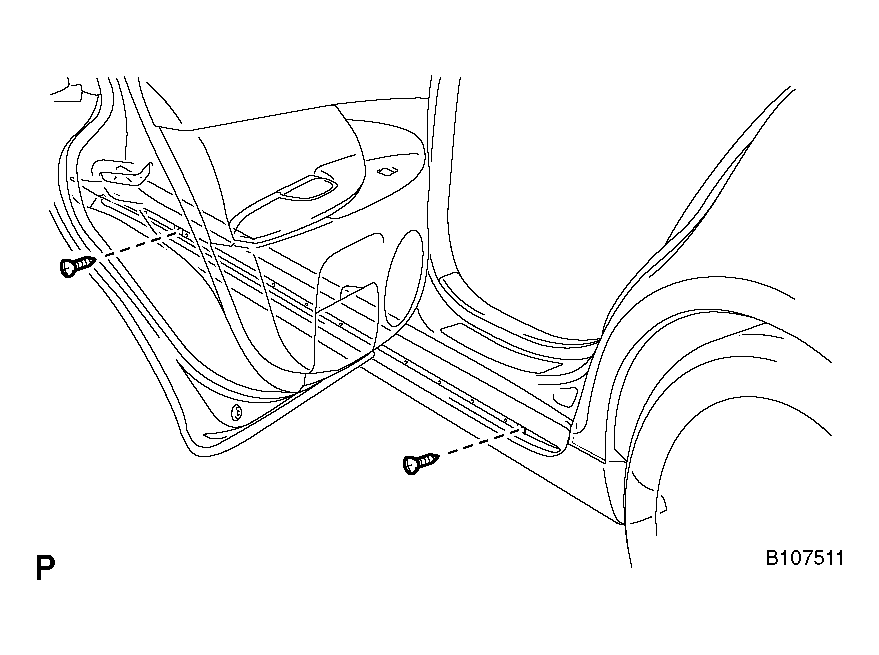

   2. Install the 2 screws.
      Fig 2: Identifying 2 Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

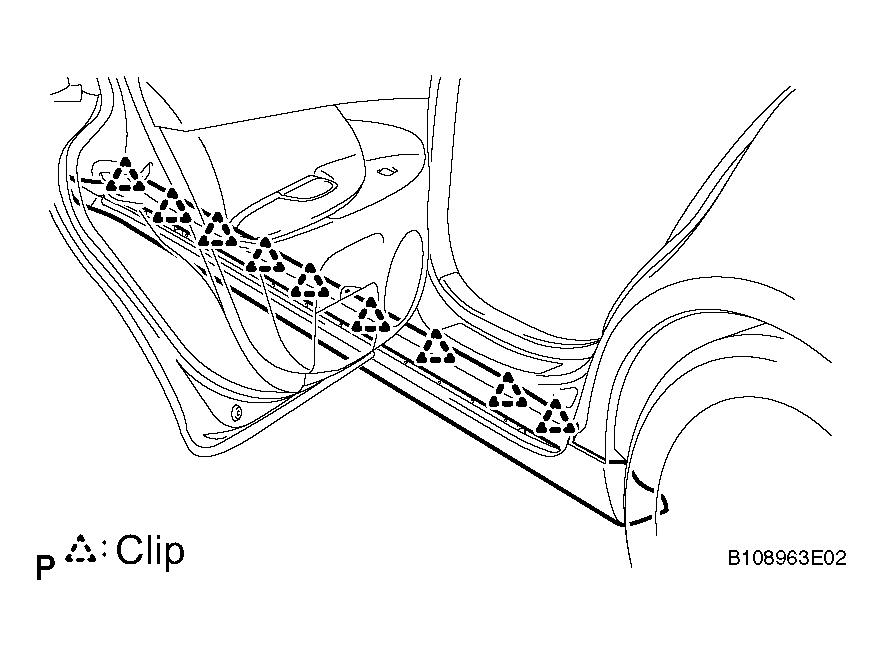

   3. Install the 8 clips.
      Fig 3: Identifying 8 Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

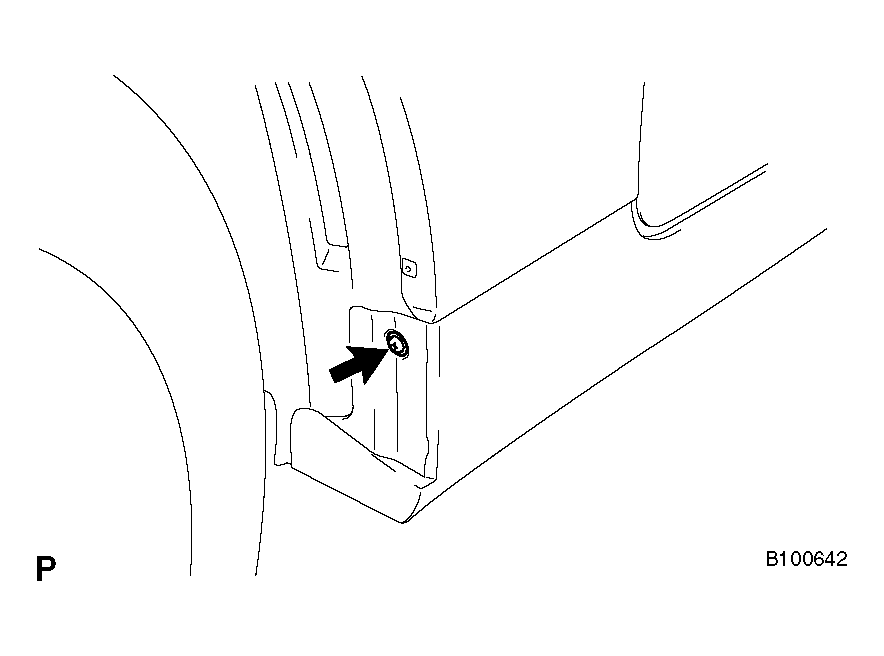

   4. Install the screw on the rear side.
      Fig 4: Identifying Screw On Rear Side

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

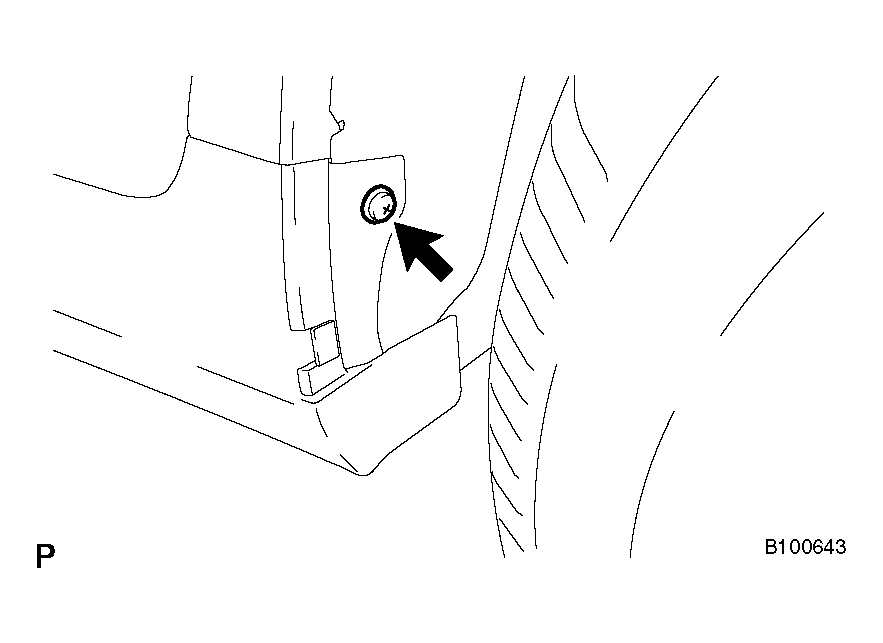

   5. Install the screw on the front side.
      Fig 5: Identifying Screw On Front Side

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL FRONT DOOR WEATHERSTRIP

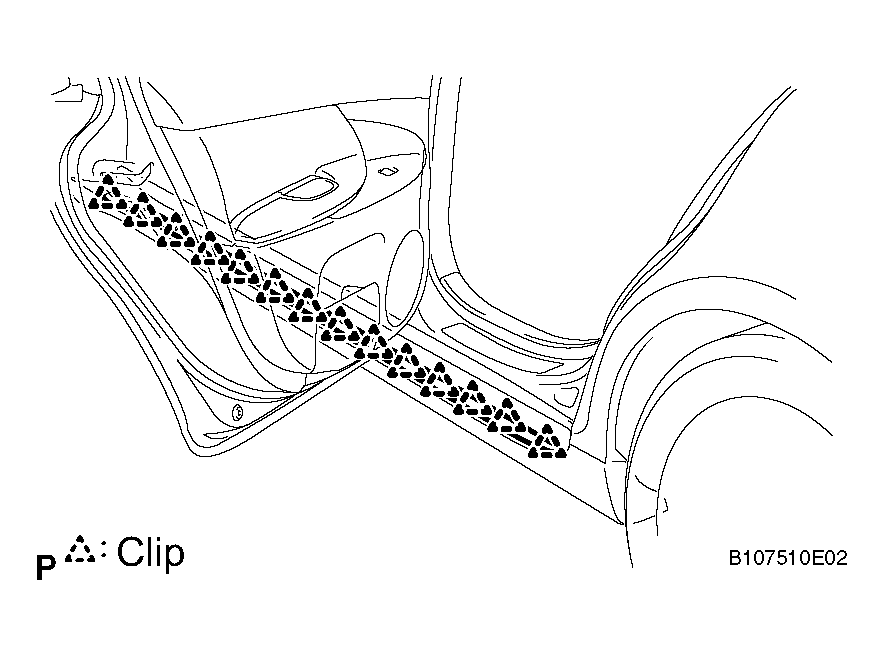

   1. Attach the 14 clips to install the weatherstrip.
      Fig 6: Attaching Clips To Install Weatherstrip

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL REAR FLOOR HOUSING SHIELD (See  INSTALLATION   )
4. INSTALL QUARTER PANEL WHEEL OPENING MOULDING (See  INSTALLATION   )
5. INSTALL FRONT FENDER WHEEL OPENING MOULDING (See  INSTALLATION   )
