Wheel Opening Moulding: Installation

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. INSTALL FRONT FENDER WHEEL OPENING MOULDING
   1. Install the moulding with the 5 screws.

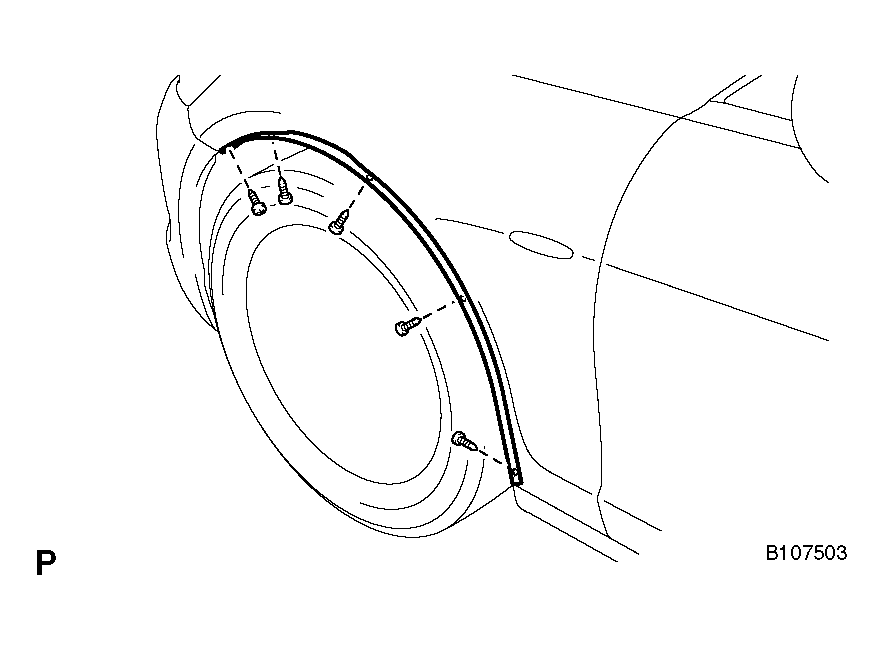

      Fig 1: Identifying Moulding With Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL QUARTER PANEL WHEEL OPENING MOULDING
   1. Install the moulding with the 4 screws.

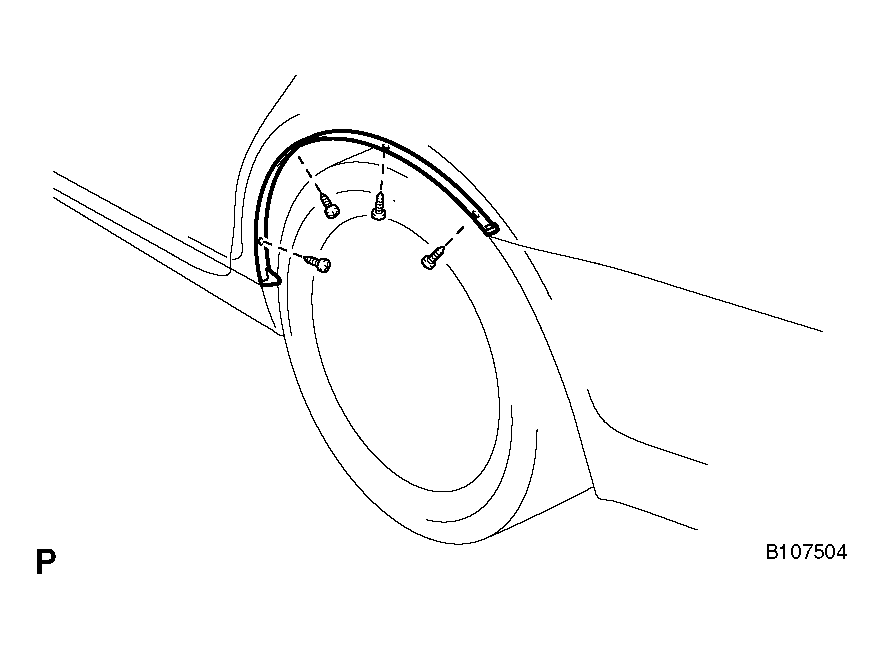

      Fig 2: Identifying Moulding With Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
