Front Bumper: Reassembly

  1. INSTALL NO. 3 ULTRASONIC SENSOR (w/ Clearance Sonar System) (See  INSTALLATION  )
  2. INSTALL FOG LIGHT ASSEMBLY (See  INSTALLATION  )
  3. INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET
    1. Install the 2 screws and mounting bracket.
  4. INSTALL RADIATOR GRILLE LOWER
    1. Attach the 9 claws to install the grille lower.
  5. INSTALL FRONT BUMPER COVER LOWER
    1. Attach the 2 claws to install the bumper cover lower.

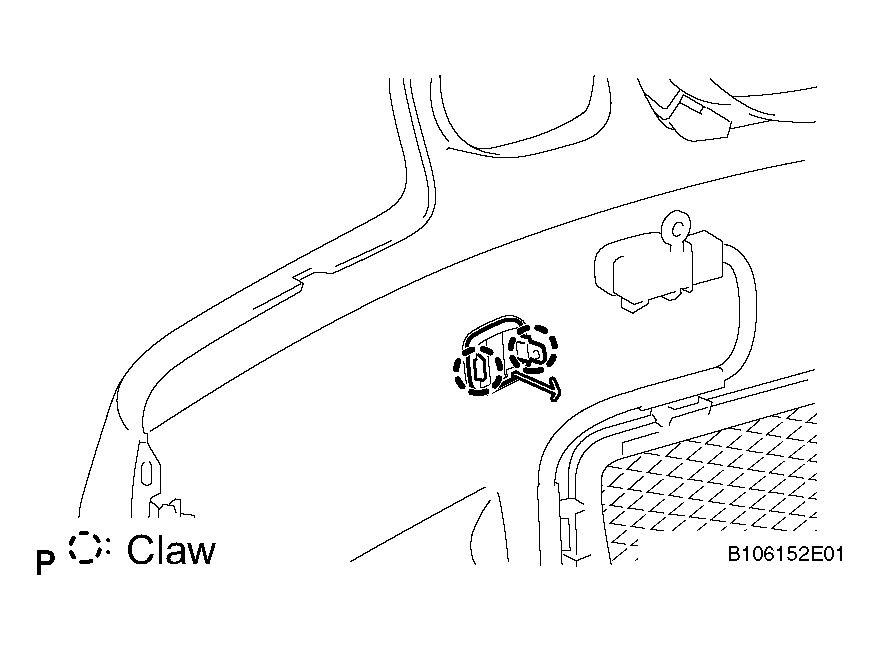

      Fig 1: Attaching 2 Claws
      G04023780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL ENGINE ROOM NO. 4 WIRE (w/ Clearance Sonar System)
    1. Attach the 15 clamps to install the wire.
    2. Connect the 4 connectors.

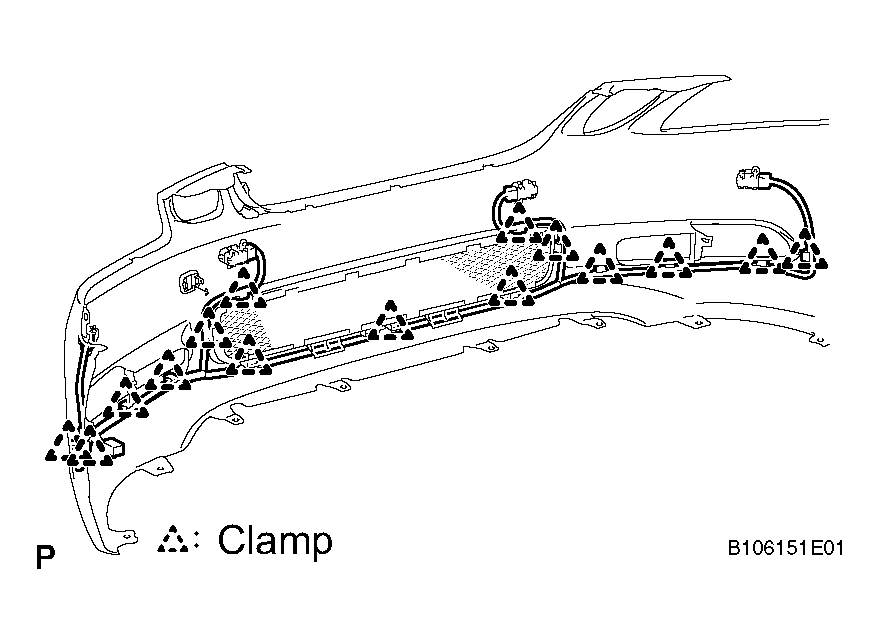

      Fig 2: Identifying Connectors
      G04023781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL RADIATOR GRILLE (See  INSTALLATION   )
  8. INSTALL FRONT BUMPER MOULDING (See  INSTALLATION   )
  9. INSTALL RADIATOR GRILLE PROTECTOR (See  INSTALLATION   )
