Ultrasonic Sensor: Installation

  1. INSTALL NO. 1 ULTRASONIC SENSOR
    1. Install the sensor to the rear bumper.
    2. Install the sensor retainer as shown in the illustration.
    3. Connect the sensor connector.

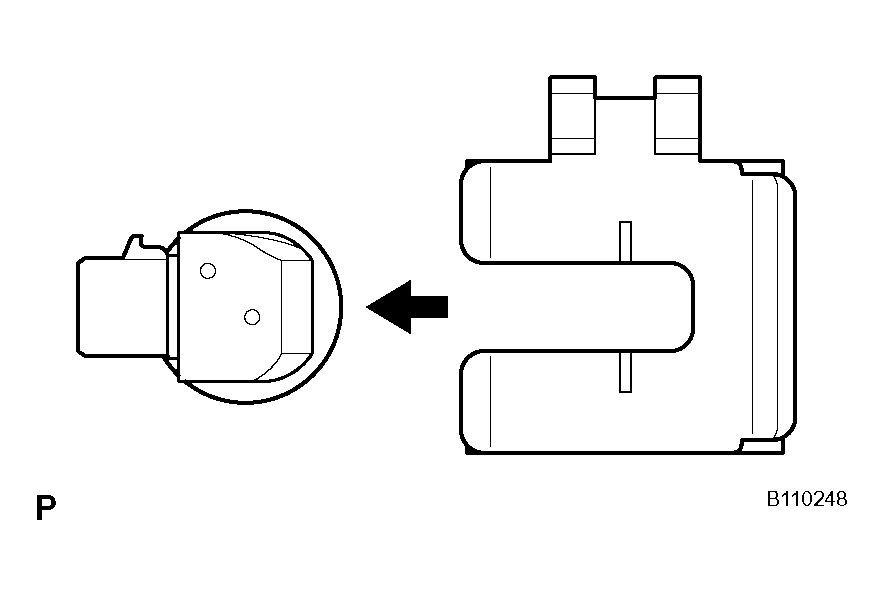

      Fig 1: Identifying No. 1 Ultrasonic Sensor Connector Terminals
      G04022953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 ULTRASONIC SENSOR
    1. Install the sensor to the rear bumper.
    2. Install the sensor retainer as shown in the illustration.
    3. Connect the sensor connector.
  3. INSTALL REAR BUMPER COVER (See  INSTALLATION  )
  4. INSTALL REAR NO. 1 BUMPER PLATE

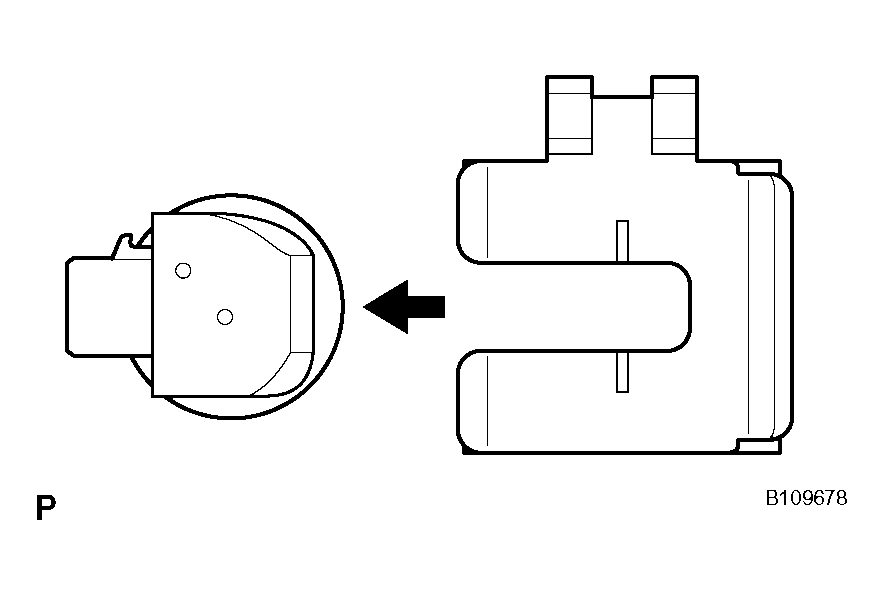

    Fig 2: Installing Rear No. 1 Bumper Plate Connector Terminals
    G04022954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 3 ULTRASONIC SENSOR
    1. Install the sensor retainer to the front bumper.

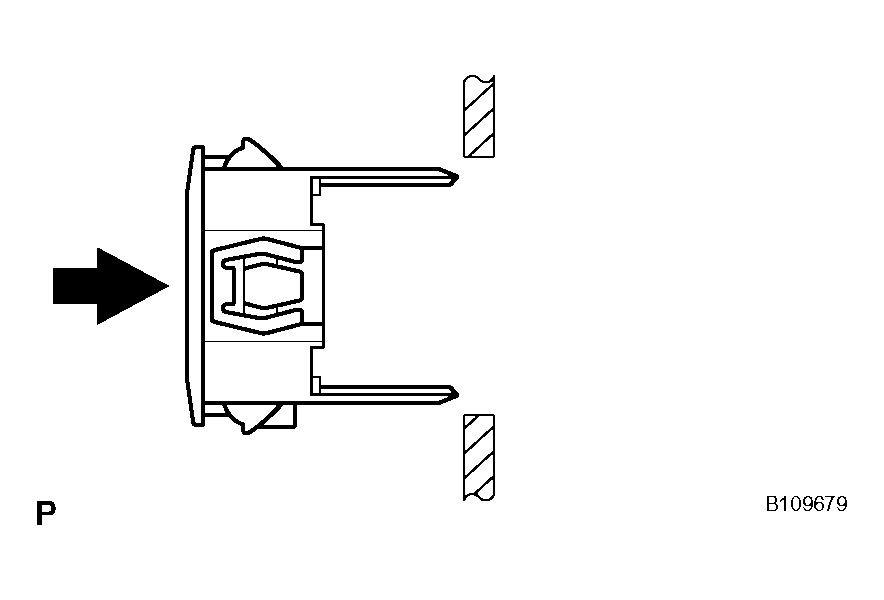

      Fig 3: Installing No. 3 Ultrasonic Sensor
      G04022955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the sensor as shown in the illustration.
    3. Connect the sensor connector.
  6. INSTALL FRONT BUMPER COVER (See  INSTALLATION  )
  7. INSTALL FRONT FENDER LINER LH (See  INSTALLATION  )
  8. INSTALL FRONT FENDER LINER RH (See  INSTALLATION  )
  9. INSTALL ENGINE UNDER COVER (See  INSTALLATION  )
  10. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )
  11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  12. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

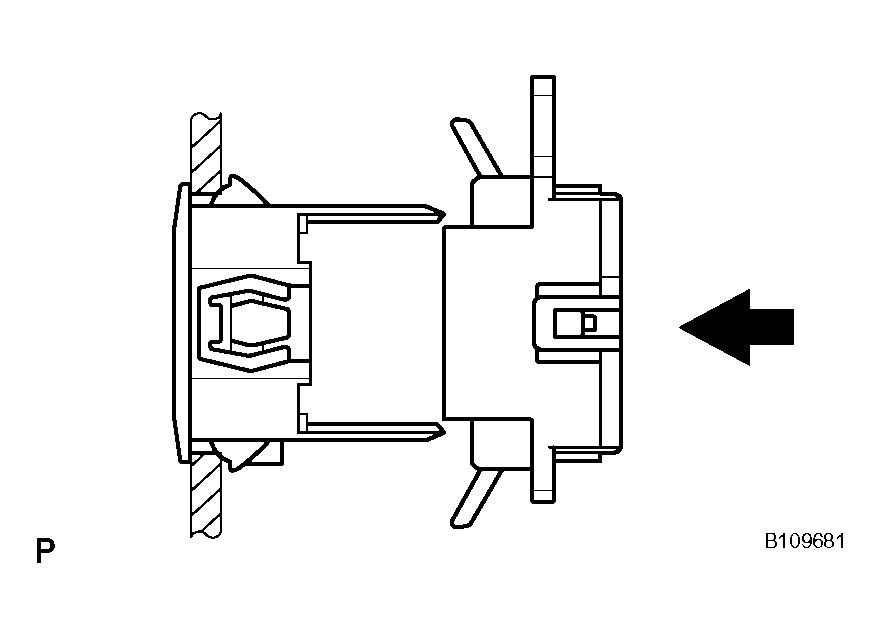

      Fig 4: Installing Sensor
      G04022956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
