Fog Lamp Unit: Overhaul

HINT:

• See ADJUSTMENT  .
• The installation procedures are the removal procedures in reverse order.
• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.
• A bolt without a torque specification is shown in the standard bolt table (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE RADIATOR GRILLE (See  REPLACEMENT  )
3. REMOVE FRONT FENDER LINER LH (See  REPLACEMENT  )
4. REMOVE FRONT FENDER LINER RH (See  REPLACEMENT  )
5. REMOVE FRONT BUMPER COVER (See  REPLACEMENT  )
6. REMOVE FOG LAMP UNIT LH
   1. Remove the 3 bolts and fog lamp.
   2. Remove the screw and fog lamp bracket LH.
   3. Remove the bulb from the lamp unit.

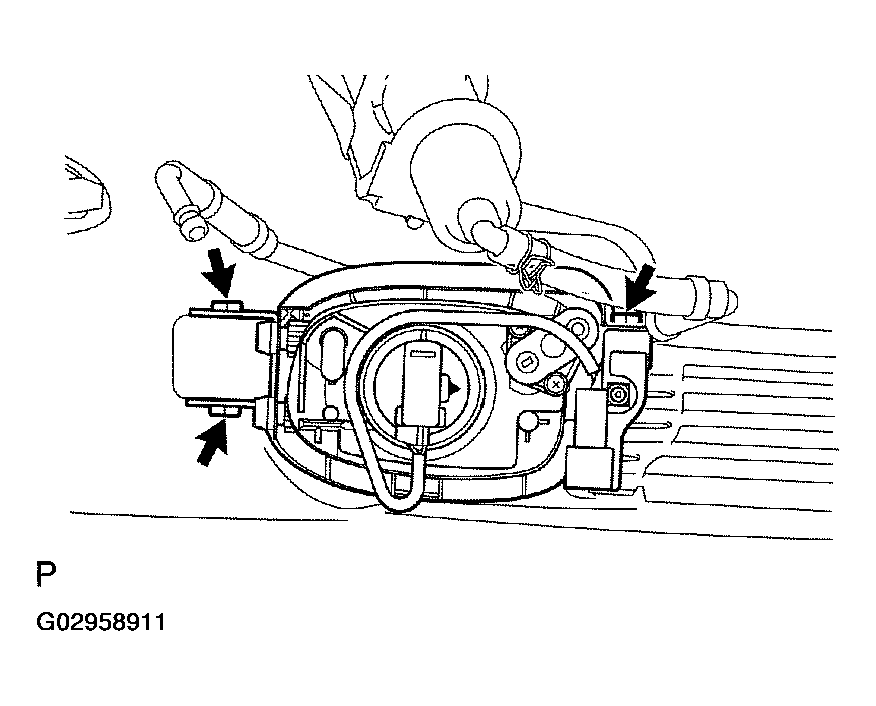

      Fig 1: Removing Fog Lamp Unit LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. PERFORM INITIALIZATION (See  INITIALIZATION  )
   NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
9. ADJUST FOG LAMP AIMING (See  ADJUSTMENT   )
