(Door / Hatch): Hood: Adjustment

HINT:

• Centering bolts are used to mount the hood hinge and hood lock. The hood and hood lock cannot be adjusted with the centering bolts on. Substitute the centering bolts with standard bolts (w/washers) when making adjustments.
• A bolt without a torque specification is shown in the standard bolt chart (see STANDARD BOLT ).

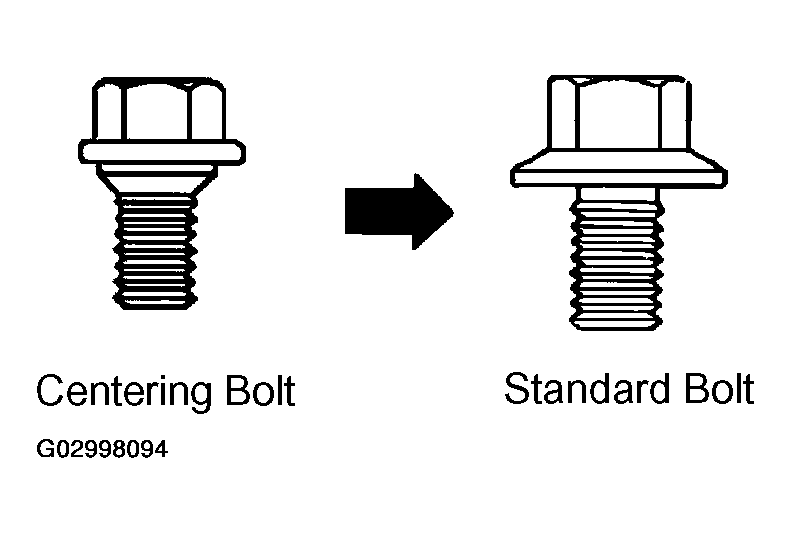

Fig 1: Identifying Centering Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. INSPECT HOOD SUB-ASSY
   1. Check that the clearance is within the standard range.

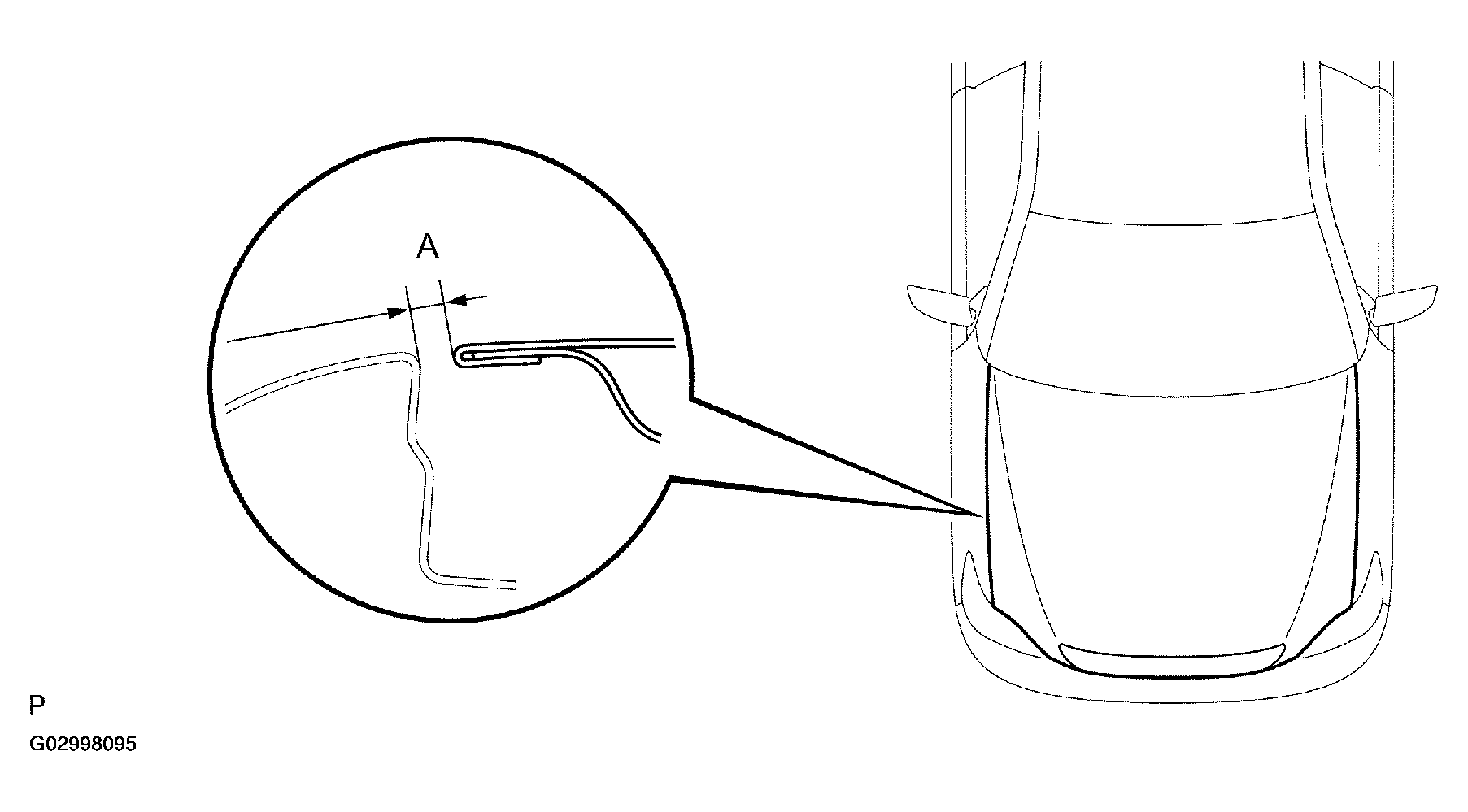

   Fig 2: Inspecting Hood Sub-Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   AREA MEASUREMENT STANDARD:



   Area	Measurement
   A	3.5 +/- 1.5 mm (0.138 +/- 0.059 in.)

2. ADJUST HOOD SUB-ASSY
   1. Adjust the hood's position.
      1. Loosen the 4 hinge bolts on the hood side.
      2. Move the hood and adjust the clearance between the hood and front fender. Make sure that the clearance is within the standard range.
         1. Standard (A): 3.5 +/- 1.5 mm (0.138 +/- 0.059 in.)
      3. Tighten the hood side hinge bolts after the adjustment.
         1. Torque: 13 N.m (133 kgf.cm, 10 ft.lbf)

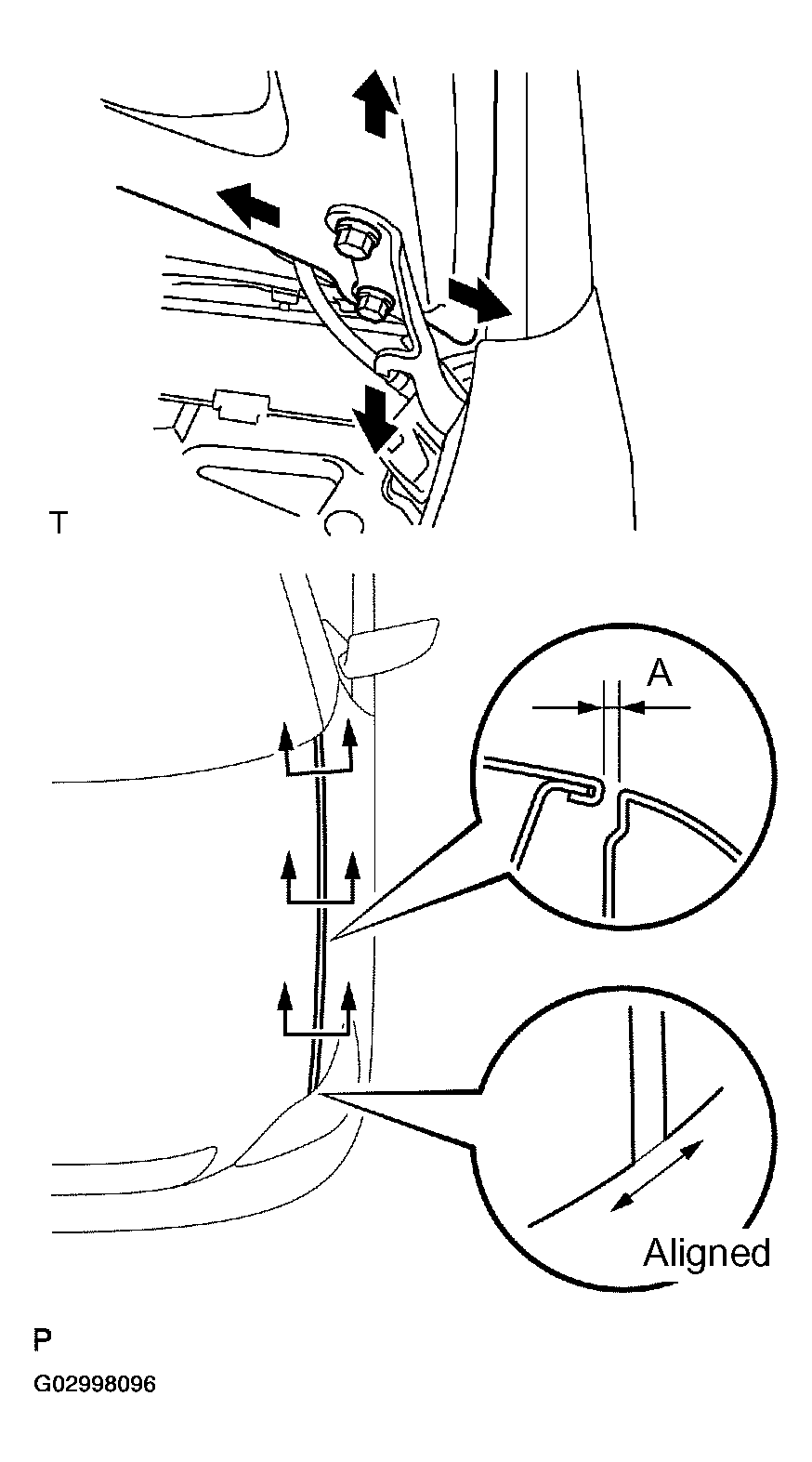

         Fig 3: Adjusting Hood Sub-Assy

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Adjust the cushion rubber so that the height of the hood and the fender are aligned.
         1. Raise or lower the hood's front end by turning the cushion rubber. Make sure that the clearance is within the standard range.

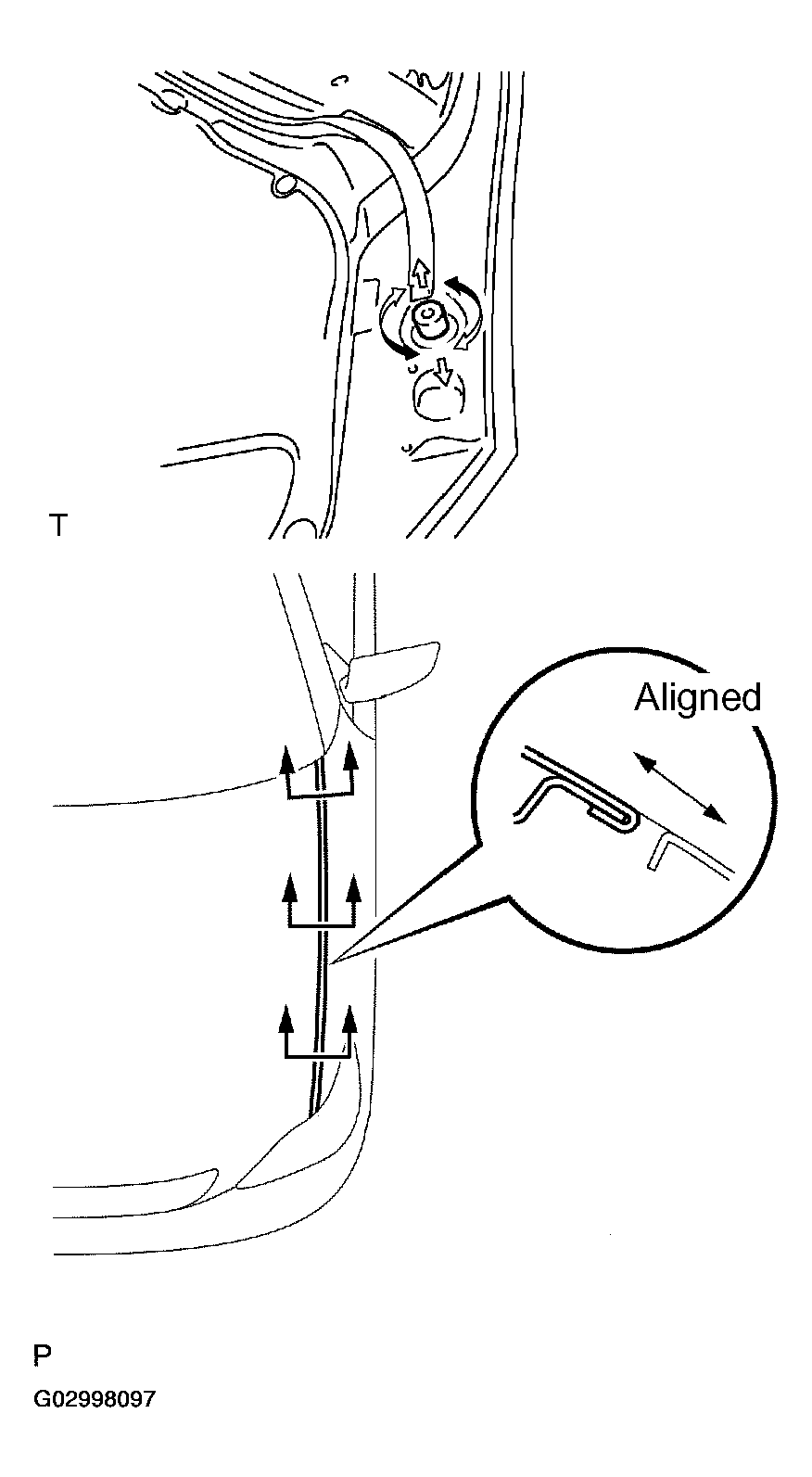

         Fig 4: Raising Or Lower Hood'S Front End By Turning Cushion Rubber

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Adjust the hood lock.
         1. w/ Pre-collision safety system:

            Disconnect the cable from the battery negative (-) terminal.

         2. w/ Pre-collision safety system:

            Disconnect the connector.

         3. w/ Pre-collision safety system:

            Remove the 3 bolts and millimeter wave radar sensor.

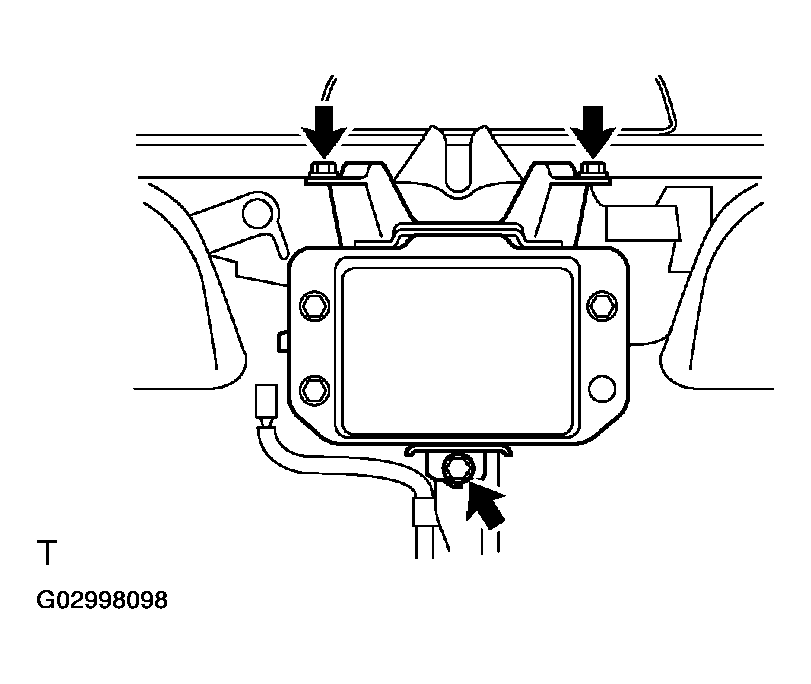

            Fig 5: Removing Bolts And Millimeter Wave Radar Sensor

            Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
         4. Remove the cap (see OVERHAUL  ).
         5. Loosen the 2 bolts and nut.
         6. Adjust the hood lock position so that the striker can enter it smoothly.
         7. Tighten the bolts and nut after the adjustment.
            1. Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
         8. Install new cap.

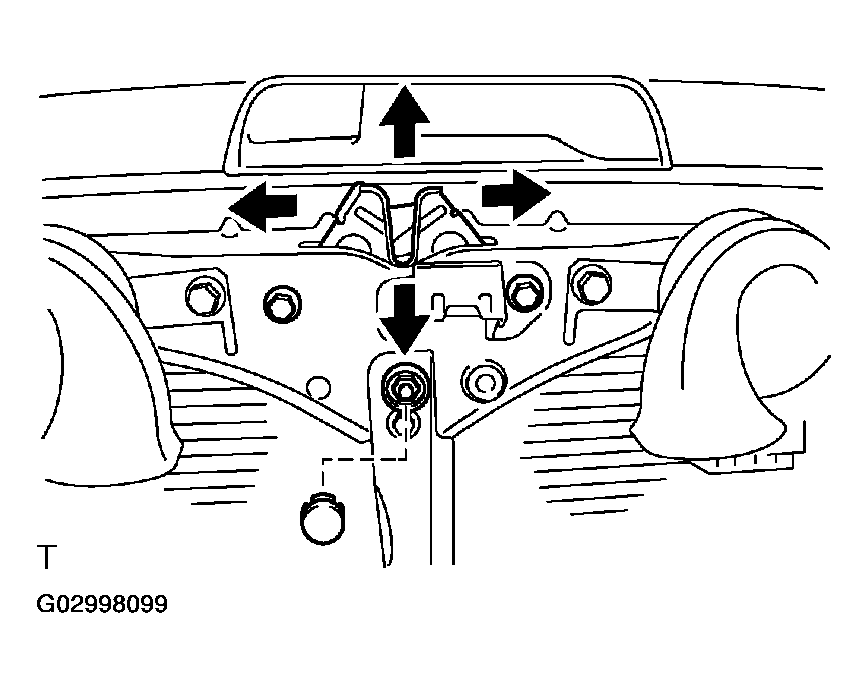

            Fig 6: Installing New Cap

            Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
         9. w/ Pre-collision safety system:

            Install the millimeter wave radar sensor with the 3 bolts.

            1. Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)
         10. w/ Pre-collision safety system:

             Connect the connector.

         11. w/ Pre-collision safety system:

             Connect the cable to the battery negative (-) terminal.

         12. w/ Pre-collision safety system:

             Preform the initialization (see INITIALIZATION ).

         13. w/ Pre-collision safety system:

             Inspect the SRS warning lamp (see DIAGNOSIS SYSTEM ).

         14. w/ Pre-collision safety system:

             Adjust the millimeter wave radar sensor (see ADJUSTMENT ).

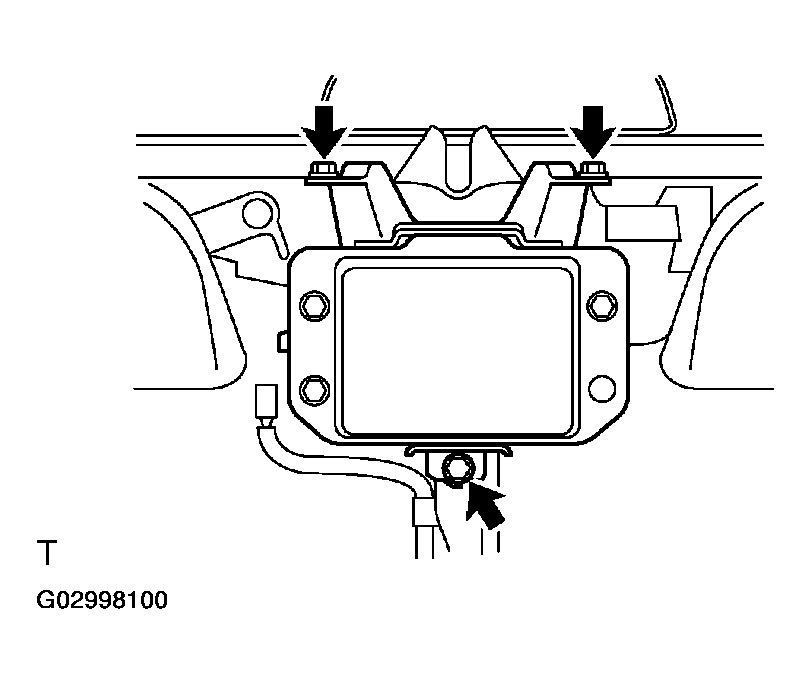

         Fig 7: Adjusting Millimeter Wave Radar Sensor

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
