Cylinder Block: Reassembly

WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Thoroughly clean all parts to be assembled.
Before installing the parts, apply new engine oil to all sliding and rotating surfaces.
Replace all gaskets, O-rings and oil seals with new parts.

ASSEMBLE PISTON AND CONNECTING ROD

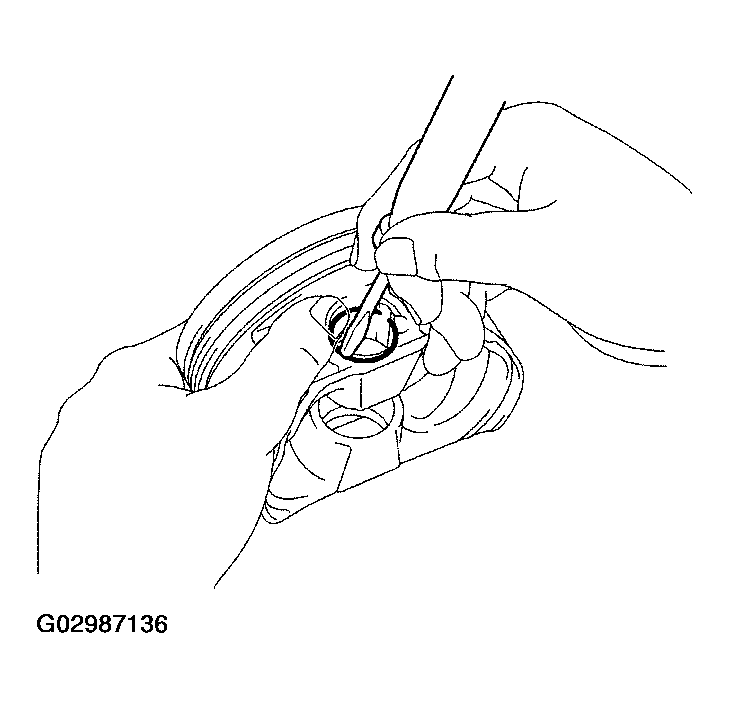

1. Using a small screwdriver, install a new snap ring on one side of the piston pin hole.

  Fig 1: Installing A New Snap Ring On One Side Of Piston Pin Hole
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

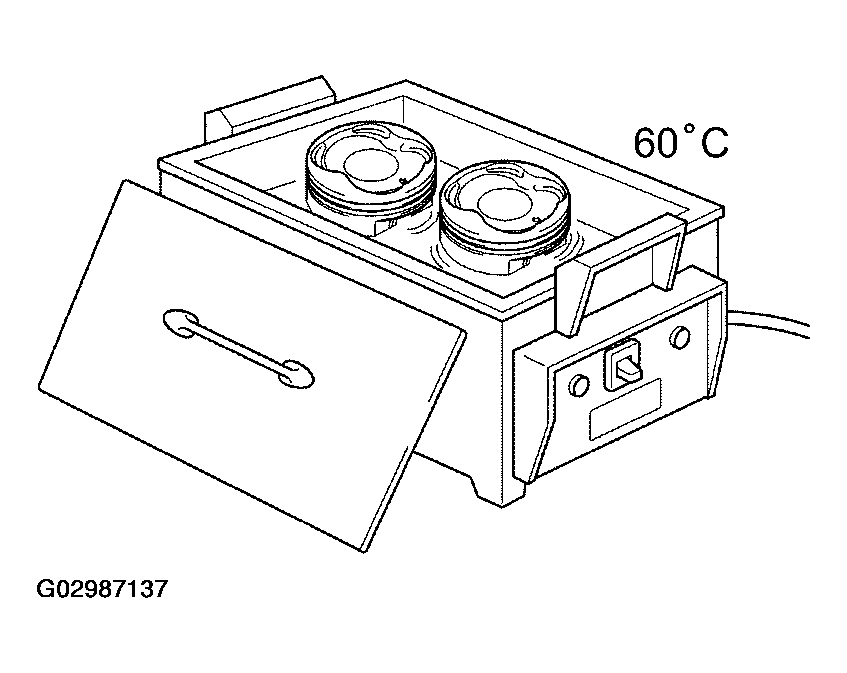

2. Gradually heat the piston to about 60°C (140°F).

  Fig 2: Heating Pistons
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Coat the piston pin with engine oil.

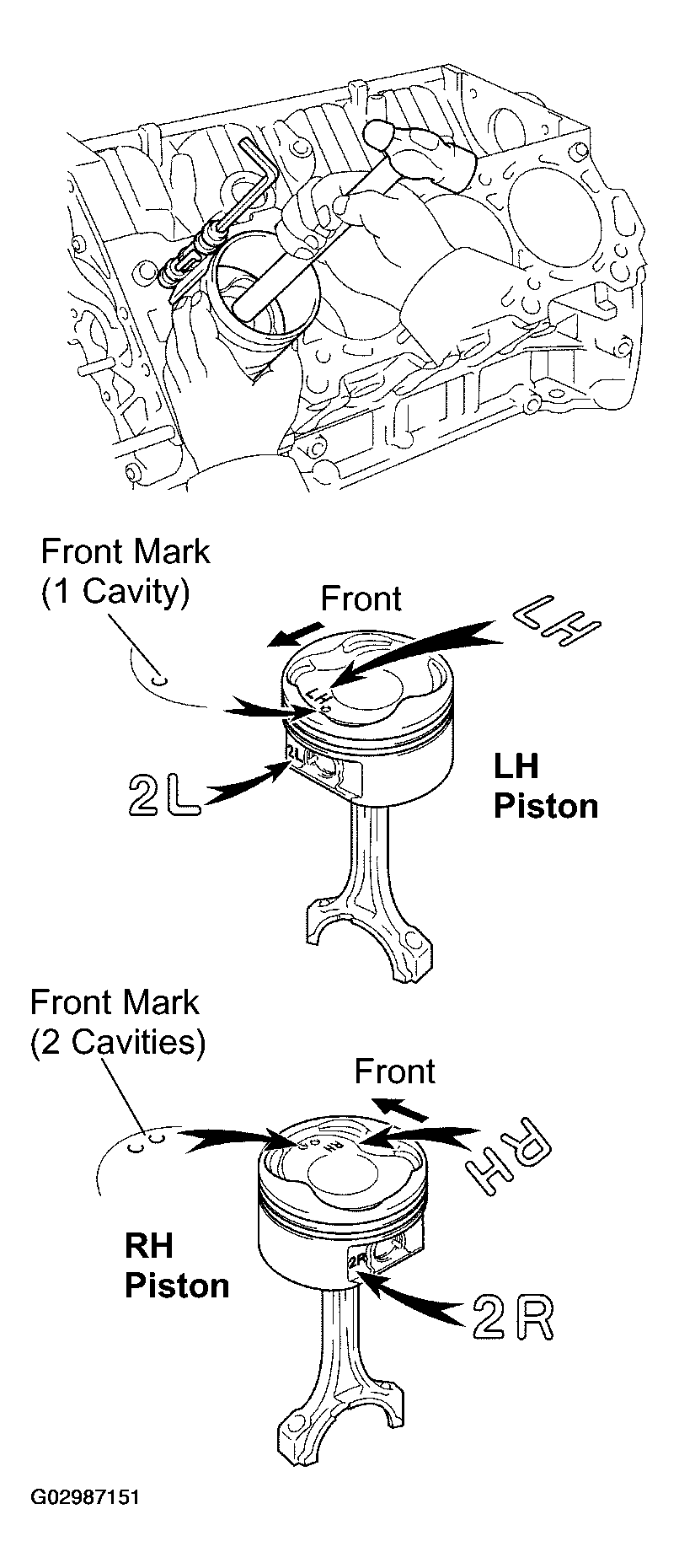

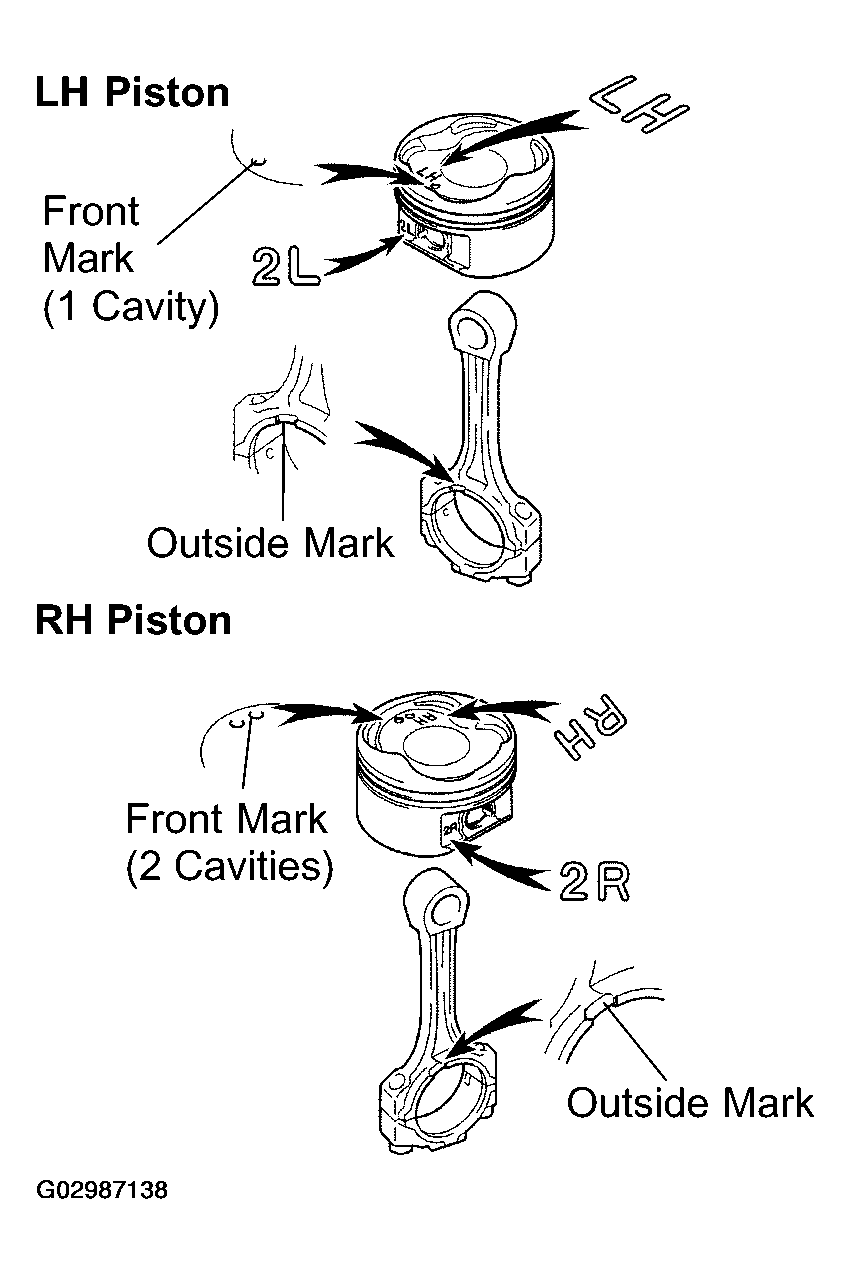

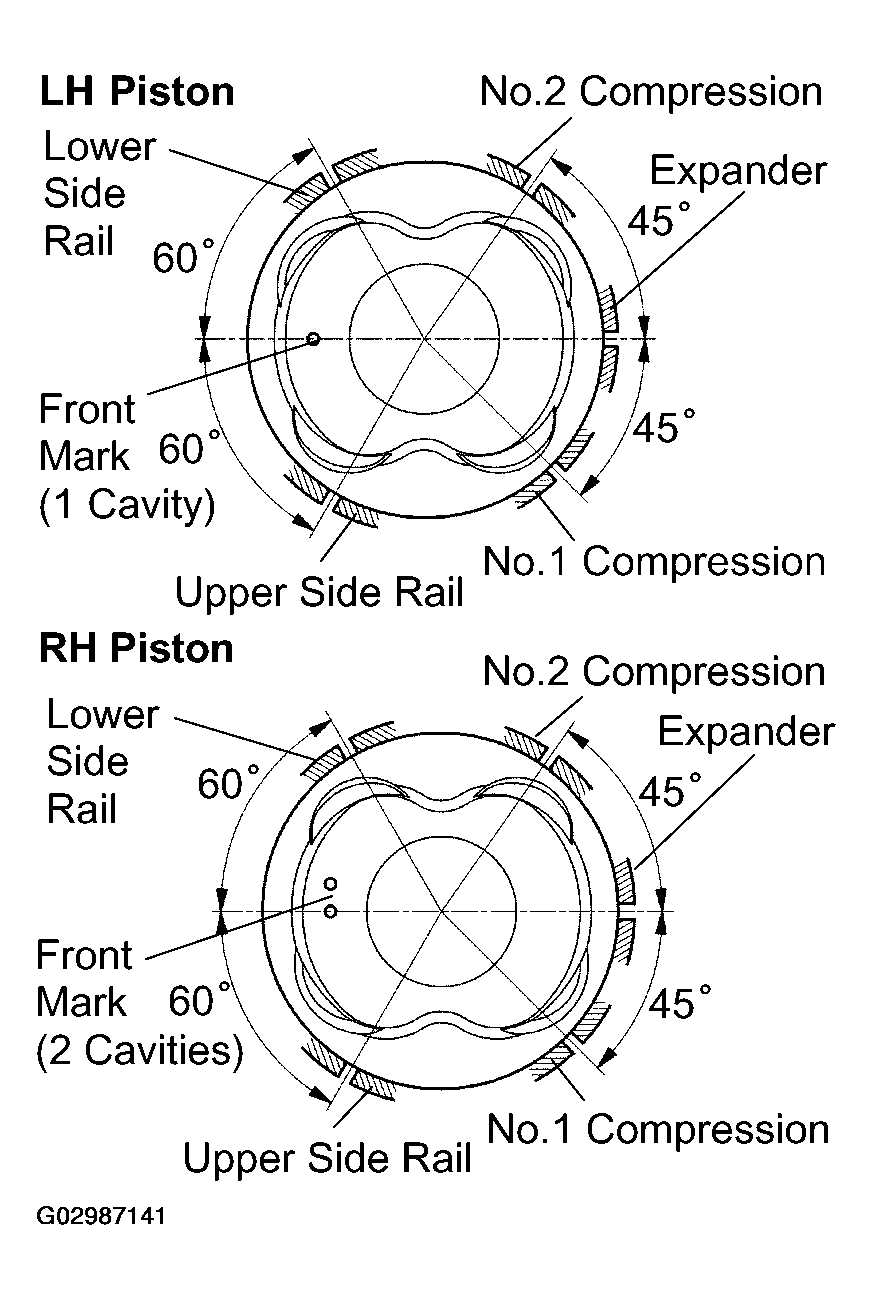

4. Position the piston front mark to the outside mark on the connecting rod as shown in the diagram.
  NOTE: The installation directions of the piston and connecting rod are different for the LH and RH banks. The LH piston is marked with "LH" and "2L", the RH piston with "RH" and "2R".
5. Align the piston pin holes of the piston and connecting rod, and push in the piston pin with your thumb.

  Fig 3: Aligning Piston Pin Holes Of Piston And Connecting Rod
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

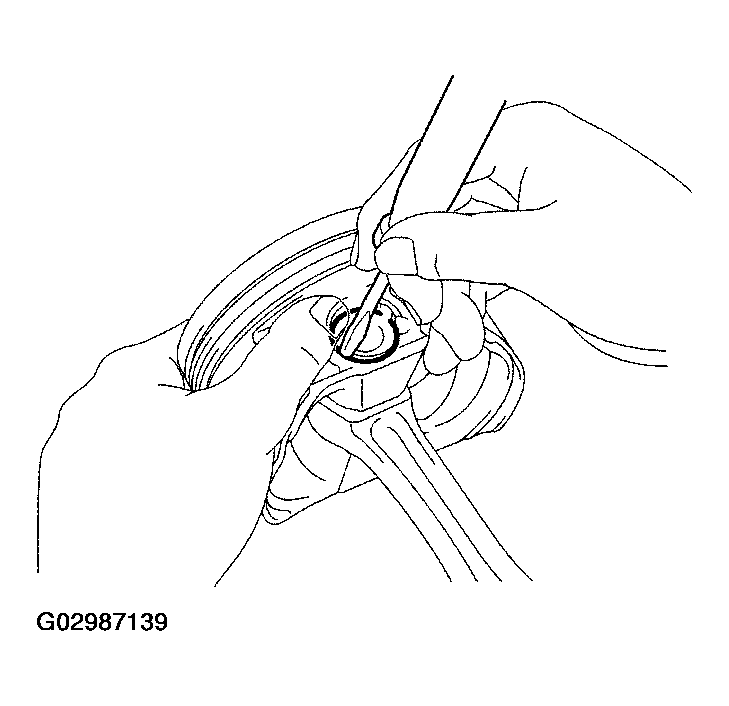

6. Using a small screwdriver, install a new snap ring on the other side of the piston pin hole.
Fig 4: Installing A New Snap Ring On Other Side Of Piston Pin Hole
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL PISTON RINGS

Install the oil ring expander and the 2 side rails by hand.

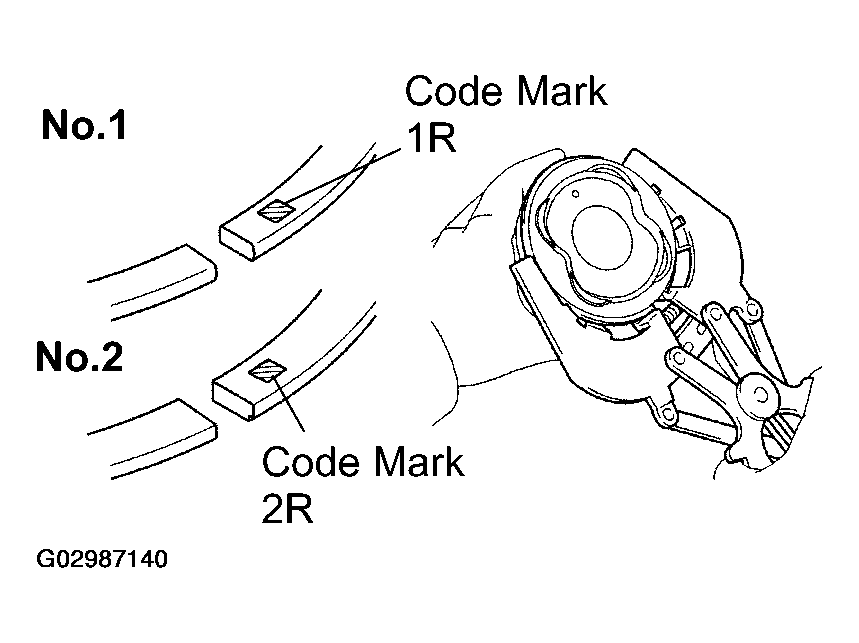

Using a piston ring expander, install the 2 compression rings with the code mark facing upward.

Code mark:

PISTON RINGS SPECIFICATION

No. 1	1R
No. 2	2R

Fig 5: Installing 2 Compression Rings

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Position the piston rings so that the ring ends are as shown.

NOTE: Do not align the ring ends.

Fig 6: Positioning Piston Rings

INSTALL BEARINGS

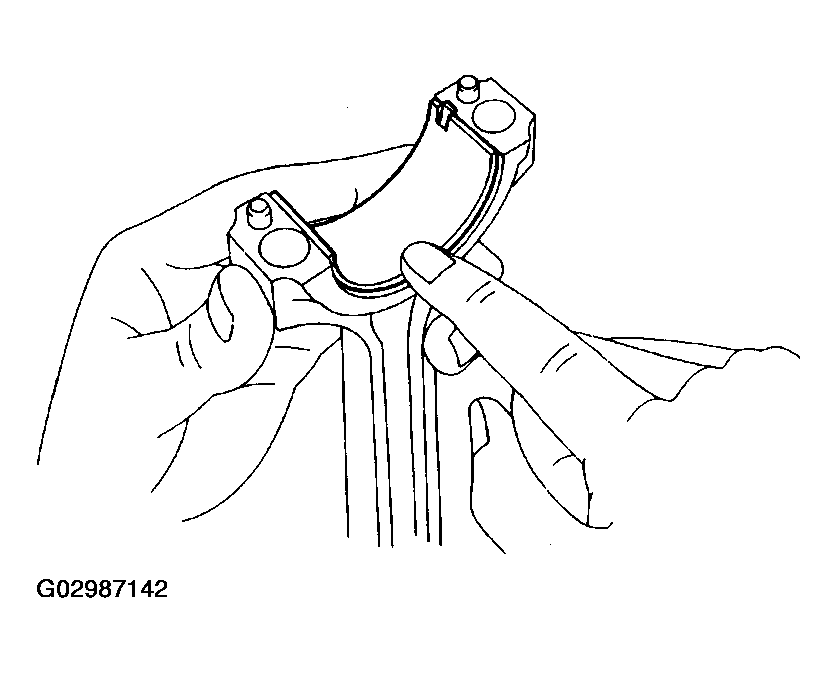

1. Align the bearing claw with the groove of the connecting rod or the connecting cap.
2. Install the bearings in the connecting rod and the connecting rod cap.
Fig 7: Installing Bearings In Connecting Rod
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL MAIN BEARINGS
HINT:

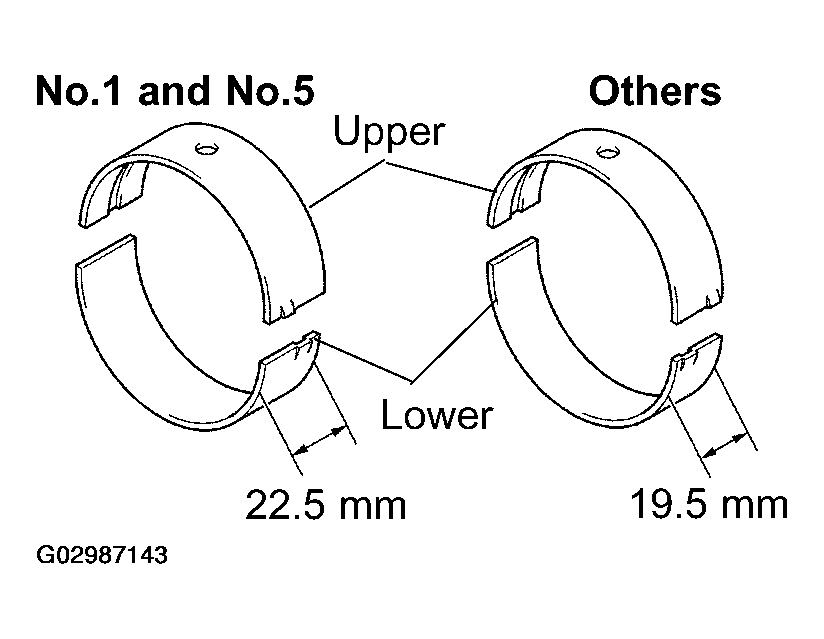

- Main bearings come in widths of 19.5 mm (0.768 in.) and 22.5 mm (0.886 in.). Install the 22.5 mm (0.886 in.) bearings in the No. 1 and No. 5 cylinder block journal positions with the main bearing cap. Install the 19.5 mm (0.768 in.) bearings in the other positions.
- Upper bearings have an oil groove and an oil holes; lower bearings do not.
Fig 8: Identifying Main Bearings
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

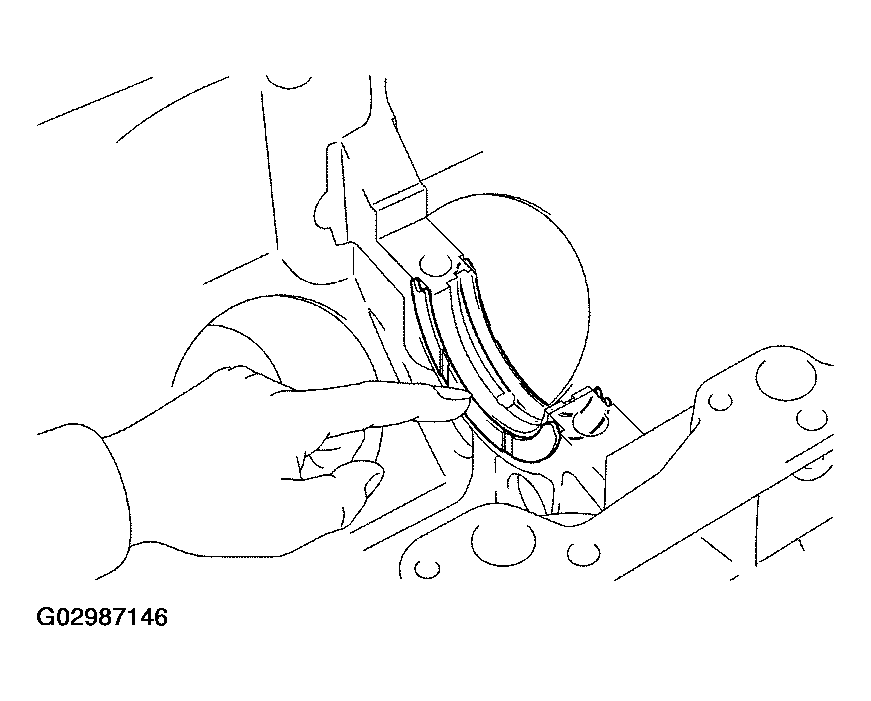

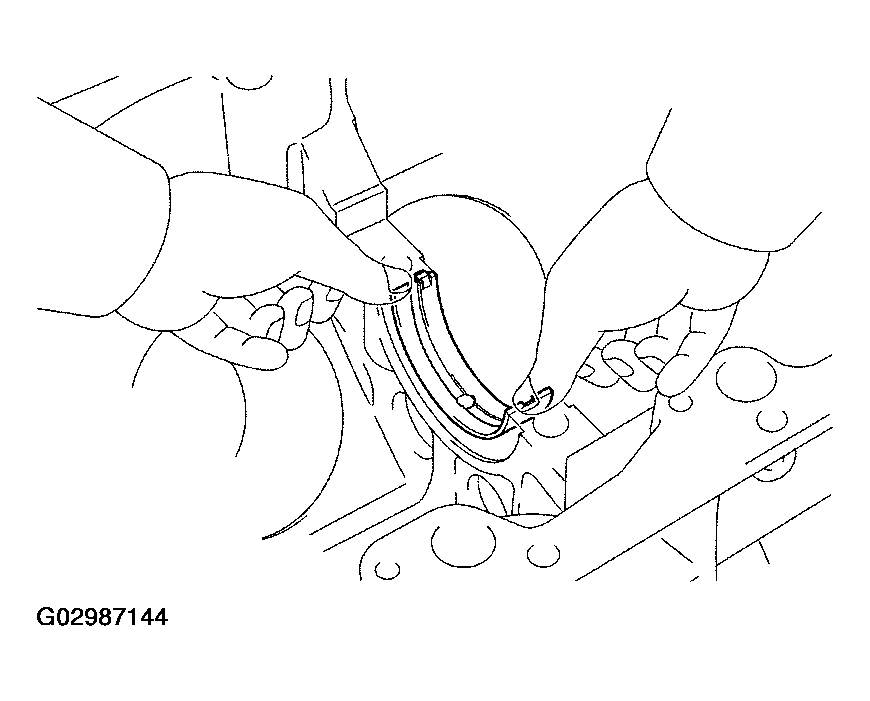

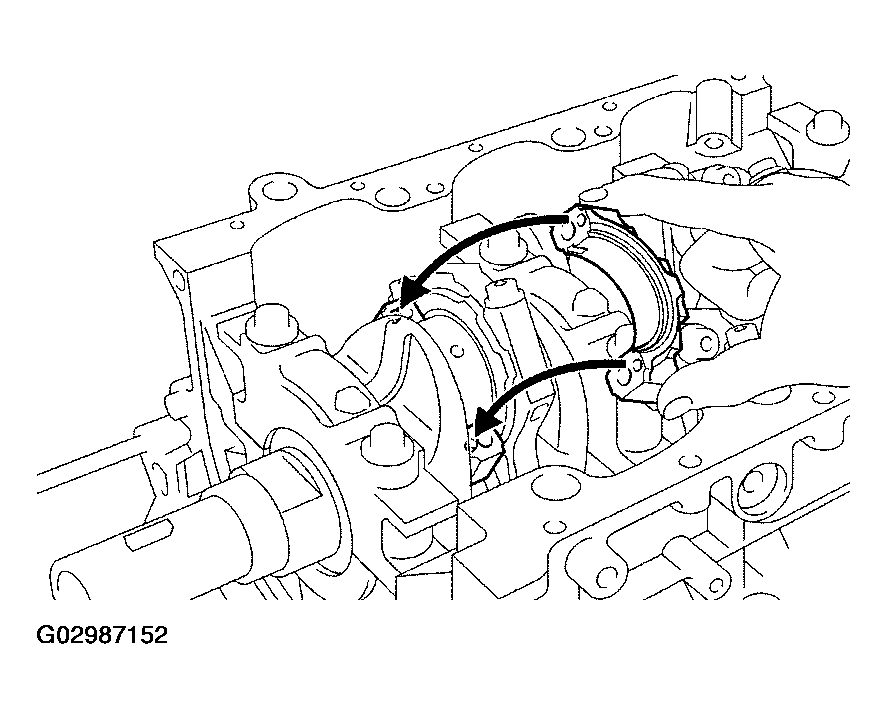

1. Align the bearing claw with the claw groove of the cylinder block, and push in the 5 upper bearings.

  Fig 9: Installing Main Bearing In Block
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

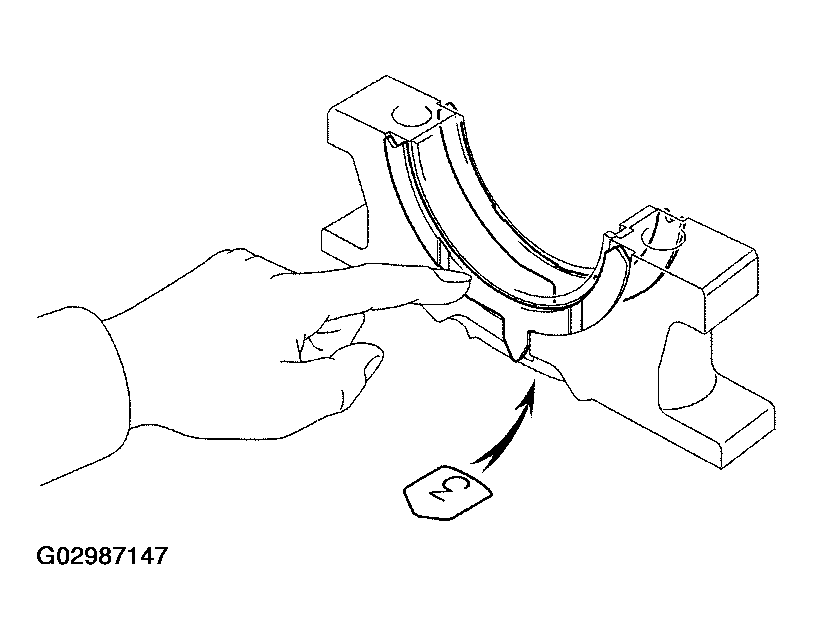

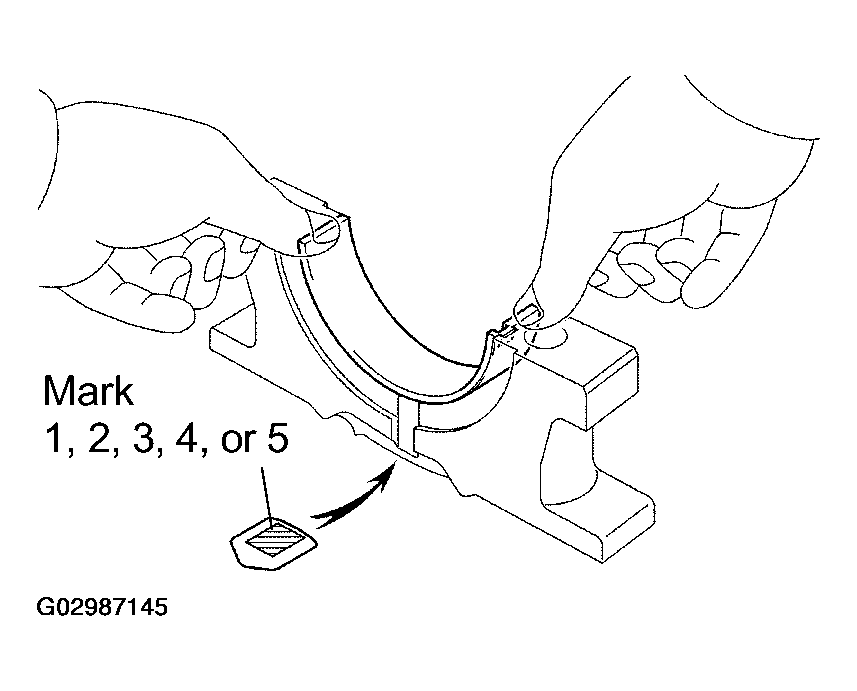

2. Align the bearing claw with the claw groove of the main bearing cap, and push in the 5 lower bearings.
HINT:

A number is marked on each main bearing cap to indicate the installation position.

Fig 10: Installing Main Bearing In Main Bearing Cap
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL UPPER THRUST WASHERS
Install the 2 thrust washers under the No. 3 journal position of the cylinder block with the oil grooves facing outward.

Fig 11: Installing Upper Thrust Washers
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PLACE CRANKSHAFT ON CYLINDER BLOCK
PLACE MAIN BEARING CAPS AND LOWER THRUST WASHERS ON CYLINDER BLOCK
1. Install the 2 thrust washers on the No. 3 bearing cap with the grooves facing outward.

  Fig 12: Installing Lower Thrust Washers On Bearing Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

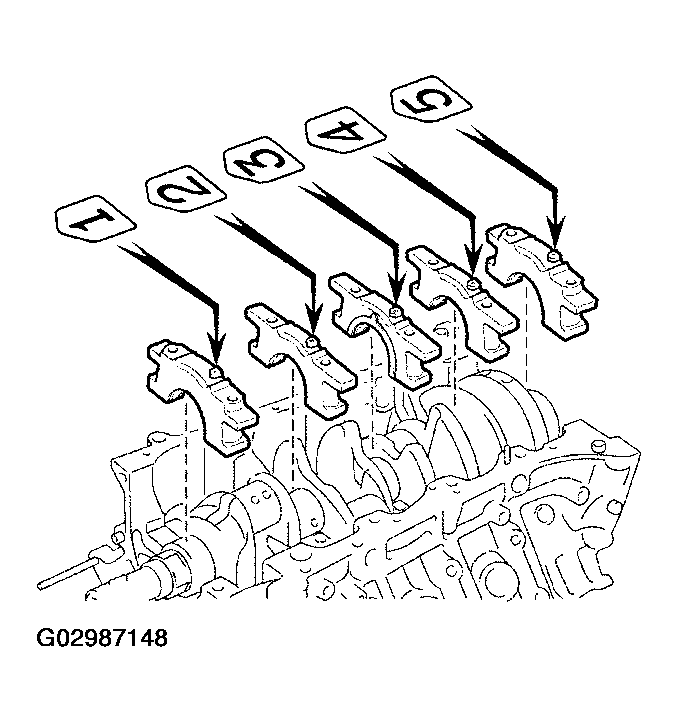

2. Install the 5 main bearing caps in their proper locations.

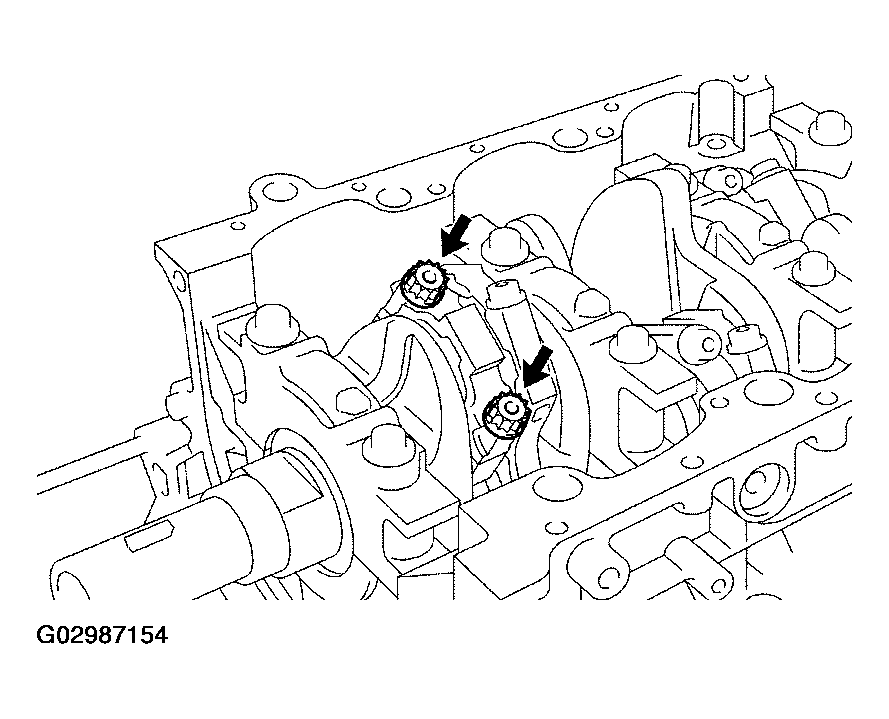

INSTALL MAIN BEARING CAP BOLTS
HINT:
- The main bearing cap bolts are tightened in 2 steps (steps and (d)).
- If any one of the main bearing cap bolts is broken or deformed, replace it.
Fig 13: Installing Main Bearing Caps
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Apply a light coat of engine oil on the threads and under the main bearing cap bolts.

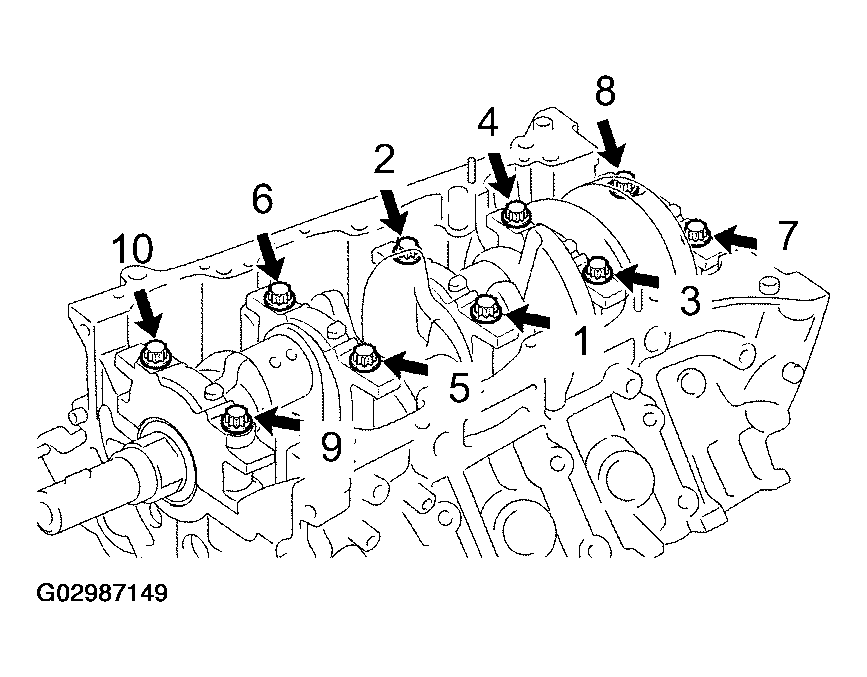

2. Install and evenly tighten the 10 main bearing cap bolts a little at a time for several times as in the sequence shown.
  Torque: 27 N.m (275 kgf.cm, 20 ft.lbf)

  If any one of the main bearing cap bolts does not meet the torque specification, replace the main bearing cap bolt.

  Fig 14: Main Bearing Cap Bolt Tightening Sequence
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

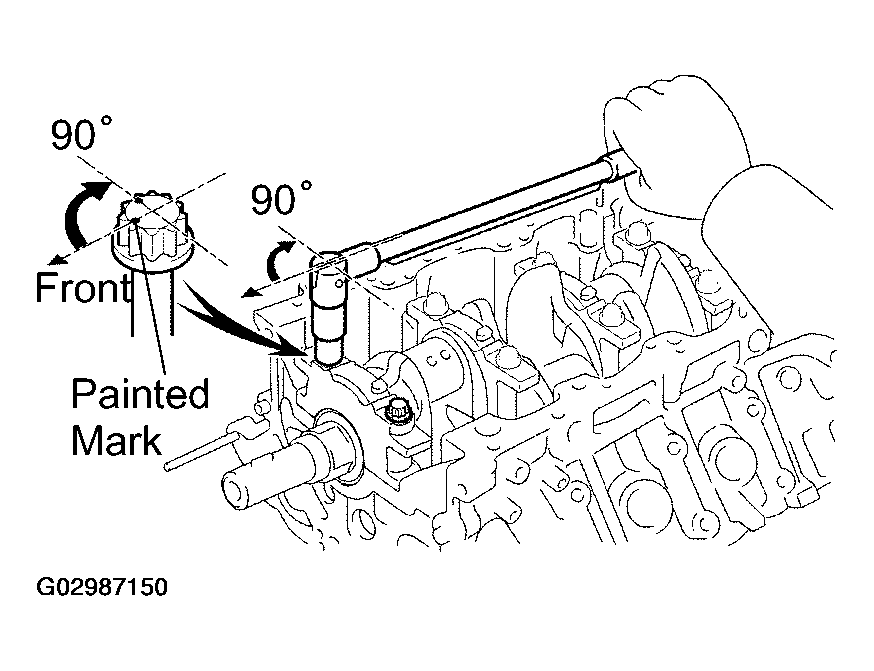

3. Mark the front of the main bearing cap bolt with paint.
4. Retighten the main bearing cap bolts by 90° in the numerical order shown.
5. Check that the painted mark is now at a 90° angle to the front.
6. Check that the crankshaft turns smoothly.
CHECK CRANKSHAFT THRUST CLEARANCE
(See DISASSEMBLY )
INSTALL PISTON AND CONNECTING ROD ASSEMBLES
Using a piston ring compressor, push the correctly numbered piston and connecting rod assemblies into each cylinder with the front mark of the piston facing forward.

NOTE: The shape of the piston varies for the LH and RH banks. The LH piston is marked with "LH" and "2R", the RH piston with "RH" and "2R".

Fig 16: Installing Piston And Connecting Rod Assembles
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PLACE CONNECTING ROD CAP ON CONNECTING ROD
1. Match the numbered connecting rod cap with the connecting rod.
2. Align the pin groove of the connecting rod cap with the pins of the connecting rod, and install the connecting rod cap.

  Fig 17: Installing Connecting Rod Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

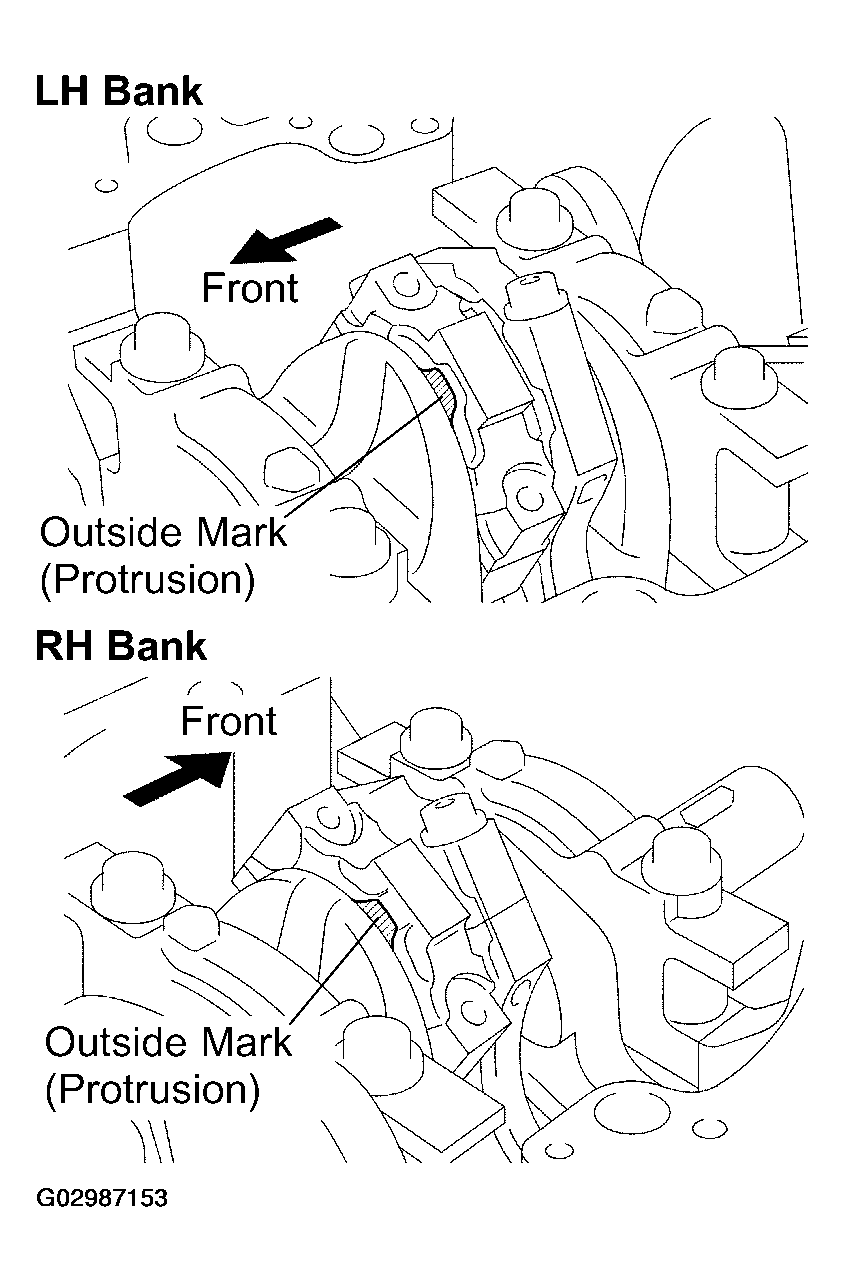

3. Check that the outside mark of the connecting rod cap is facing in correct direction.
INSTALL CONNECTING ROD CAP BOLTS
HINT:
- The connecting rod cap bolts are tightened in 2 steps (steps and (d)).
- If any one of the connecting rod cap bolts is broken or deformed, replace it.
1. Apply a light coat of engine oil on the threads and under the heads of the connecting rod cap bolts.
2. Install and alternately tighten the 2 connecting rod cap bolts a little at a time for several times.
  Torque: 24.5 N.m (250 kgf.cm, 18 ft.lbf)

  If any one of the connecting rod cap bolts does not meet the torque specification, replace the connecting rod cap bolts.

  Fig 19: Installing Connecting Rod Cap Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

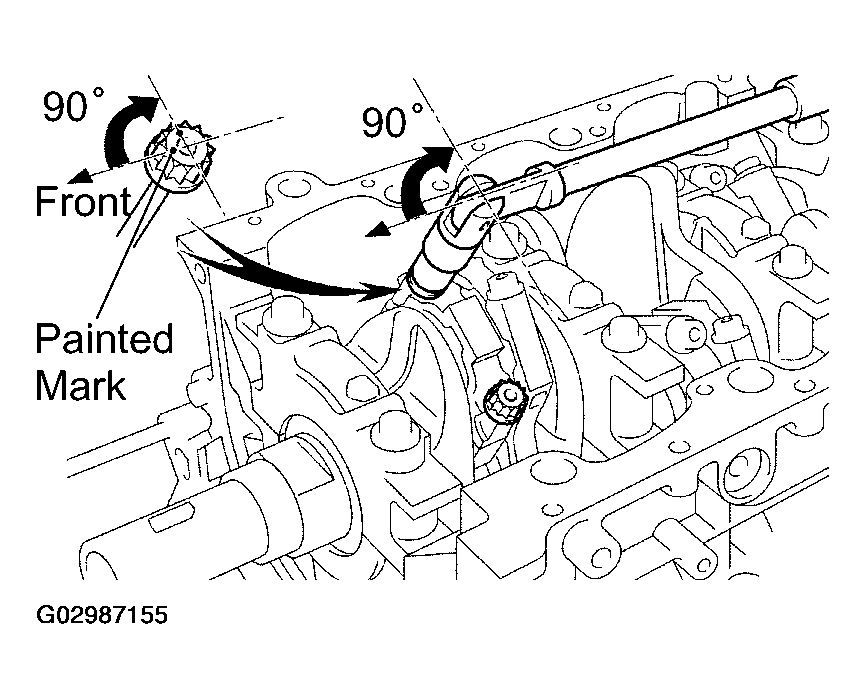

3. Mark the front of the connecting cap bolt with paint.
4. Retighten the cap bolts 90° as shown.
5. Check that the painted mark is now at a 90° angle to the front.
6. Check that the crankshaft turns smoothly.
CHECK CONNECTING ROD THRUST CLEARANCE
(See DISASSEMBLY )
INSTALL REAR OIL SEAL RETAINER
1. Remove any old packing (FIPG) material, and be careful not to drop any oil on the contact surfaces of the oil seal retainer and the cylinder block.
  - Using a razor blade and a gasket scraper, remove old FIPG from the seal surface.
  - Clean all the components to remove the redundant FIPG completely.
  - Clean sealing surfaces with solvent so that any residue does not remain on the seal.

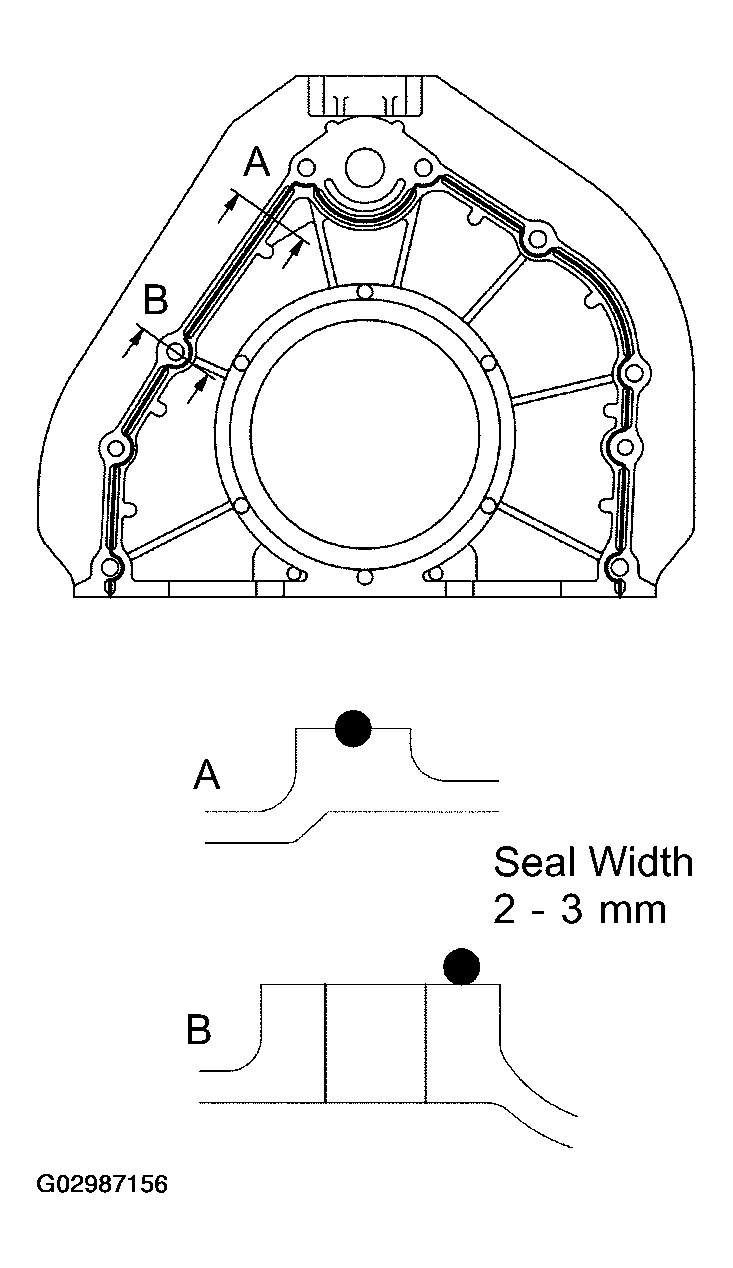

2. Apply seal packing to the oil seal retainer as shown in the illustration.
  Seal packing: Part No. 08826-00080 or equivalent
  - Install a nozzle that is cut to a 2 - 3 mm (0.08-0.12 in.) opening.
  - Parts must be assembled within 5 minutes after the seal packing application. Otherwise the material must be removed and the seal packing have to be reapplied.
  - Immediately remove the nozzle from the tube and reinstall the cap.
  Fig 21: Applying Seal Packing To Oil Seal Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

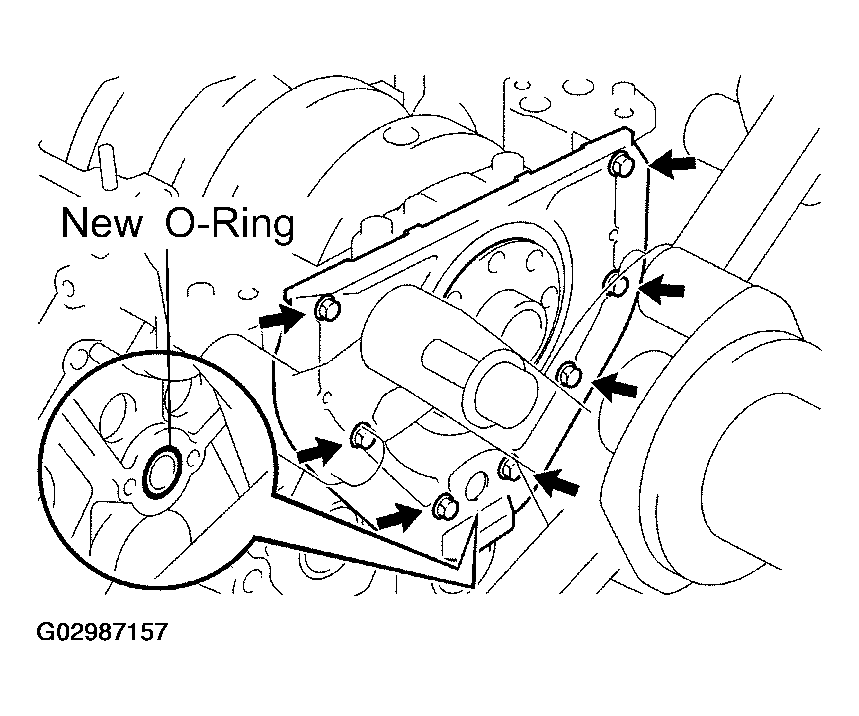

3. Install a new O-ring to the cylinder block.
4. Install the oil seal retainer with the 7 bolts.
  Torque: 8.0 N.m (80 kgf.cm, 71 in.lbf)
Fig 22: Installing A New O-Ring To Cylinder Block
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ENGINE COOLANT DRAIN UNIONS

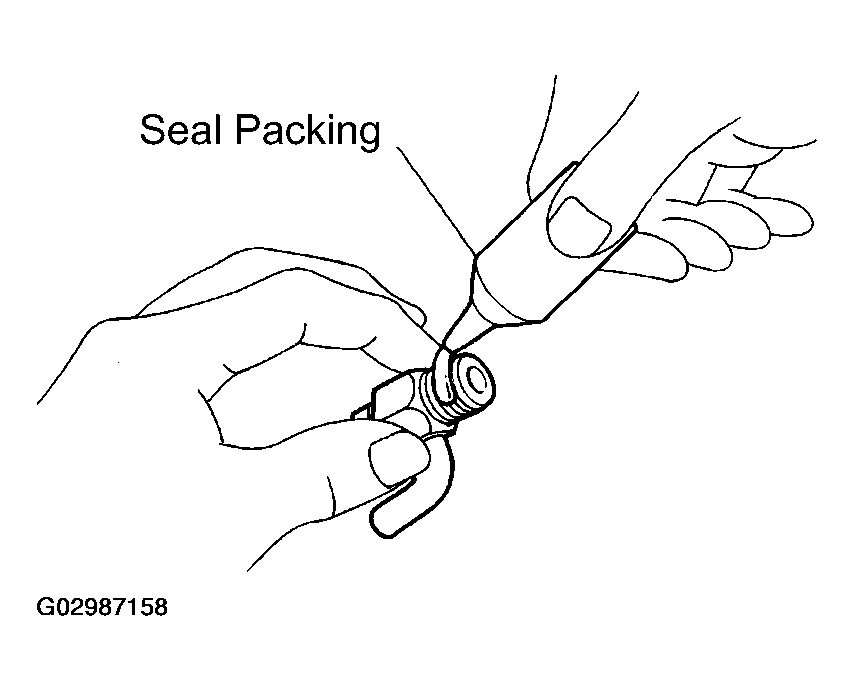

1. Apply seal packing to 2 or 3 threads from the end of the drain unions.
  Seal packing: Part No. 08826-00100 or equivalent

  Fig 23: Installing Engine Coolant Drain Unions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 drain unions.
  Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)
HINT:

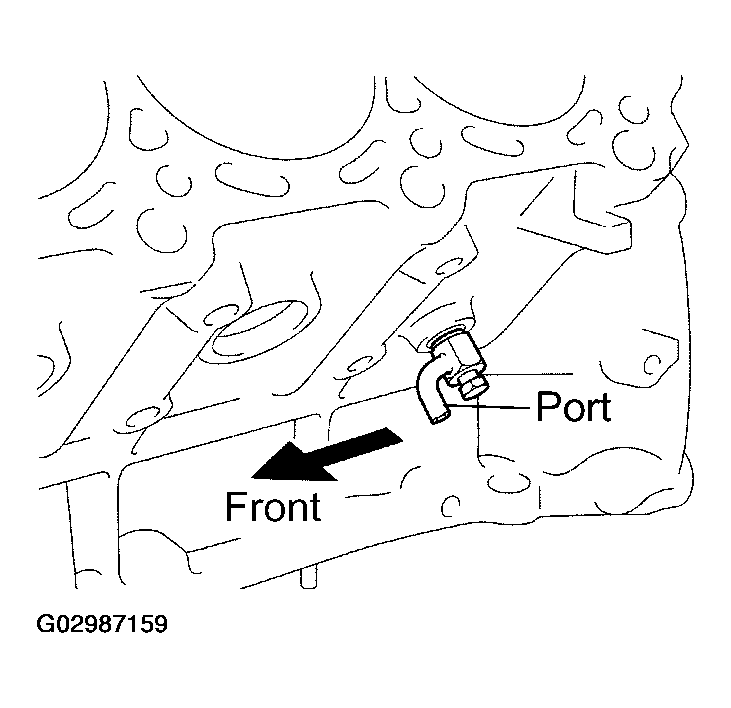

After applying the specified torque, rotate the drain union clockwise until the drain port is facing forward.

Fig 24: Identifying Drain Union Position
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OIL PUMP (See INSTALLATION )
INSTALL OIL STRAINER (See INSTALLATION )
INSTALL NO. 1 OIL PAN (See INSTALLATION )
INSTALL OIL PAN BAFFLE PLATE
(See INSTALLATION )
INSTALL NO. 2 OIL PAN (See INSTALLATION )
INSTALL WATER PUMP (See INSTALLATION )
INSTALL ENGINE MOUNTING BRACKETS
Install the mounting bracket with the 4 bolts. Install the 2 mounting brackets.

Torque: 36 N.m (370 kgf.cm, 27 ft.lbf)

Fig 25: Installing Engine Mounting Brackets
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

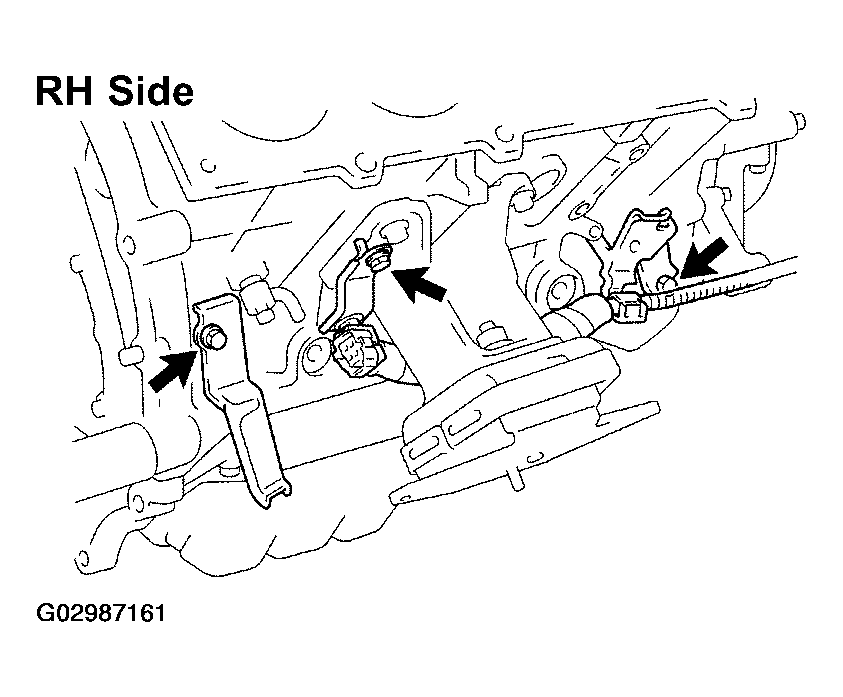

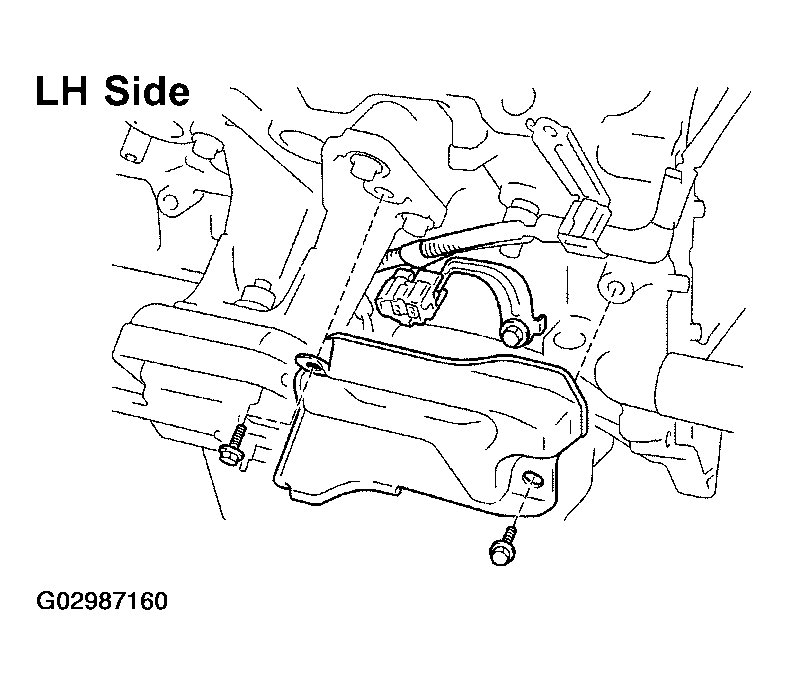

INSTALL ENGINE WIRE TO LH SIDE OF CYLINDER BLOCK
1. Install the bracket on the engine wire with the bolt.
2. Install the engine wire cover with the 2 bolts.
INSTALL ENGINE WIRE TO RH SIDE OF CYLINDER BLOCK
Install the 2 brackets on the engine wire with the 2 bolts.
INSTALL OIL COOLER PIPE BRACKET FOR A/T
Install the bracket with the bolt.
INSTALL KNOCK SENSORS (See INSPECTION )
INSTALL STARTER (See INSTALLATION )

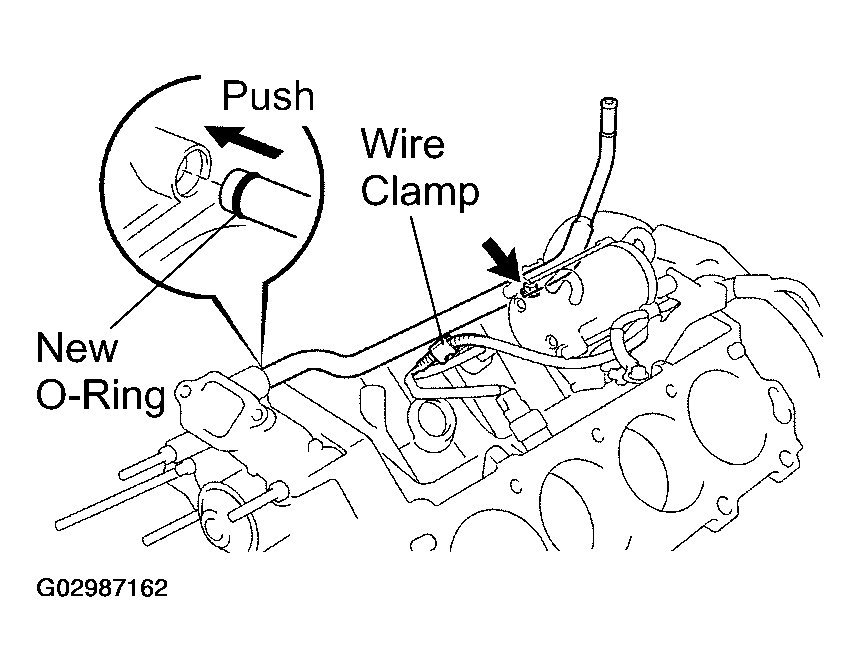

INSTALL WATER BYPASS PIPE
1. Install a new O-ring to the water bypass pipe.
2. Apply soapy water to the O-ring.
3. Push the water bypass pipe end into the pipe hole of the water pump.
4. Install the water bypass pipe with the bolt.
  Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)

  Fig 27: Installing Engine Water Bypass Pipe
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the wire clamp to the bracket of the water bypass pipe.
INSTALL CYLINDER HEADS (See INSTALLATION )
INSTALL TIMING BELT AND PULLEYS
(See INSTALLATION )
DISCONNECT ENGINE FROM ENGINE STAND
