Section 23 (Air Conditioning System - Diagnostics): Pre-Check

WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
  1. Warning for A/C compressor lock

    If compressor lock occurs during A/C operation, the A/C switch indicator on the A/C control assembly starts blinking.

    When this occurs, check for compressor lock (DTC 22) using diagnosis trouble code check, and then proceed to inspect the circuit or the component.

    Compressor lock sensor circuit. --> (See DTC 22 COMPRESSOR LOCK SENSOR CIRCUIT  )

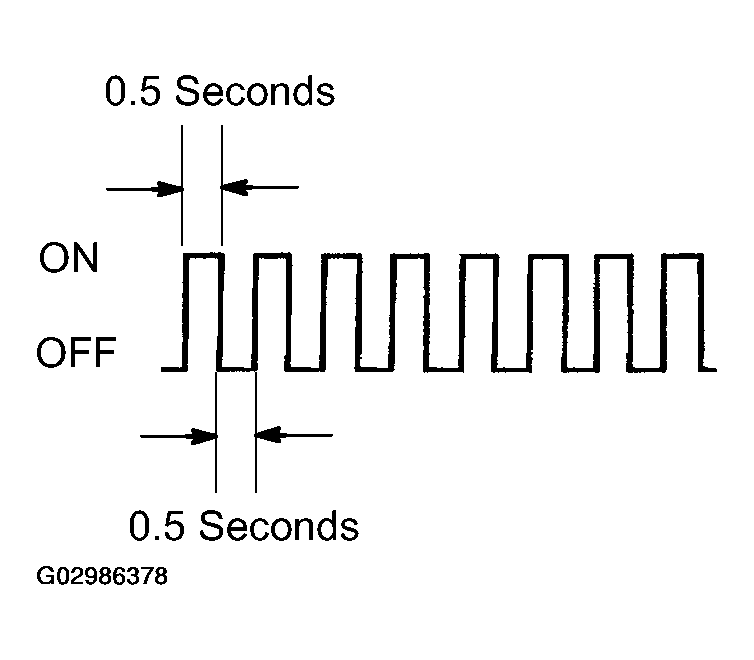

    Fig 1: Identifying A/C Switch Indicator Blinking Pattern
    G02986378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. LIST OF OPERATION METHODS

    By operating each of the A/C control switches as shown in the diagram below, it is possible to enter the diagnosis check mode.

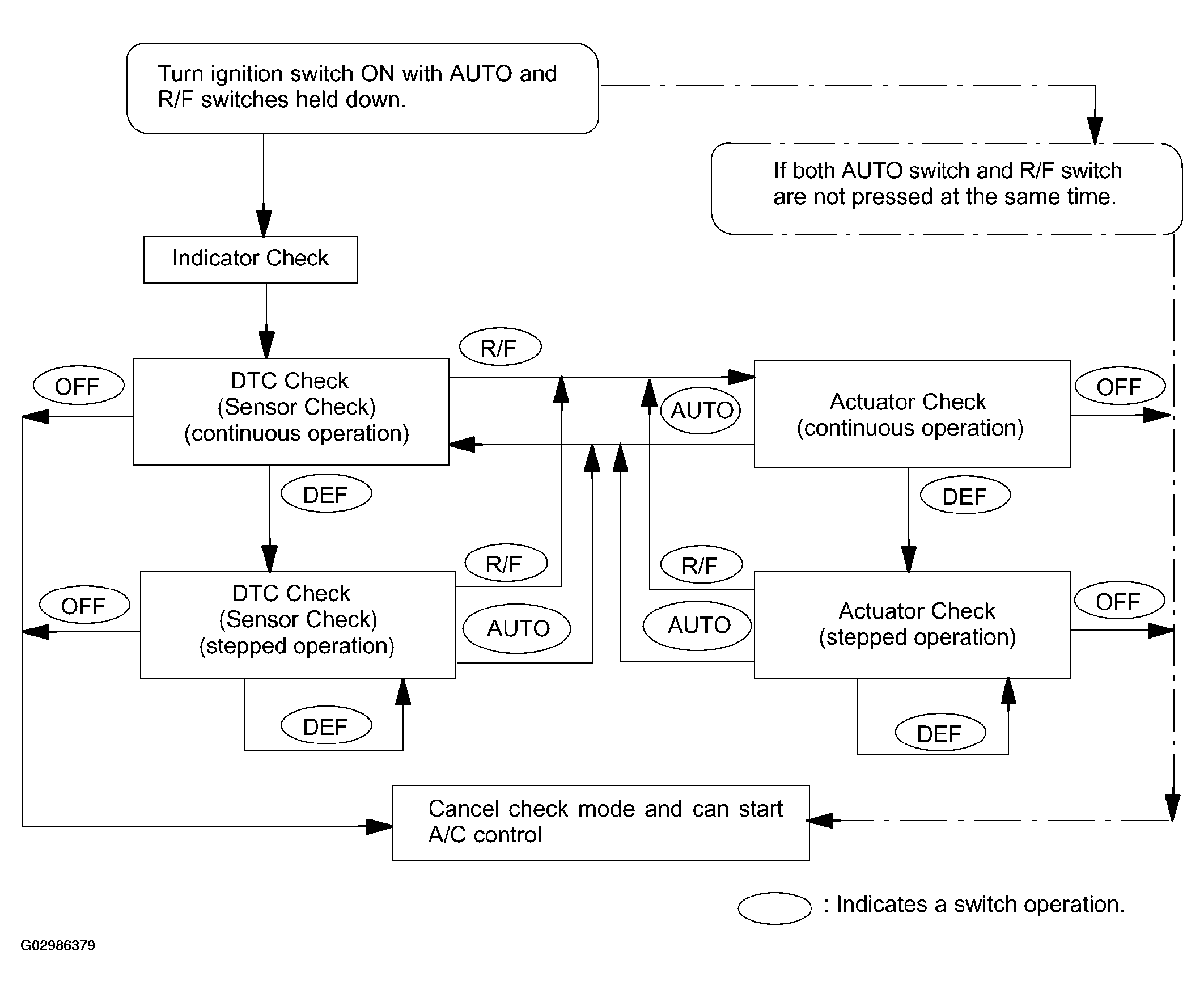

    Fig 2: Operation Methods Flowchart
    G02986379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INDICATOR CHECK
    1. Turn the ignition switch to on while pressing the A/C control AUTO SW and R/F SW simultaneously.

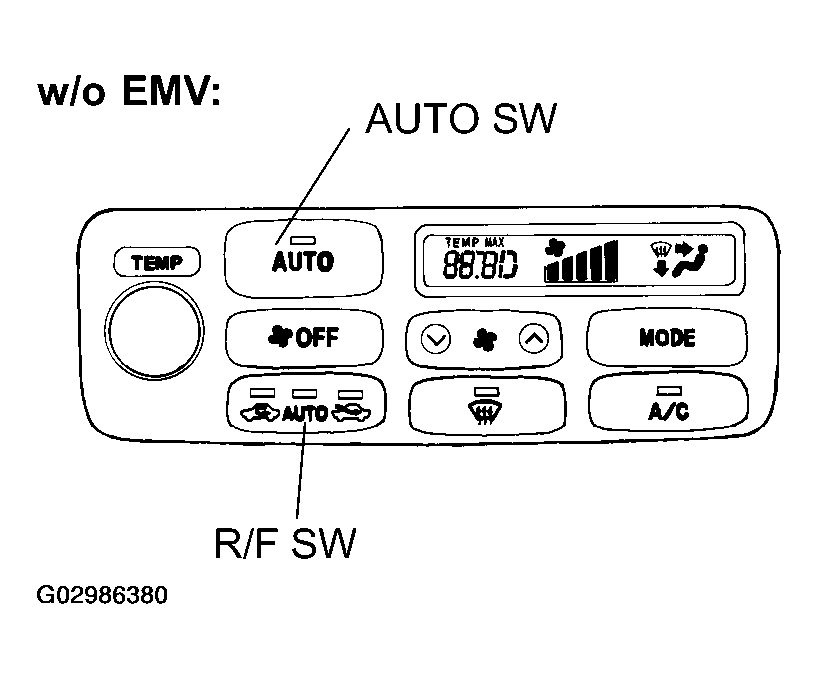

      Fig 3: Identifying A/C Control AUTO SW And R/F SW (W/O EMV)
      G02986380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

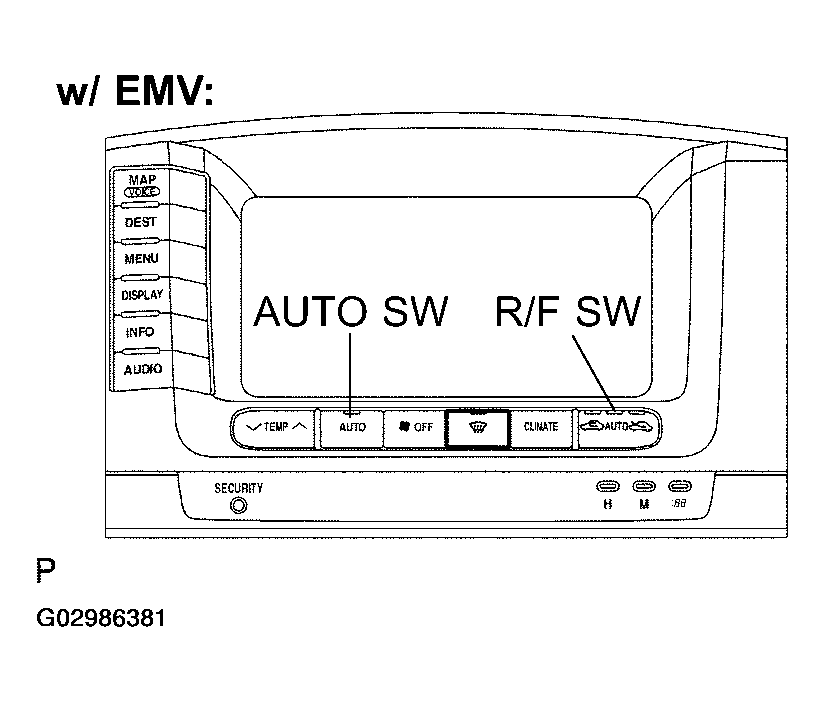

      Fig 4: Identifying A/C Control AUTO SW And R/F SW (W EMV)
      G02986381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check that all the indicators light up and go off 4 times in succession at 1 second intervals.

    HINT:

    • After the indicator check ends, the diagnostic trouble code check begins automatically.
    • Press the OFF SW when desiring to cancel the check mode.

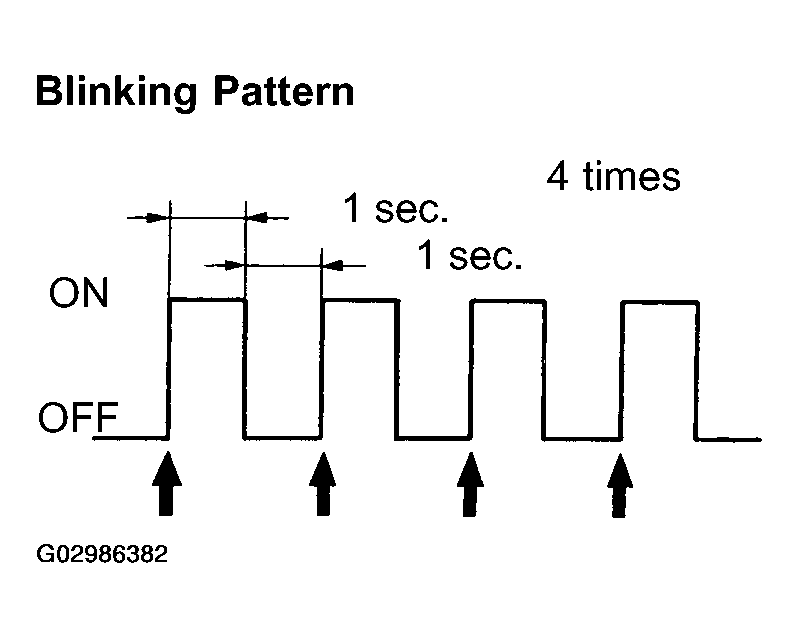

    Fig 5: Identifying Blinking Pattern
    G02986382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DTC CHECK (SENSOR CHECK)
    1. Perform an indicator check. After the indicator check is completed, the system enters the DTC check mode automatically.
    2. Read the DTC displayed on the panel. Refer to the list of DTCs on DIAGNOSTIC TROUBLE CODE CHART  when reading the DTCs.

      If the slower display is desired, press the DEF SW and change it to step operation. Every time the DEF SW is pressed, the display changes by 1 step.

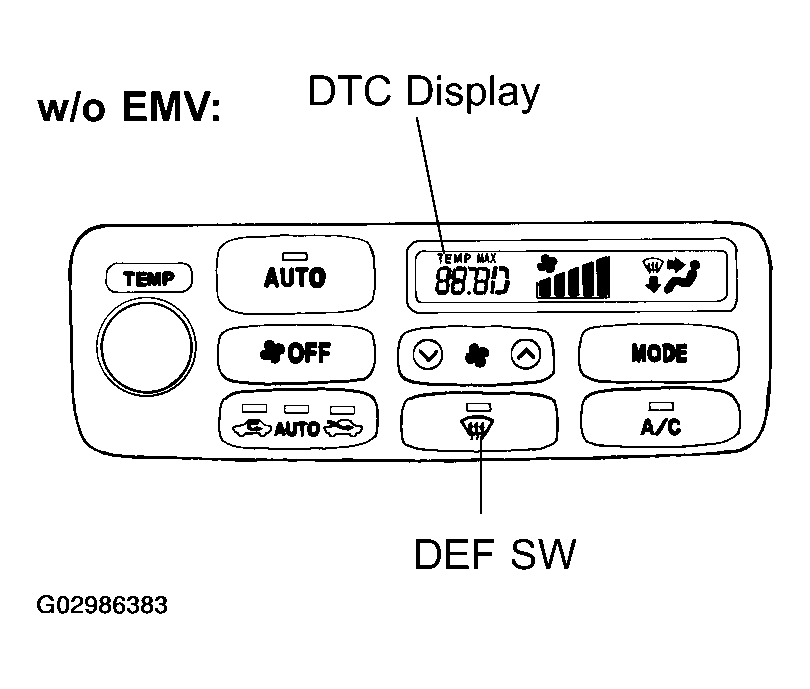

    Fig 6: Identifying DTC Display And DEF SW (W/O EMV)
    G02986383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

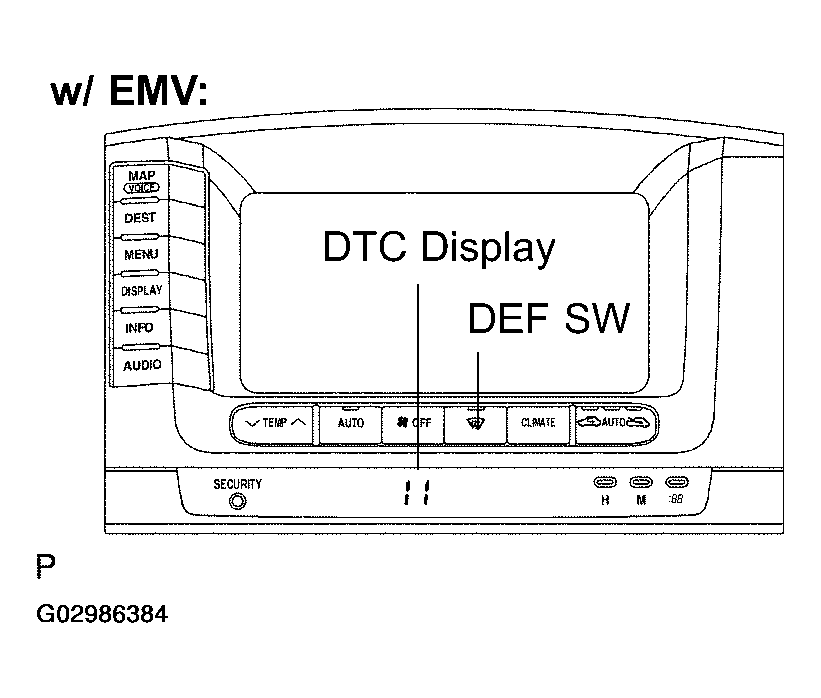

    Fig 7: Identifying DTC Display And DEF SW (W EMV)
    G02986384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. ACTUATOR CHECK
    1. After entering the sensor check mode, press the R/F SW.
    2. Since each damper, motor and relay automatically operates at 1 second intervals beginning in order from 20 in the temperature display, check the temperature and air flow visually and manually.

      If a slower display is desired, press the DEF SW and change it to step operation. Every time the DEF SW is pressed, the display changes by 1 step.

    HINT:

    • buzzer sounds when the display trouble code changes.
    • Code are displayed in order from the smaller to the larger numbers.
    • To cancel the check mode, press the OFF SW.

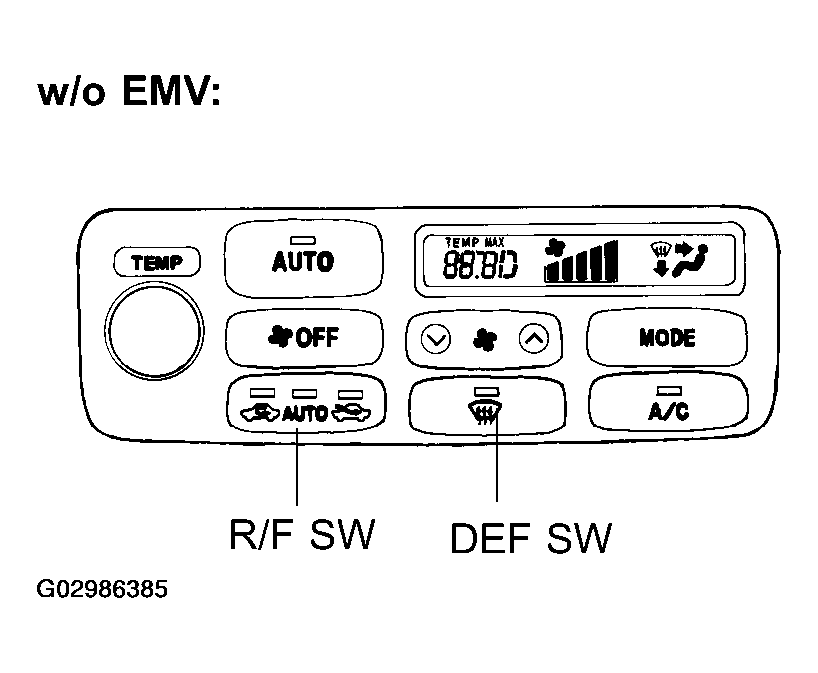

    Fig 8: Identifying R/F SW And DEF SW (W/O EMV)
    G02986385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

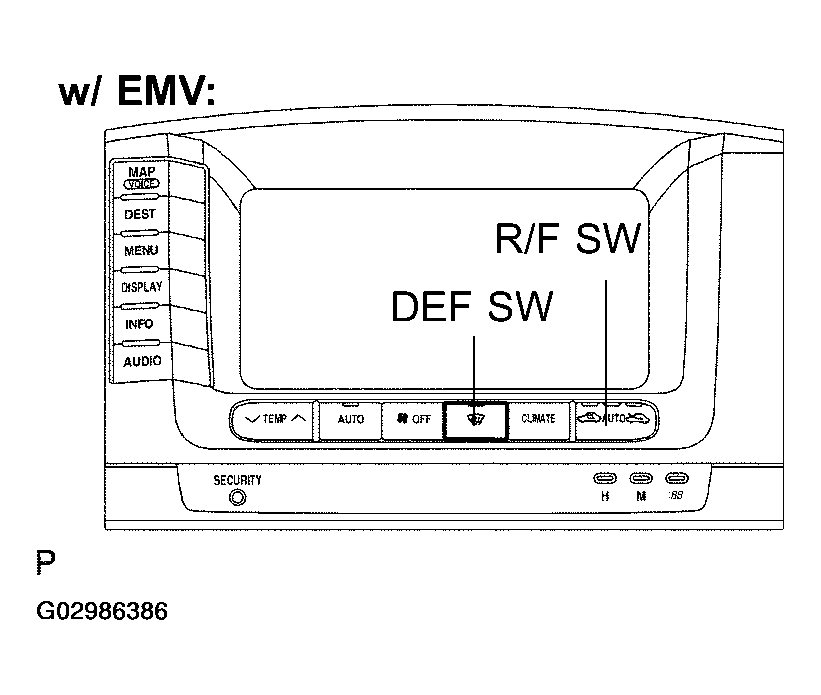

    Fig 9: Identifying R/F SW And DEF SW (W EMV)
    G02986386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

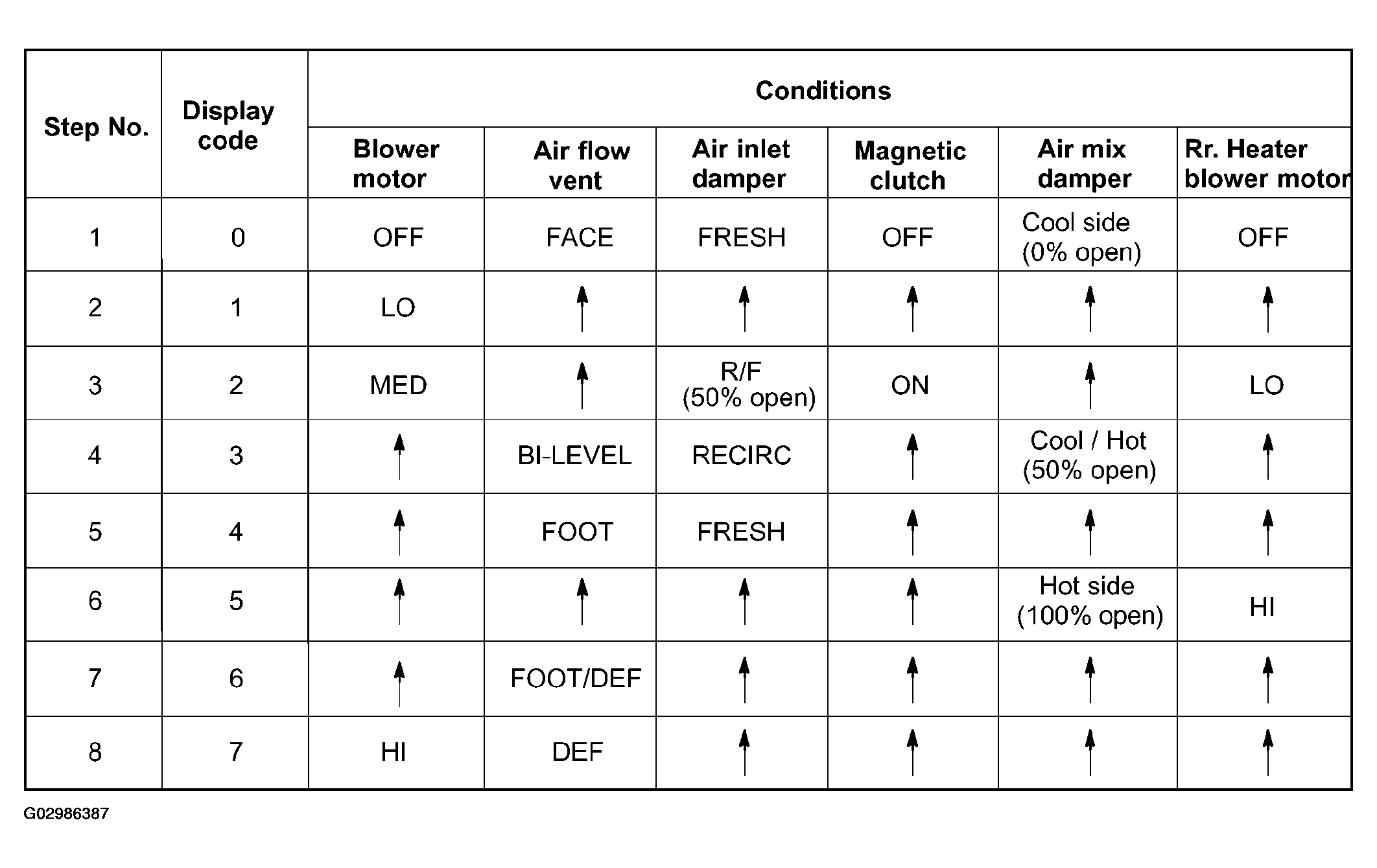

    Fig 10: Display Codes Condition Chart
    G02986387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. CLEARING DTC
    1. Pull out the CIG fuse in cowl side J/B LH for 10 sec. or longer to clear diagnostic the DTC's memory.
    2. After reinserting the fuse, check that the normal code is output.

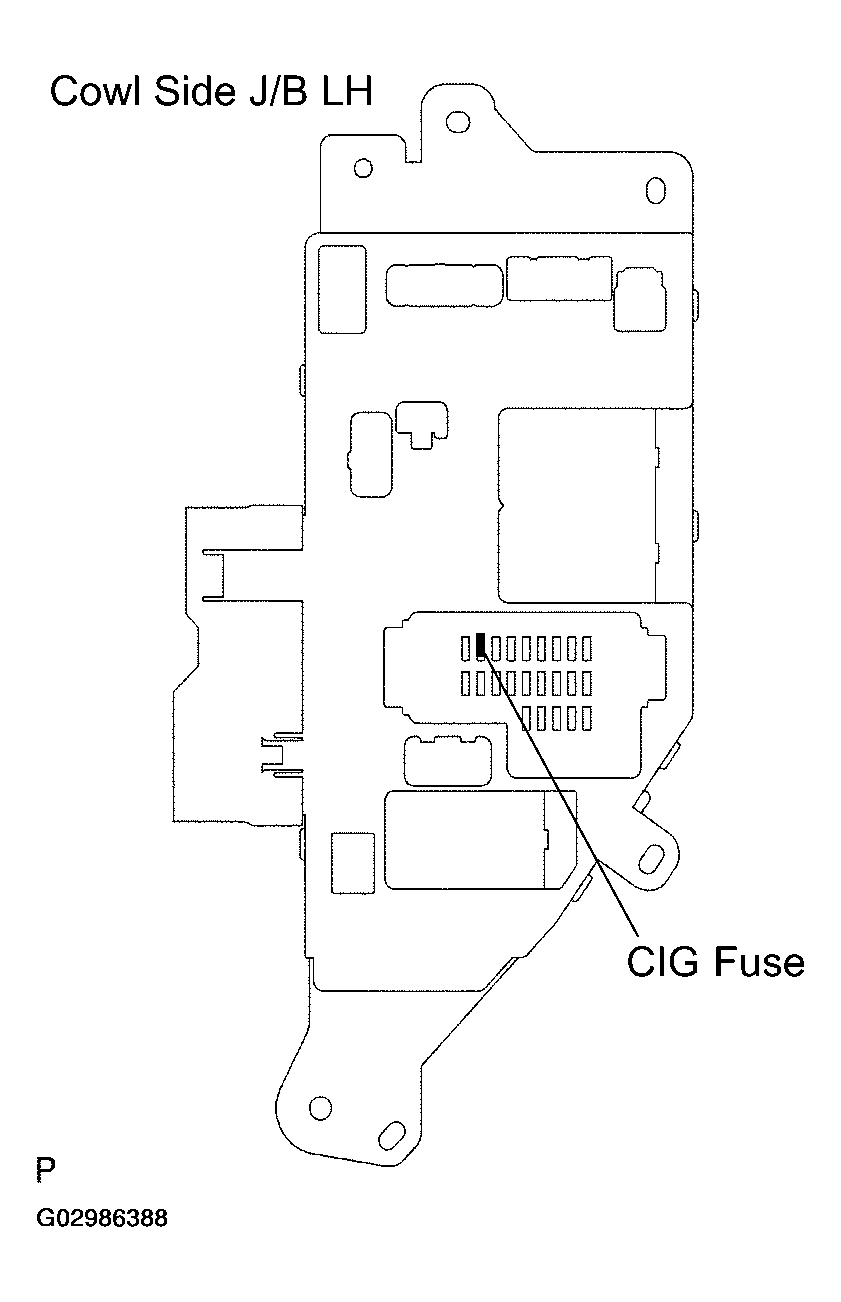

    Fig 11: Identifying CIG Fuse Location In Cowl Side J/B LH
    G02986388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. CEHCK DLC3

    The vehicle's ECM uses the ISO 9141-2 communication protocol. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 9141-2 format.

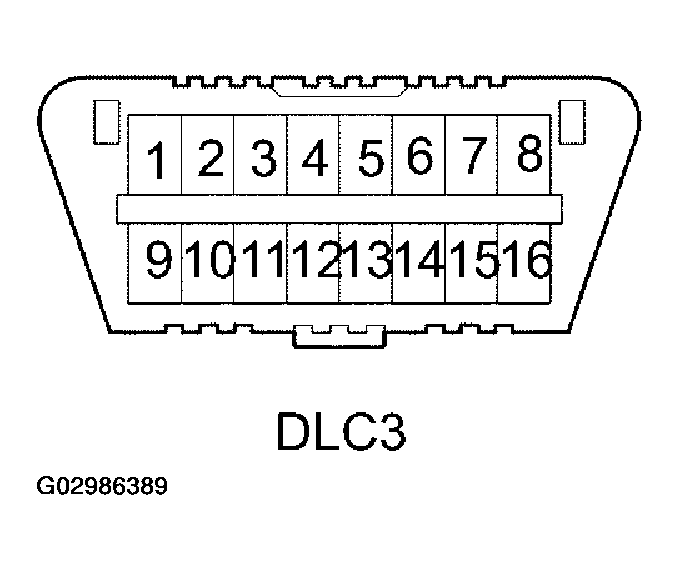

    Fig 12: Identifying DLC3 Connector Terminals
    G02986389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TERMINAL CONNECTION CONDITION

    Terminal No. Connection/Voltage or Resistance Condition
    7 Bus + Line/Pulse generation During transmission
    4 Chassis Ground <--> Body Ground/1 <--> or less Always
    5 Signal Ground <--> Body Ground/1 <--> or less Always
    16 Battery Positive <--> Body Ground/9 - 14 V Always
  8. DATA LIST

    HINT:

    According to the DATA LIST displayed by LEXUS hand-held tester, you can read the value of the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as a first step of troubleshooting is one of the method to shorten the labor time.

    1. Connect the LEXUS hand-held tester to the DLC3.
    2. Turn the ignition switch ON.
    3. According to the display on tester, read the "DATA LIST".

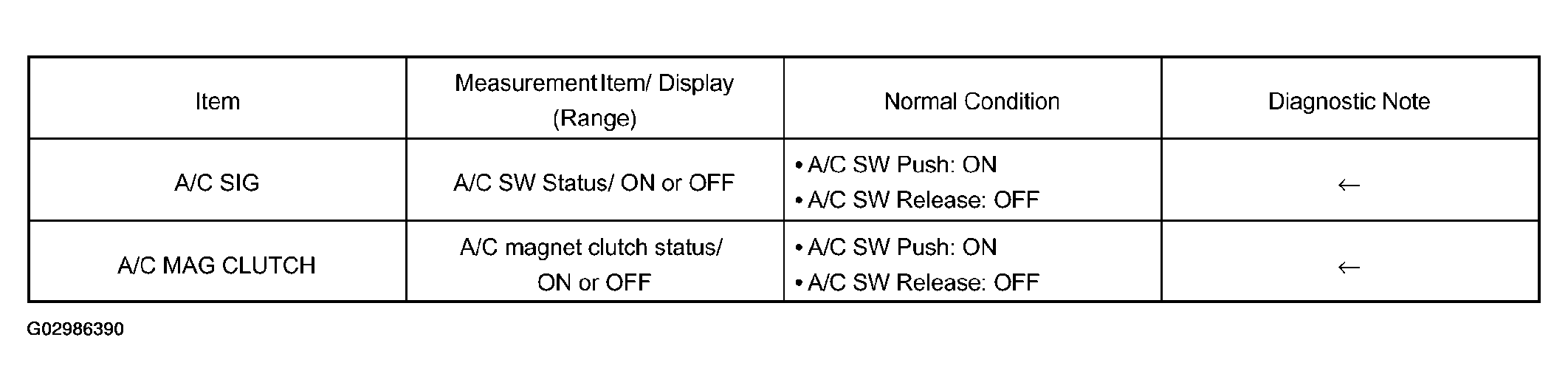

    Fig 13: Data List
    G02986390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. ACTIVE TEST

    HINT:

    Performing the ACTIVE TEST using LEXUS hand-held tester allows the relay, VSV, actuator and so on to operate without parts removal. Performing the ACTIVE TEST as a first step of troubleshooting is one of the method to shorten the labor time.

    It is possible to display the DATA LIST during the ACTIVE TEST.

    1. Connect the LEXUS hand-held tester to the DLC3.
    2. Turn the ignition switch ON.
    3. According to the display on tester, read the "DATA LIST".
    ACTIVE TEST DATA LIST

    Item Test Details Diagnostic Note
    A/C MAG CLUTCH Control the A/C magnet clutch ON/OFF -
