Diagnostic Trouble Code Chart
WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
If malfunction code is displayed during the DTC check, check the circuit listed for that code in the table below.

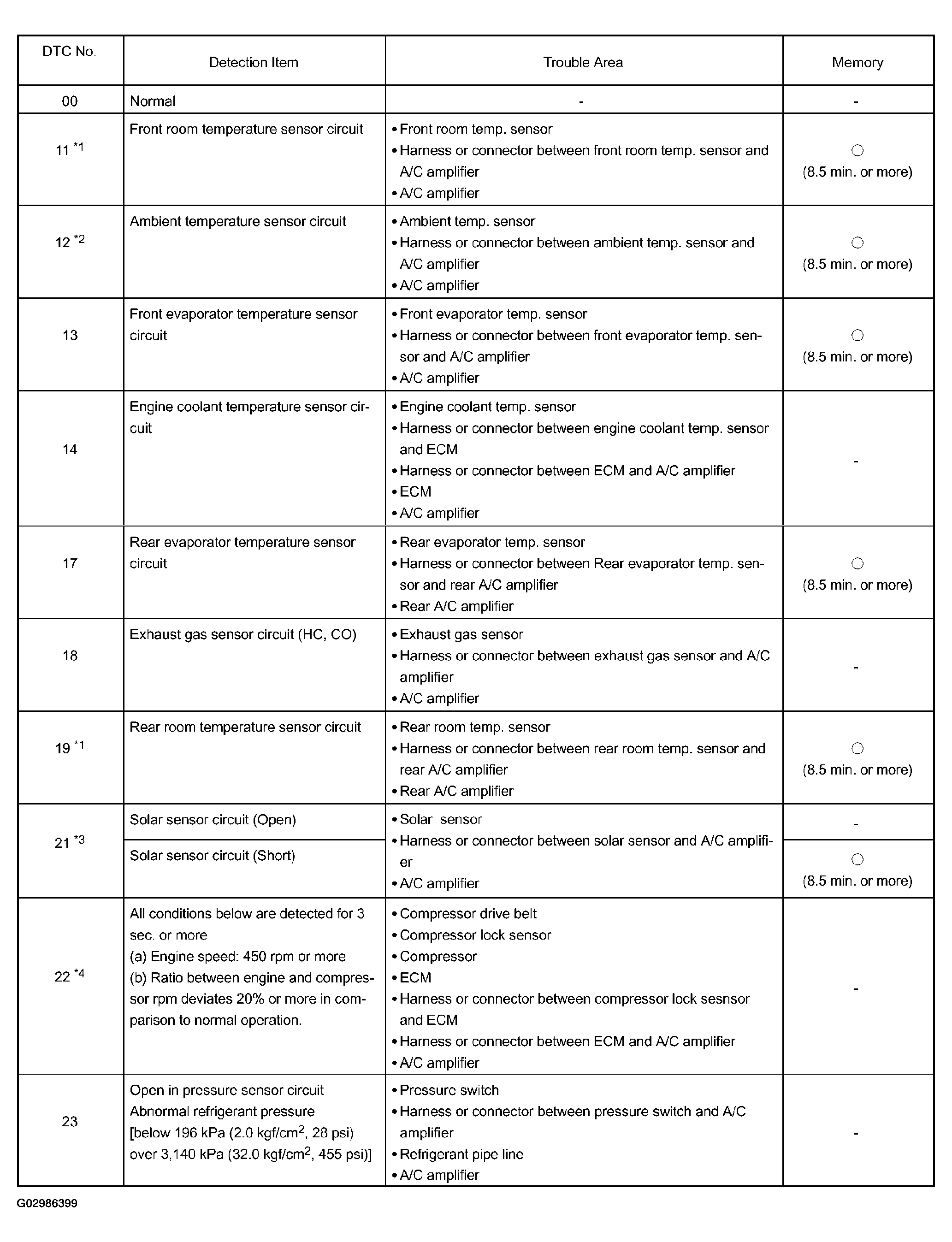

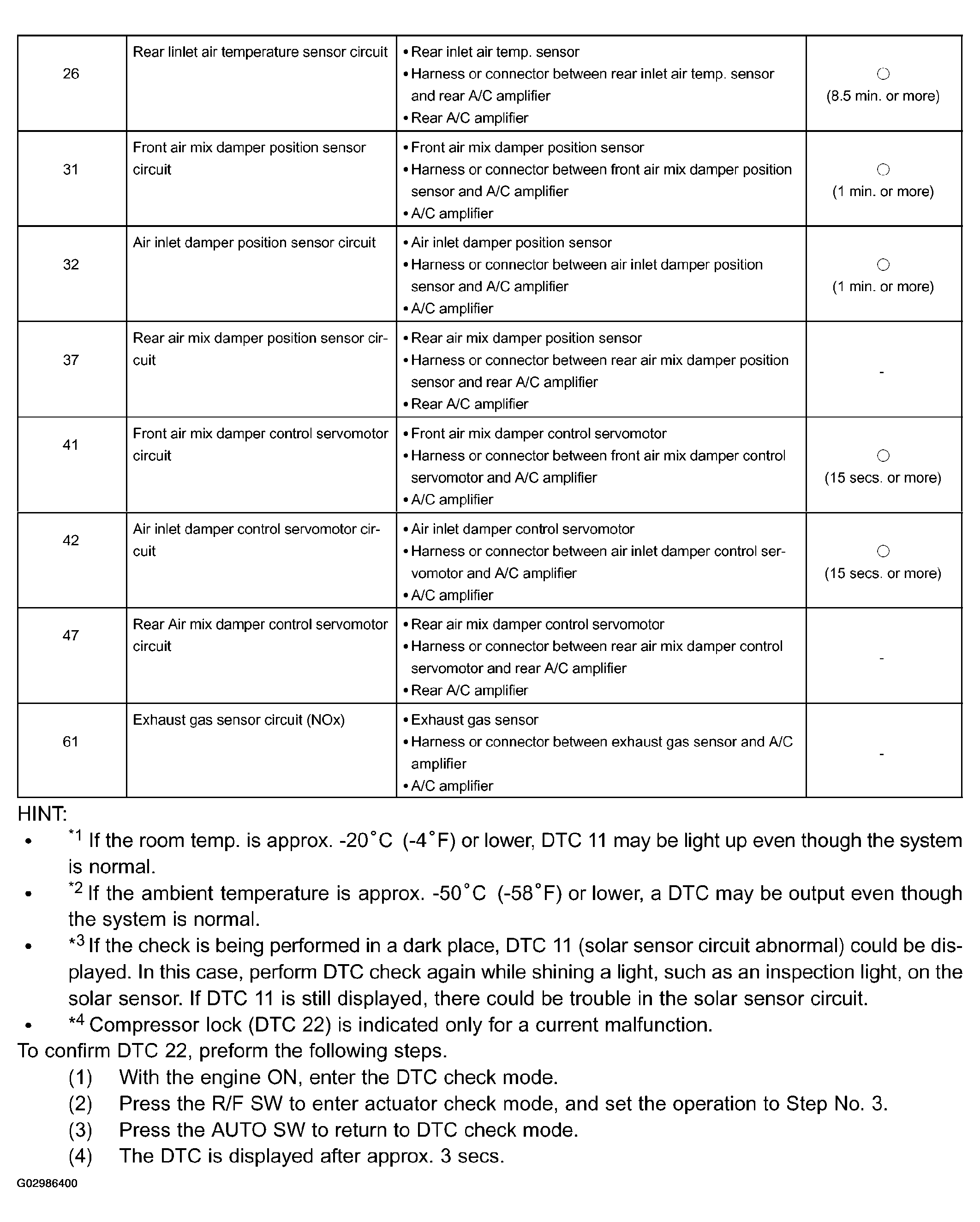

DIAGNOSTIC TROUBLE CODE CHART
| DTC | Description |
|---|---|
| DTC 11 | Front Room Temperature Sensor Circuit |
| DTC 12 | Ambient Temperature Sensor Circuit |
| DTC 13 | Front Evaporator Temperature Sensor circuit |
| DTC 14 | Engine Coolant Temperature Sensor Circuit |
| DTC 17 | Rear Evaporator Temperature Sensor Circuit |
| DTC 18 | Exhaust gas sensor circuit (HC, CO) |
| DTC 19 | Rear Room Temperature Sensor Circuit |
| DTC 21 | Solar Sensor Circuit |
| DTC 22 | Compressor Lock Sensor Circuit |
| DTC 23 | Pressure Switch Circuit |
| DTC 31,41 | Front Air Mix Damper Position Sensor Circuit |
| DTC 32, 42 | Air Inlet Damper Position Sensor Circuit |
| DTC 37, 47 | Rear Air Mix Damper Position Sensor Circuit |
| DTC 41 | Front Air Mix Damper Control Servomotor Circuit |
| DTC 42 | Air Inlet Damper Control Servomotor Circuit |
| DTC 47 | Rear Air Mix Damper Control Servomotor Circuit |
| DTC 61 | Exhaust Gas Sensor Circuit (NOx) |
